MCY 12-in-1 USB C Docking Station with VGA

Sale price$65.99 Regular price$99.99
Save 34%
颜色:Gray
Quantity:
Brand MCY
Color Gray
Hardware Interface USB Type C
Compatible Devices Mac Book, Xiaomi, Samsung, Dell, Asus, Huawei, Lenovo, Google, Samsung S8/S8+/S9/S9+, Huawei Mate 10/P20 and mobile phones,laptops with TYPE-C that support video and data transmission
Total USB Ports 5
Item Dimensions LxWxH 5.02 x 2.36 x 0.57 inches
Number of Ports 12
Item Weight 0.31 Pounds
Total HDMI Ports 2





About this item

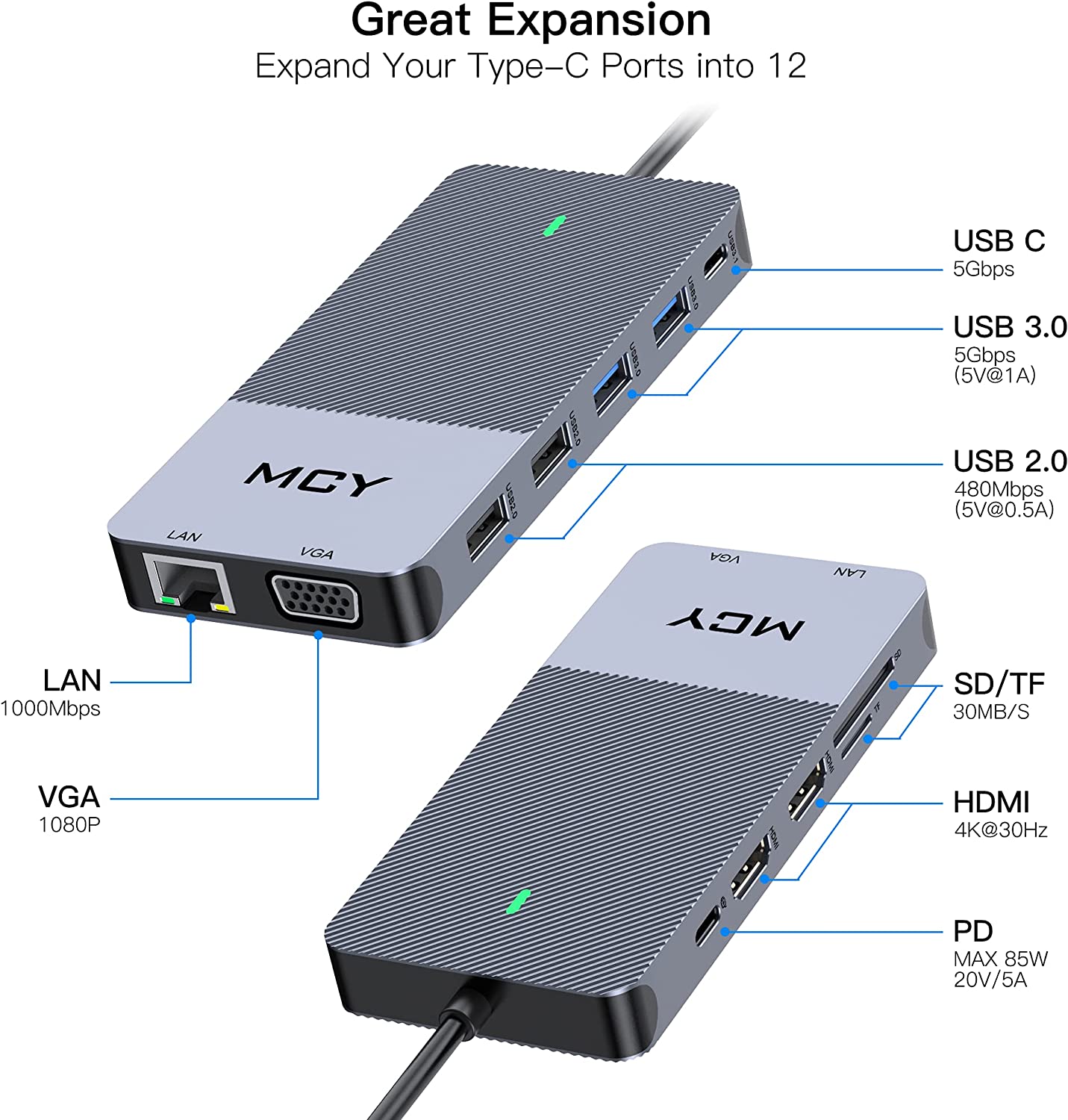

  • 12-in-1 Laptop Docking Station: Perfectly combined the function of USB C Hub and docking station featuring type c port (85W PD charging), 2*4K HDMI ports,1*1920*1080@60Hz VGA port, 2*super speed USB 3.0 Ports(Up to 5Gbps), 2 standard USB 2.0 Ports, Ethernet RJ-45 port, SD/TF card reader, USB3.1 Type-C; Make Your Life More Intelligent; Specially designed for USB c interface equipment

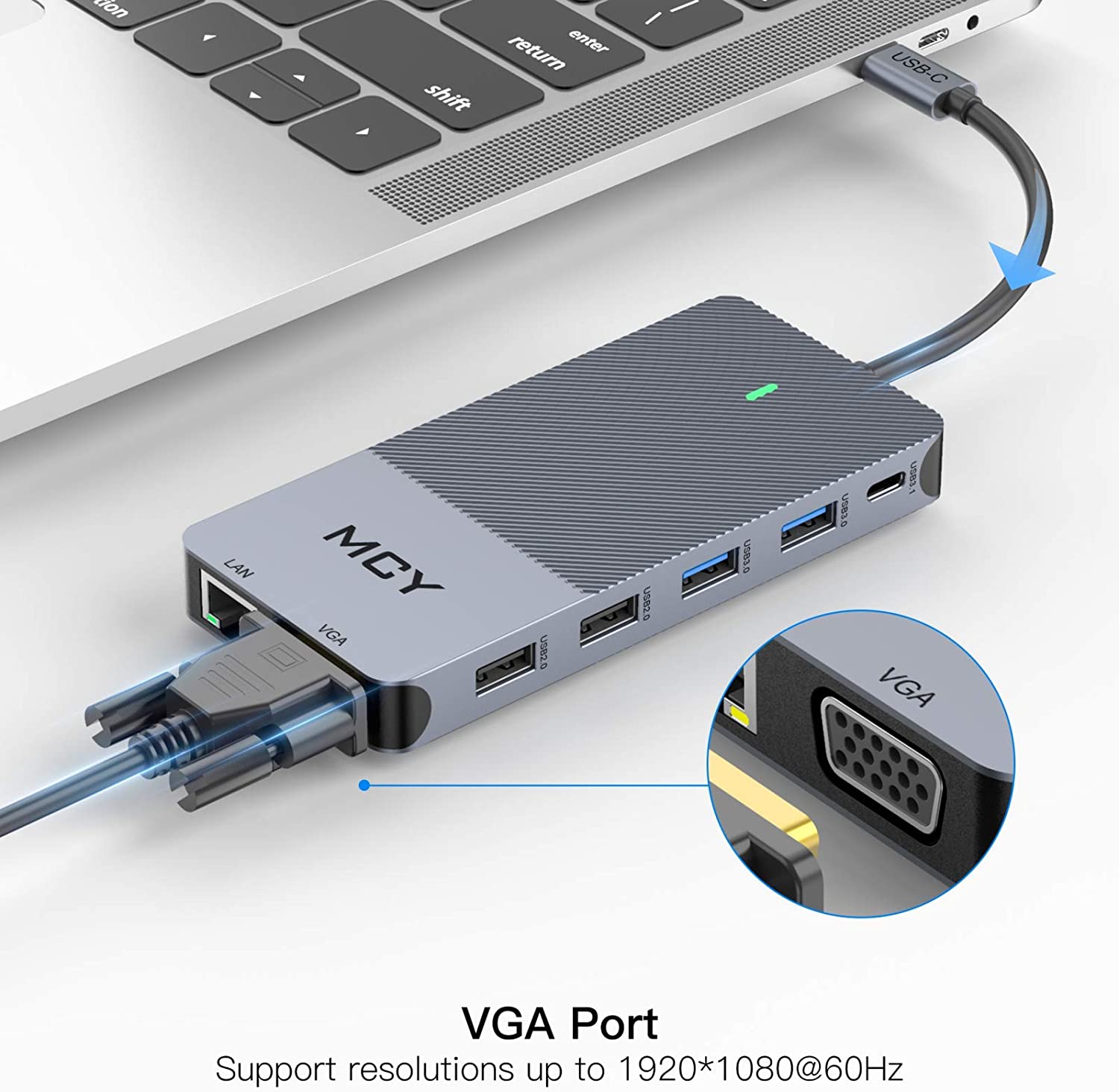

  • Triple display USB c hub: Expand docking station triple display with our USB C HUB. 2 x 4K-HDMI ports support resolutions up to 3840 x 2160@30Hz with dual HDMI displays attached. VGA port supports display resolutions up to 1920 x 1080@60Hz. -- Only Mirror and Non-Mirror Modes are available for Mac OS Systems. This means all connected external monitors can only be mirrored your MacBook screen, all of the external monitors show only one identical display which is different from your MacBook

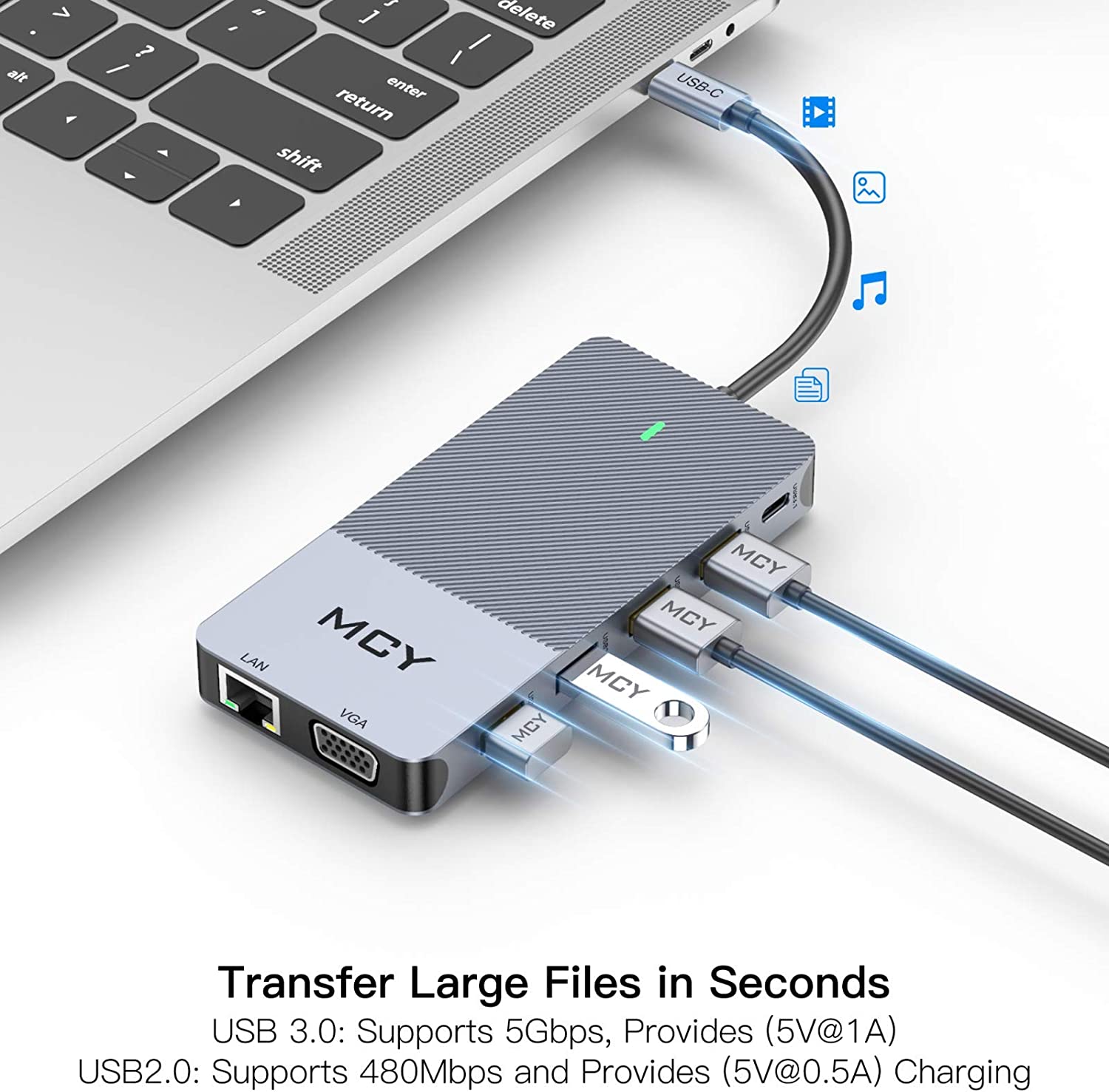

  • Super Speed Data Transmission: Two 3. 0 USB ports up to 5 Gbps; two USB 2. 0 ports provide a more stable connection without wireless interference; Due to the USB 3. 0 radio frequency interference to the wireless connection, It is advisable to connect your wireless device to the USB 2. 0 port; 1000Mbps Gigabit RJ45 Ethernet brings you a 1G movie in few minutes; SD & TF slots support capacity up to 2TB and SD & TF cards can not be read simultaneously

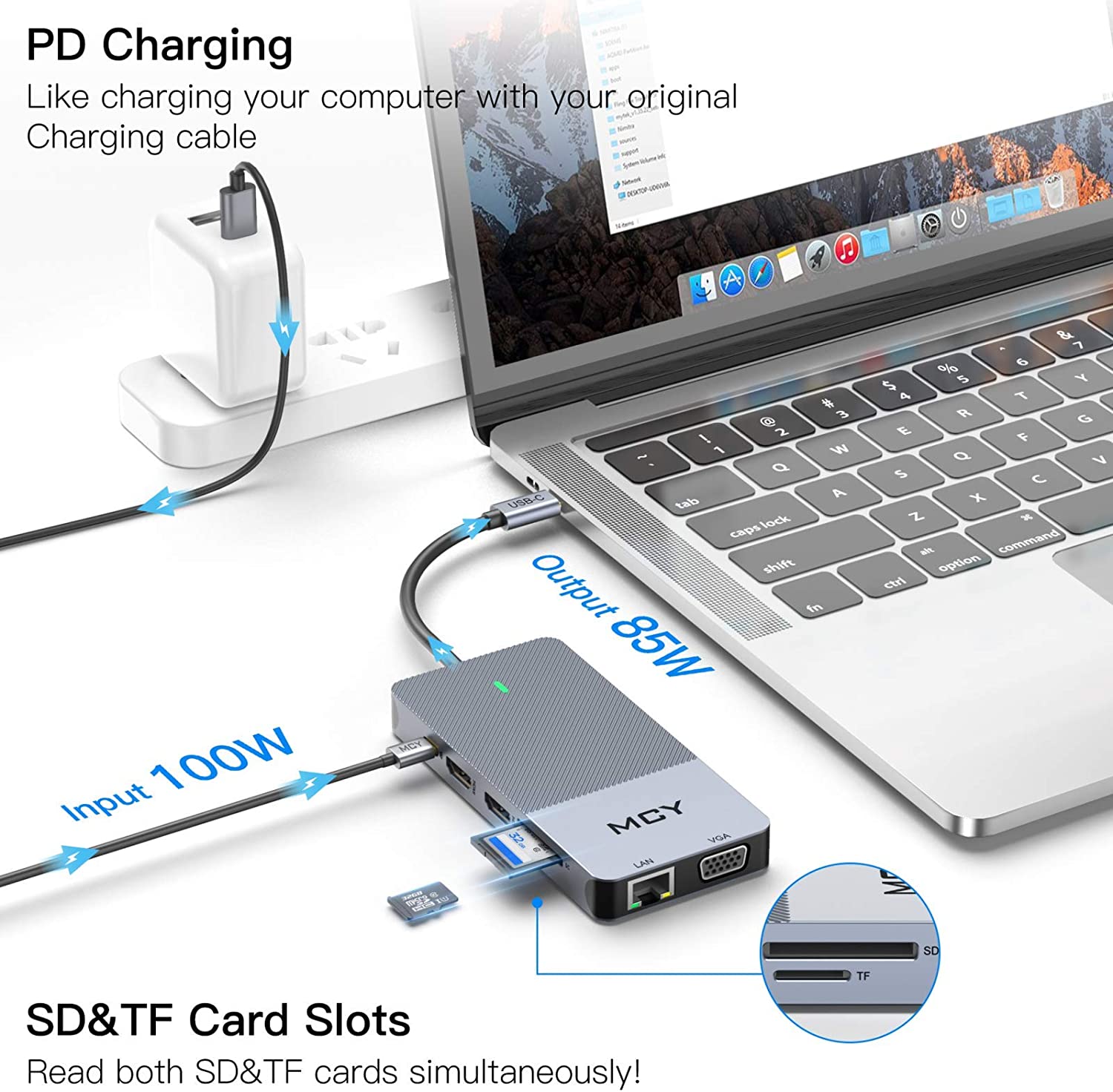

  • High-speed charging: Support PD charging at max 85W; This USB docking station provides one Type-C pass through a Female port by which you could securely charge your laptop while connecting multiple peripherals for data transferring and worry-free power storage; With power delivery, a single USB-C port can give you Blazing-fast charging speed experience
  • Compatibility List: docking station dual monitor, compatible withMac Book, Xiaomi, Samsung, Dell, Asus, Huawei, Lenovo, Google, Samsung S8/S8+/S9/S9+, Huawei Mate 10/P20, and mobile phones with TYPE-C. Google Chrome OS; Windows7/8/10; XP; Linux; Vista; plug and play. Please note: do not provide cable, SD card, flash drive.




Product Description

usb c dock

Triple display with Windows system

Setting: Please click Intel Graphics Settings for multi-display setting or hotkey: Windows+P

Note1:When connecting three displays at the same time, the resolution can only reach up to HDMI:1920*1080/60HZ. VGA:1366*720@60Hz

Note 2: Among the four screens (Displays and laptop), only three can display. There will be one that can not be displayed (either Display or laptop)

Note3:Once your laptop shuts down or goes to sleep, you need to re-plug the product to get extend mode again

Triple display with MAC OS system

Setting: About This Mac>Display>Arrangement>Mirror Displays

Note1: When MAC OS needs to extend the display, you need to click on "Display" in Preferences, select the Arrangement, and then click Cancel "Mirror displays"

Note2:For the Mac system, it only supports mirror mode and non-mirror mode. Non-mirror mode means that the three external monitors are the same but different from the laptop.

Not all series, for a more detailed compatibility list, see the Instructions for Use document under Product guides and documents)
usb c dock
About the mirror mode and extend mode are shown as follows:

Laptop+ HDMI1or2 :Resolution: (3840*2160@30Hz) The model of screen is: (A+A)

Laptop+VGA:Resolution: (1920*1080@60Hz) The model of the screen is: (A+A)

Laptop+ HDMI 1 + HDMI 2:Resolution: (3840*2160@30Hz) The model of screen is: (A+A+A)

Laptop+ HDMI 1or2 +VGA:Resolution: (1920*1080@60Hz) The model of screen is: (A+A+A)

Laptop+ HDMI 1+ HDMI 2 +VGA:Resolution: (1920*1080@60Hz) The screen is: (A+A+A+A)

The extended mode of the MAC OS, the computer is set to not mirror mode:

Laptop+VGA+HDMI 1or2:Resolution: (1920*1080@60Hz) The model of the screen is: (A+B+B)

Laptop+ HDMI 1 + HDMI 2:Resolution: (3840*2160@30Hz) The model of screen is: (A+B+B)

Laptop+ VGA+HDMI 1 + HDMI 2:Resolution: (1080P) The model of screen is: (A+B+B+B)

The extended mode of the windows system:

Laptop+VGA+HDMI 1or2:Resolution: (1920*1080@60Hz) The screen is: (A+B+C)

Laptop+ HDMI 1 + HDMI 2:Resolution: (1920*1080@60Hz) The screen is: (A+B+C)

HDMI 1+ HDMI 2 +VGA:Resolution: (1920*1080@60Hz+1920*1080@60Hz+1366*720@60Hz) The screen is: (A+B+C)(In windows system, there are only three video signal output streams together with the laptop, you need to turn off a monitor, or turn off the laptop or TV)
