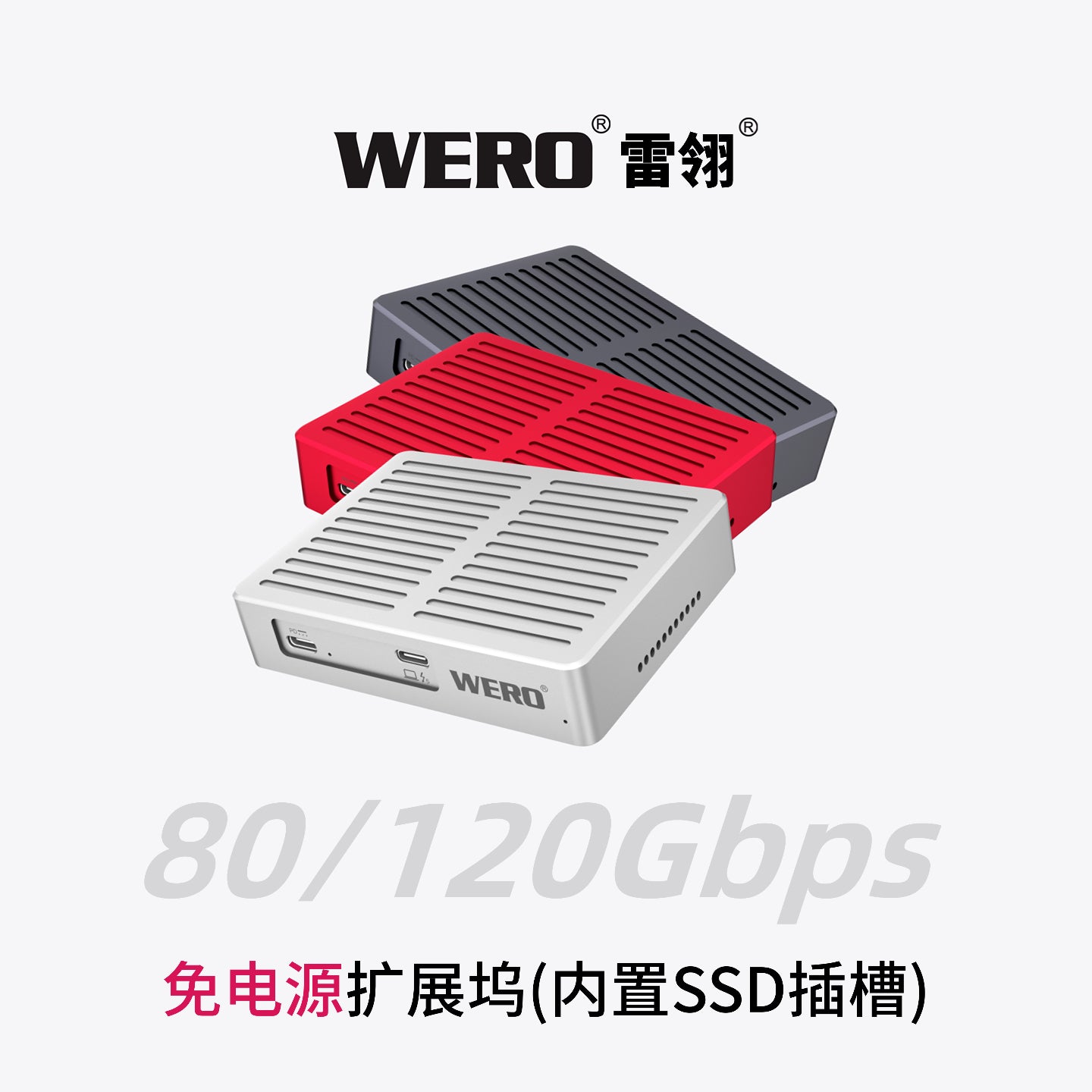

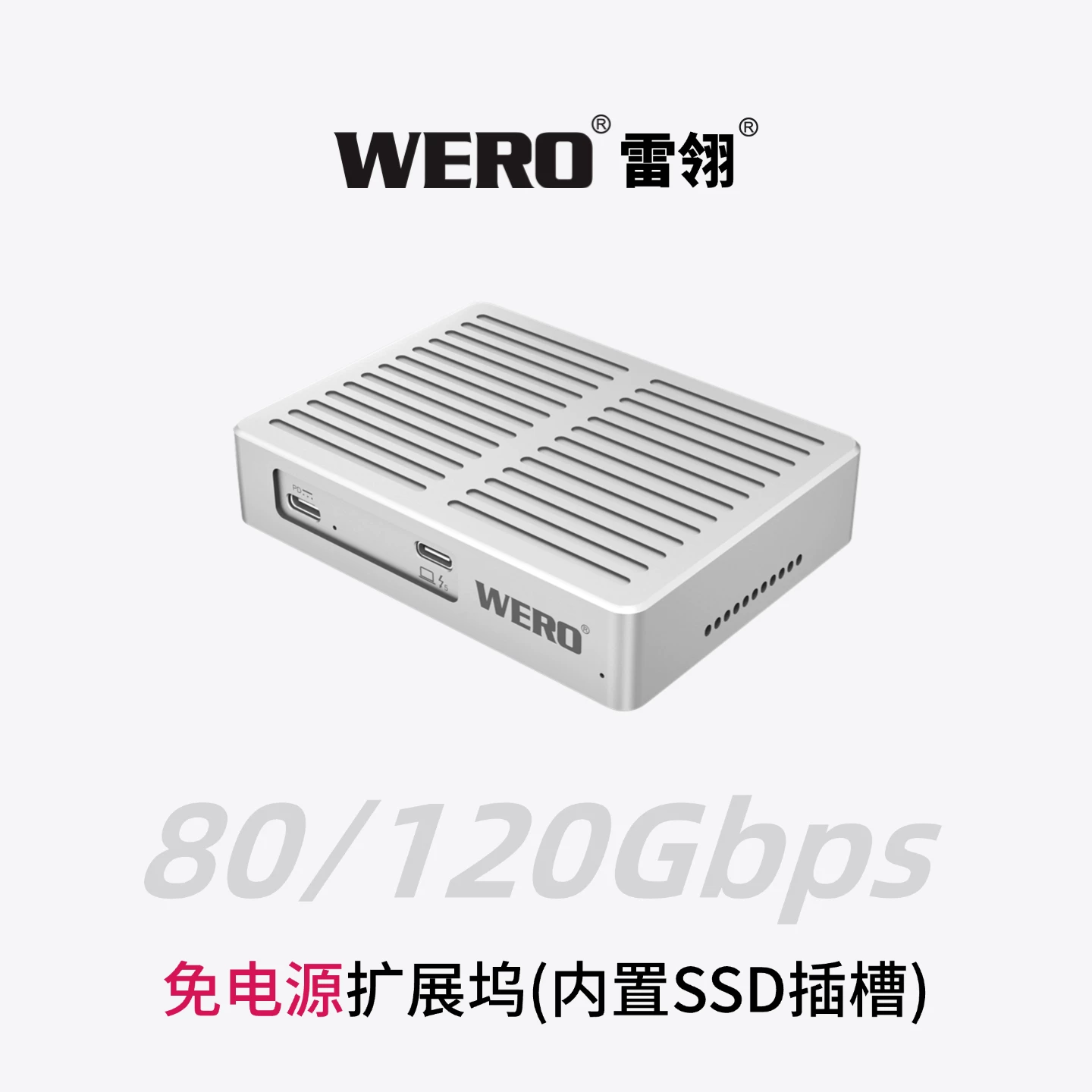

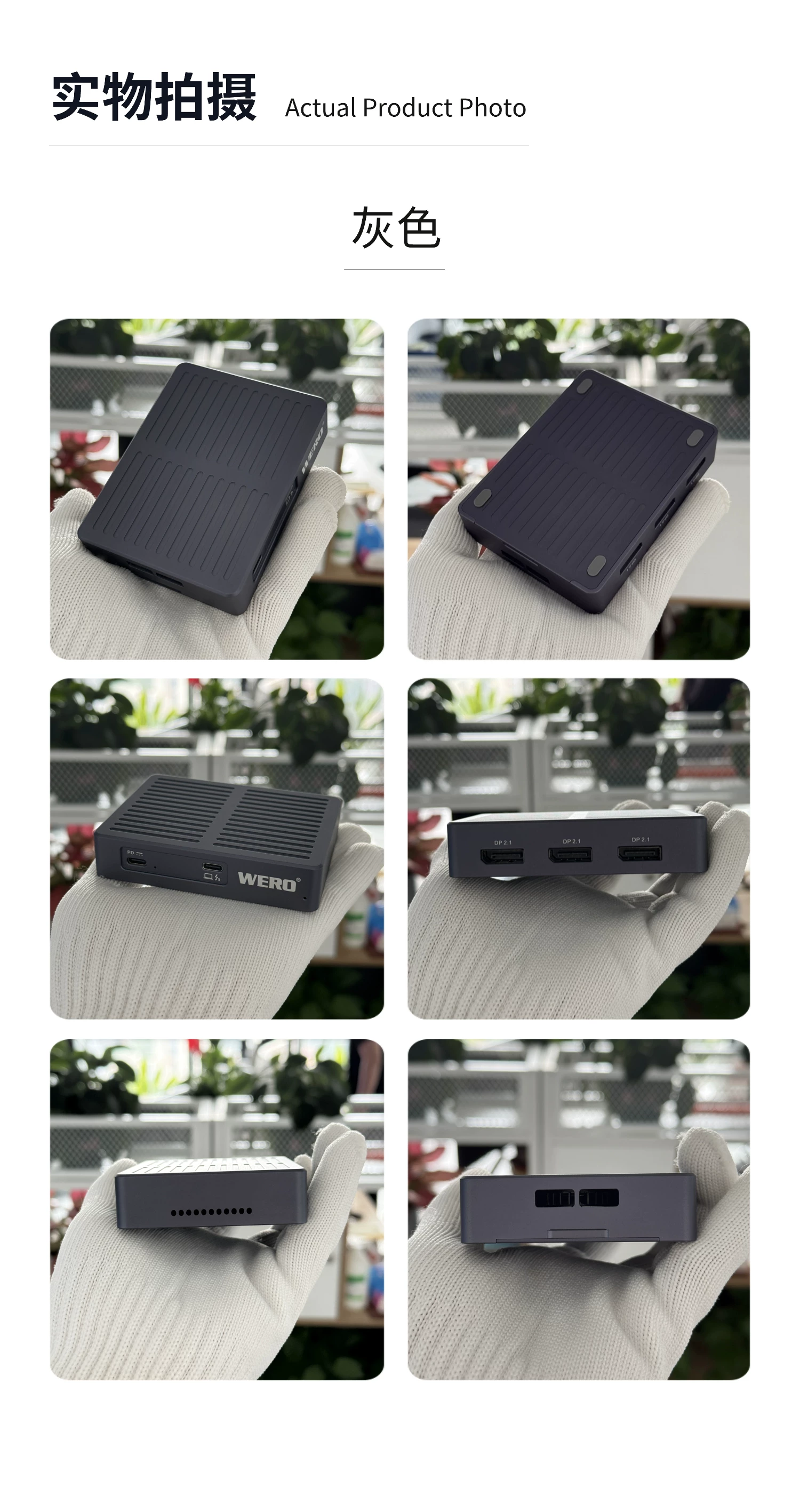

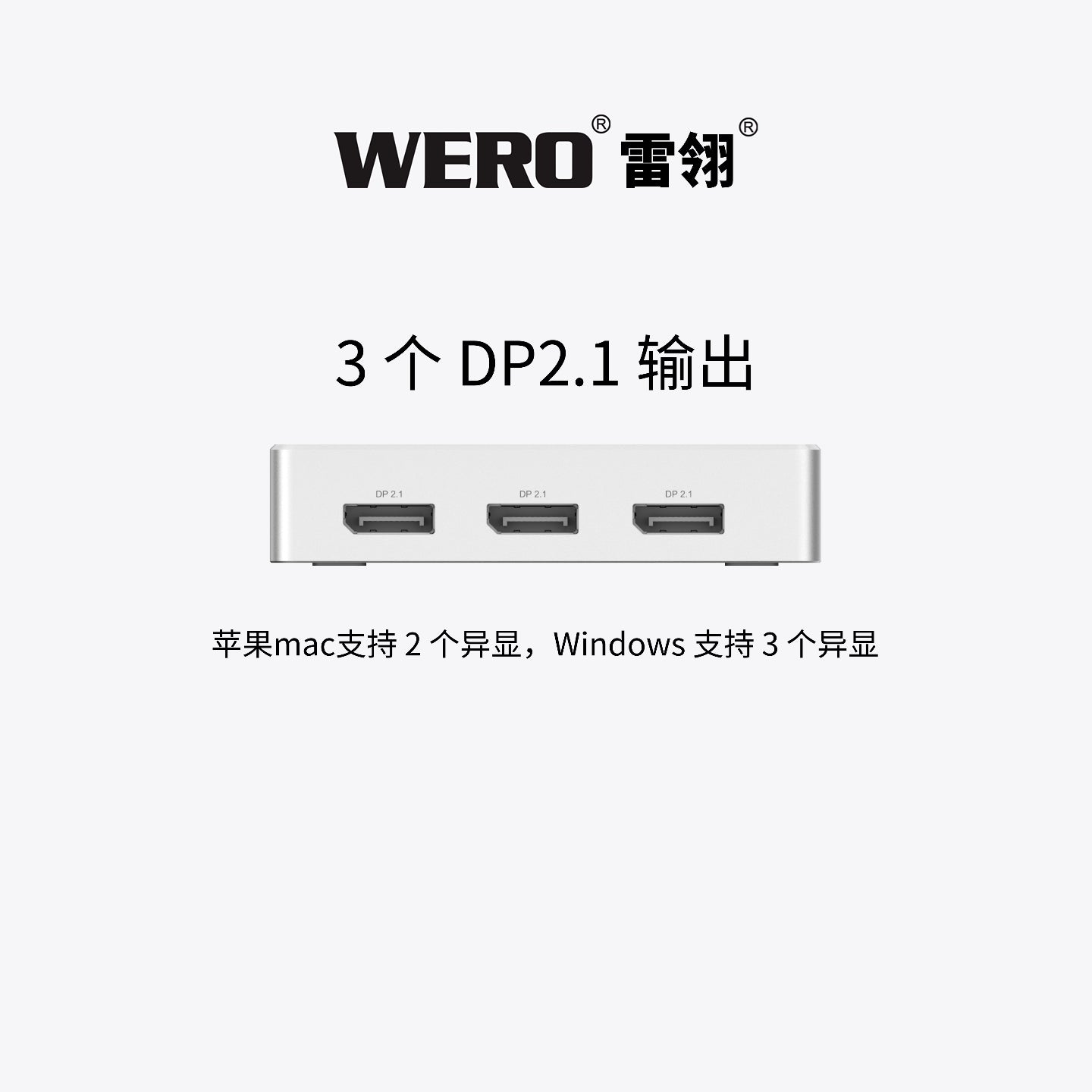

Thunderbolt 5 80/120 Gbps 1 M2+3 DP2.1 Power-Free Docking Station(TBT5-SSD-3xDP2.1)

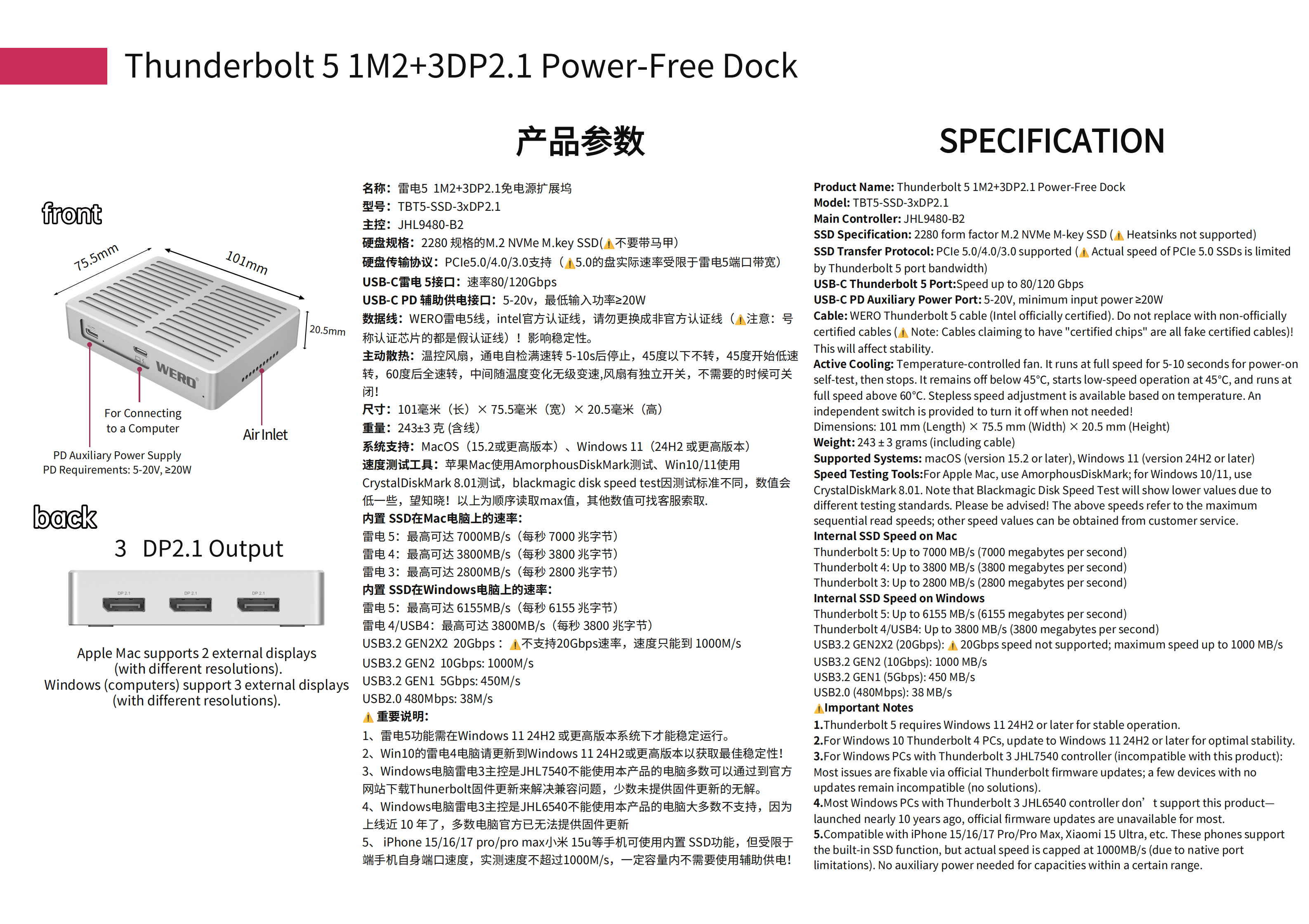

Product Name: Thunderbolt 5 1M2+3DP2.1 Power-Free Dock
Model: TBT5-SSD-3xDP2.1
Main Controller: JHL9480-B2

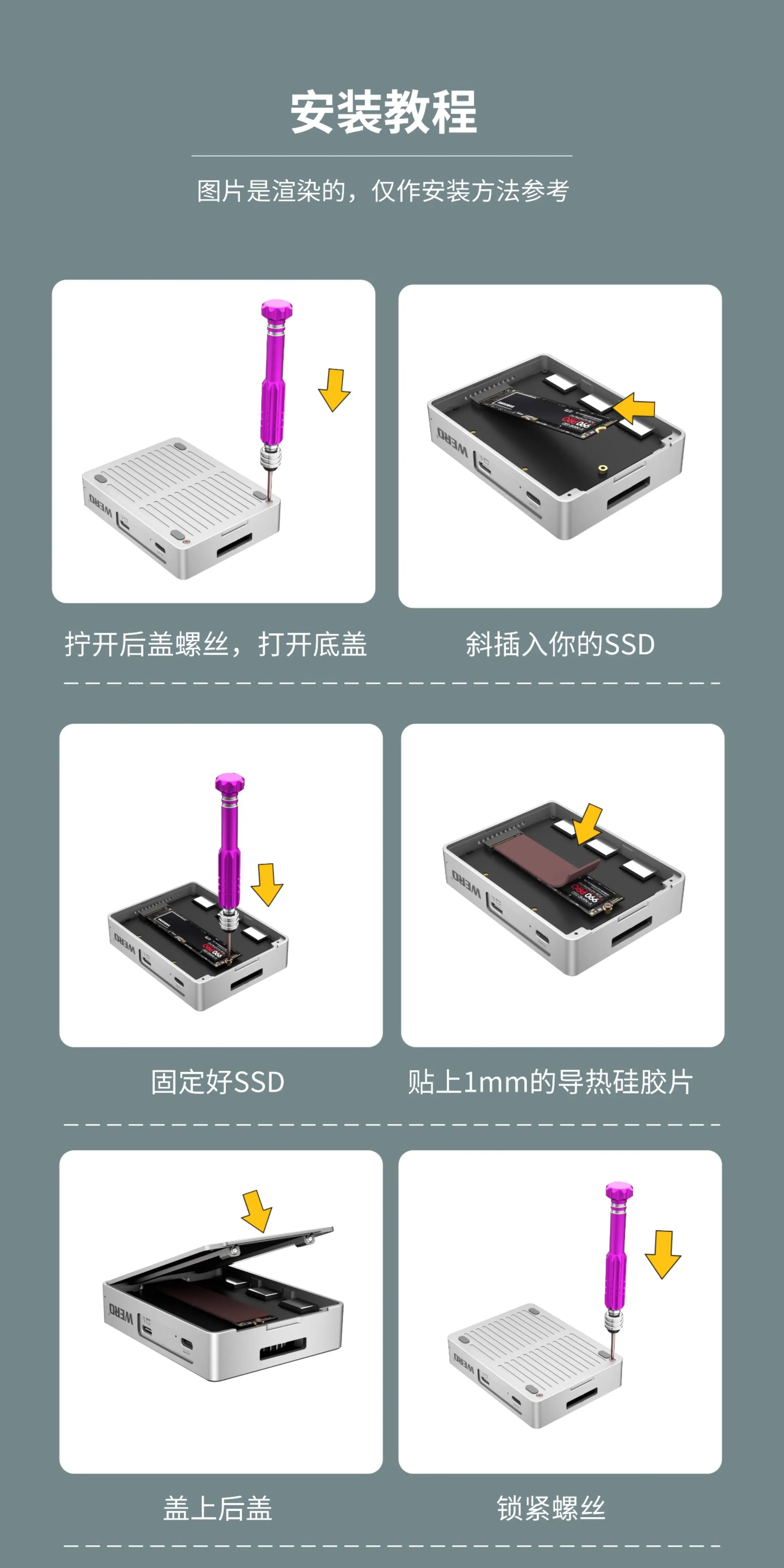

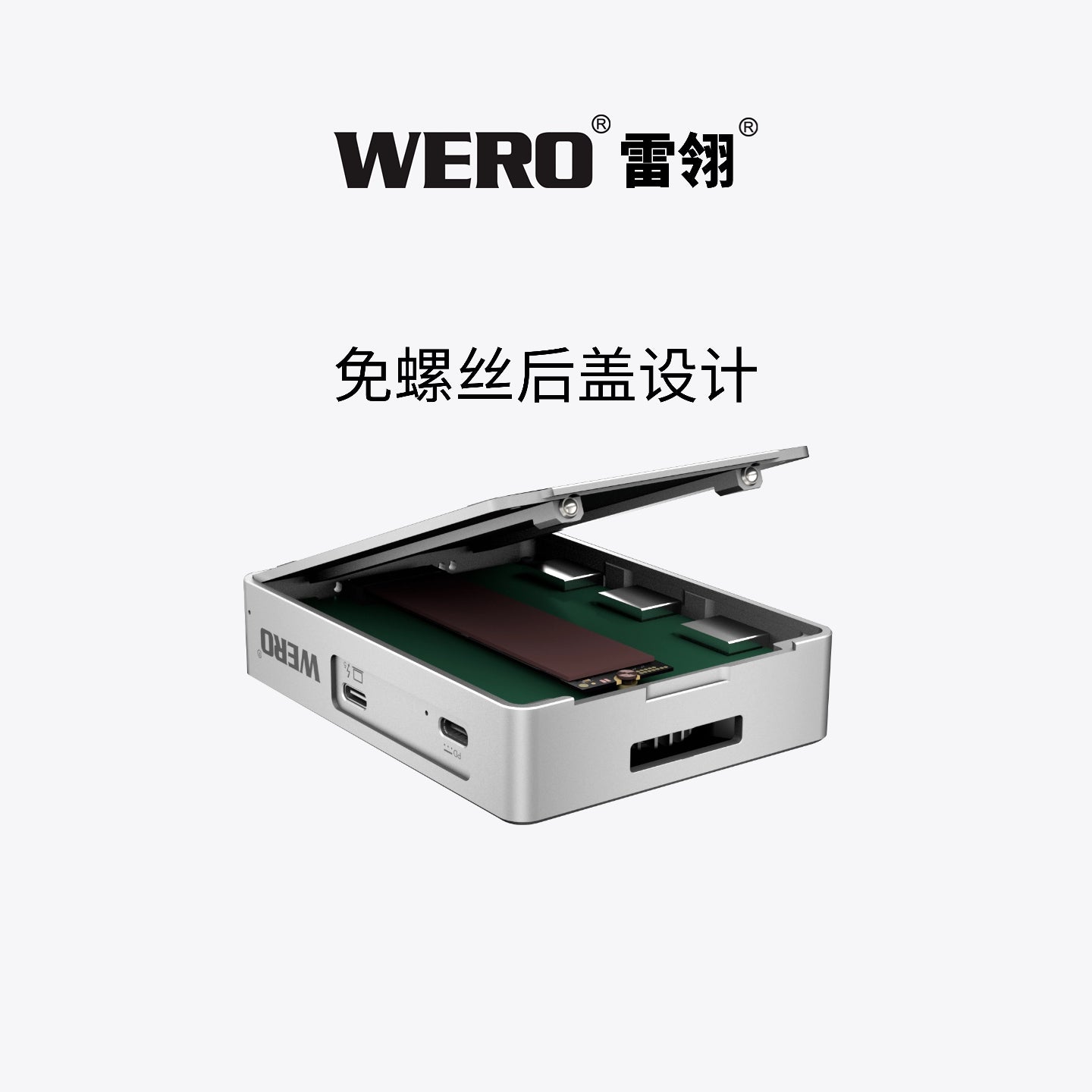

SSD Specification: 2280 form factor M.2 NVMe M-key SSD (⚠️ Heatsinks not supported)
SSD Transfer Protocol: PCIe 5.0/4.0/3.0 supported (⚠️ Actual speed of PCIe 5.0 SSDs is limited by Thunderbolt 5 port bandwidth)
USB-C Thunderbolt 5 Port: Speed up to 80/120 Gbps
USB-C PD Auxiliary Power Port: 5-20V, minimum input power ≥20W
Cable: WERO Thunderbolt 5 cable (Intel officially certified). Do not replace with non-officially certified cables (⚠️ Note: Cables claiming to have “certified chips” are all fake certified cables)! This will affect stability.
Active Cooling: Temperature-controlled fan. It runs at full speed for 5-10 seconds for power-on self-test, then stops. It remains off below 45℃, starts low-speed operation at 45℃, and runs at full speed above 60℃. Stepless speed adjustment is available based on temperature. An independent switch is provided to turn it off when not needed!
Dimensions: 101 mm (Length) × 75.5 mm (Width) × 20.5 mm (Height)
Weight: 243 ± 3 grams (including cable)
Supported Systems: macOS (version 15.2 or later), Windows 11 (version 24H2 or later)
Speed Testing Tools: For Apple Mac, use AmorphousDiskMark; for Windows 10/11, use CrystalDiskMark 8.01. Note that Blackmagic Disk Speed Test will show lower values due to different testing standards. Please be advised! The above speeds refer to the maximum sequential read speeds; other speed values can be obtained from customer service.
Internal SSD Speed on Mac
Thunderbolt 5: Up to 7000 MB/s (7000 megabytes per second)
Thunderbolt 4: Up to 3800 MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 megabytes per second)
Internal SSD Speed on Windows
Thunderbolt 5: Up to 6155 MB/s (6155 megabytes per second)
Thunderbolt 4/USB4: Up to 3800 MB/s (3800 megabytes per second)
USB3.2 GEN2X2 (20Gbps): ⚠️ 20Gbps speed not supported; maximum speed up to 1000 MB/s
USB3.2 GEN2 (10Gbps): 1000 MB/s
USB3.2 GEN1 (5Gbps): 450 MB/s
USB2.0 (480Mbps): 38 MB/s
⚠️ Important Notes
1.Thunderbolt 5 requires Windows 11 24H2 or later for stable operation.
2.For Windows 10 Thunderbolt 4 PCs, update to Windows 11 24H2 or later for optimal stability.
3.For Windows PCs with Thunderbolt 3 JHL7540 controller (incompatible with this product): Most issues are fixable via official Thunderbolt firmware updates; a few devices with no updates remain incompatible (no solutions).
4.Most Windows PCs with Thunderbolt 3 JHL6540 controller don’t support this product—launched nearly 10 years ago, official firmware updates are unavailable for most.
5.Compatible with iPhone 15/16/17 Pro/Pro Max, Xiaomi 15 Ultra, etc. These phones support the built-in SSD function, but actual speed is capped at 1000MB/s (due to native port limitations). No auxiliary power needed for capacities within a certain range.
