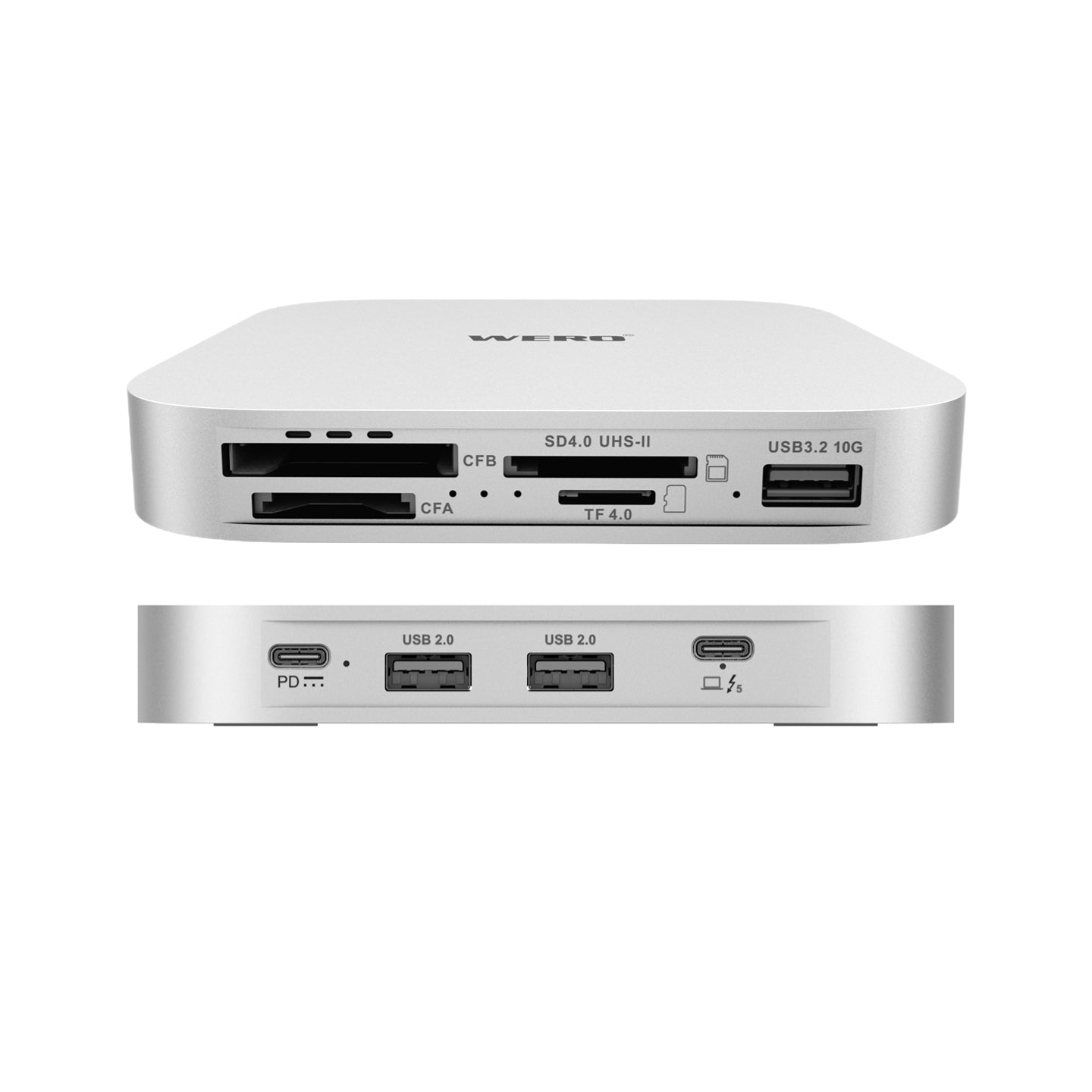

WERO Thunderbolt 5 80Gbps 8-in-1 Card Reader & SSD Enclosure(TBT5-SSD-8in1-Readerr)

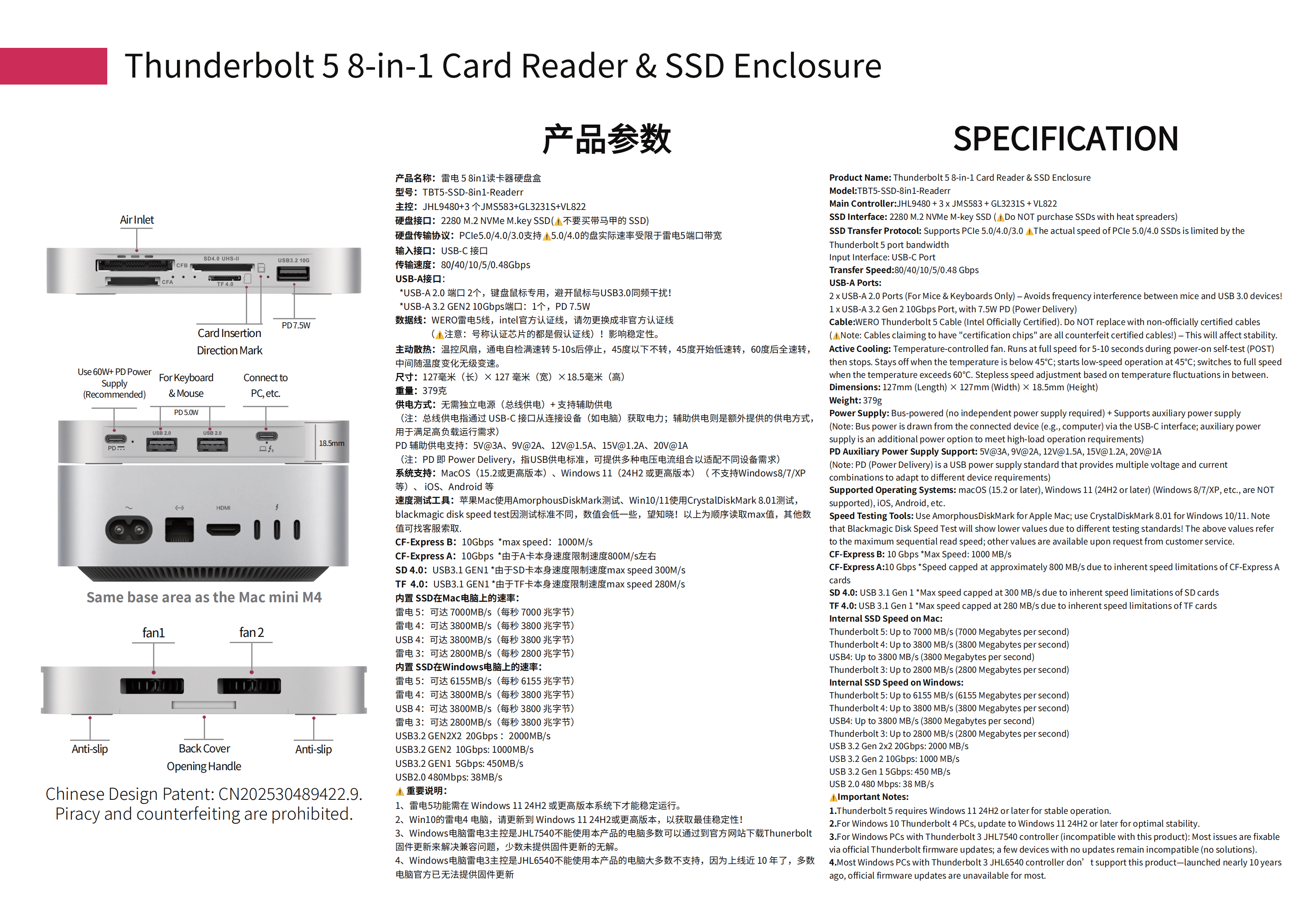

Product Name: Thunderbolt 5 8-in-1 Card Reader & SSD Enclosure
Model: TBT5-SSD-8in1-Readerr
Main Controller: JHL9480 + 3 x JMS583 + GL3231S + VL822

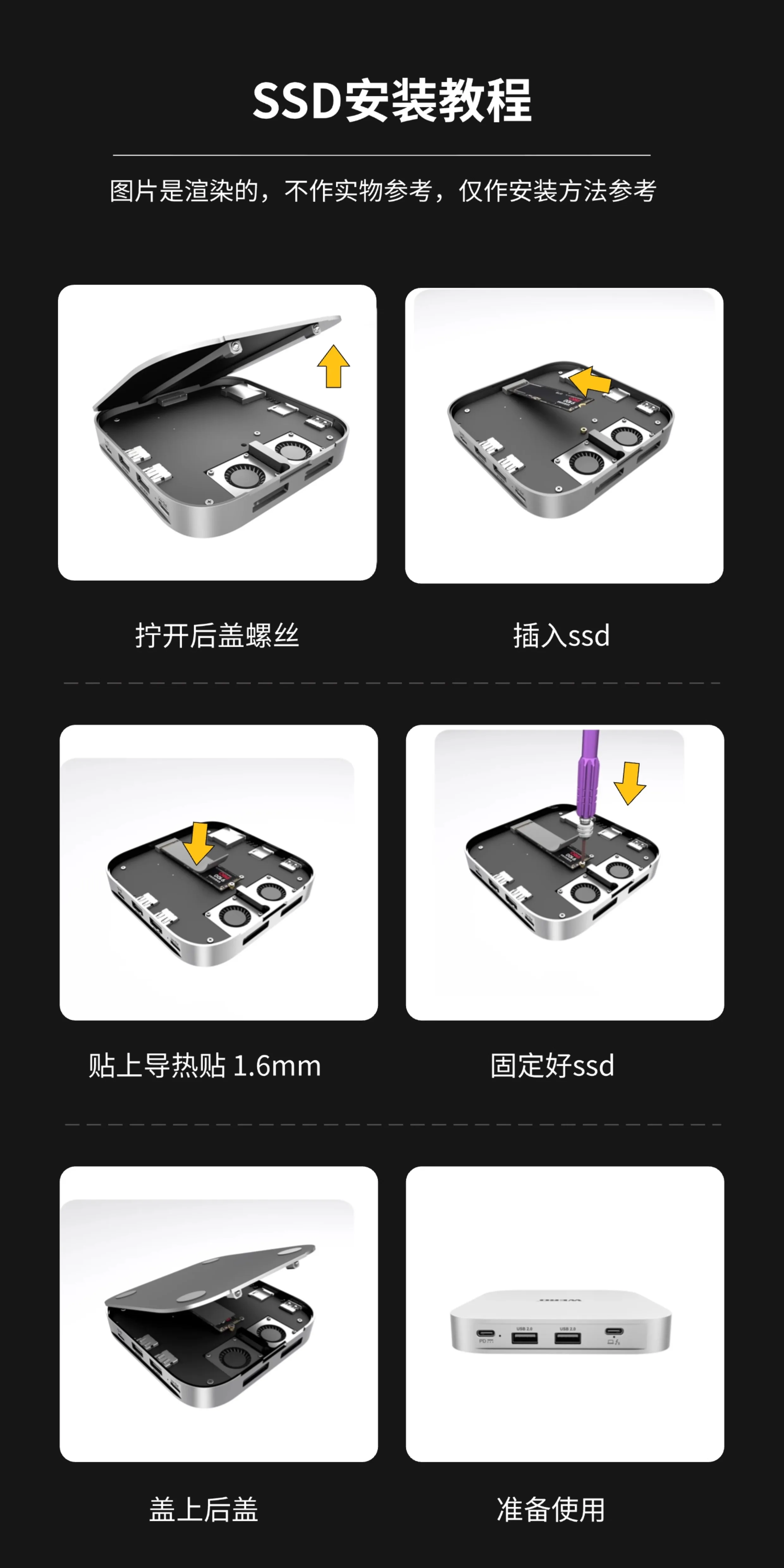

SSD Interface: 2280 M.2 NVMe M-key SSD (⚠️Do NOT purchase SSDs with heat spreaders)
SSD Transfer Protocol: Supports PCIe 5.0/4.0/3.0 ⚠️The actual speed of PCIe 5.0/4.0 SSDs is limited by the Thunderbolt 5 port bandwidth
Input Interface: USB-C Port
Transfer Speed: 80/40/10/5/0.48 Gbps

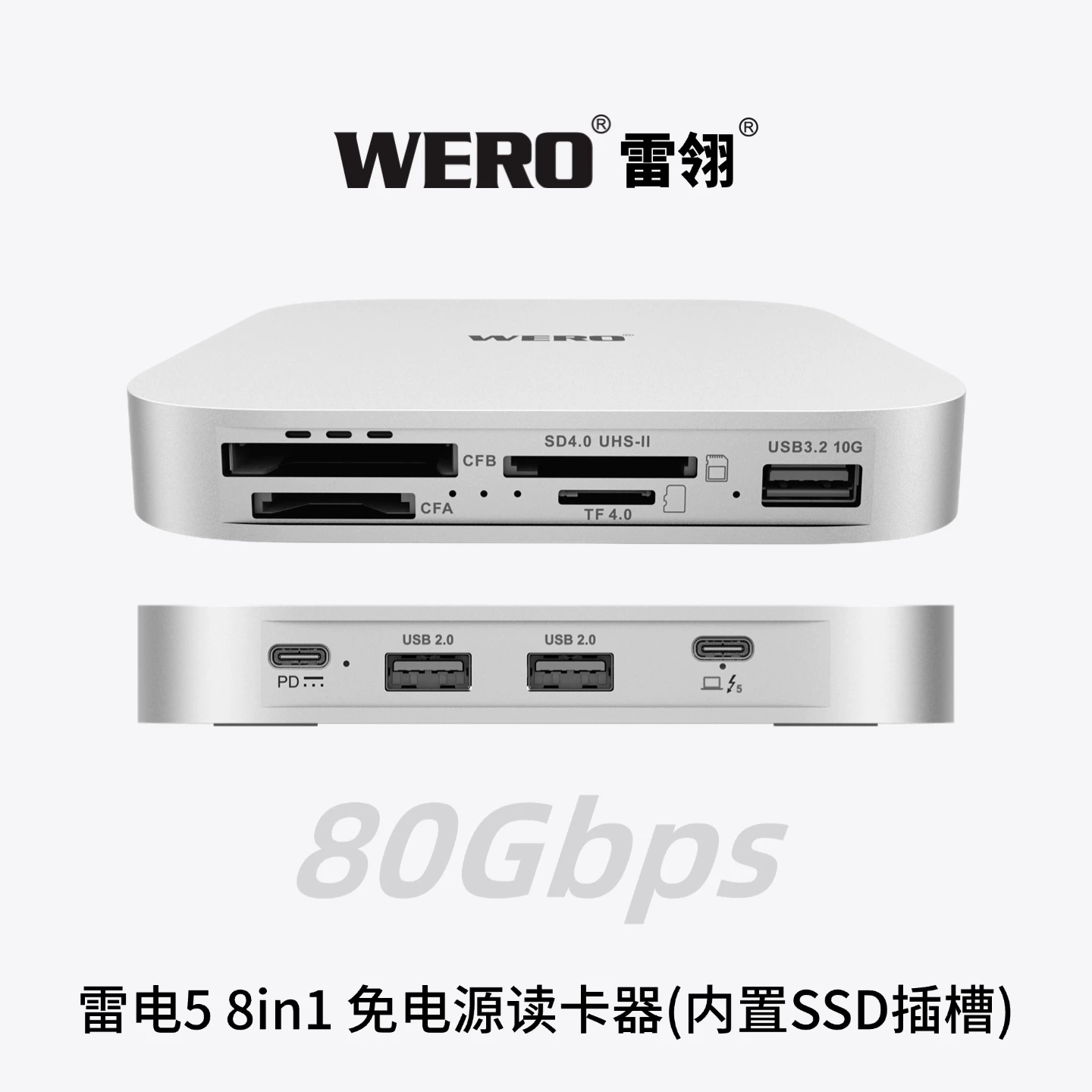

USB-A Ports:
2 x USB-A 2.0 Ports (For Mice & Keyboards Only) – Avoids frequency interference between mice and USB 3.0 devices!
1 x USB-A 3.2 Gen 2 10Gbps Port, with 7.5W PD (Power Delivery)
Cable: WERO Thunderbolt 5 Cable (Intel Officially Certified). Do NOT replace with non-officially certified cables (⚠️Note: Cables claiming to have “certification chips” are all counterfeit certified cables!) – This will affect stability.

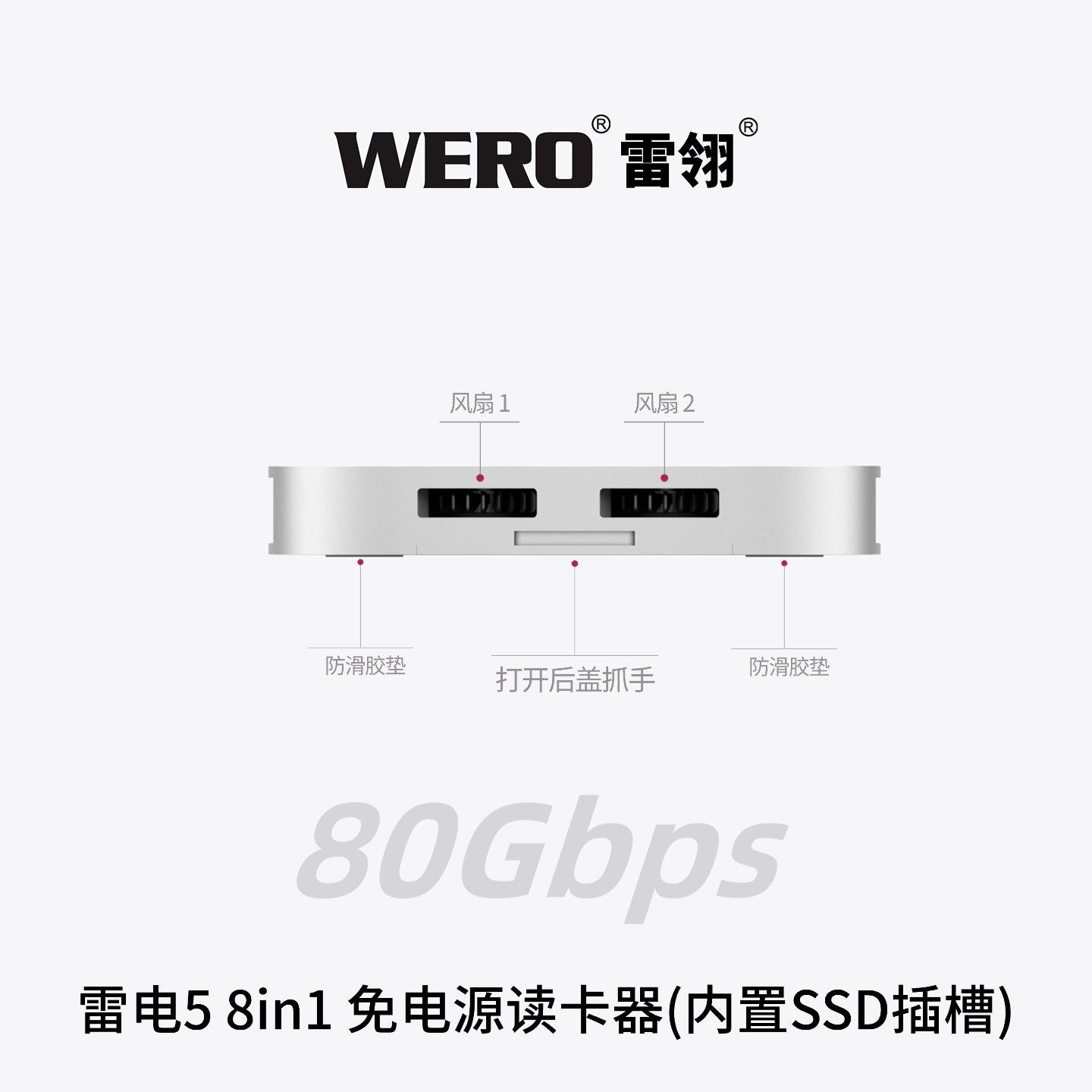

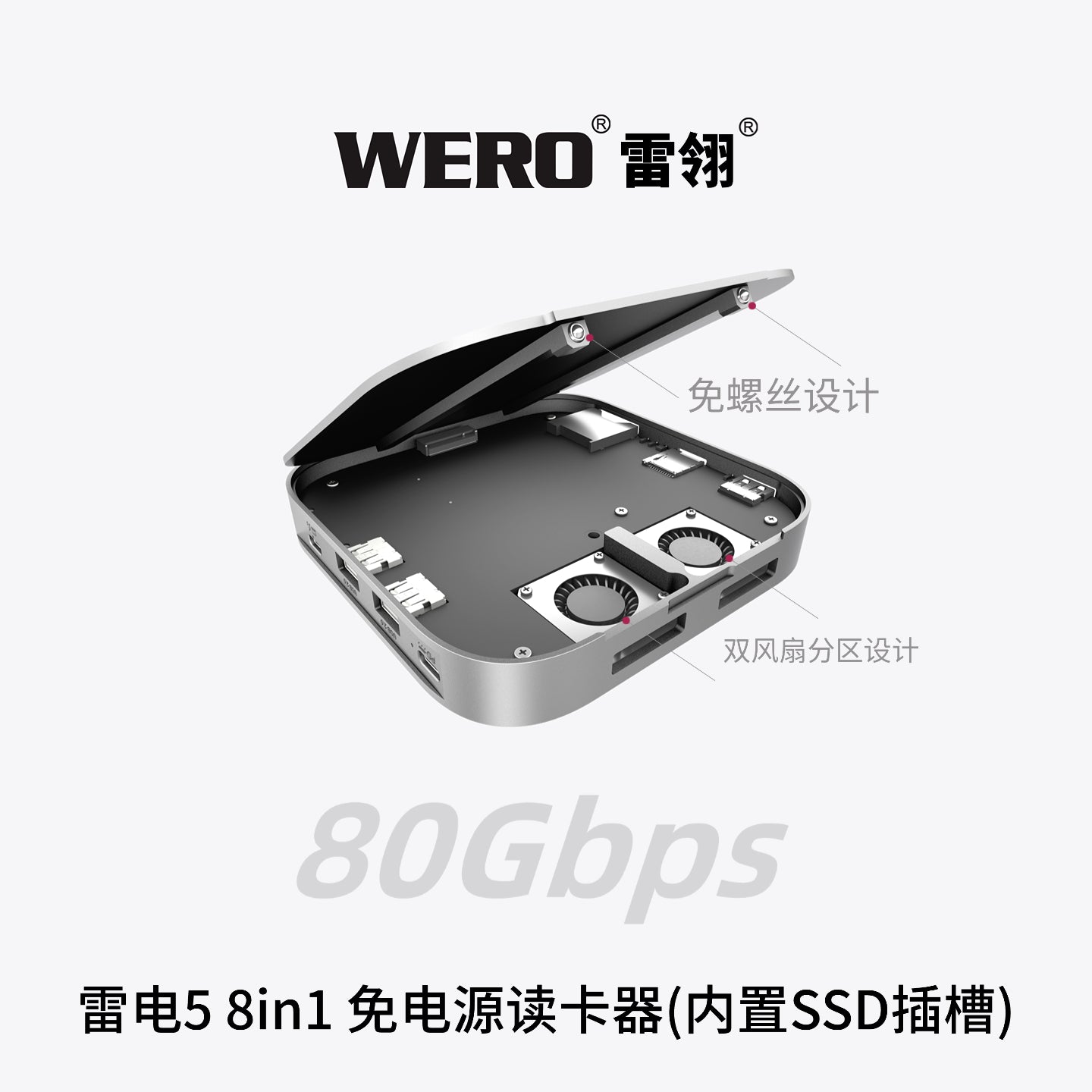

Active Cooling: Temperature-controlled fan. Runs at full speed for 5-10 seconds during power-on self-test (POST) then stops. Stays off when the temperature is below 45°C; starts low-speed operation at 45°C; switches to full speed when the temperature exceeds 60°C. Stepless speed adjustment based on temperature fluctuations in between.
Dimensions: 127mm (Length) × 127mm (Width) × 18.5mm (Height)
Weight: 379g
Power Supply: Bus-powered (no independent power supply required) + Supports auxiliary power supply
(Note: Bus power is drawn from the connected device (e.g., computer) via the USB-C interface; auxiliary power supply is an additional power option to meet high-load operation requirements)
PD Auxiliary Power Supply Support: 5V@3A, 9V@2A, 12V@1.5A, 15V@1.2A, 20V@1A
(Note: PD (Power Delivery) is a USB power supply standard that provides multiple voltage and current combinations to adapt to different device requirements)
Supported Operating Systems: macOS (15.2 or later), Windows 11 (24H2 or later) (Windows 8/7/XP, etc., are NOT supported), iOS, Android, etc.
Speed Testing Tools: Use AmorphousDiskMark for Apple Mac; use CrystalDiskMark 8.01 for Windows 10/11. Note that Blackmagic Disk Speed Test will show lower values due to different testing standards! The above values refer to the maximum sequential read speed; other values are available upon request from customer service.
CF-Express B: 10 Gbps *Max Speed: 1000 MB/s
CF-Express A: 10 Gbps *Speed capped at approximately 800 MB/s due to inherent speed limitations of CF-Express A cards
SD 4.0: USB 3.1 Gen 1 *Max speed capped at 300 MB/s due to inherent speed limitations of SD cards
TF 4.0: USB 3.1 Gen 1 *Max speed capped at 280 MB/s due to inherent speed limitations of TF cards
Internal SSD Speed on Mac:
Thunderbolt 5: Up to 7000 MB/s (7000 Megabytes per second)
Thunderbolt 4: Up to 3800 MB/s (3800 Megabytes per second)
USB4: Up to 3800 MB/s (3800 Megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 Megabytes per second)
Internal SSD Speed on Windows:
Thunderbolt 5: Up to 6155 MB/s (6155 Megabytes per second)
Thunderbolt 4: Up to 3800 MB/s (3800 Megabytes per second)
USB4: Up to 3800 MB/s (3800 Megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 Megabytes per second)
USB 3.2 Gen 2×2 20Gbps: 2000 MB/s
USB 3.2 Gen 2 10Gbps: 1000 MB/s
USB 3.2 Gen 1 5Gbps: 450 MB/s
USB 2.0 480 Mbps: 38 MB/s
⚠️ Important Notes:
1.Thunderbolt 5 requires Windows 11 24H2 or later for stable operation.
2.For Windows 10 Thunderbolt 4 PCs, update to Windows 11 24H2 or later for optimal stability.
3.For Windows PCs with Thunderbolt 3 JHL7540 controller (incompatible with this product): Most issues are fixable via official Thunderbolt firmware updates; a few devices with no updates remain incompatible (no solutions).
4.Most Windows PCs with Thunderbolt 3 JHL6540 controller don’t support this product—launched nearly 10 years ago, official firmware updates are unavailable for most.
