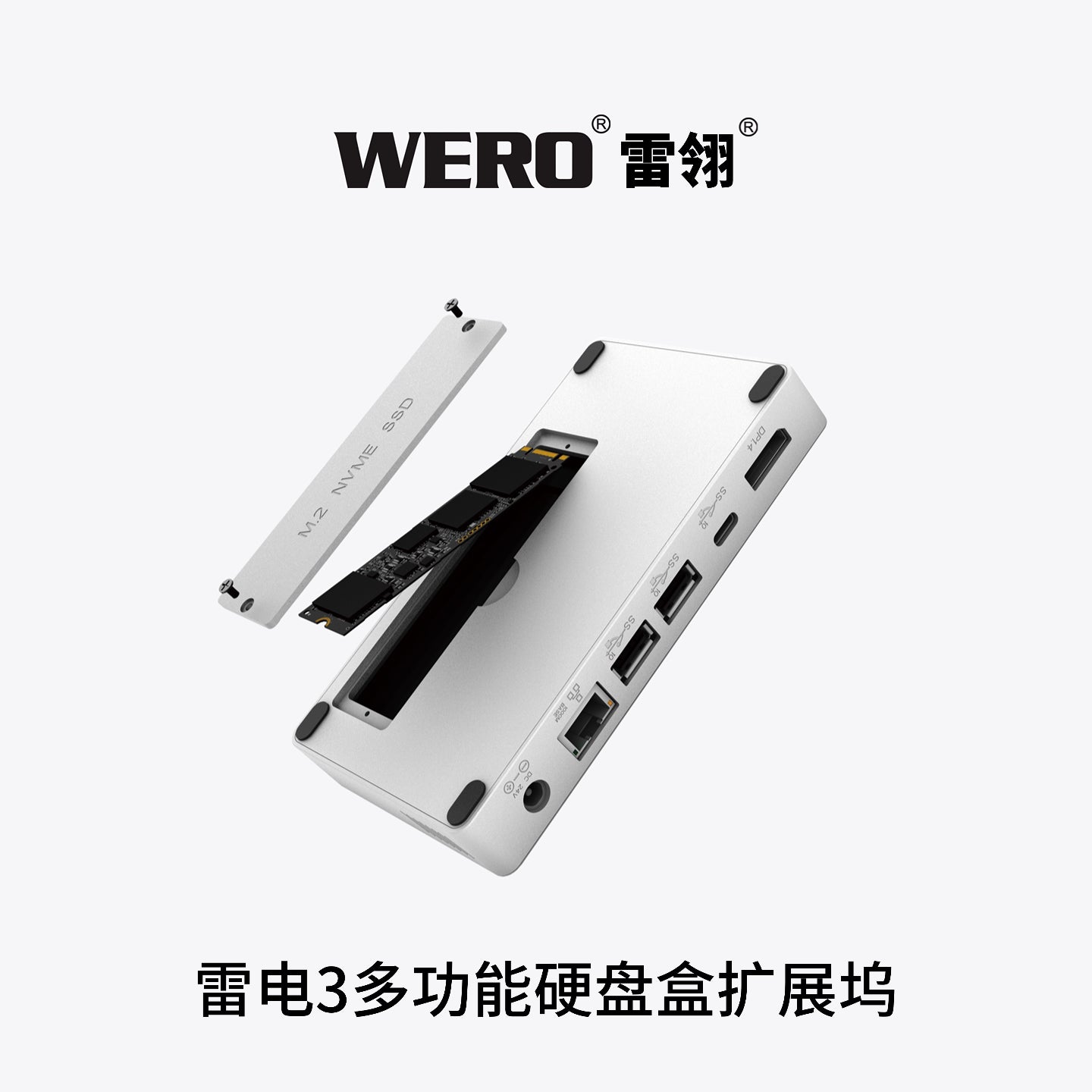

WERO Thunderbolt 3 docking station computer notebook universal built-in SSD slot simple docking station

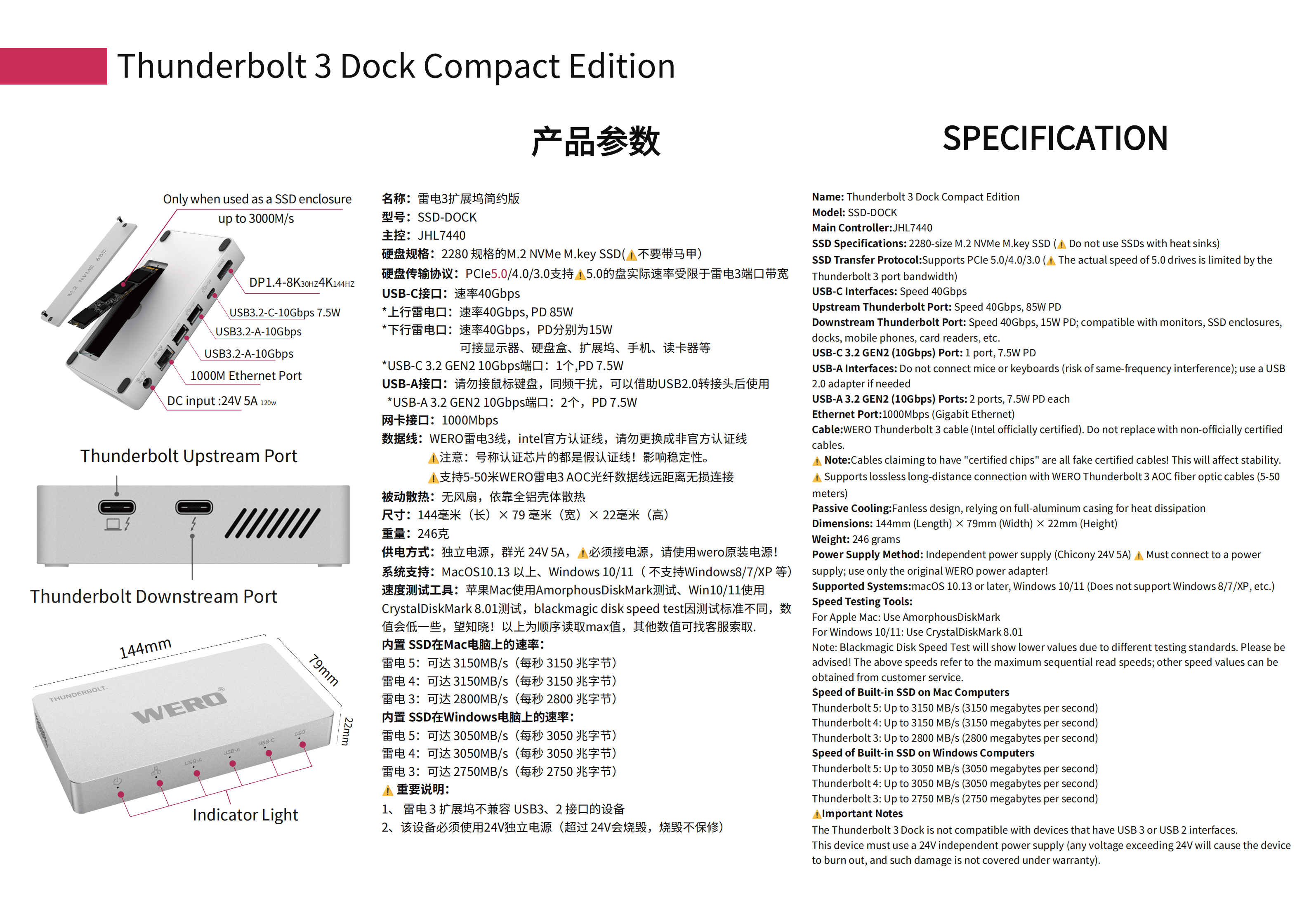

Name: Thunderbolt 3 Dock Compact Edition
Model: SSD-DOCK
Main Controller: JHL7440

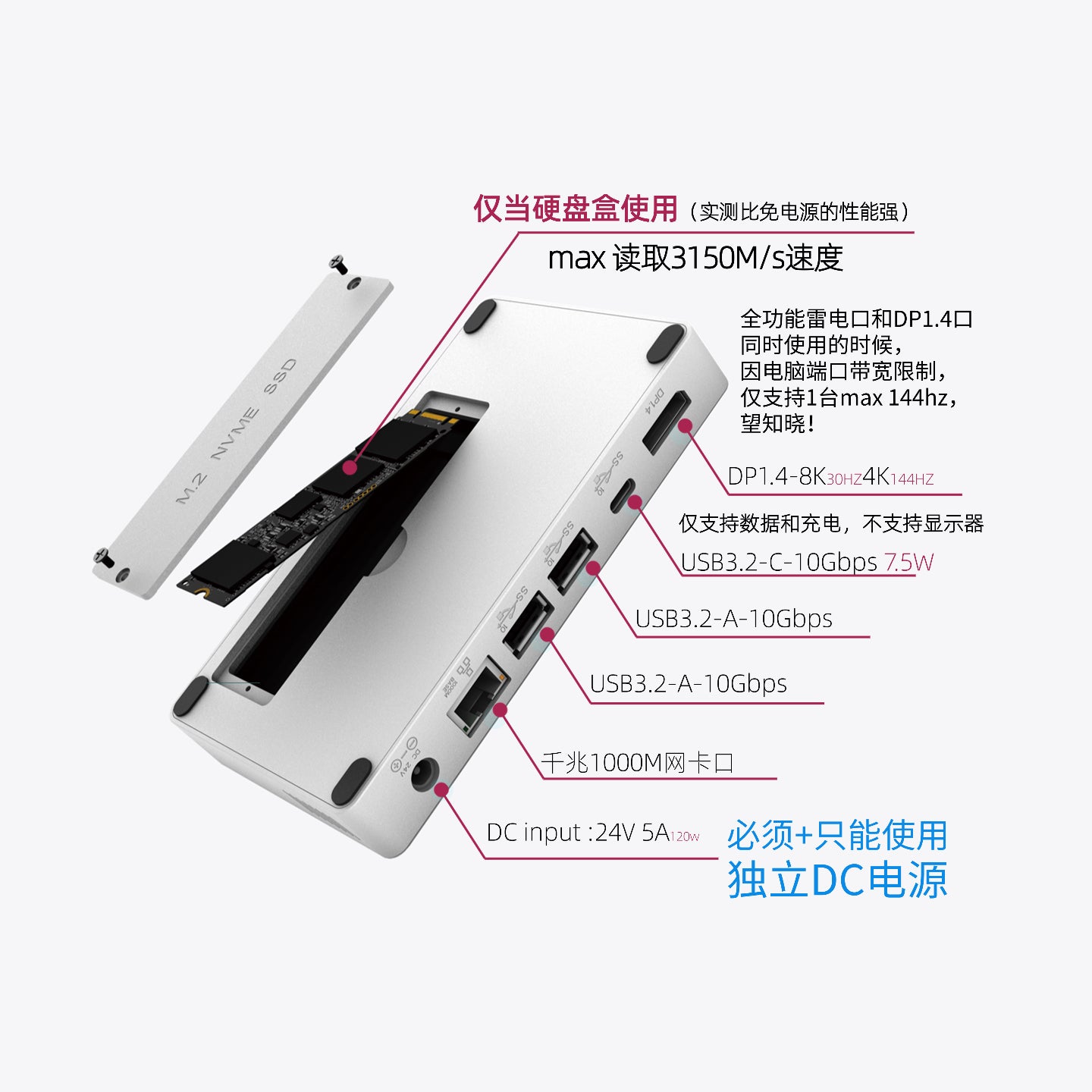

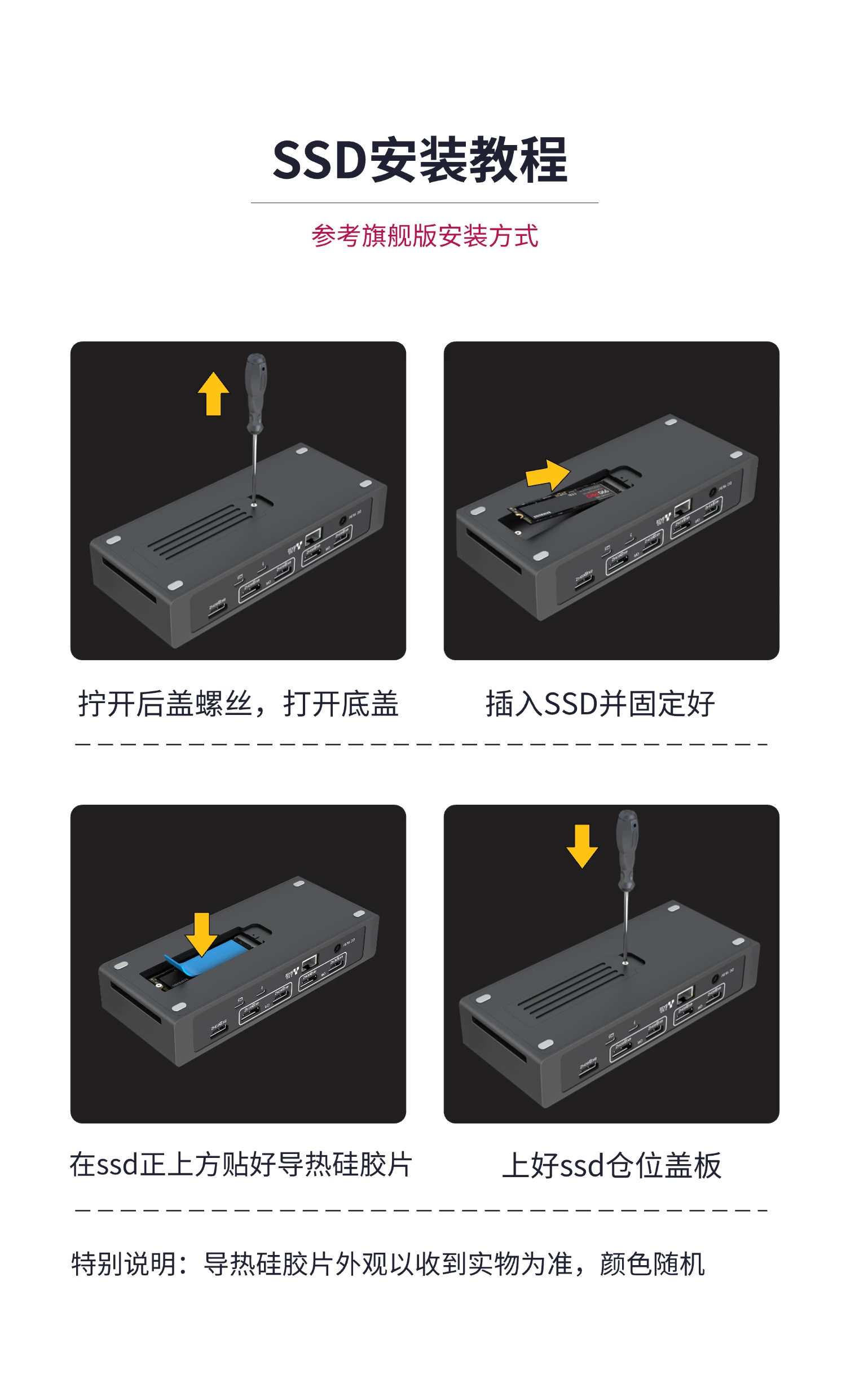

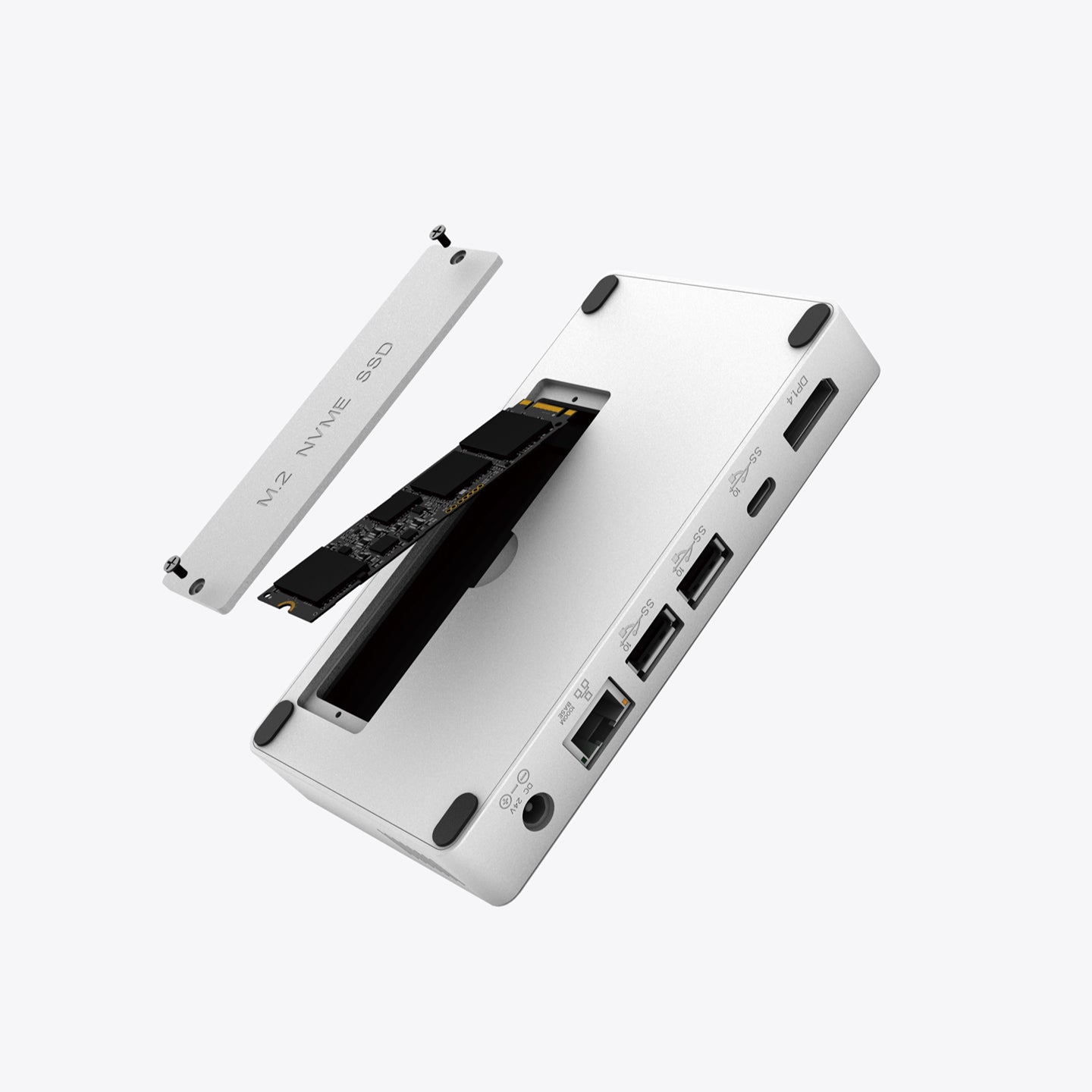

SSD Specifications: 2280-size M.2 NVMe M.key SSD (⚠️ Do not use SSDs with heat sinks)
SSD Transfer Protocol: Supports PCIe 5.0/4.0/3.0 (⚠️ The actual speed of 5.0 drives is limited by the Thunderbolt 3 port bandwidth)
USB-C Interfaces: Speed 40Gbps

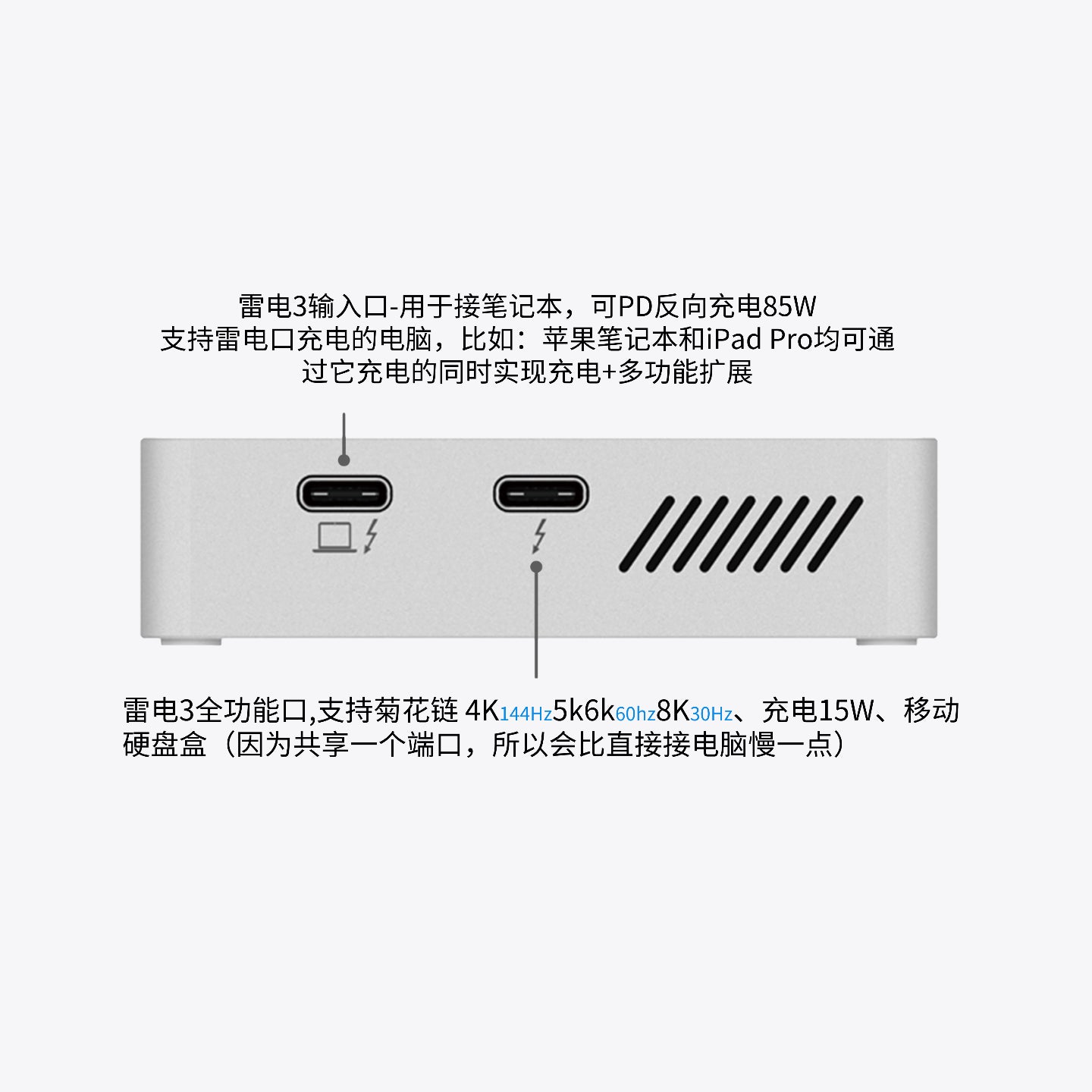

Upstream Thunderbolt Port: Speed 40Gbps, 85W PD
Downstream Thunderbolt Port: Speed 40Gbps, 15W PD; compatible with monitors, SSD enclosures, docks, mobile phones, card readers, etc.
USB-C 3.2 GEN2 (10Gbps) Port: 1 port, 7.5W PD
USB-A Interfaces: Do not connect mice or keyboards (risk of same-frequency interference); use a USB 2.0 adapter if needed
USB-A 3.2 GEN2 (10Gbps) Ports: 2 ports, 7.5W PD each
Ethernet Port: 1000Mbps (Gigabit Ethernet)
Cable: WERO Thunderbolt 3 cable (Intel officially certified). Do not replace with non-officially certified cables.
⚠️ Note: Cables claiming to have “certified chips” are all fake certified cables! This will affect stability.
⚠️ Supports lossless long-distance connection with WERO Thunderbolt 3 AOC fiber optic cables (5-50 meters)
Passive Cooling: Fanless design, relying on full-aluminum casing for heat dissipation

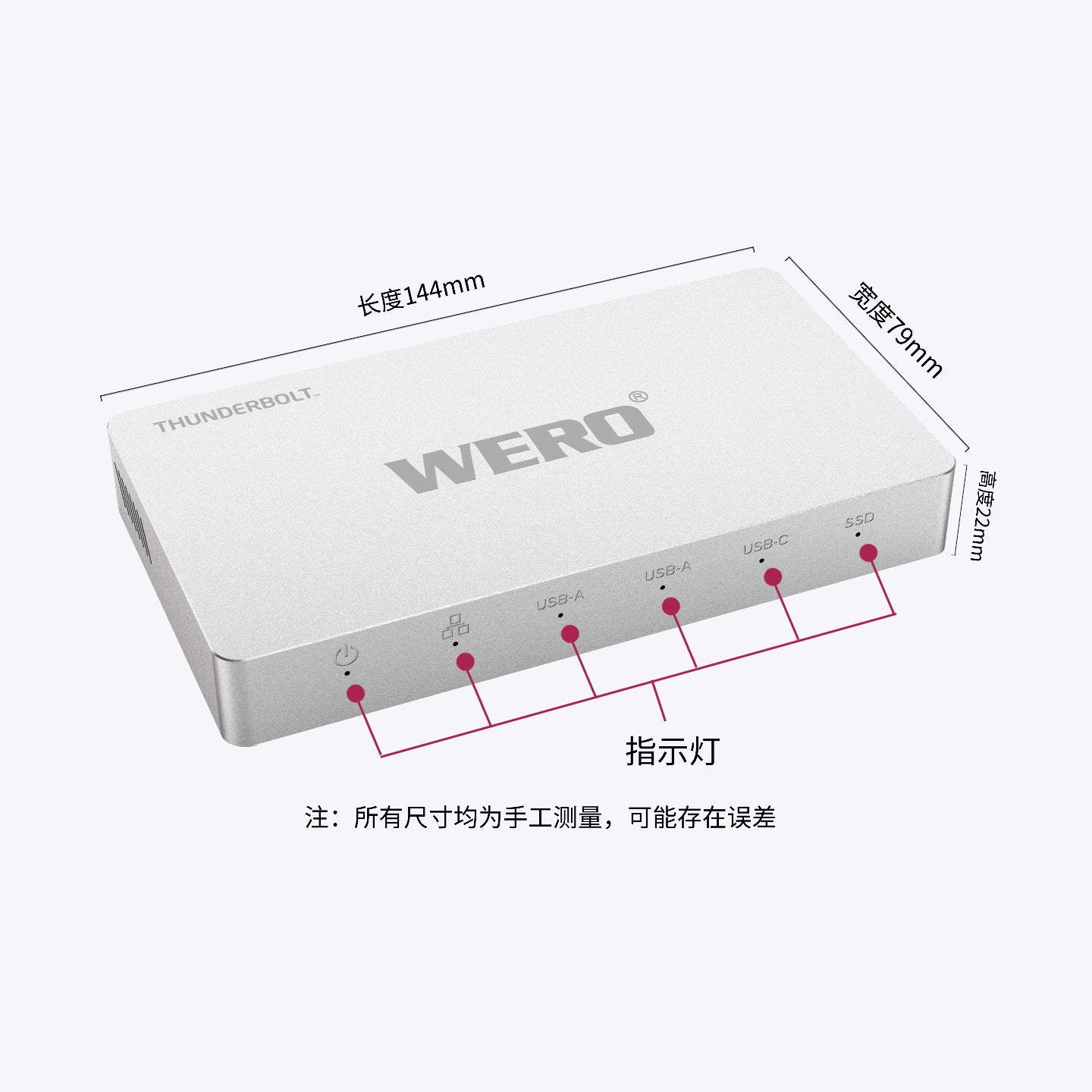

Dimensions: 144mm (Length) × 79mm (Width) × 22mm (Height)
Weight: 246 grams
Power Supply Method: Independent power supply (Chicony 24V 5A) ⚠️ Must connect to a power supply; use only the original WERO power adapter!
Supported Systems: macOS 10.13 or later, Windows 10/11 (Does not support Windows 8/7/XP, etc.)
Speed Testing Tools:
For Apple Mac: Use AmorphousDiskMark
For Windows 10/11: Use CrystalDiskMark 8.01
Note: Blackmagic Disk Speed Test will show lower values due to different testing standards. Please be advised! The above speeds refer to the maximum sequential read speeds; other speed values can be obtained from customer service.

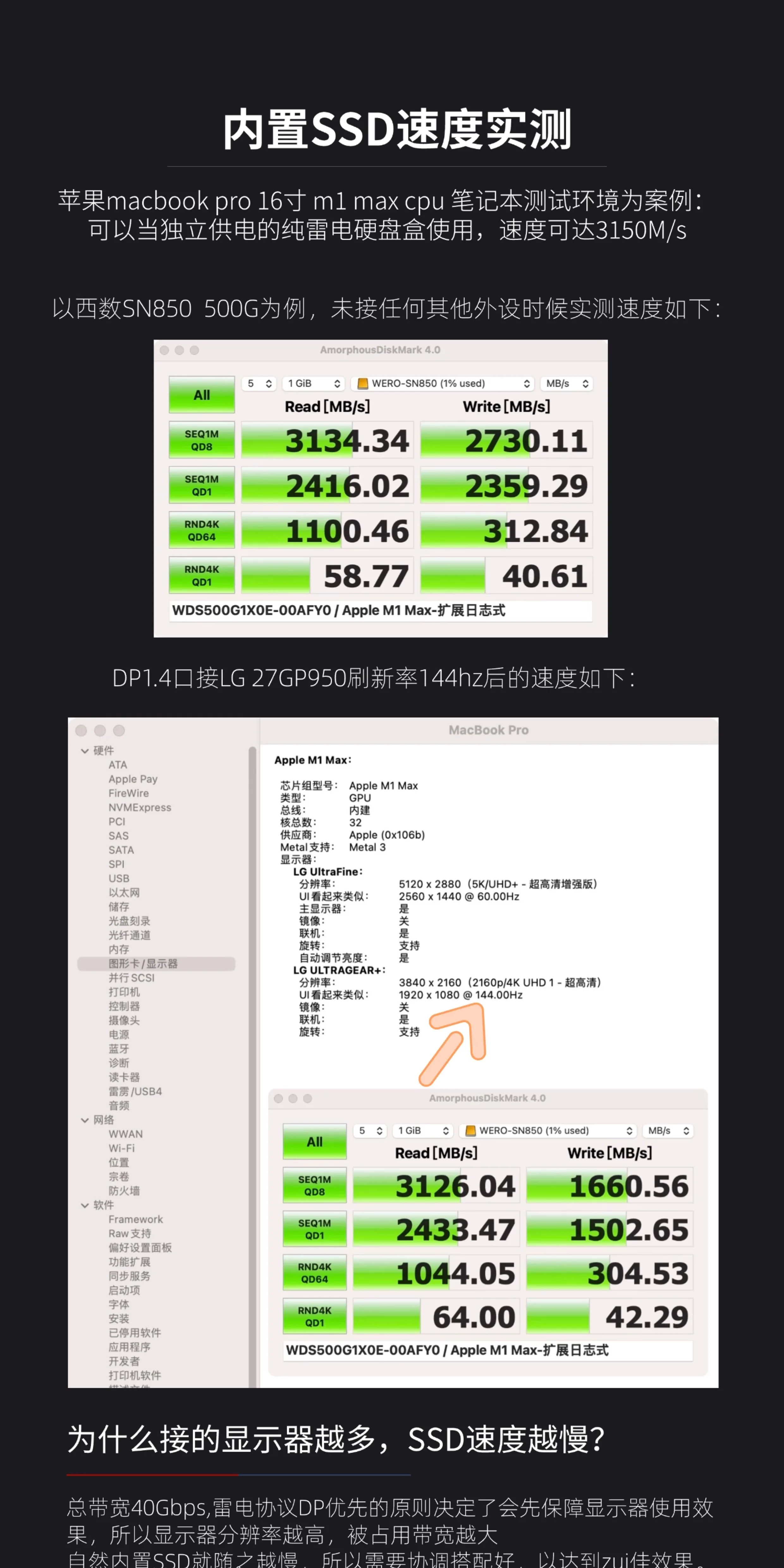

Speed of Built-in SSD on Mac Computers
Thunderbolt 5: Up to 3150 MB/s (3150 megabytes per second)
Thunderbolt 4: Up to 3150 MB/s (3150 megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 megabytes per second)
Speed of Built-in SSD on Windows Computers
Thunderbolt 5: Up to 3050 MB/s (3050 megabytes per second)
Thunderbolt 4: Up to 3050 MB/s (3050 megabytes per second)
Thunderbolt 3: Up to 2750 MB/s (2750 megabytes per second)
⚠️ Important Notes
The Thunderbolt 3 Dock is not compatible with devices that have USB 3 or USB 2 interfaces.
This device must use a 24V independent power supply (any voltage exceeding 24V will cause the device to burn out, and such damage is not covered under warranty).
