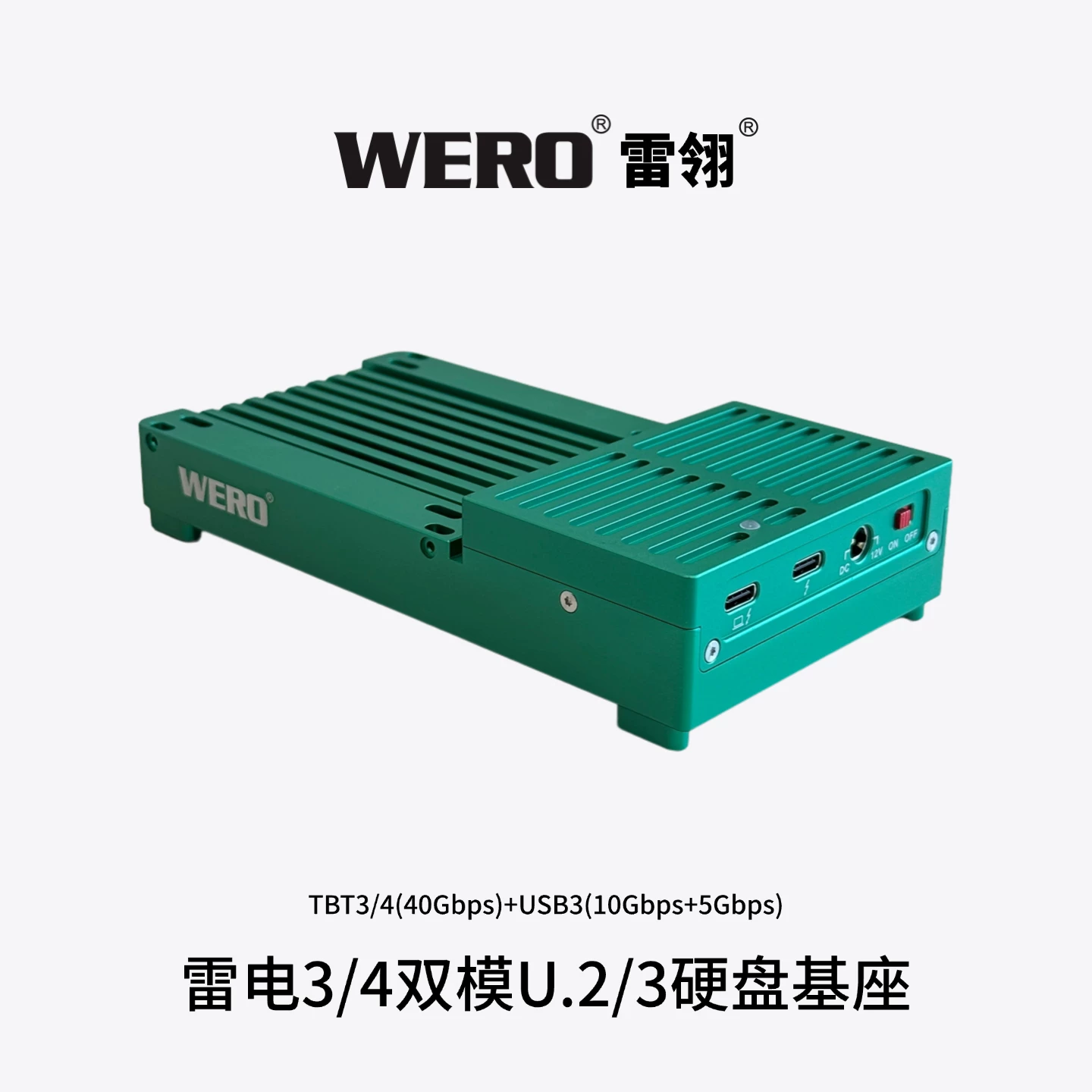

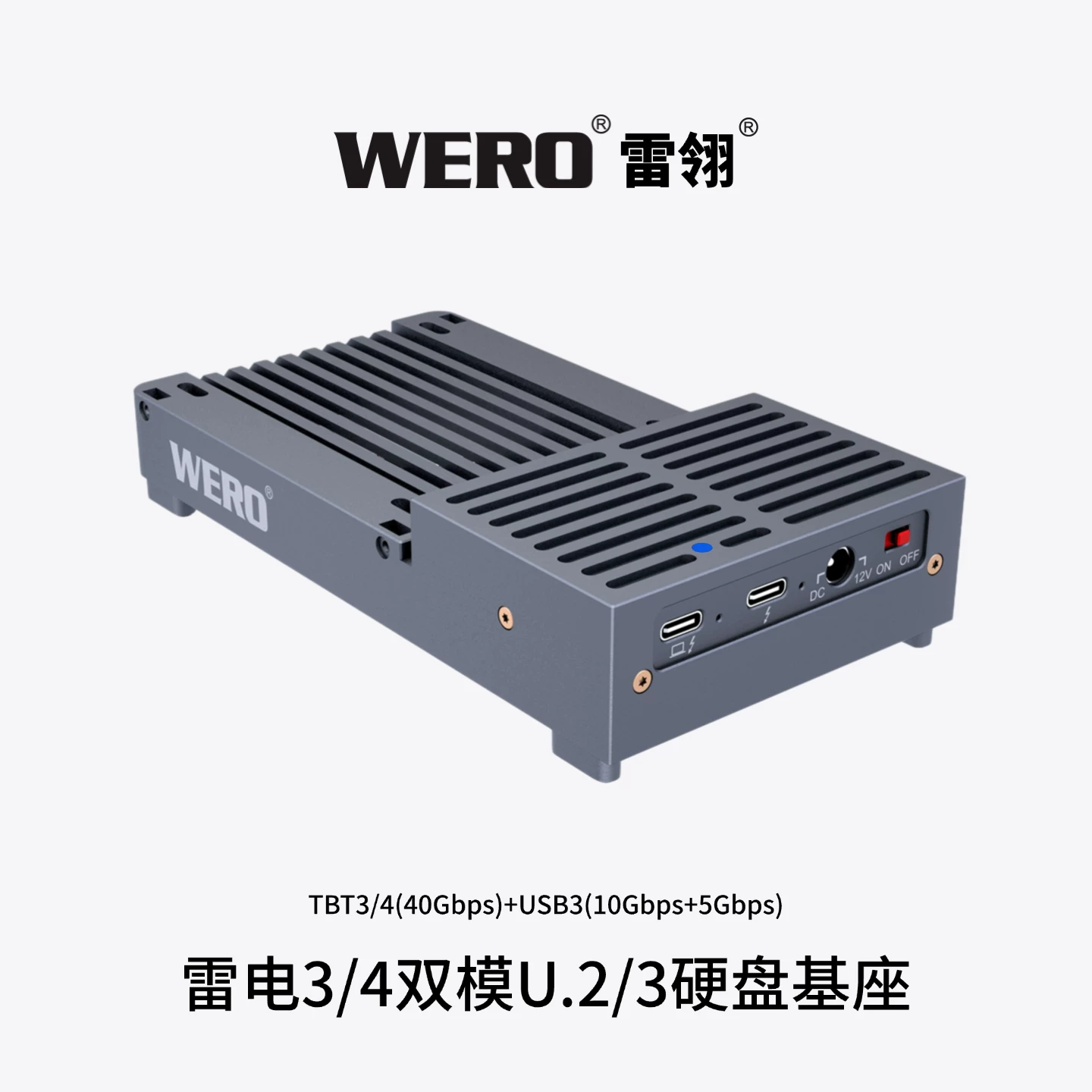

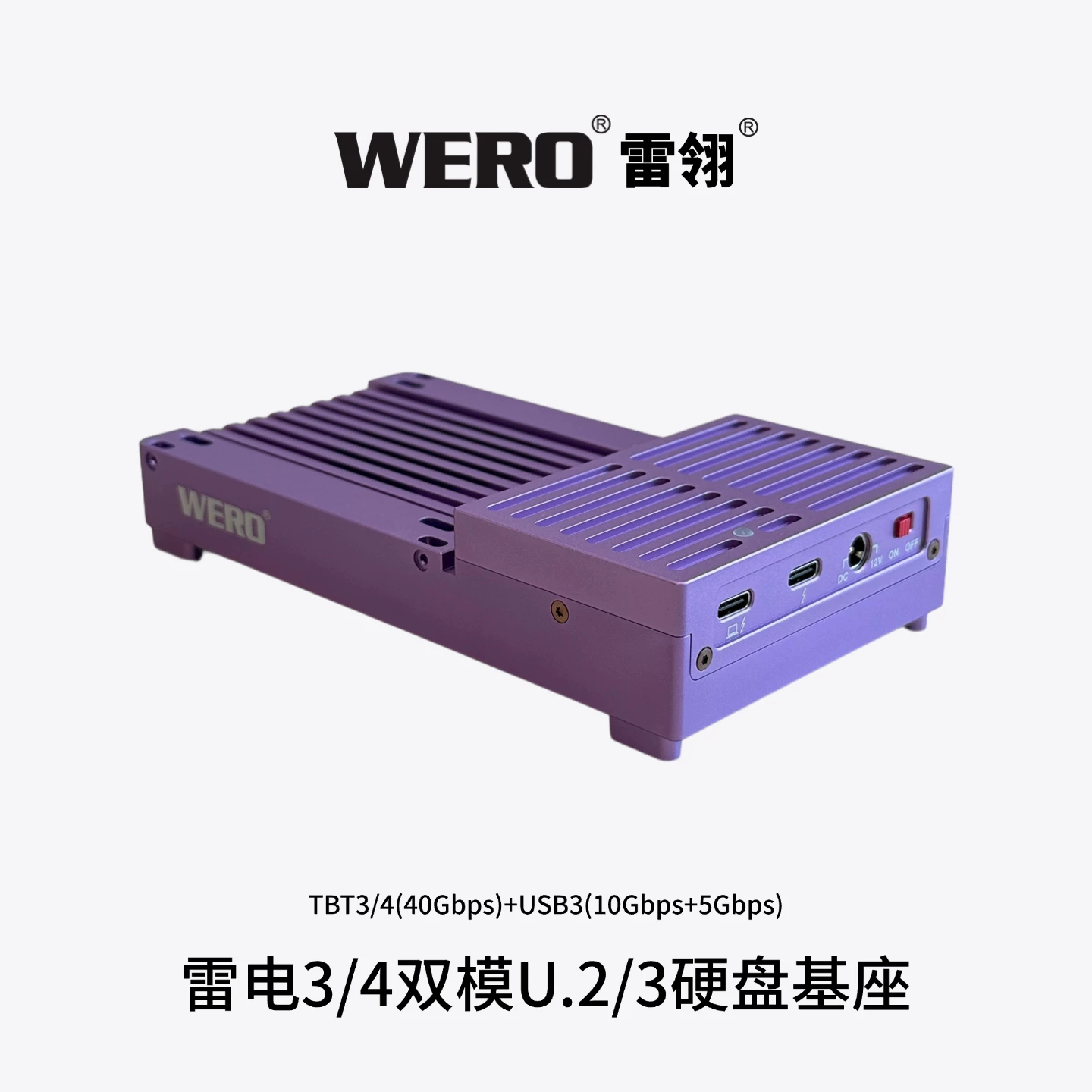

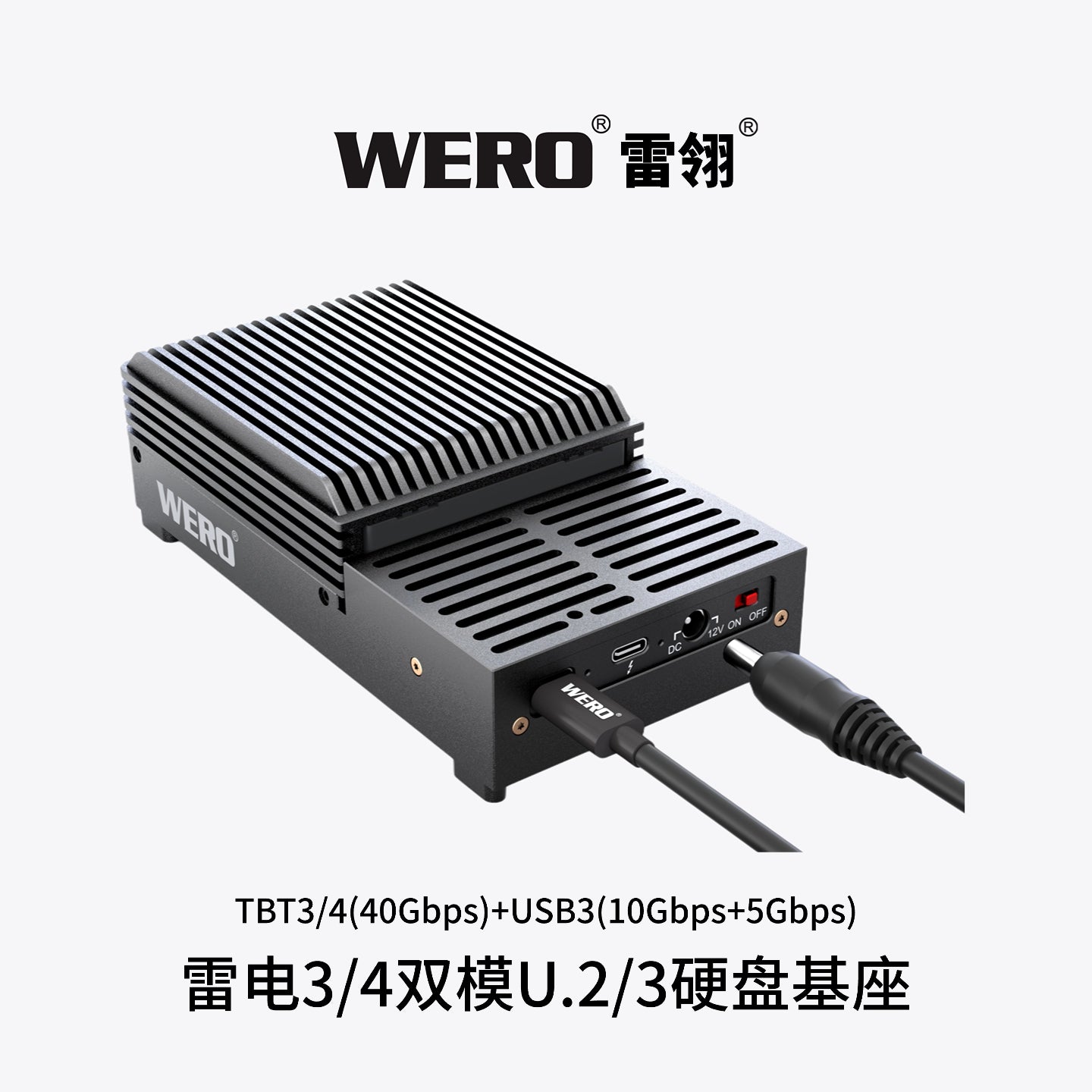

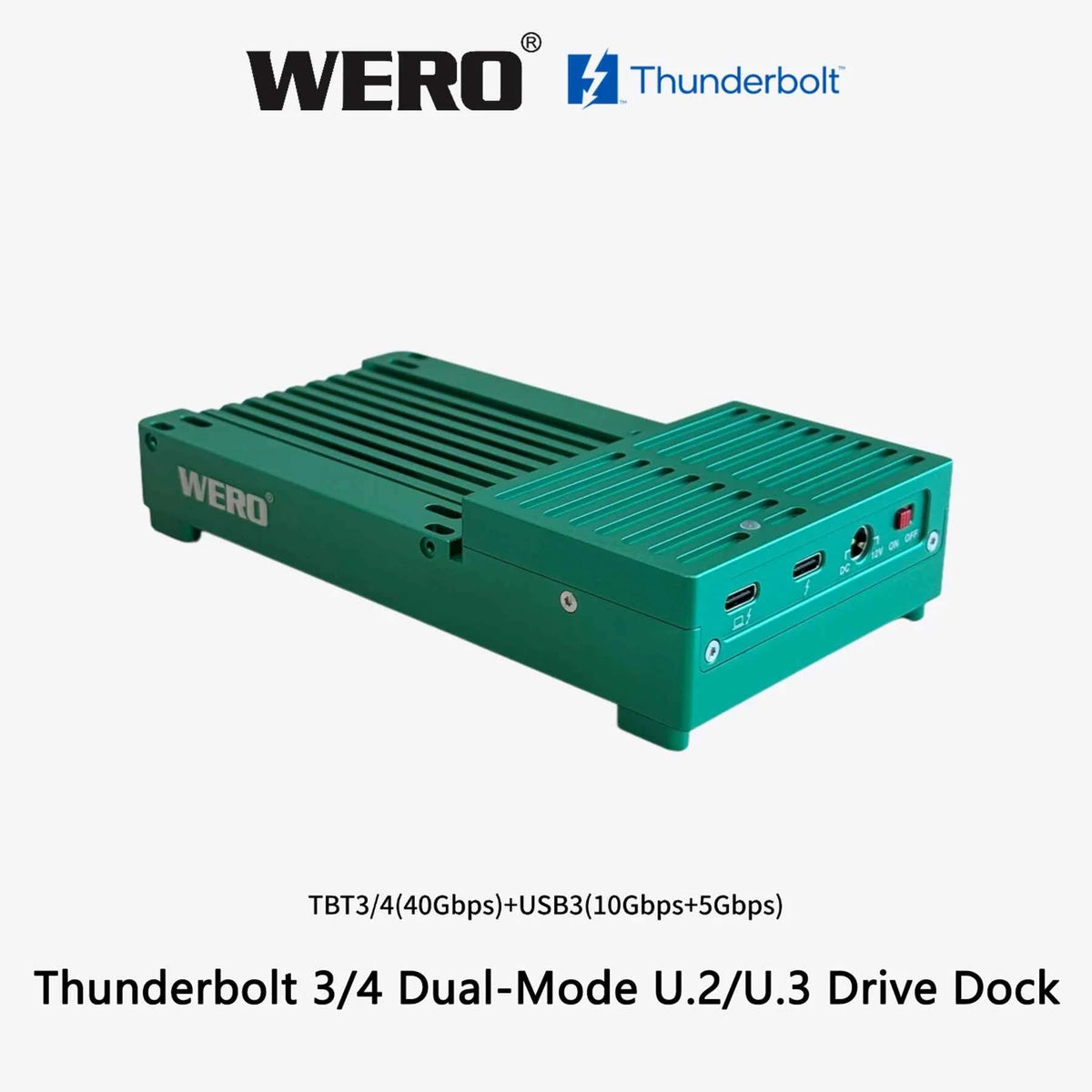

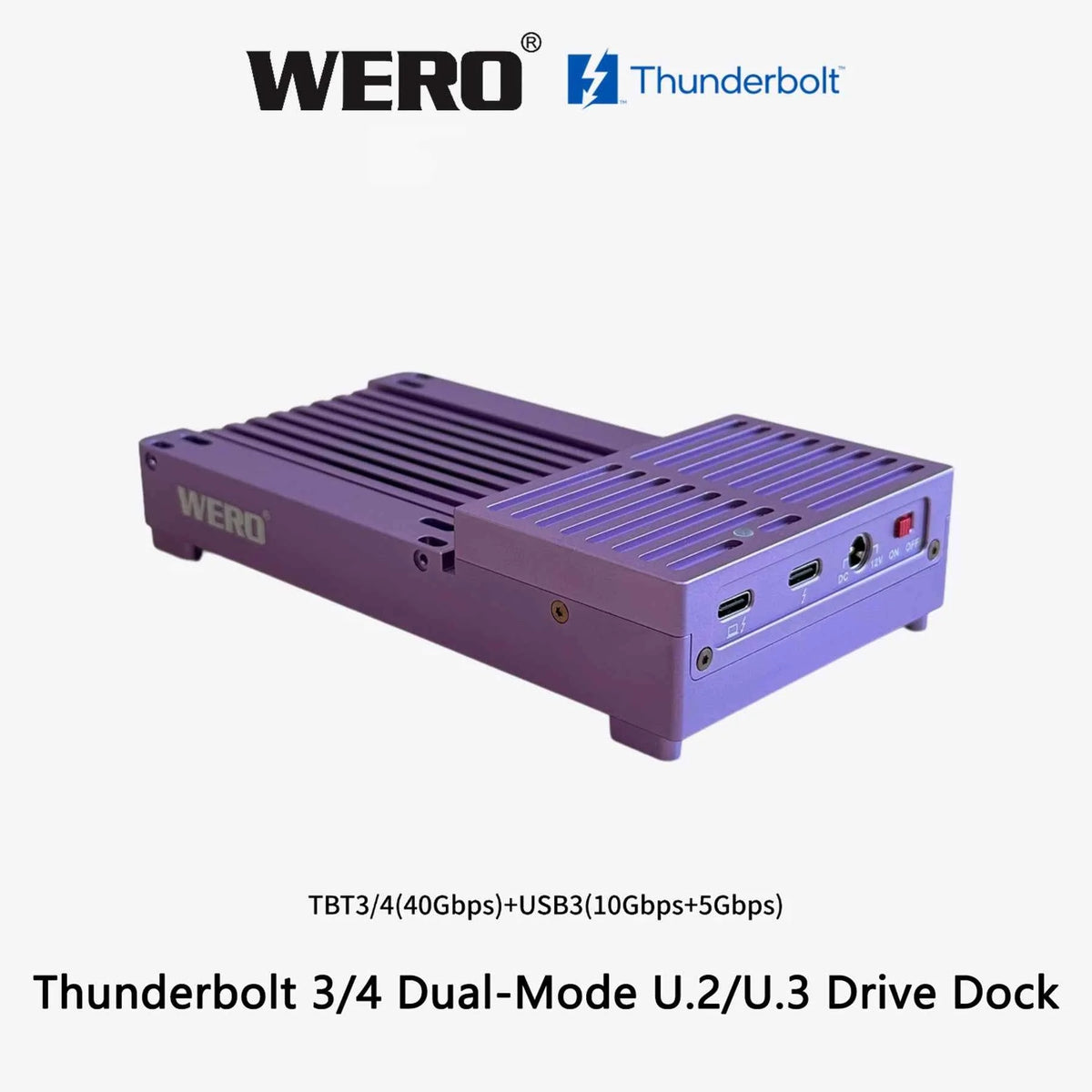

WERO Thunderbolt 3 Dual-Mode U.2/3 SSD DOCK Station(1XU2-V40)
颜色:雷电3-U2基座-含顶盖-23款-灰色
Quantity:

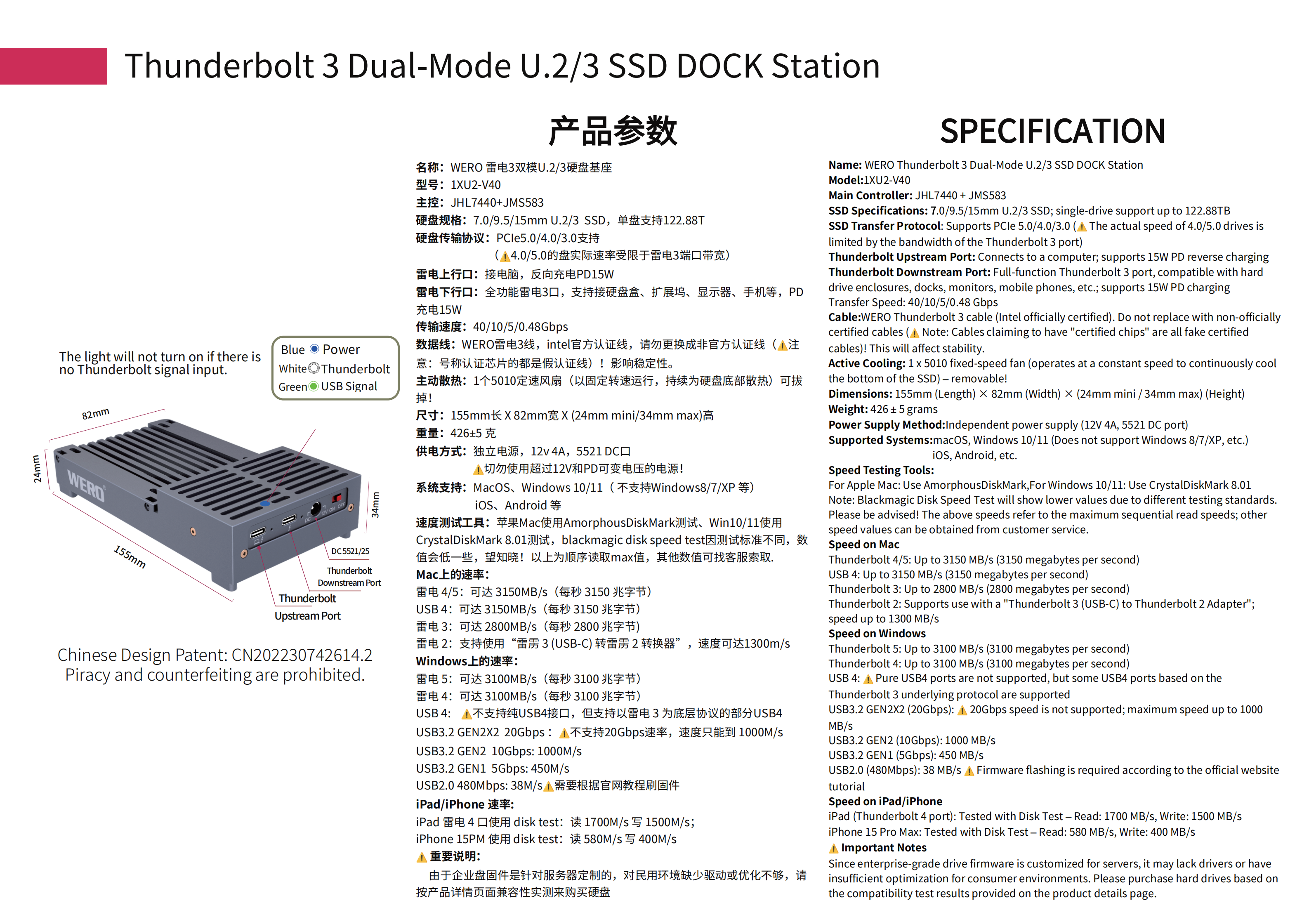

- Name: WERO Thunderbolt 3 Dual-Mode U.2/3 SSD DOCK Station
- Model: 1XU2-V40
- Main Controller: JHL7440 + JMS583
- SSD Specifications: 7.0/9.5/15mm U.2/3 SSD; single-drive support up to 122.88TB
- SSD Transfer Protocol: Supports PCIe 5.0/4.0/3.0 (⚠️ The actual speed of 4.0/5.0 drives is limited by the bandwidth of the Thunderbolt 3 port)
- Thunderbolt Upstream Port: Connects to a computer; supports 15W PD reverse charging
- Thunderbolt Downstream Port: Full-function Thunderbolt 3 port, compatible with hard drive enclosures, docks, monitors, mobile phones, etc.; supports 15W PD charging
- Transfer Speed: 40/10/5/0.48 Gbps
- Cable: WERO Thunderbolt 3 cable (Intel officially certified). Do not replace with non-officially certified cables (⚠️ Note: Cables claiming to have “certified chips” are all fake certified cables)! This will affect stability.

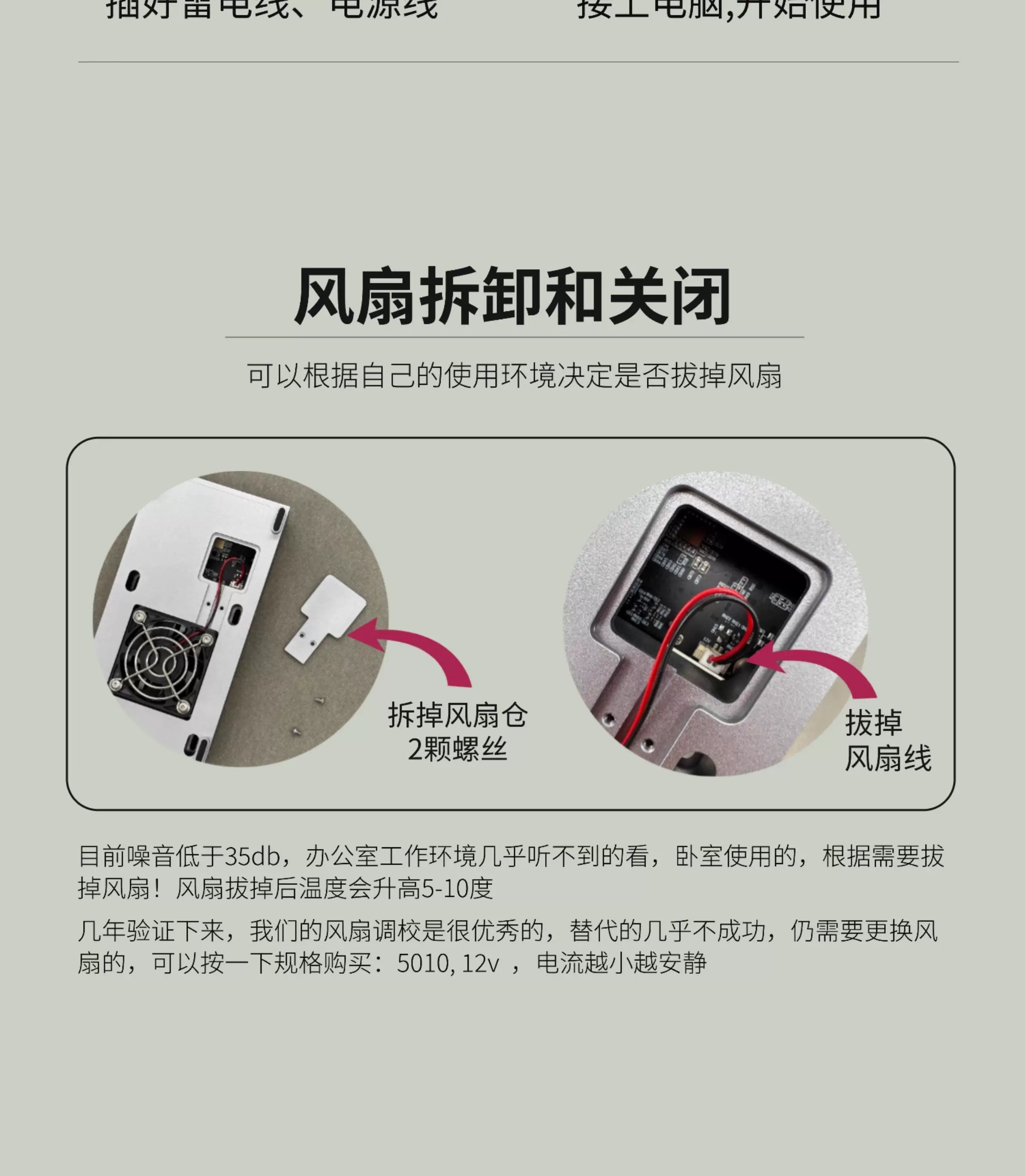

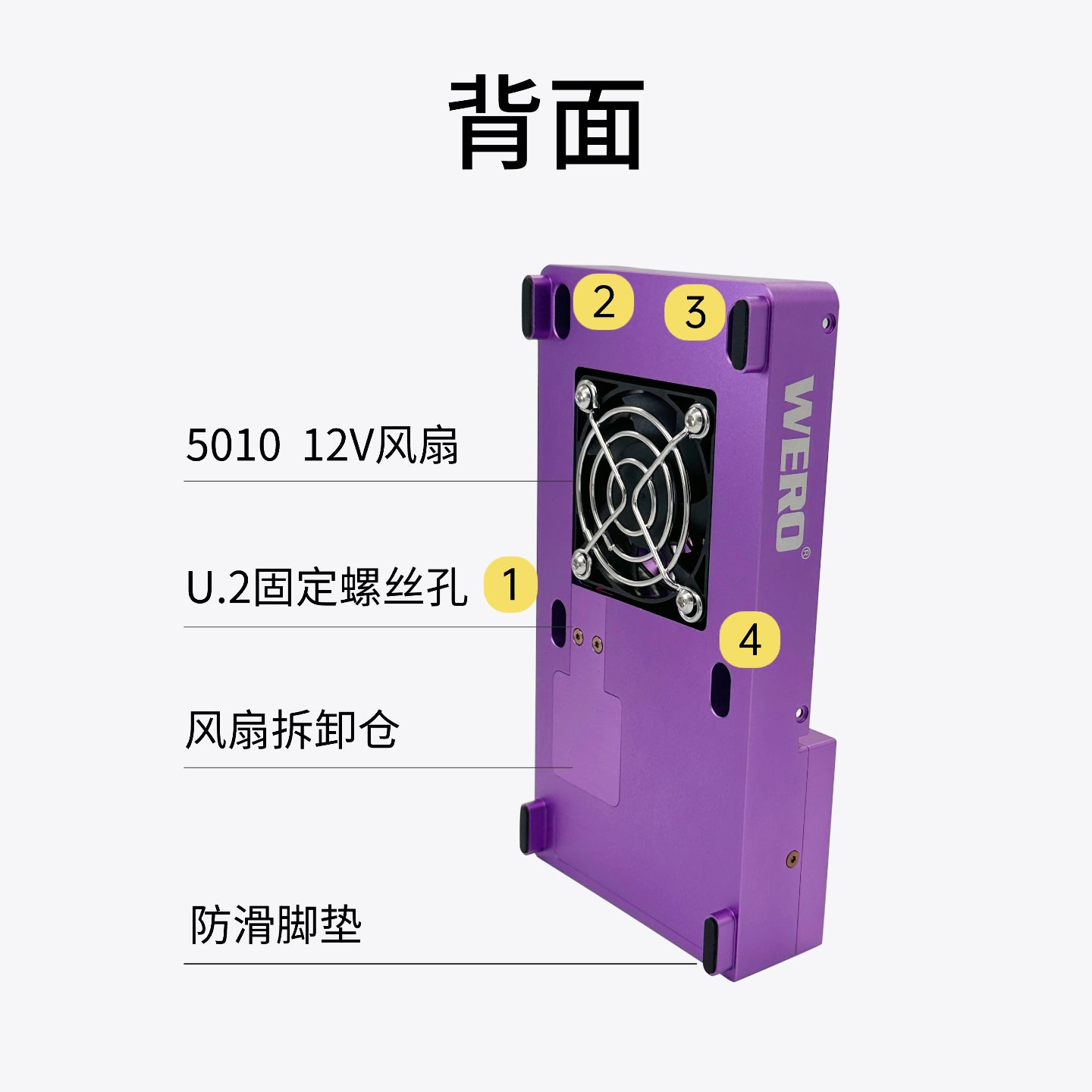

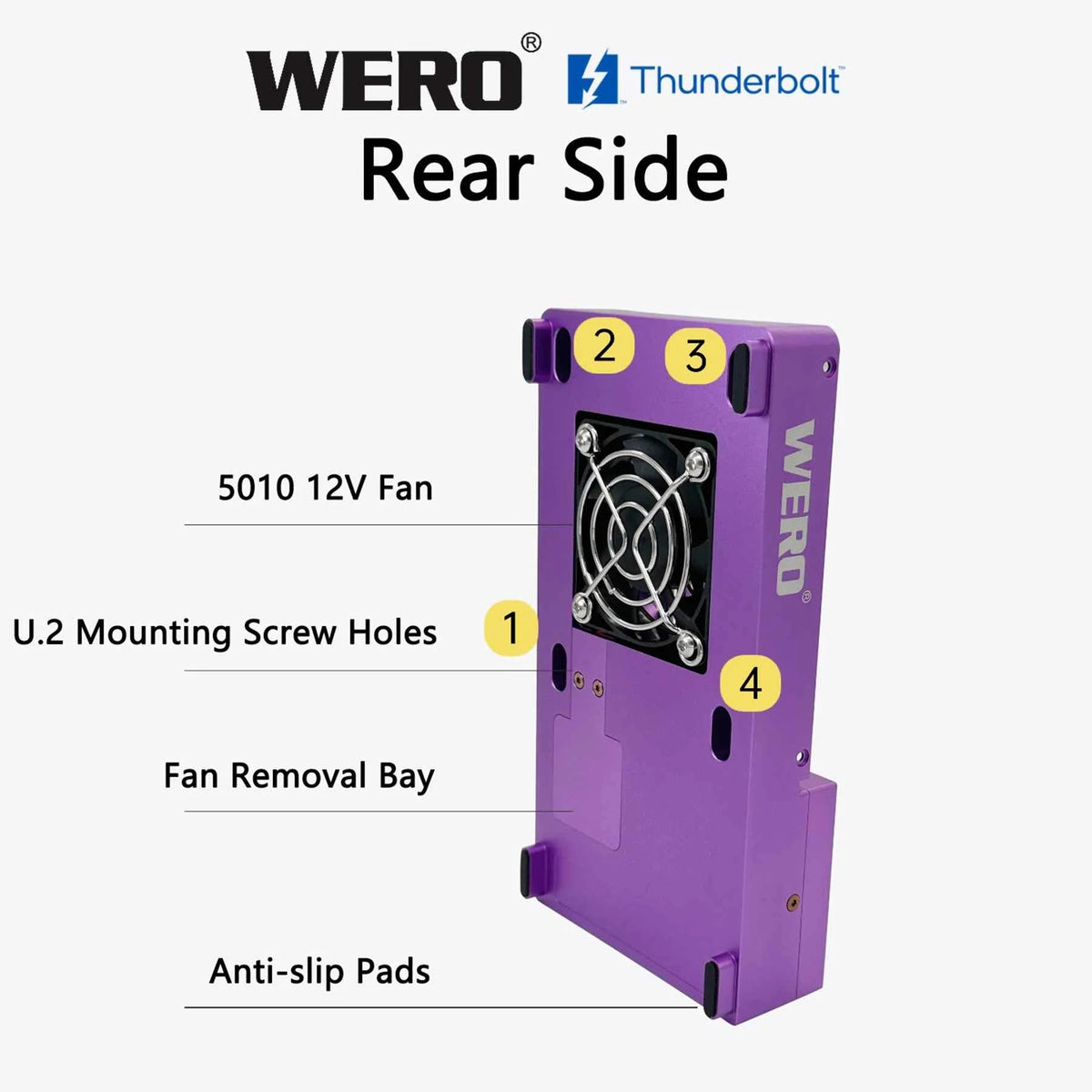

- Active Cooling: 1 x 5010 fixed-speed fan (operates at a constant speed to continuously cool the bottom of the SSD) – removable!

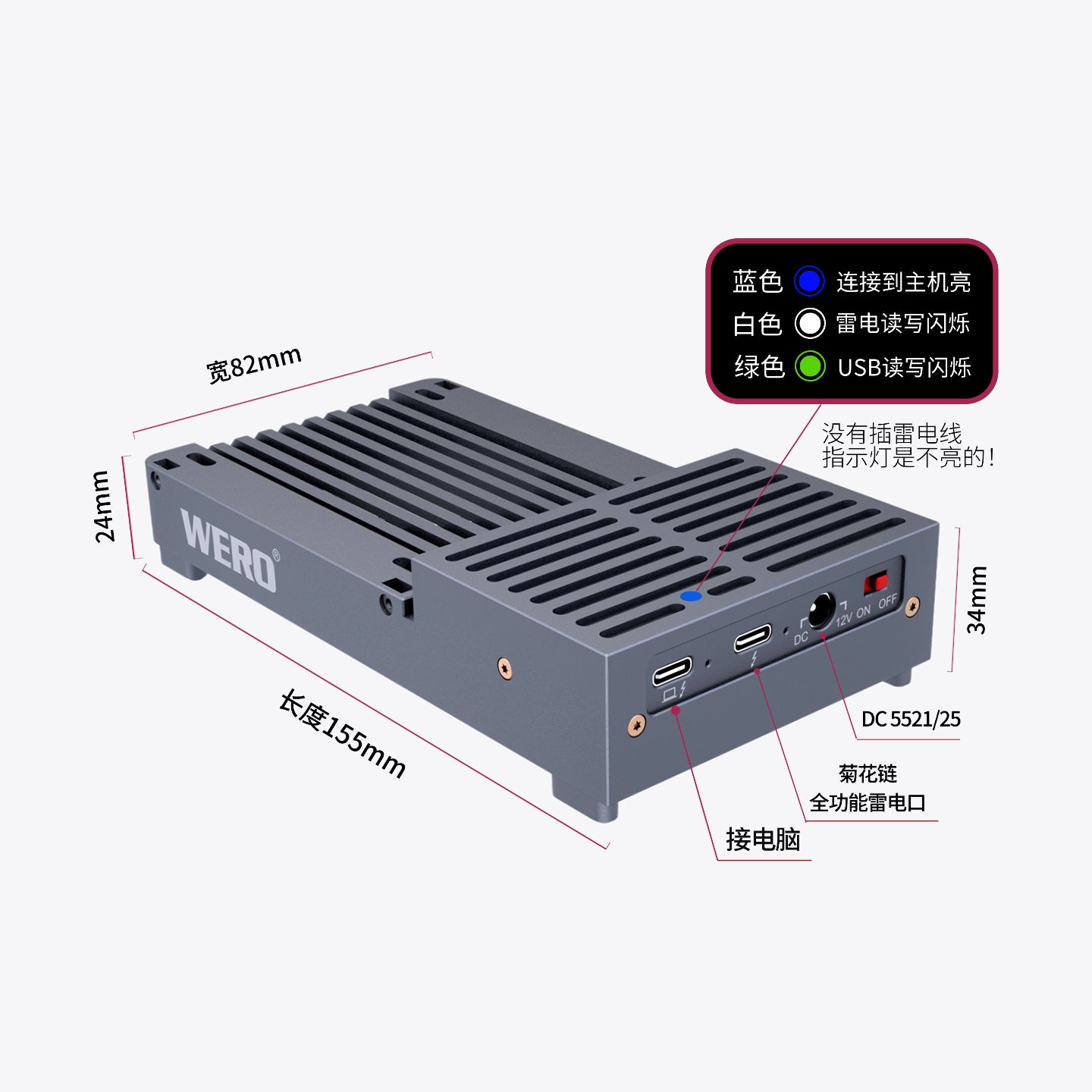

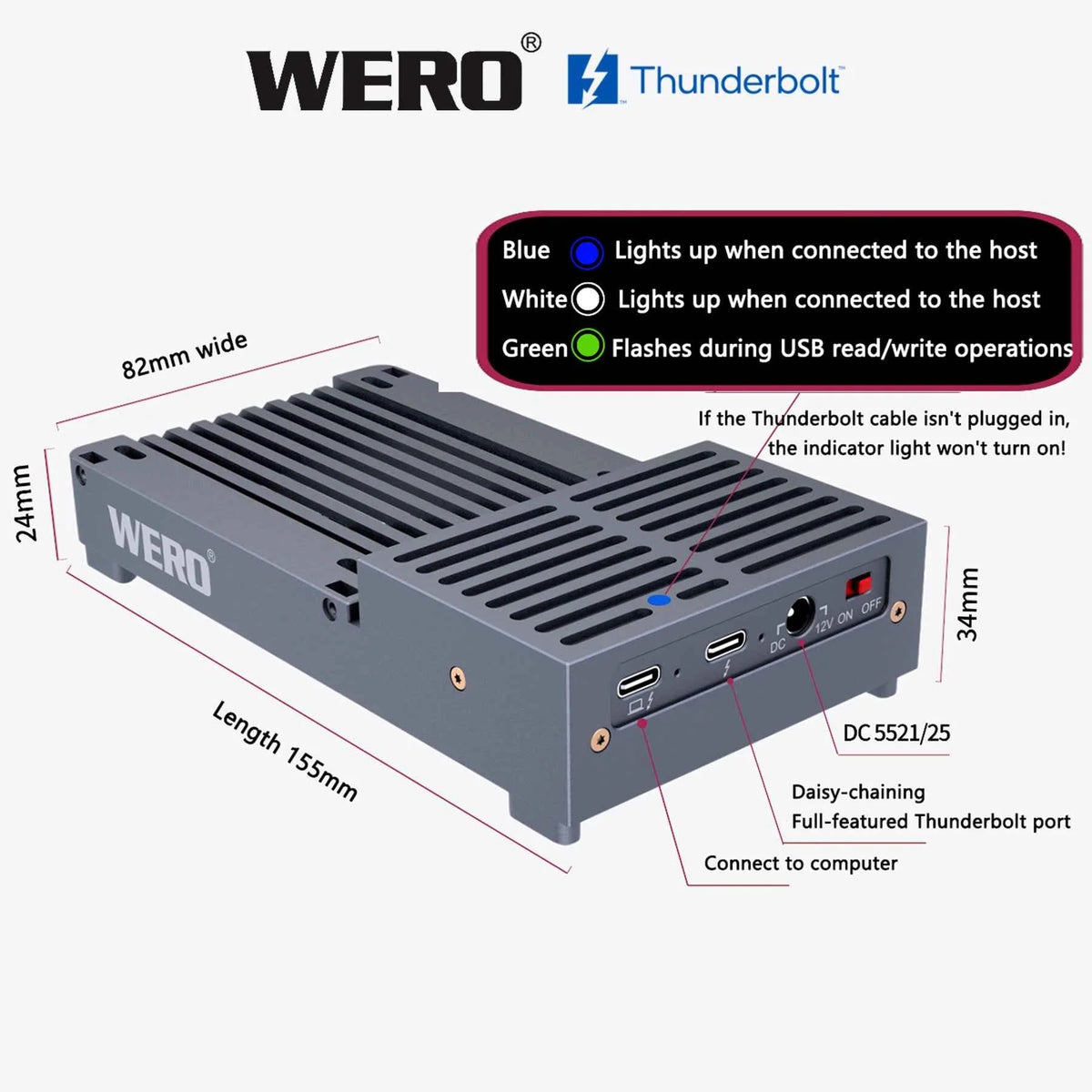

- Dimensions: 155mm (Length) × 82mm (Width) × (24mm mini / 34mm max) (Height)
- Weight: 426 ± 5 grams

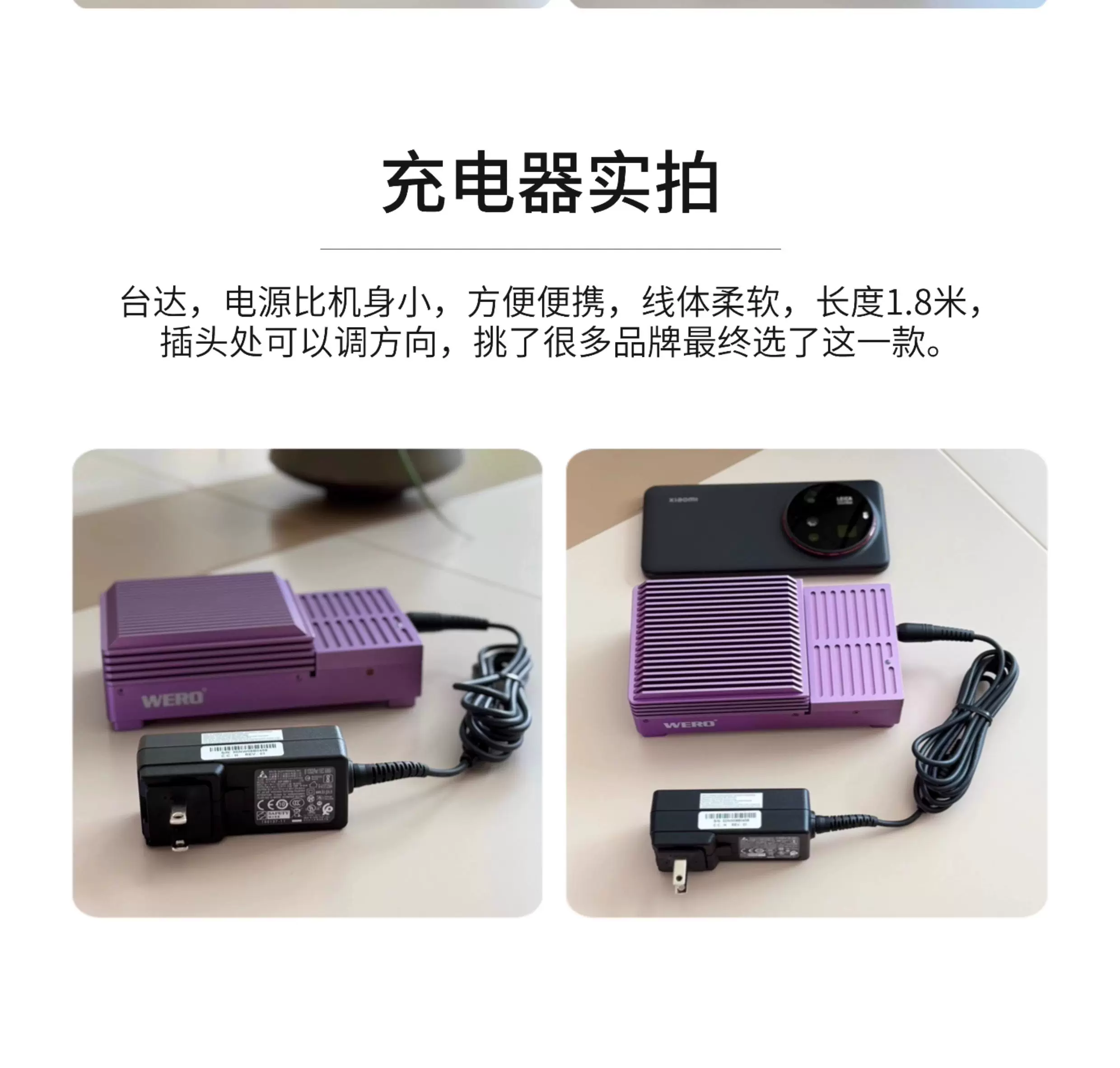

- Power Supply Method: Independent power supply (12V 4A, 5521 DC port)
- Supported Systems:macOS, Windows 10/11 (Does not support Windows 8/7/XP, etc.)
- iOS, Android, etc.
- Speed Testing Tools:
- For Apple Mac: Use AmorphousDiskMark,For Windows 10/11: Use CrystalDiskMark 8.01
- Note: Blackmagic Disk Speed Test will show lower values due to different testing standards. Please be advised! The above speeds refer to the maximum sequential read speeds; other speed values can be obtained from customer service.
- Speed on Mac
- Thunderbolt 4/5: Up to 3150 MB/s (3150 megabytes per second)
- USB 4: Up to 3150 MB/s (3150 megabytes per second)
- Thunderbolt 3: Up to 2800 MB/s (2800 megabytes per second)
- Thunderbolt 2: Supports use with a “Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter”; speed up to 1300 MB/s
- Speed on Windows
- Thunderbolt 5: Up to 3100 MB/s (3100 megabytes per second)
- Thunderbolt 4: Up to 3100 MB/s (3100 megabytes per second)
- USB 4: ⚠️ Pure USB4 ports are not supported, but some USB4 ports based on the Thunderbolt 3 underlying protocol are supported
- USB3.2 GEN2X2 (20Gbps): ⚠️ 20Gbps speed is not supported; maximum speed up to 1000 MB/s
- USB3.2 GEN2 (10Gbps): 1000 MB/s
- USB3.2 GEN1 (5Gbps): 450 MB/s
- USB2.0 (480Mbps): 38 MB/s ⚠️ Firmware flashing is required according to the official website tutorial
- Speed on iPad/iPhone
- iPad (Thunderbolt 4 port): Tested with Disk Test – Read: 1700 MB/s, Write: 1500 MB/s
- iPhone 15 Pro Max: Tested with Disk Test – Read: 580 MB/s, Write: 400 MB/s
- ⚠️ Important Notes
- Since enterprise-grade drive firmware is customized for servers, it may lack drivers or have insufficient optimization for consumer environments. Please purchase hard drives based on the compatibility test results provided on the product details page.
