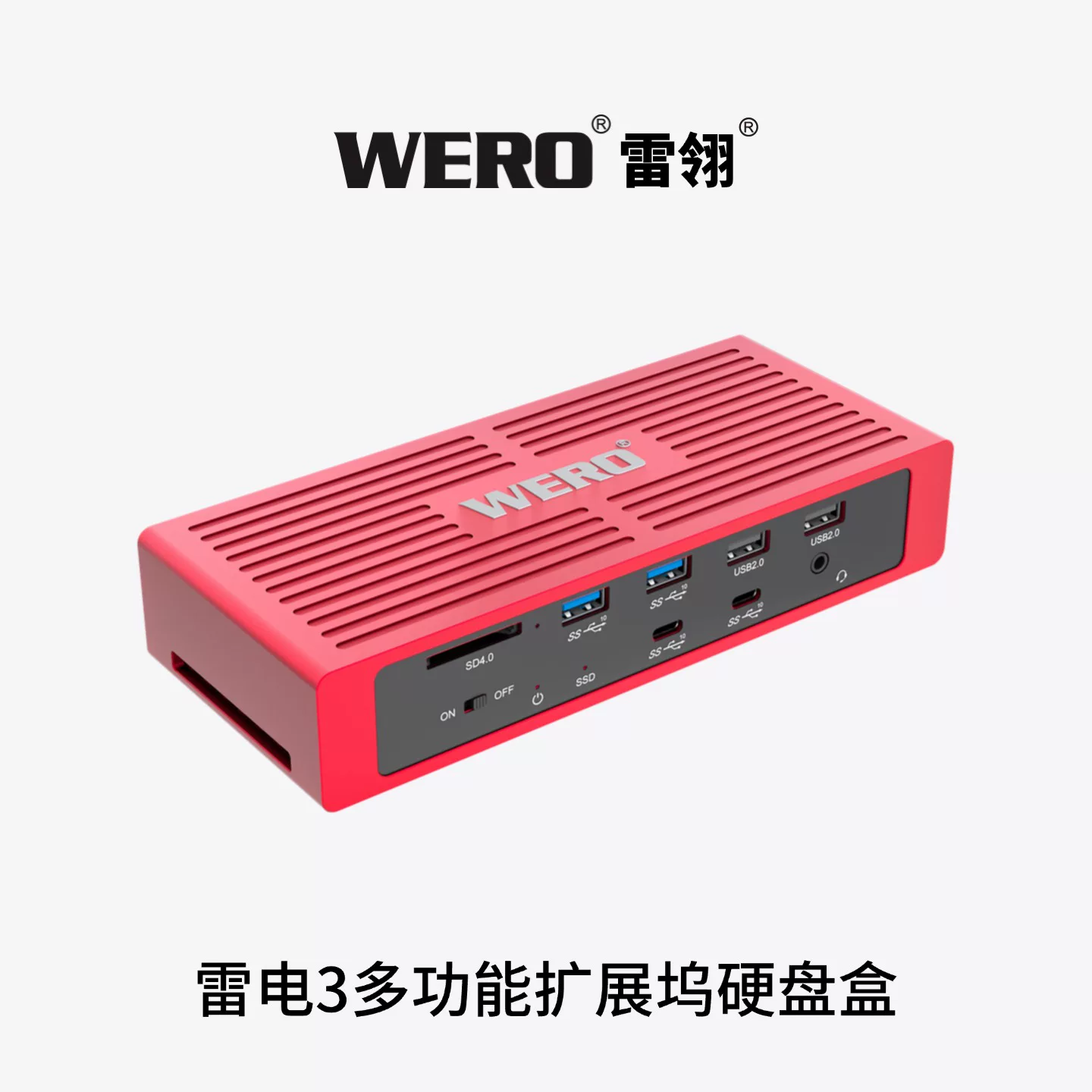

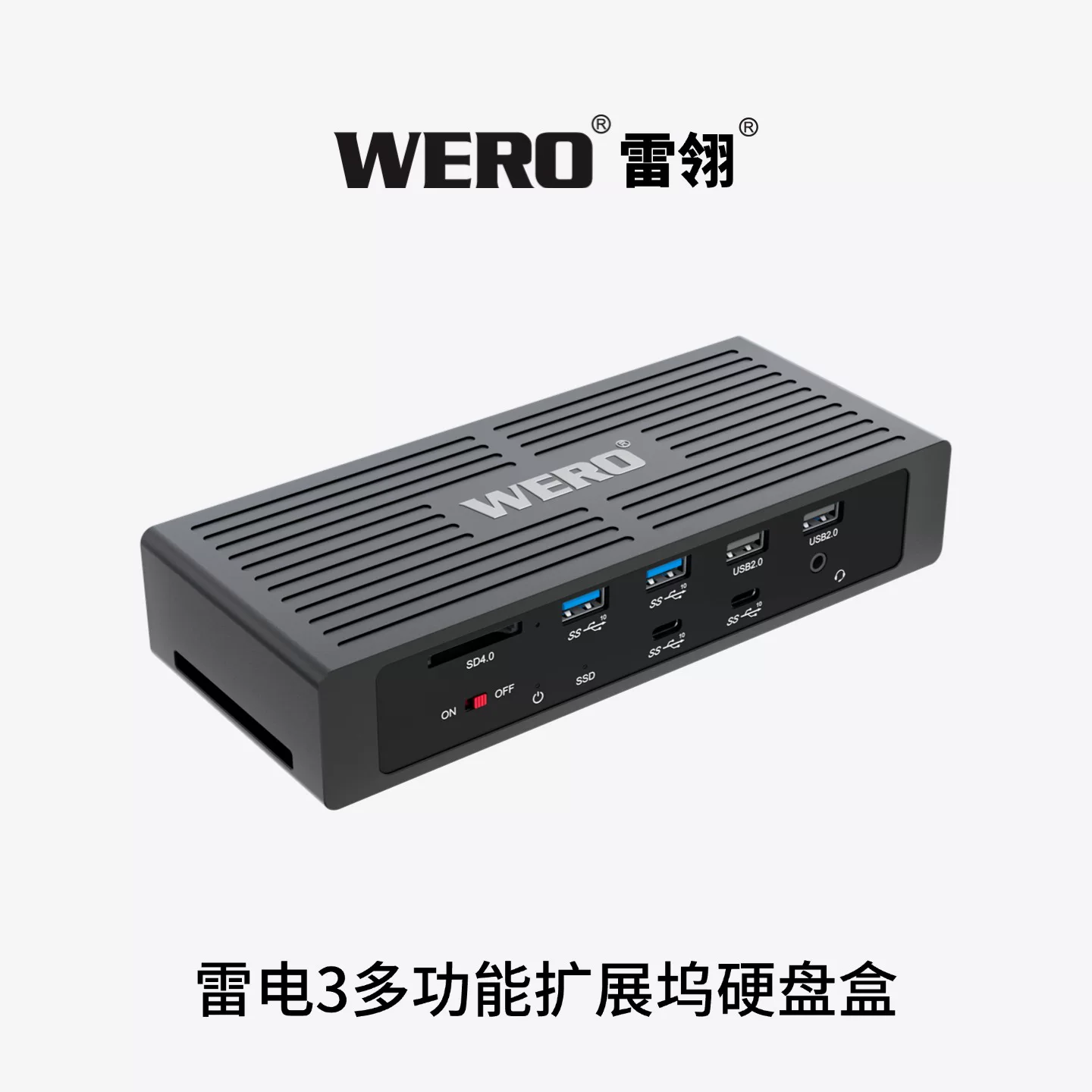

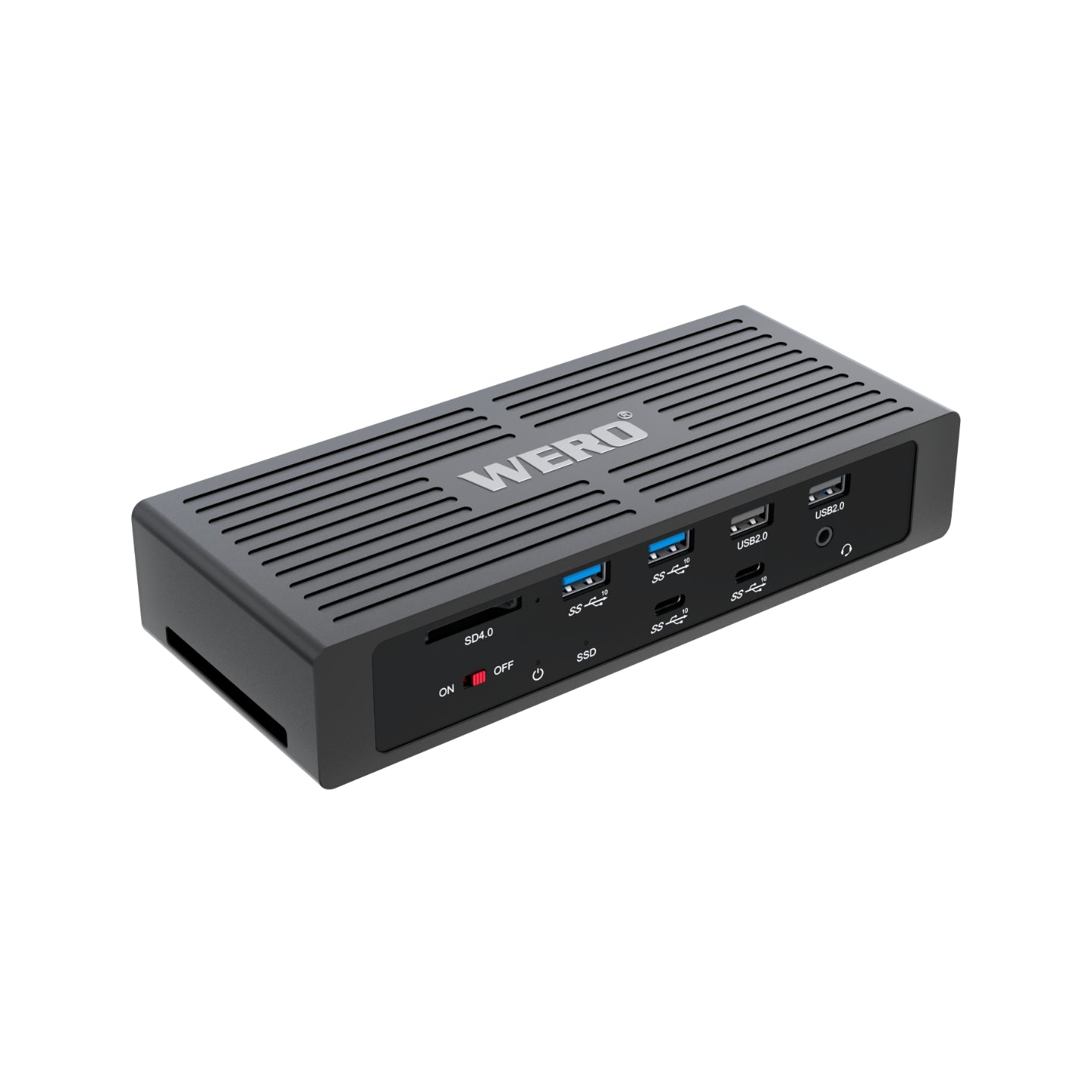

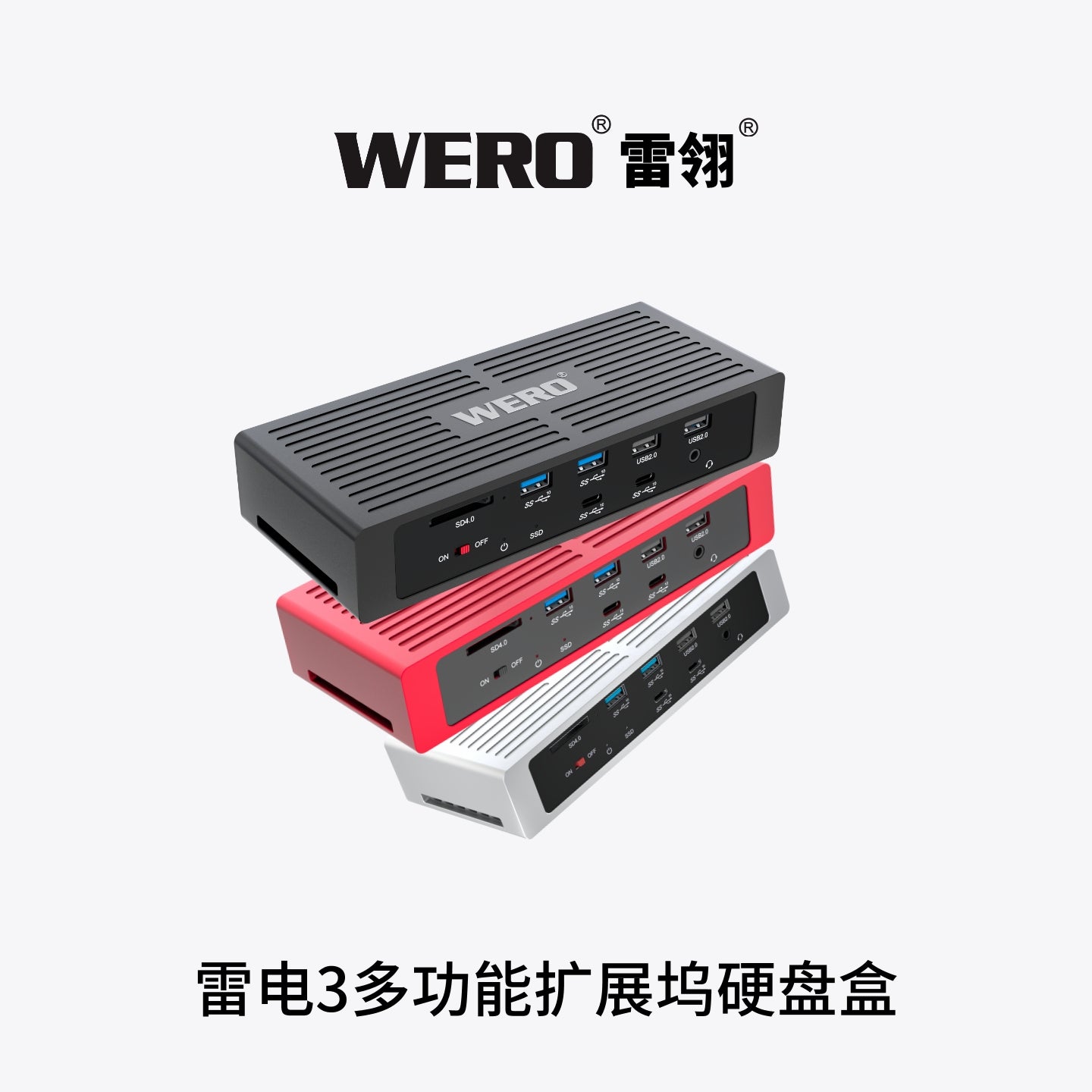

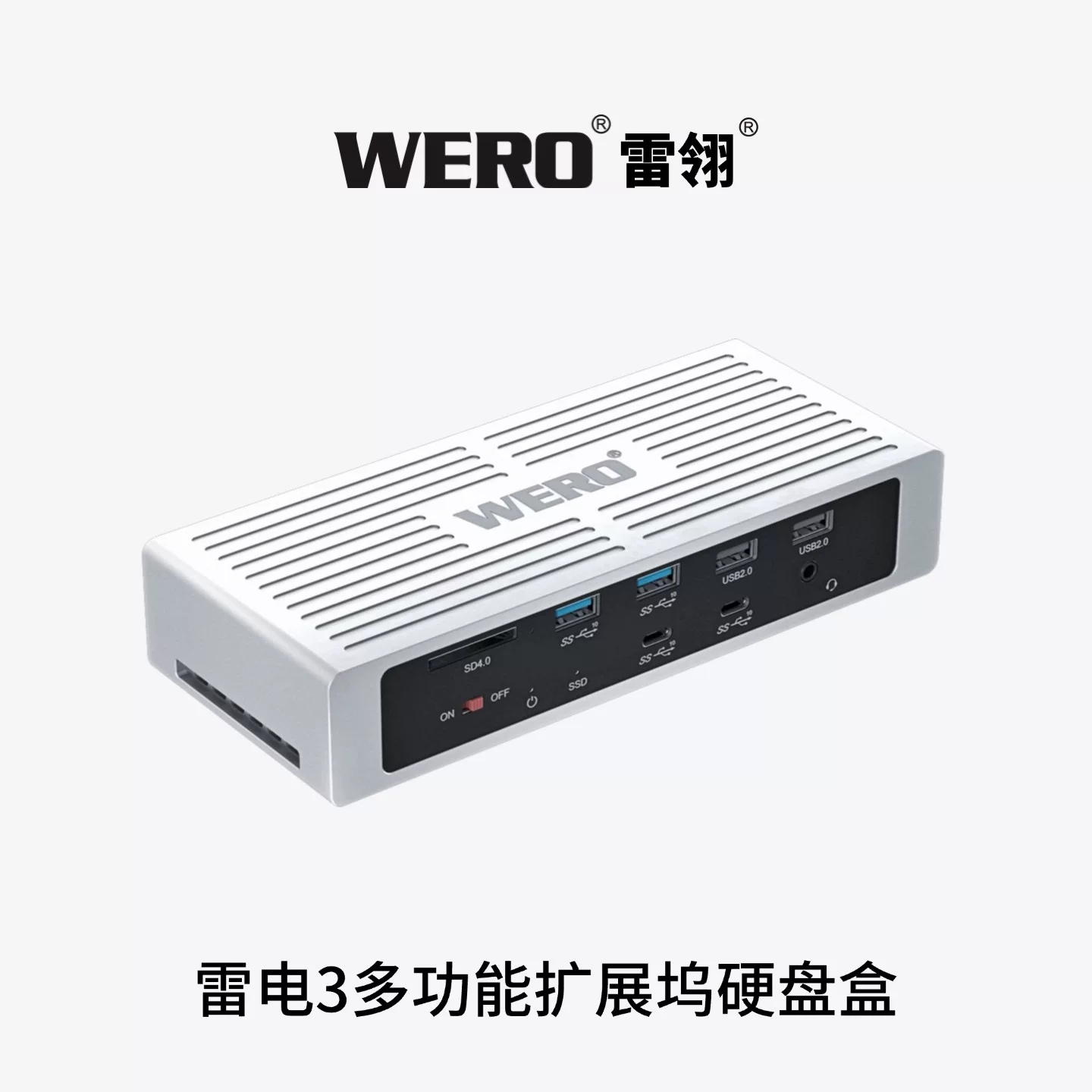

WERO Thunderbolt 3 Expansion Dock Hard Disk Box Dual 4K HDMI+Display Link Desktop Expansion Dock(SSD-DOCK-Ultimate)

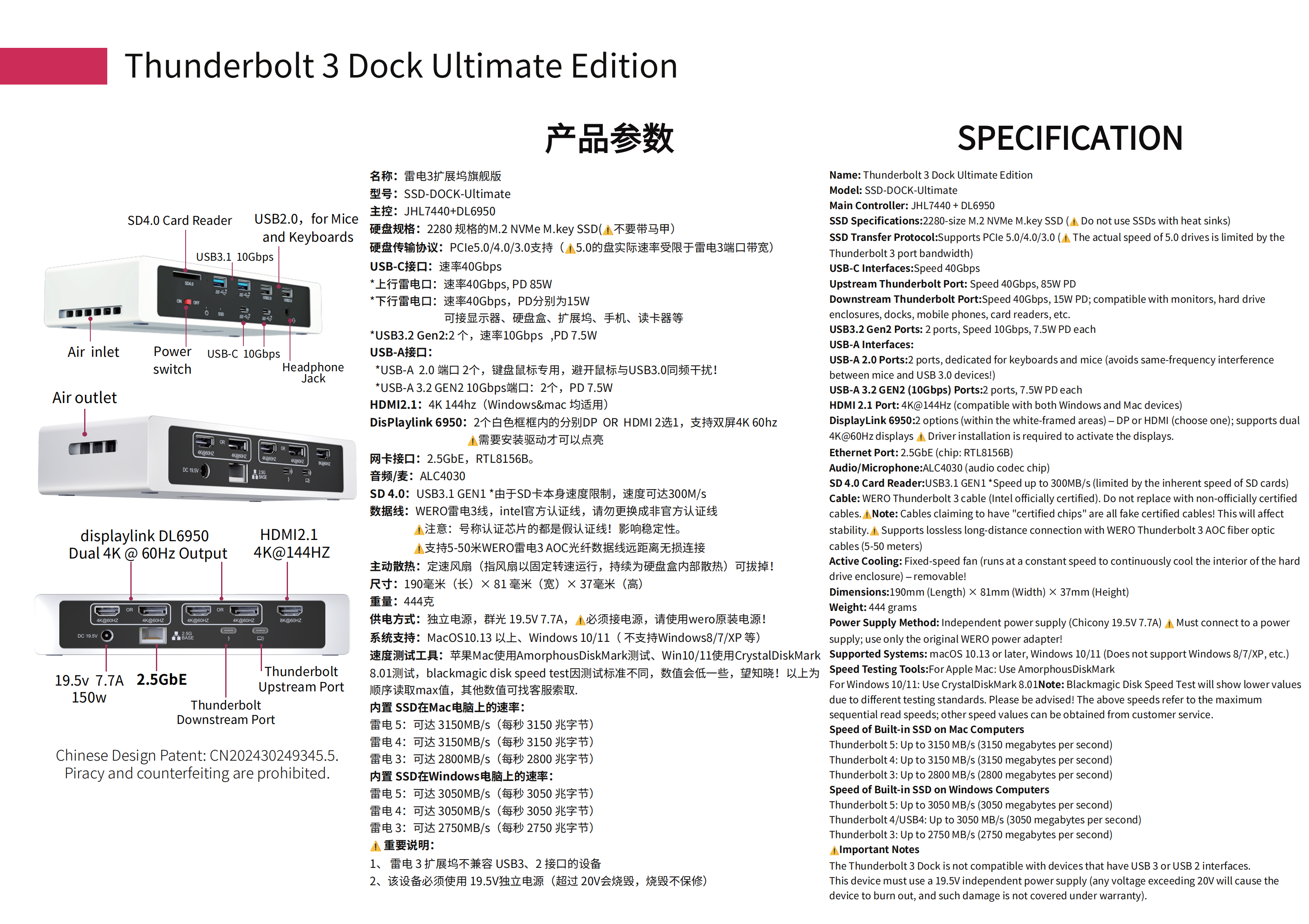

Name: Thunderbolt 3 Dock Ultimate Edition
Model: SSD-DOCK-Ultimate
Main Controller: JHL7440 + DL6950

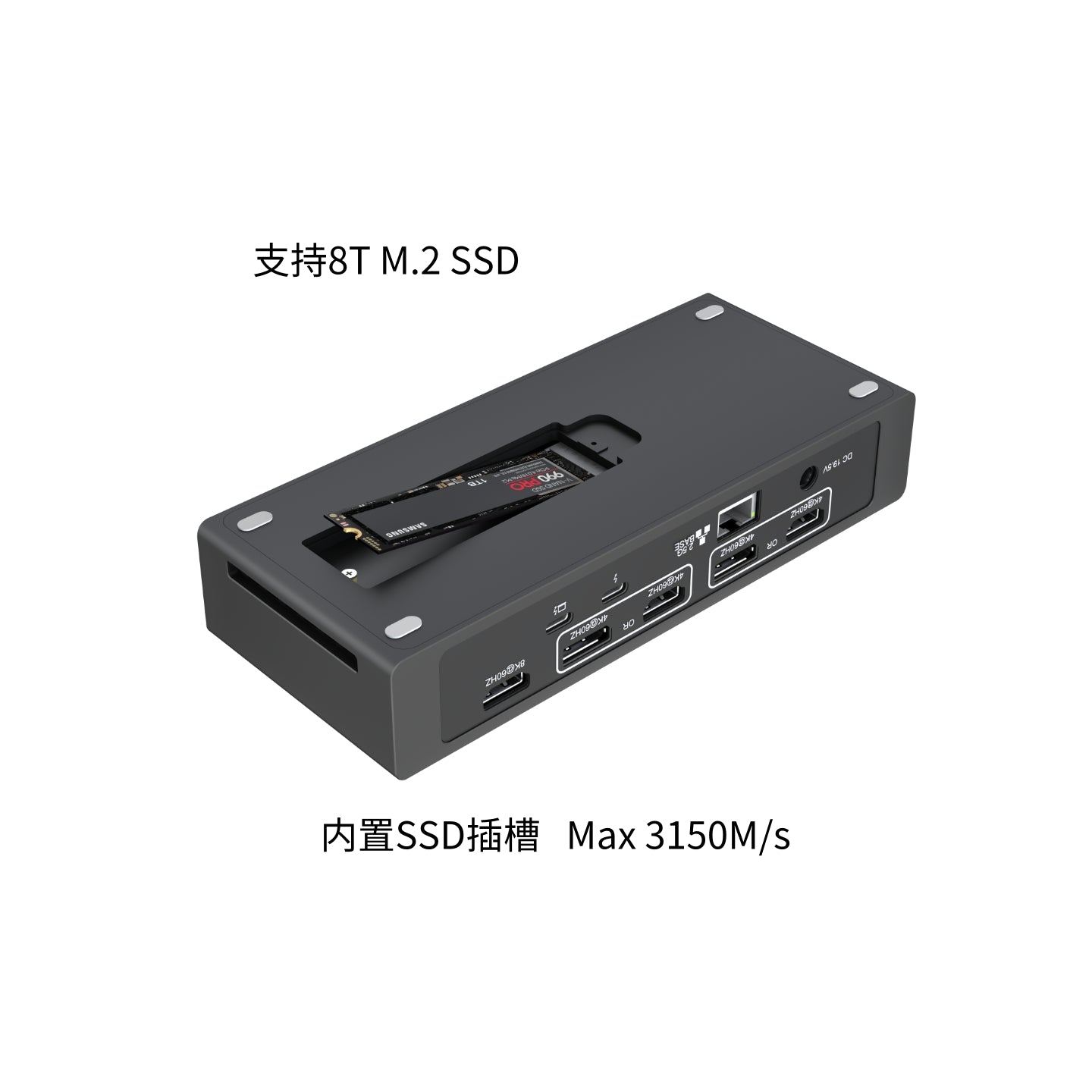

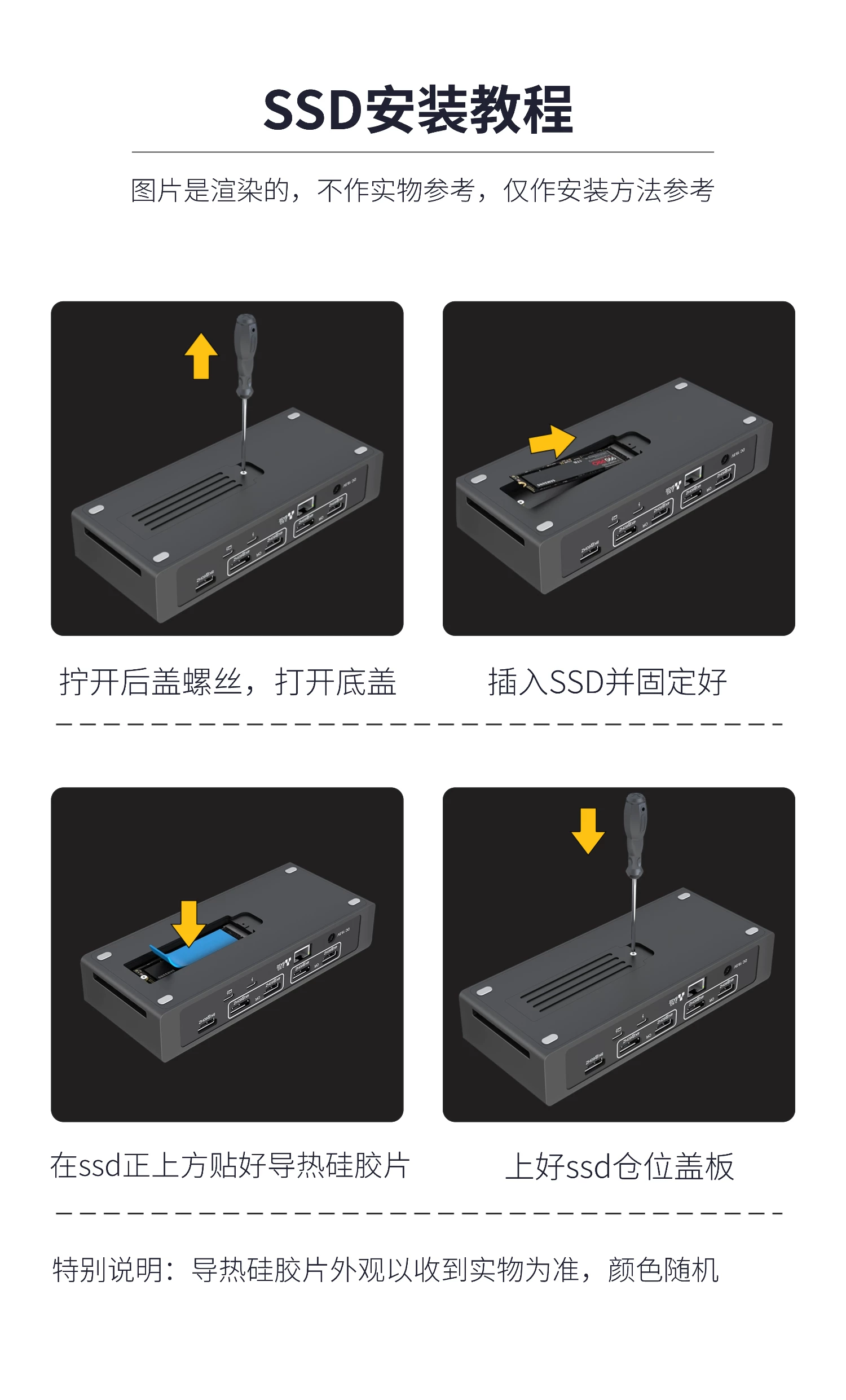

SSD Specifications: 2280-size M.2 NVMe M.key SSD (⚠️ Do not use SSDs with heat sinks)
SSD Transfer Protocol: Supports PCIe 5.0/4.0/3.0 (⚠️ The actual speed of 5.0 drives is limited by the Thunderbolt 3 port bandwidth)
USB-C Interfaces: Speed 40Gbps
Upstream Thunderbolt Port: Speed 40Gbps, 85W PD
Downstream Thunderbolt Port: Speed 40Gbps, 15W PD; compatible with monitors, hard drive enclosures, docks, mobile phones, card readers, etc.
USB3.2 Gen2 Ports: 2 ports, Speed 10Gbps, 7.5W PD each
USB-A Interfaces:

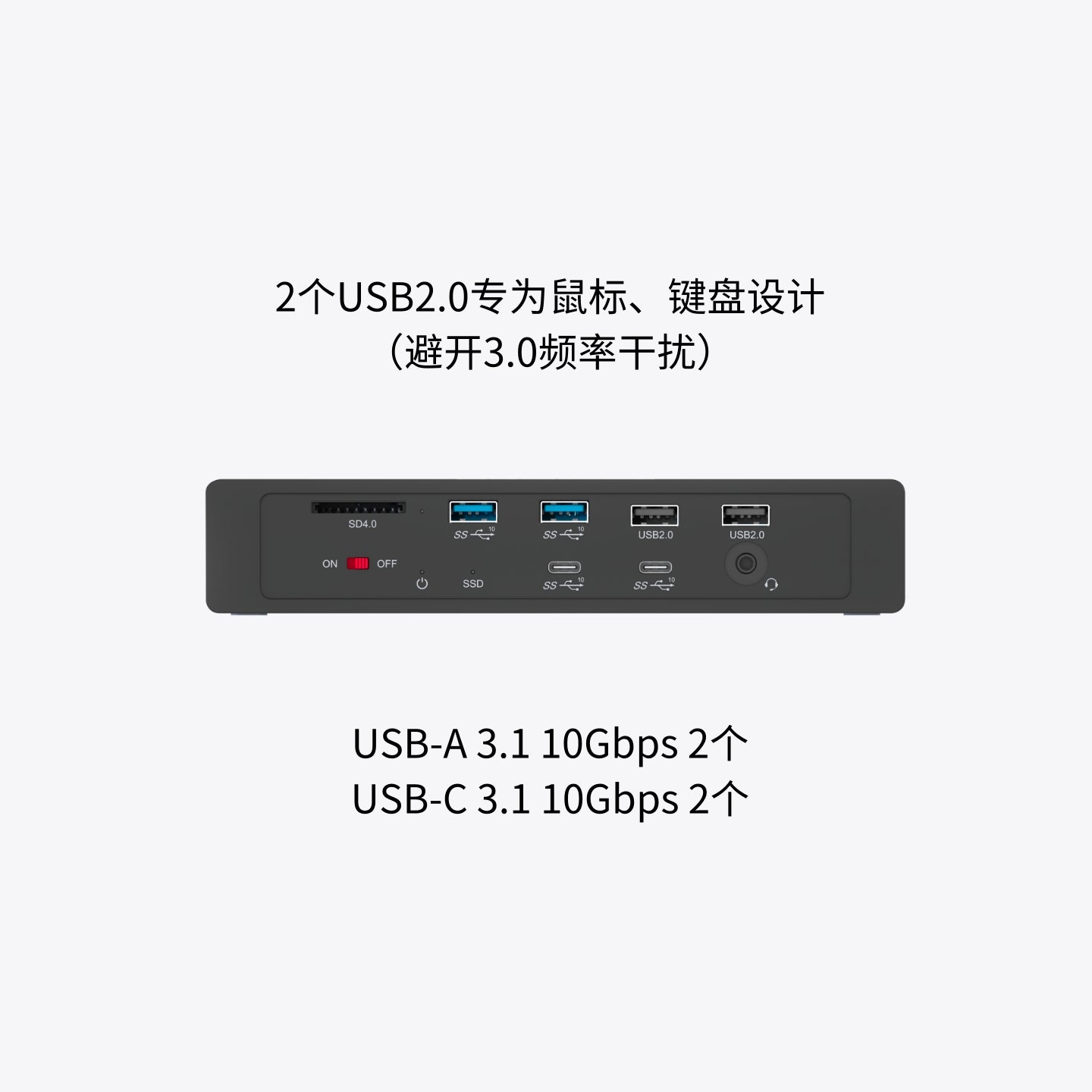

USB-A 2.0 Ports: 2 ports, dedicated for keyboards and mice (avoids same-frequency interference between mice and USB 3.0 devices!)
USB-A 3.2 GEN2 (10Gbps) Ports: 2 ports, 7.5W PD each

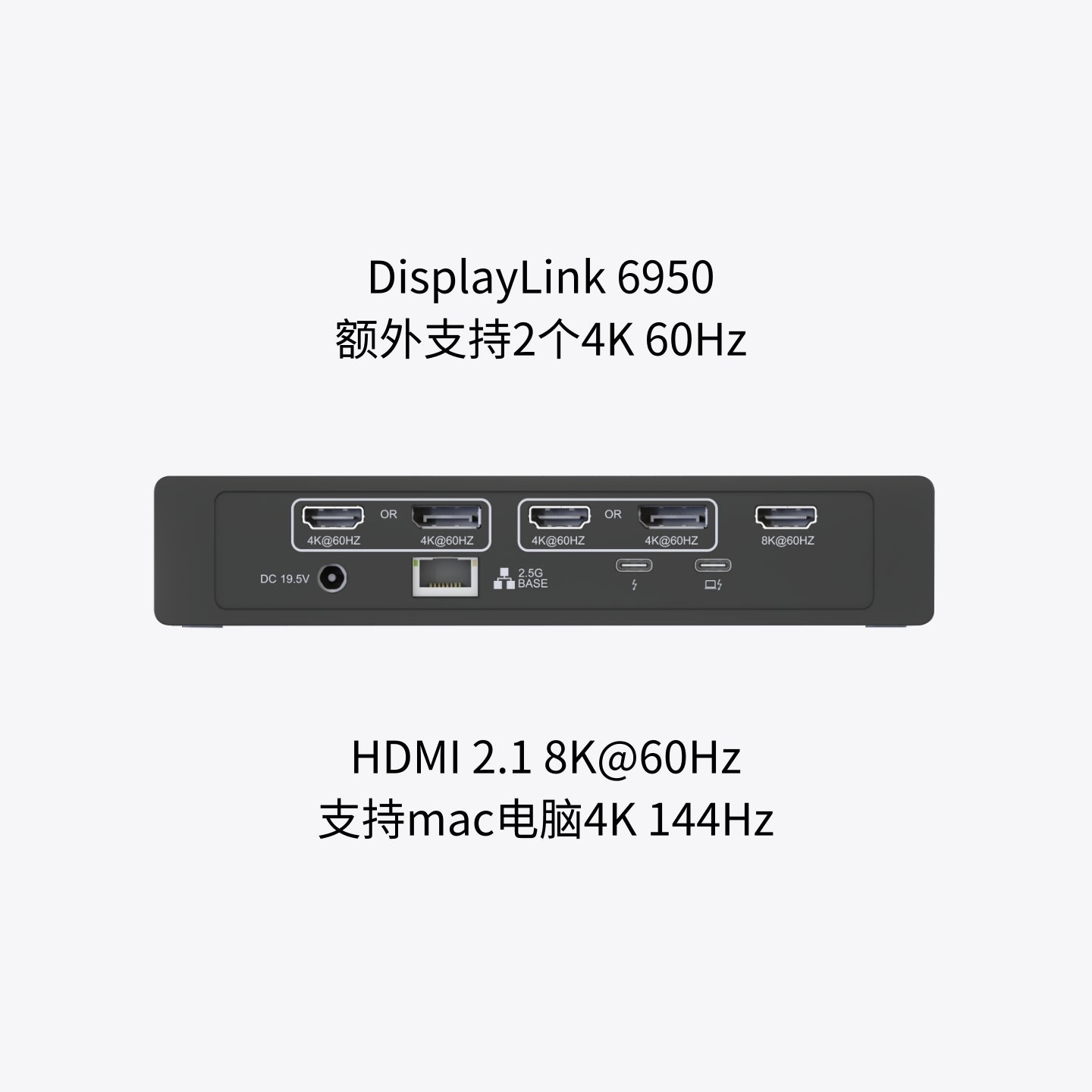

HDMI 2.1 Port: 4K@144Hz (compatible with both Windows and Mac devices)
DisplayLink 6950: 2 options (within the white-framed areas) – DP or HDMI (choose one); supports dual 4K@60Hz displays ⚠️ Driver installation is required to activate the displays.
Ethernet Port: 2.5GbE (chip: RTL8156B)
Audio/Microphone: ALC4030 (audio codec chip)
SD 4.0 Card Reader: USB3.1 GEN1 *Speed up to 300MB/s (limited by the inherent speed of SD cards)
Cable: WERO Thunderbolt 3 cable (Intel officially certified). Do not replace with non-officially certified cables.⚠️ Note: Cables claiming to have “certified chips” are all fake certified cables! This will affect stability.⚠️ Supports lossless long-distance connection with WERO Thunderbolt 3 AOC fiber optic cables (5-50 meters)
Active Cooling: Fixed-speed fan (runs at a constant speed to continuously cool the interior of the hard drive enclosure) – removable!
Dimensions: 190mm (Length) × 81mm (Width) × 37mm (Height)
Weight: 444 grams
Power Supply Method: Independent power supply (Chicony 19.5V 7.7A) ⚠️ Must connect to a power supply; use only the original WERO power adapter!
Supported Systems: macOS 10.13 or later, Windows 10/11 (Does not support Windows 8/7/XP, etc.)
Speed Testing Tools:For Apple Mac: Use AmorphousDiskMark
For Windows 10/11: Use CrystalDiskMark 8.01Note: Blackmagic Disk Speed Test will show lower values due to different testing standards. Please be advised! The above speeds refer to the maximum sequential read speeds; other speed values can be obtained from customer service.
Speed of Built-in SSD on Mac Computers
Thunderbolt 5: Up to 3150 MB/s (3150 megabytes per second)
Thunderbolt 4: Up to 3150 MB/s (3150 megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 megabytes per second)
Speed of Built-in SSD on Windows Computers
Thunderbolt 5: Up to 3050 MB/s (3050 megabytes per second)
Thunderbolt 4/USB4: Up to 3050 MB/s (3050 megabytes per second)
Thunderbolt 3: Up to 2750 MB/s (2750 megabytes per second)
⚠️ Important Notes
The Thunderbolt 3 Dock is not compatible with devices that have USB 3 or USB 2 interfaces.
This device must use a 19.5V independent power supply (any voltage exceeding 20V will cause the device to burn out, and such damage is not covered under warranty).
