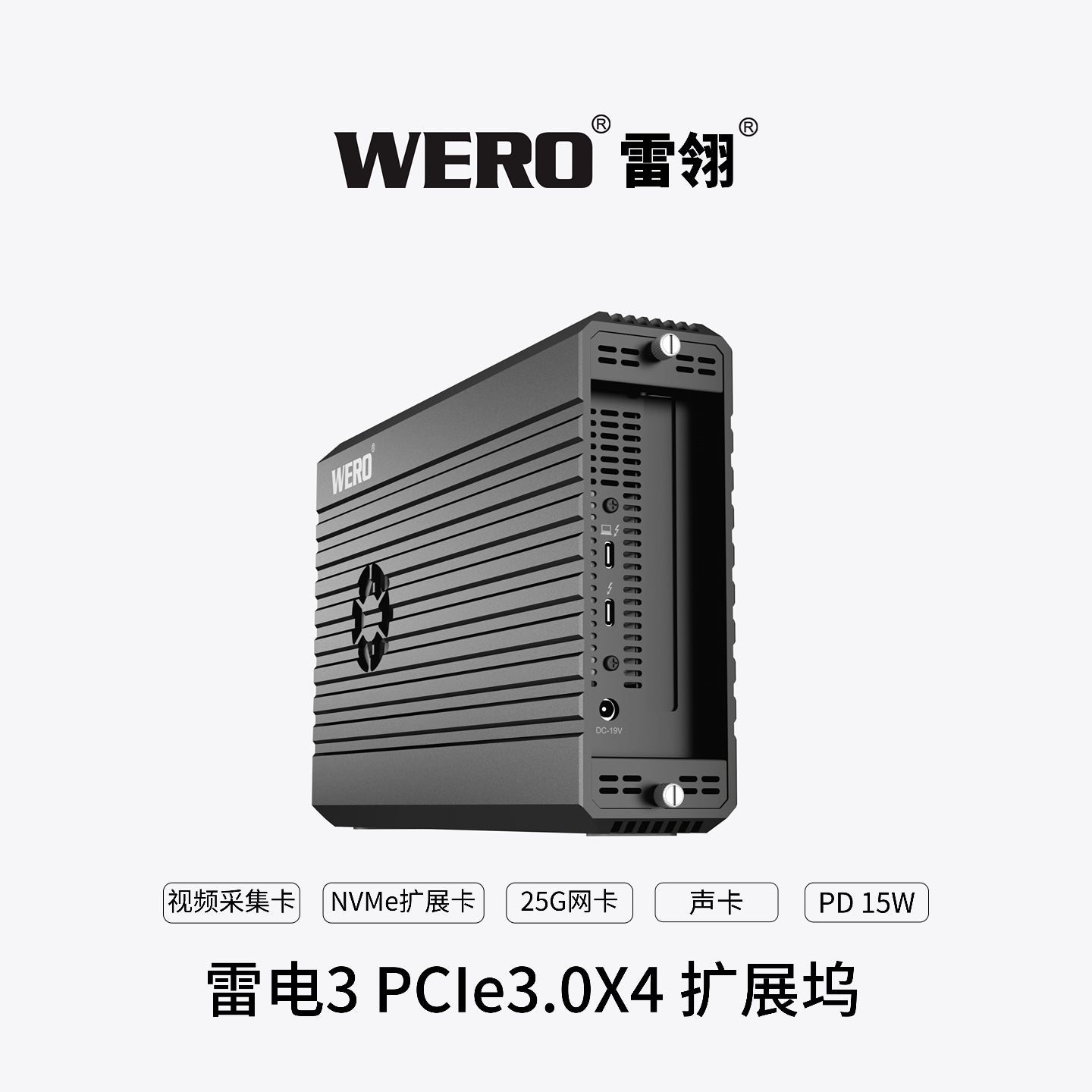

WERO Thunderbolt 3 PCIe Dock NVMe Adapter / 10 Gigabit Ethernet Card / Sound Card / Video Capture Card / DMA(TBT3-PCIe)

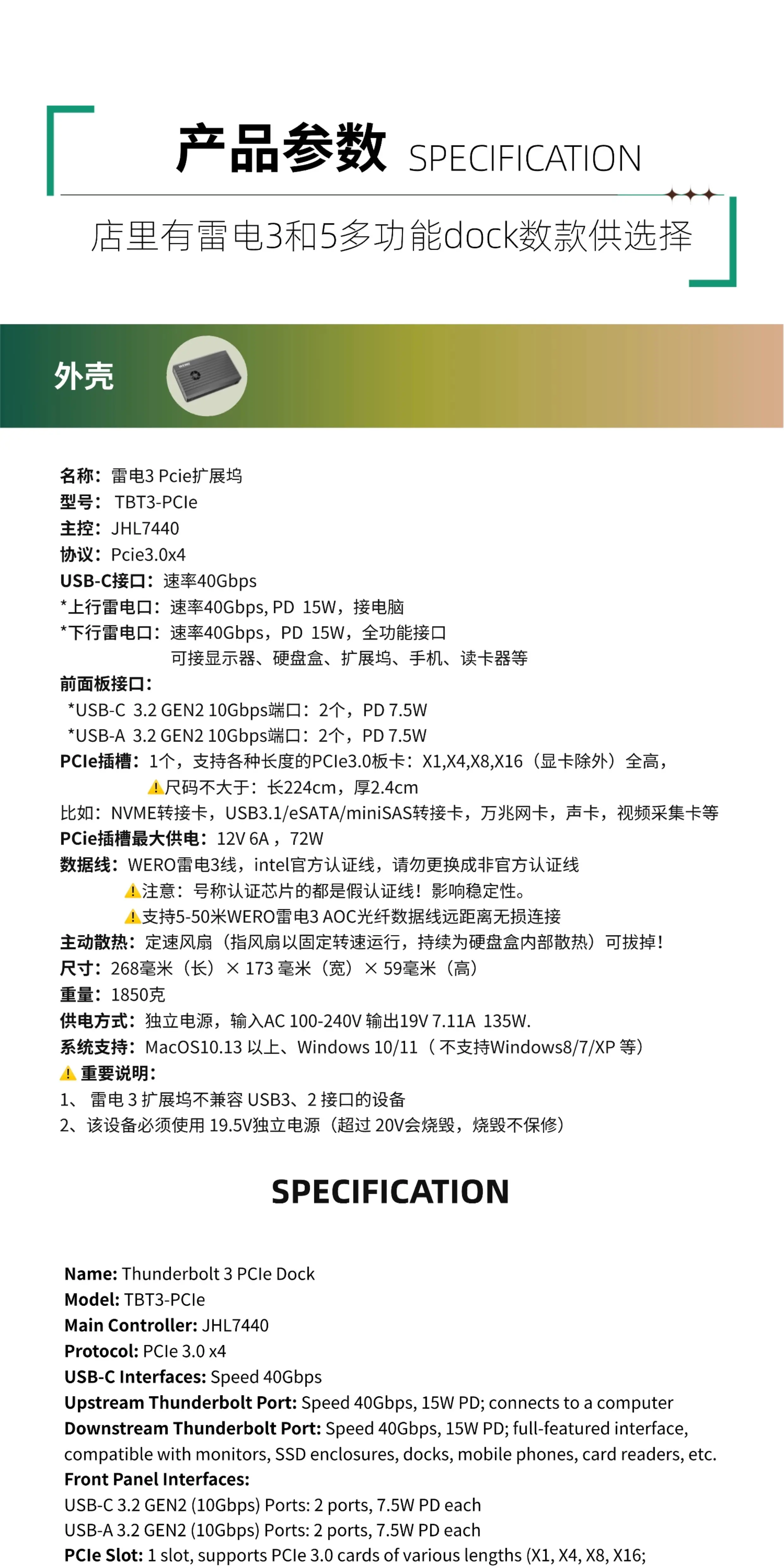

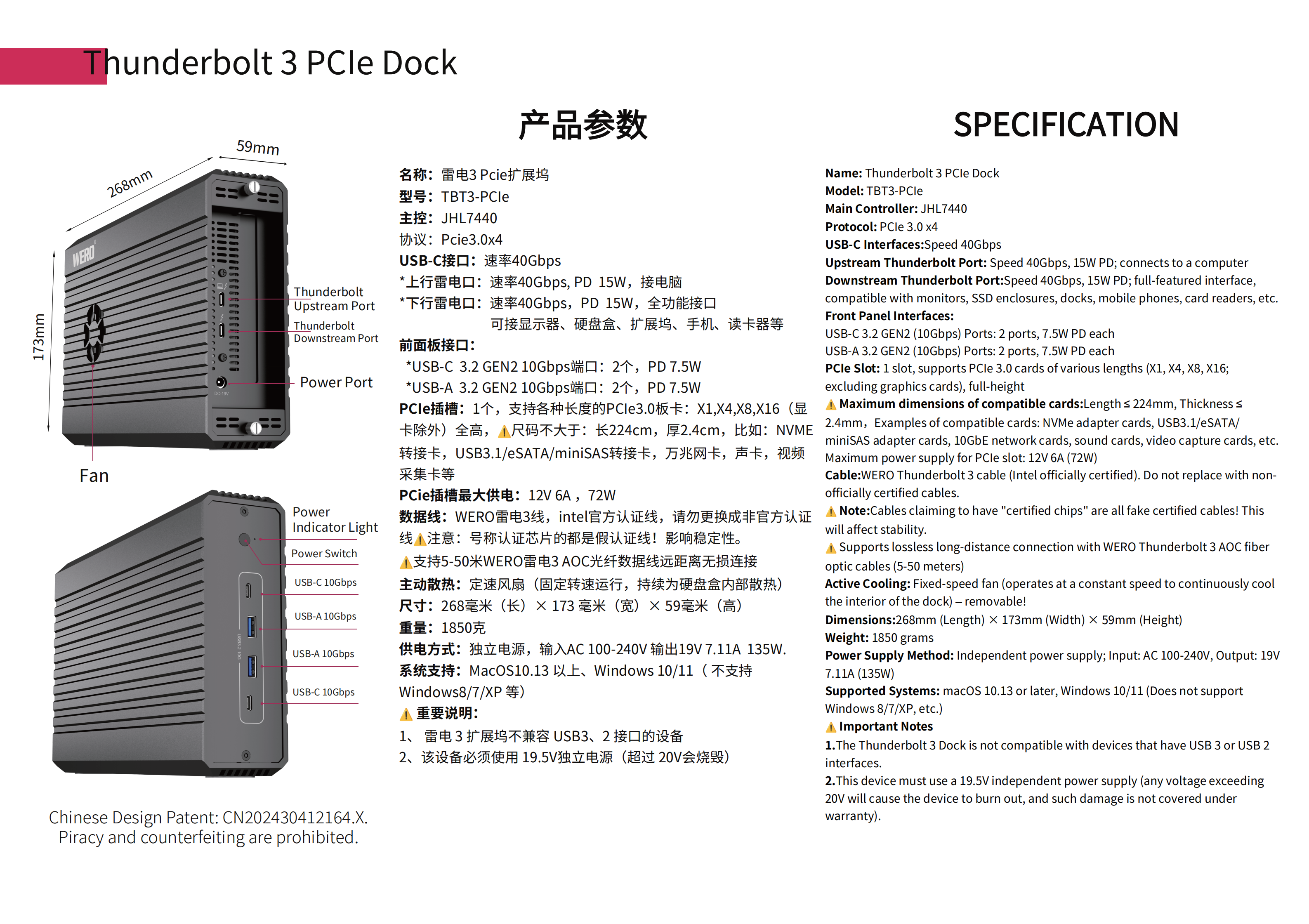

Name: Thunderbolt 3 PCIe Dock
Model: TBT3-PCIe
Main Controller: JHL7440
Protocol: PCIe 3.0 x4
USB-C Interfaces: Speed 40Gbps
Upstream Thunderbolt Port: Speed 40Gbps, 15W PD; connects to a computer
Downstream Thunderbolt Port: Speed 40Gbps, 15W PD; full-featured interface, compatible with monitors, SSD enclosures, docks, mobile phones, card readers, etc.

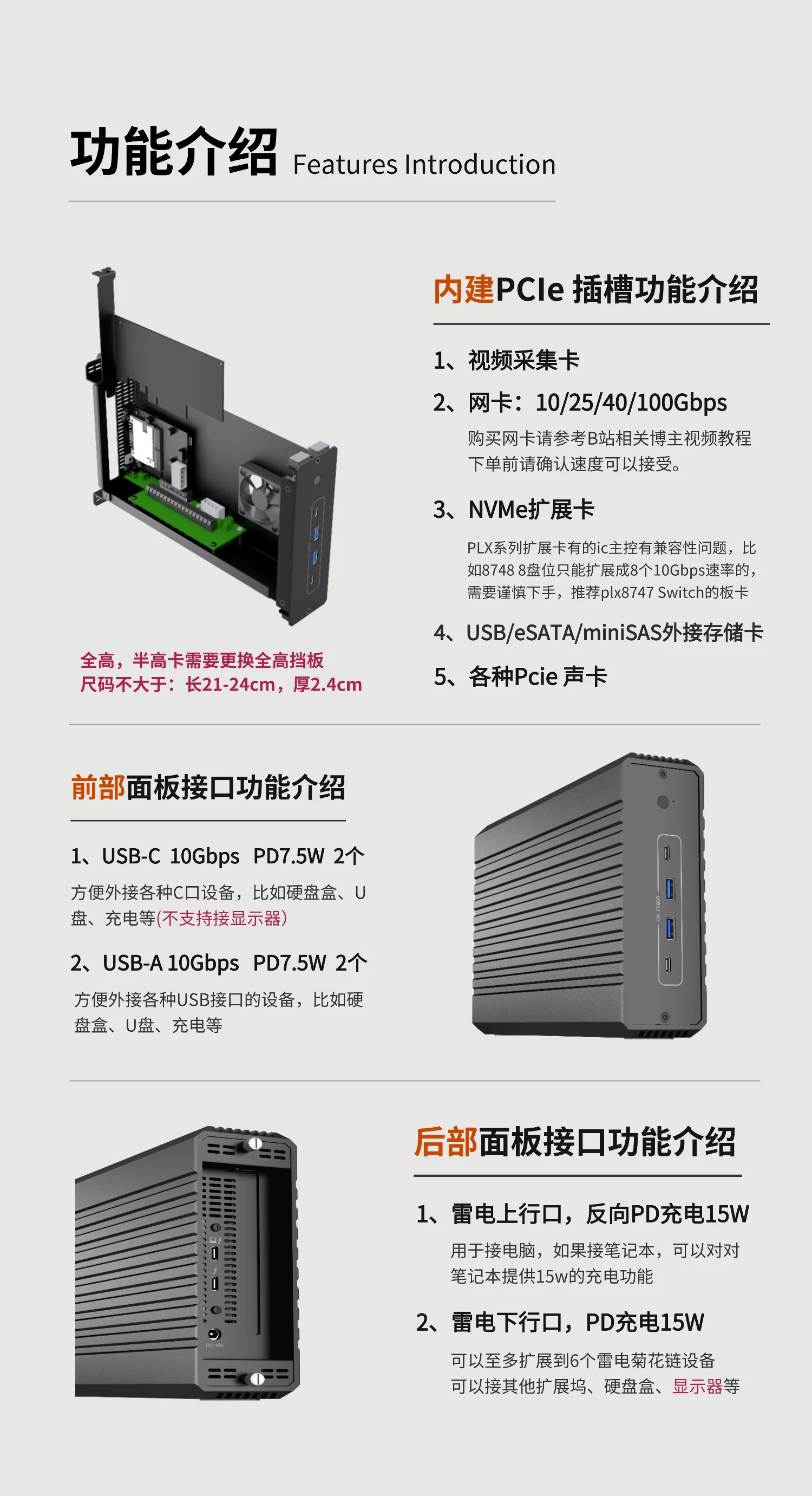

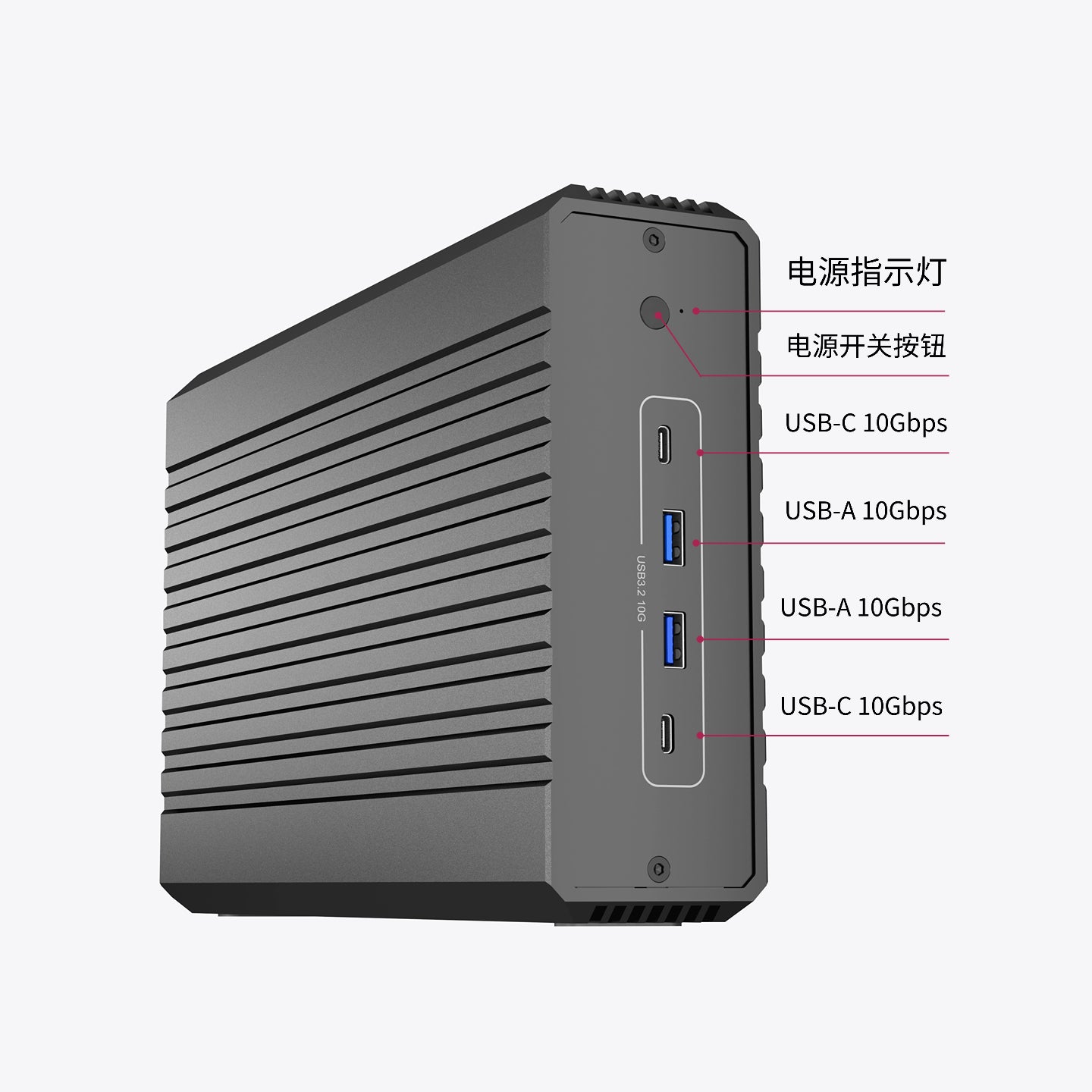

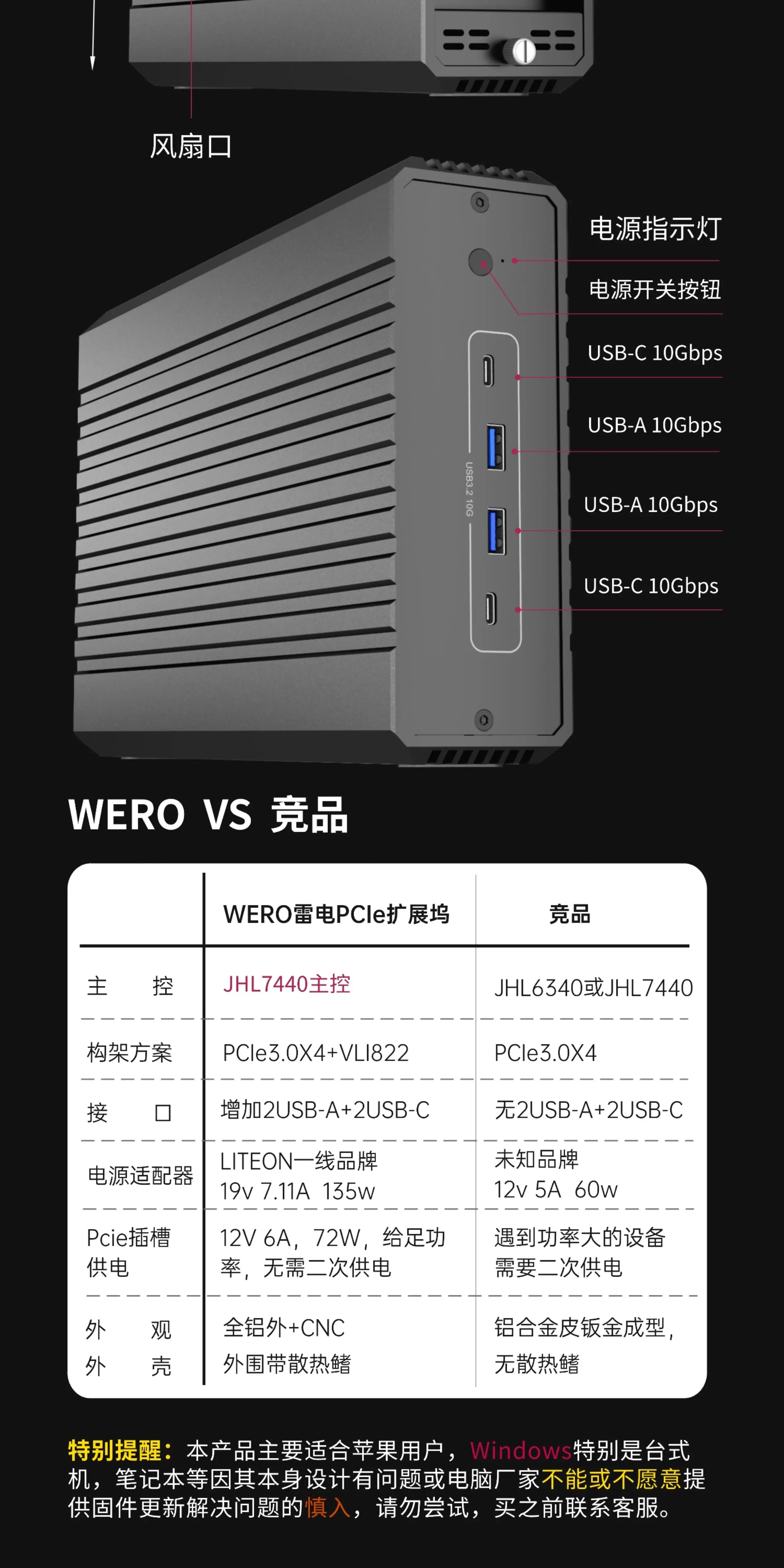

Front Panel Interfaces:
USB-C 3.2 GEN2 (10Gbps) Ports: 2 ports, 7.5W PD each
USB-A 3.2 GEN2 (10Gbps) Ports: 2 ports, 7.5W PD each

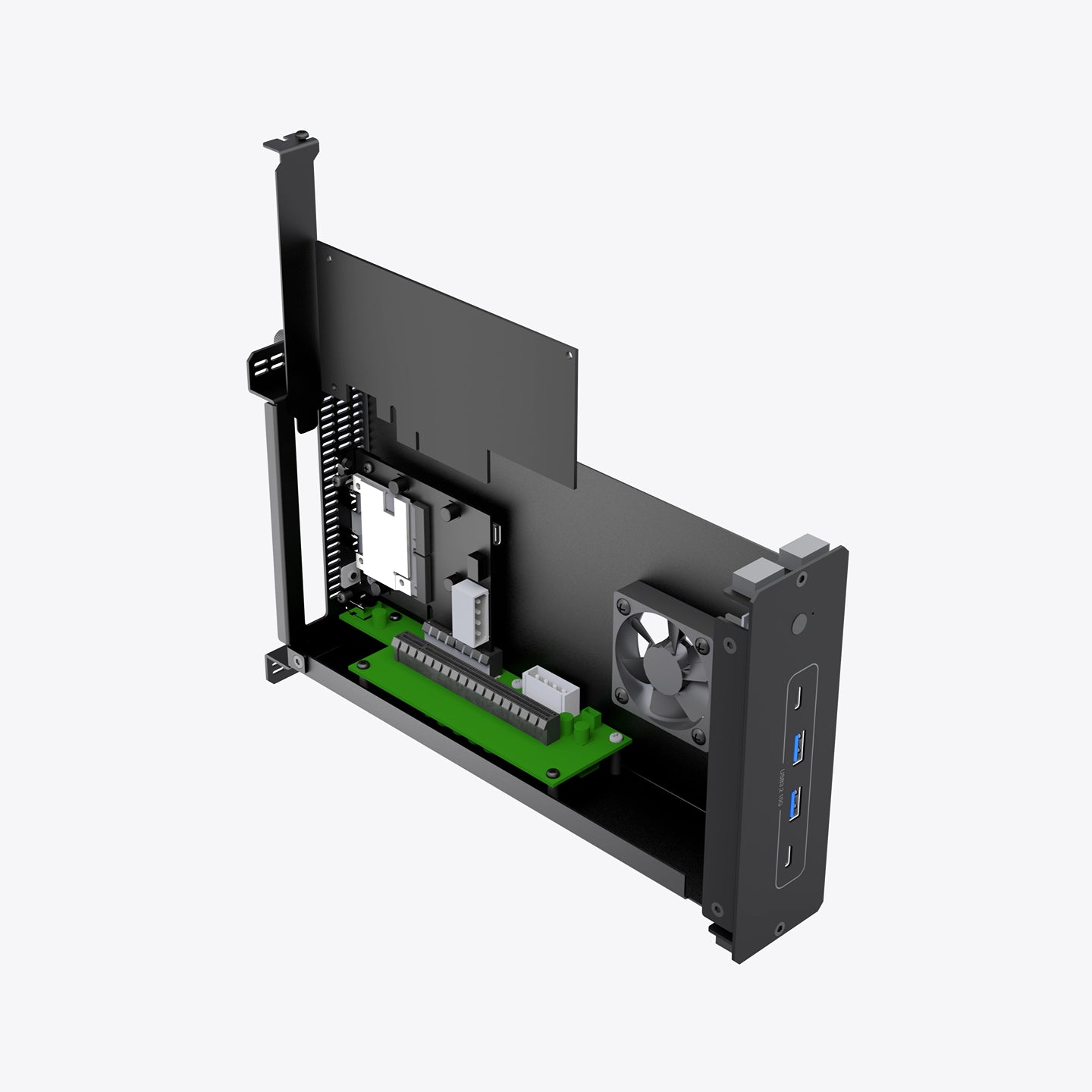

PCIe Slot: 1 slot, supports PCIe 3.0 cards of various lengths (X1, X4, X8, X16; excluding graphics cards), full-height

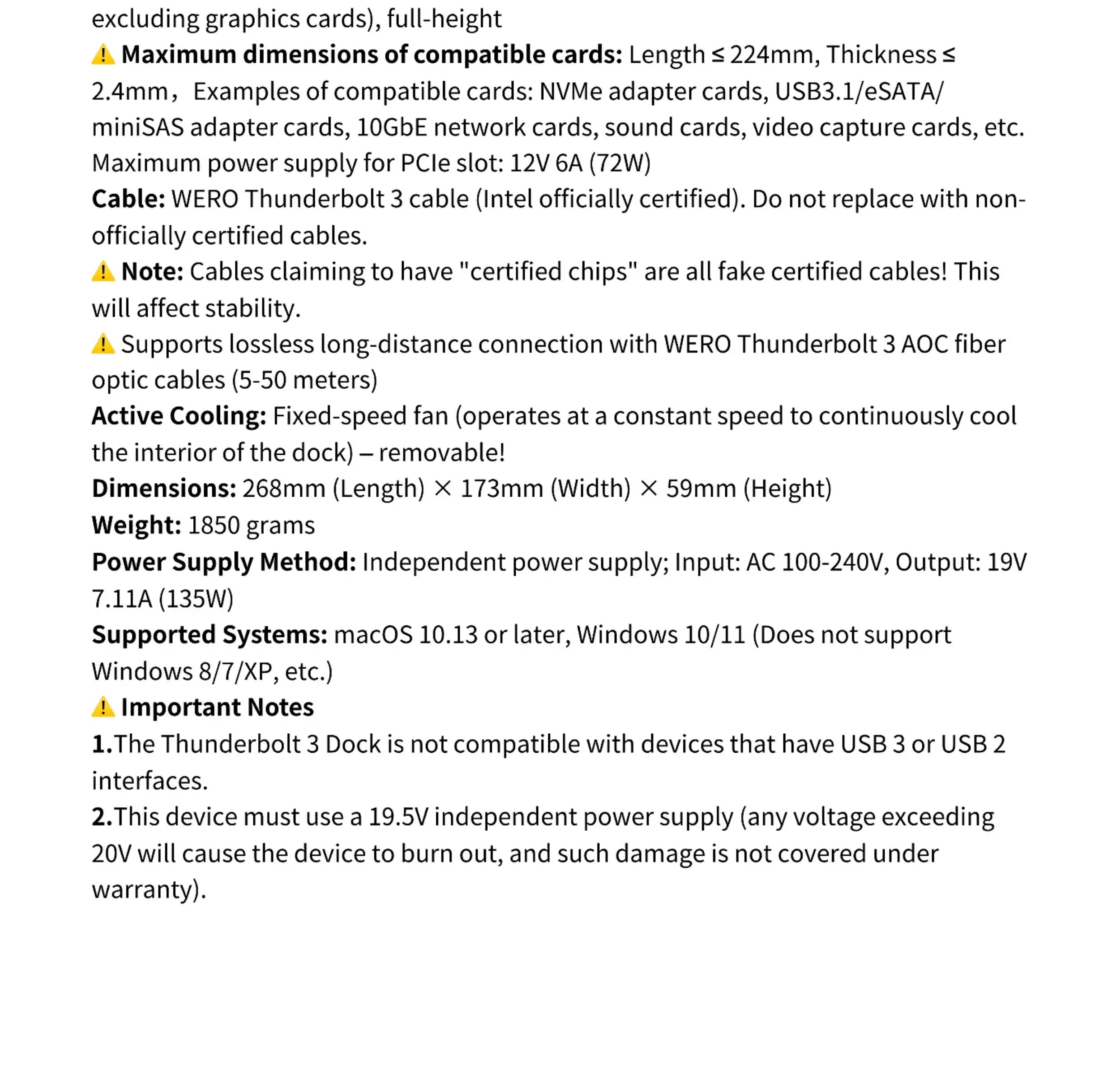

⚠️ Maximum dimensions of compatible cards: Length ≤ 224mm, Thickness ≤ 2.4mm，Examples of compatible cards: NVMe adapter cards, USB3.1/eSATA/miniSAS adapter cards, 10GbE network cards, sound cards, video capture cards, etc.
Maximum power supply for PCIe slot: 12V 6A (72W)
Cable: WERO Thunderbolt 3 cable (Intel officially certified). Do not replace with non-officially certified cables.
⚠️ Note: Cables claiming to have “certified chips” are all fake certified cables! This will affect stability.
⚠️ Supports lossless long-distance connection with WERO Thunderbolt 3 AOC fiber optic cables (5-50 meters)
Active Cooling: Fixed-speed fan (operates at a constant speed to continuously cool the interior of the dock) – removable!

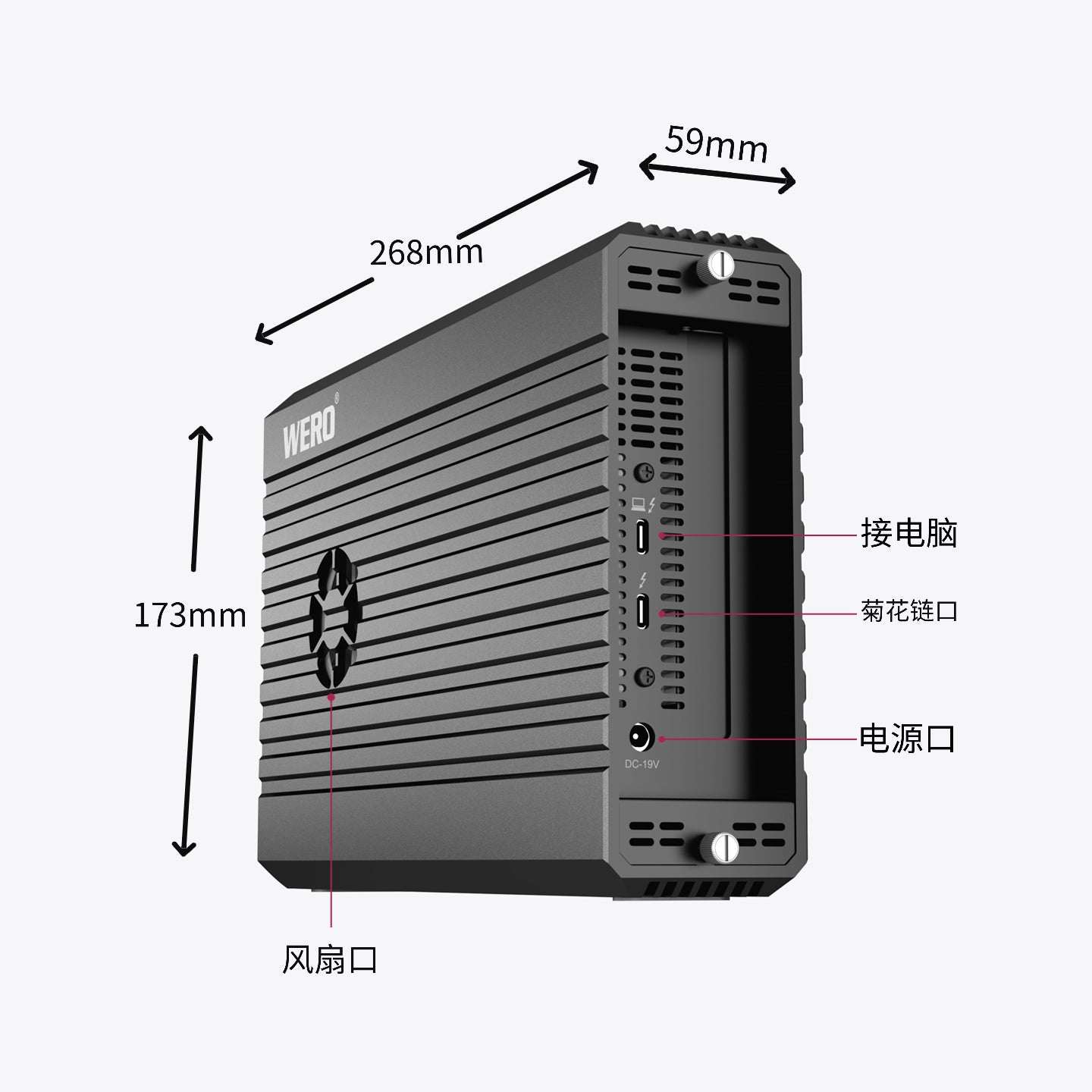

Dimensions: 268mm (Length) × 173mm (Width) × 59mm (Height)
Weight: 1850 grams
Power Supply Method: Independent power supply; Input: AC 100-240V, Output: 19V 7.11A (135W)
Supported Systems: macOS 10.13 or later, Windows 10/11 (Does not support Windows 8/7/XP, etc.)
⚠️ Important Notes
1.The Thunderbolt 3 Dock is not compatible with devices that have USB 3 or USB 2 interfaces.
2.This device must use a 19.5V independent power supply (any voltage exceeding 20V will cause the device to burn out, and such damage is not covered under warranty).
