WERO Thunderbolt 4in1 Card Reader SSD Hard Disk Box iPhone/Mac Copy Card Genius Suitable for Thunderbolt 3/4/5(TBT3-SSD-4in1-Reader)

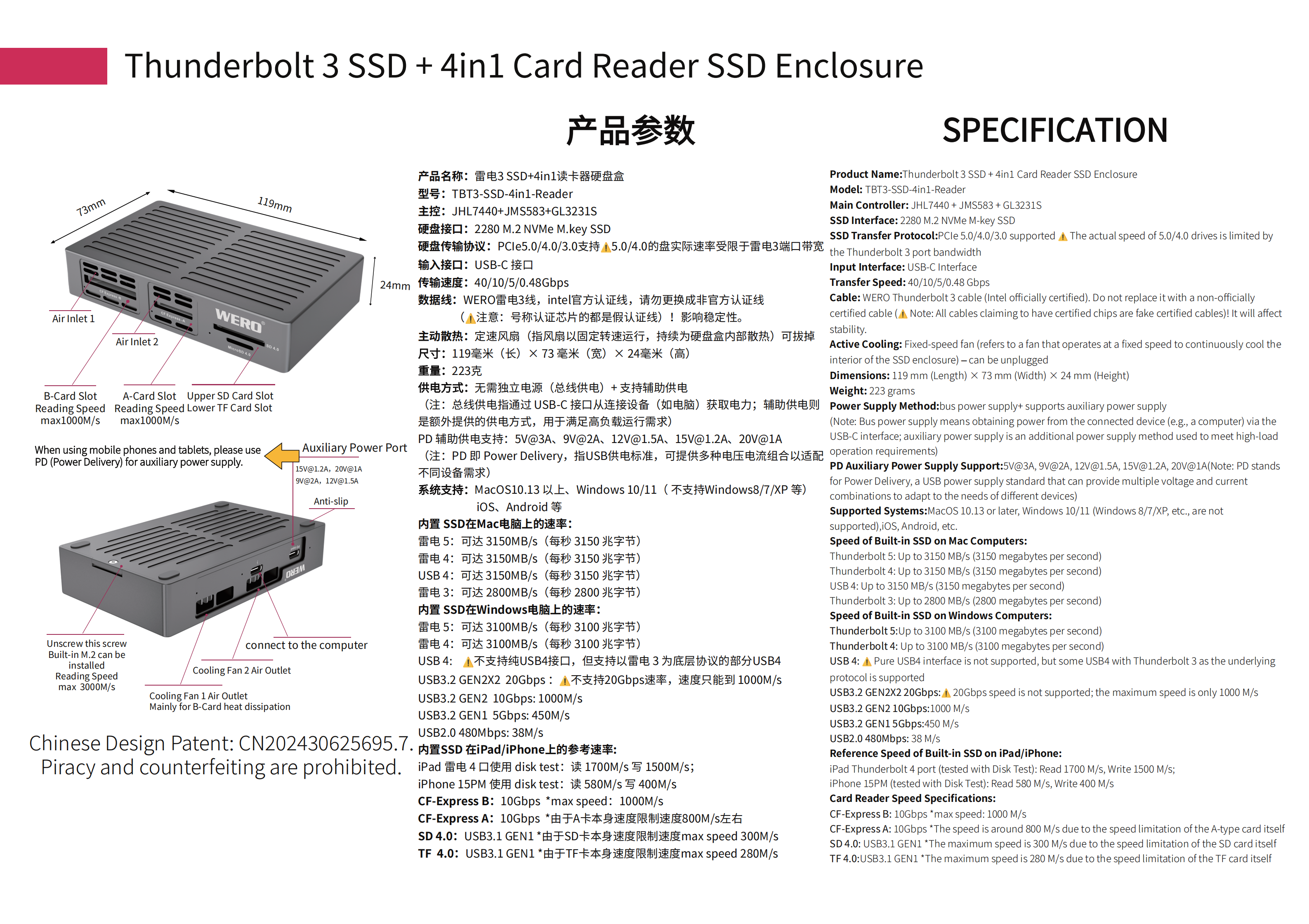

Product Name: Thunderbolt 3 SSD + 4in1 Card Reader SSD Enclosure
Model: TBT3-SSD-4in1-Reader
Main Controller: JHL7440 + JMS583 + GL3231S

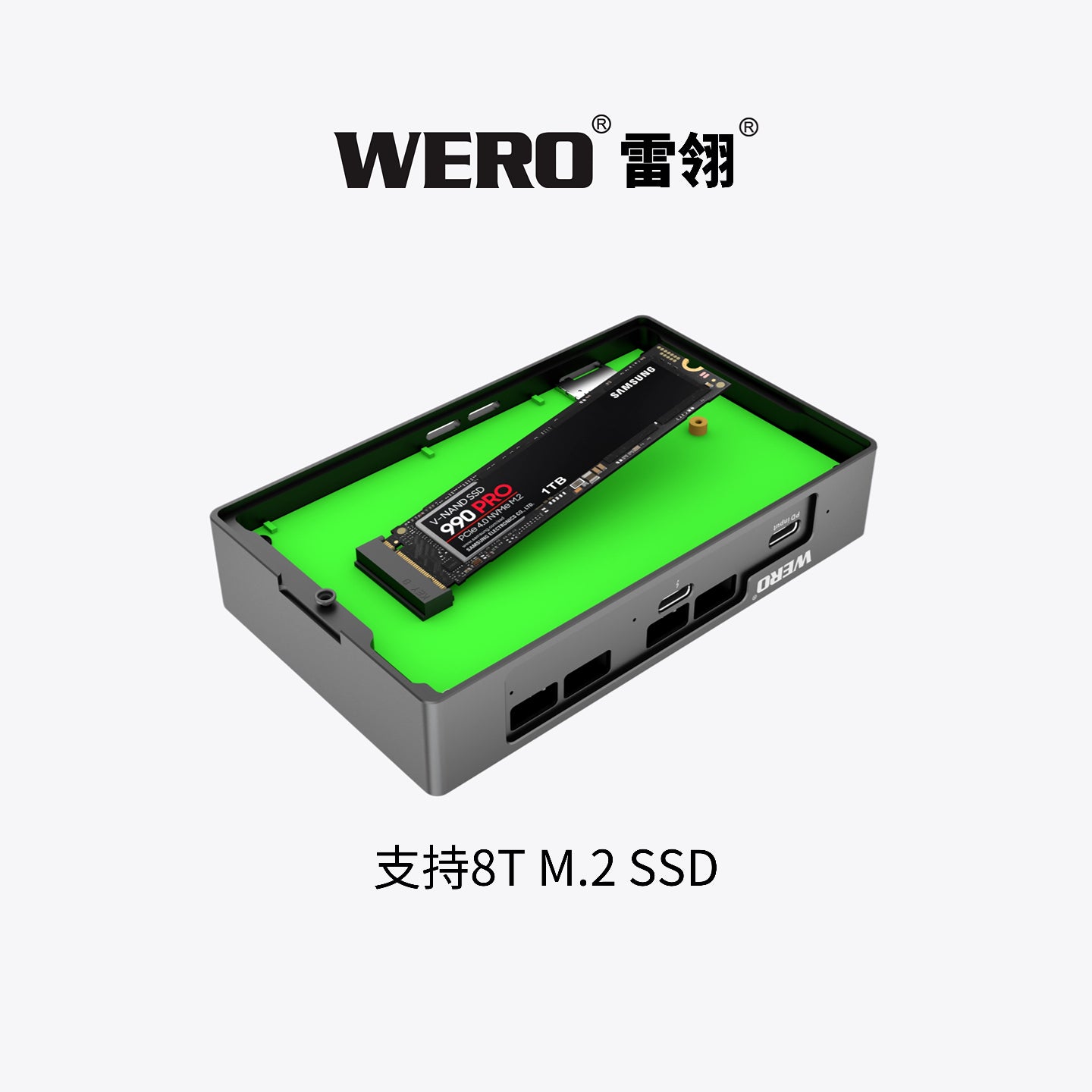

SSD Interface: 2280 M.2 NVMe M-key SSD
SSD Transfer Protocol: PCIe 5.0/4.0/3.0 supported ⚠️ The actual speed of 5.0/4.0 drives is limited by the Thunderbolt 3 port bandwidth
Input Interface: USB-C Interface
Transfer Speed: 40/10/5/0.48 Gbps
Cable: WERO Thunderbolt 3 cable (Intel officially certified). Do not replace it with a non-officially certified cable (⚠️ Note: All cables claiming to have certified chips are fake certified cables)! It will affect stability.
Active Cooling: Fixed-speed fan (refers to a fan that operates at a fixed speed to continuously cool the interior of the SSD enclosure) – can be unplugged

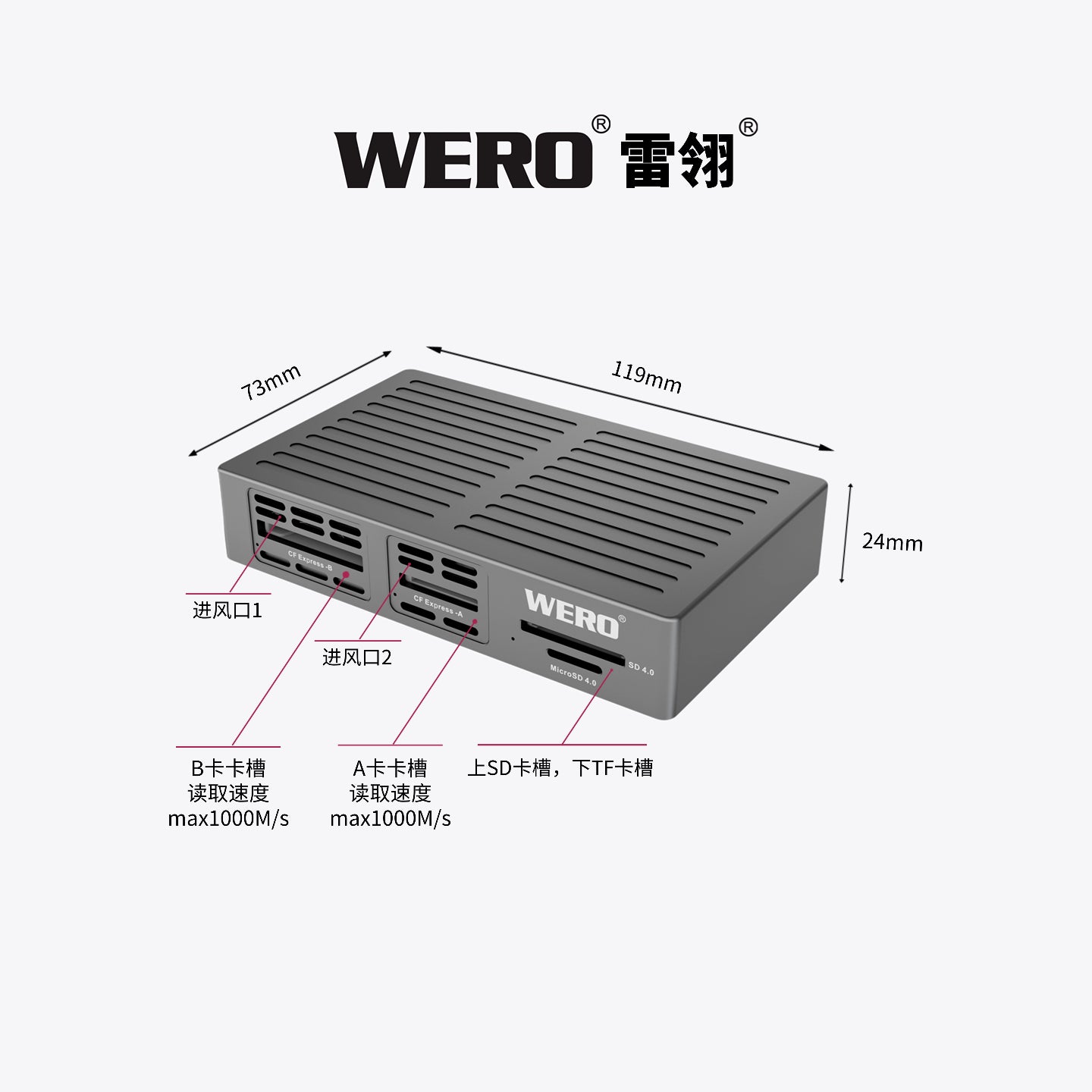

Dimensions: 119 mm (Length) × 73 mm (Width) × 24 mm (Height)
Weight: 223 grams

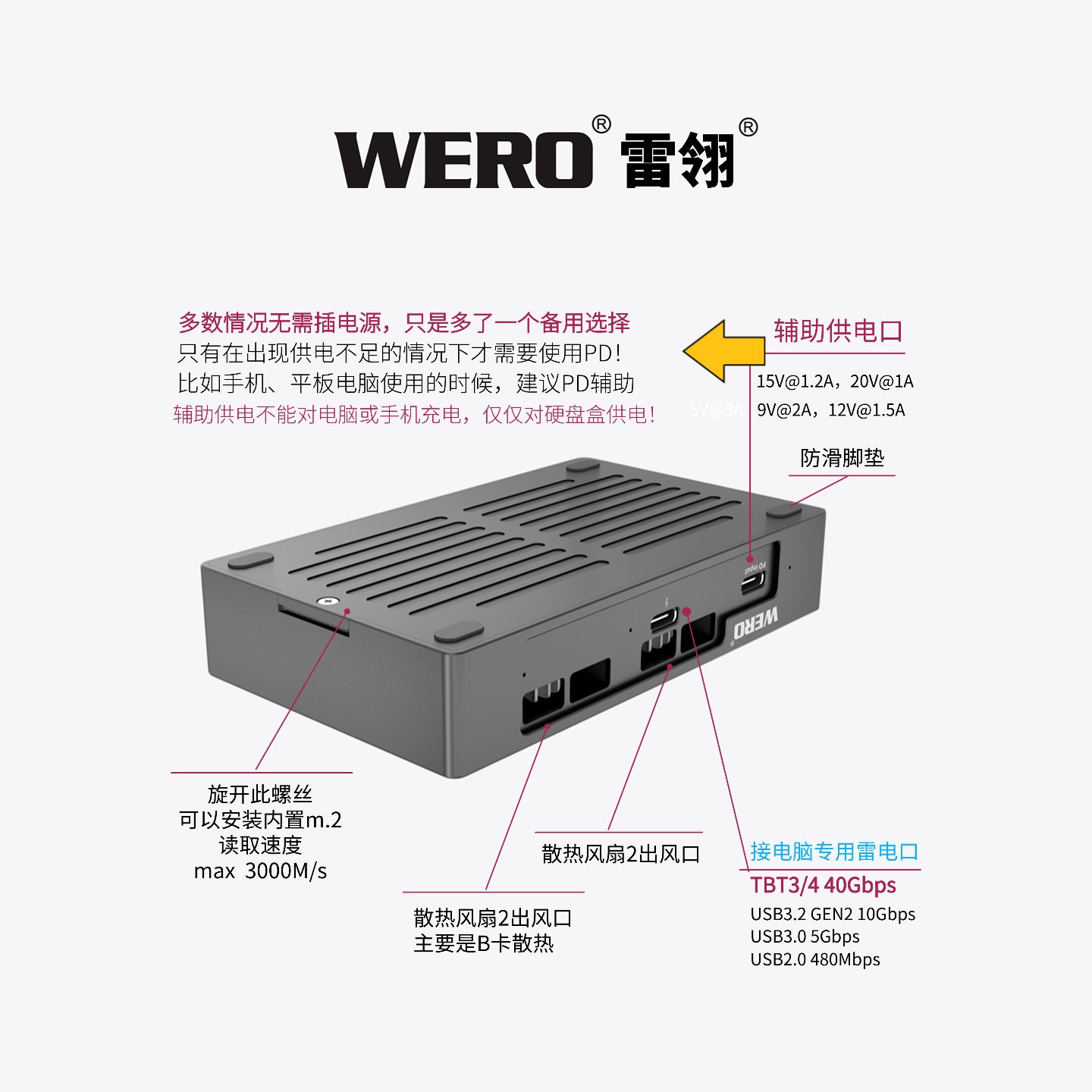

Power Supply Method: bus power supply+ supports auxiliary power supply
(Note: Bus power supply means obtaining power from the connected device (e.g., a computer) via the USB-C interface; auxiliary power supply is an additional power supply method used to meet high-load operation requirements)
PD Auxiliary Power Supply Support: 5V@3A, 9V@2A, 12V@1.5A, 15V@1.2A, 20V@1A(Note: PD stands for Power Delivery, a USB power supply standard that can provide multiple voltage and current combinations to adapt to the needs of different devices)
Supported Systems: MacOS 10.13 or later, Windows 10/11 (Windows 8/7/XP, etc., are not supported),iOS, Android, etc.
Speed of Built-in SSD on Mac Computers:
Thunderbolt 5: Up to 3150 MB/s (3150 megabytes per second)
Thunderbolt 4: Up to 3150 MB/s (3150 megabytes per second)
USB 4: Up to 3150 MB/s (3150 megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 megabytes per second)
Speed of Built-in SSD on Windows Computers:
Thunderbolt 5: Up to 3100 MB/s (3100 megabytes per second)
Thunderbolt 4: Up to 3100 MB/s (3100 megabytes per second)
USB 4: ⚠️ Pure USB4 interface is not supported, but some USB4 with Thunderbolt 3 as the underlying protocol is supported
USB3.2 GEN2X2 20Gbps: ⚠️ 20Gbps speed is not supported; the maximum speed is only 1000 M/s
USB3.2 GEN2 10Gbps: 1000 M/s
USB3.2 GEN1 5Gbps: 450 M/s
USB2.0 480Mbps: 38 M/s
Reference Speed of Built-in SSD on iPad/iPhone:
iPad Thunderbolt 4 port (tested with Disk Test): Read 1700 M/s, Write 1500 M/s;
iPhone 15PM (tested with Disk Test): Read 580 M/s, Write 400 M/s

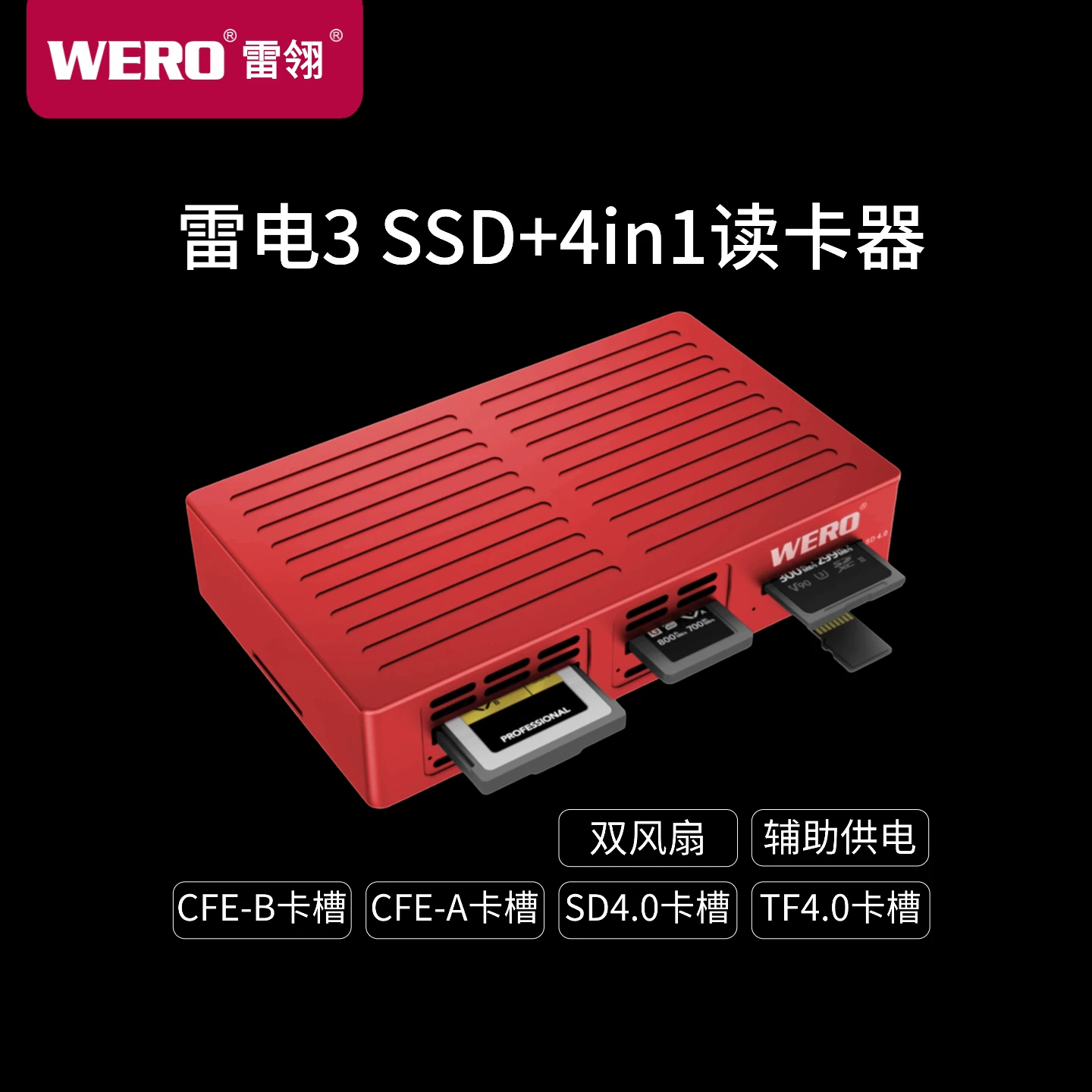

Card Reader Speed Specifications:
CF-Express B: 10Gbps *max speed: 1000 M/s
CF-Express A: 10Gbps *The speed is around 800 M/s due to the speed limitation of the A-type card itself
SD 4.0: USB3.1 GEN1 *The maximum speed is 300 M/s due to the speed limitation of the SD card itself
TF 4.0: USB3.1 GEN1 *The maximum speed is 280 M/s due to the speed limitation of the TF card itself
