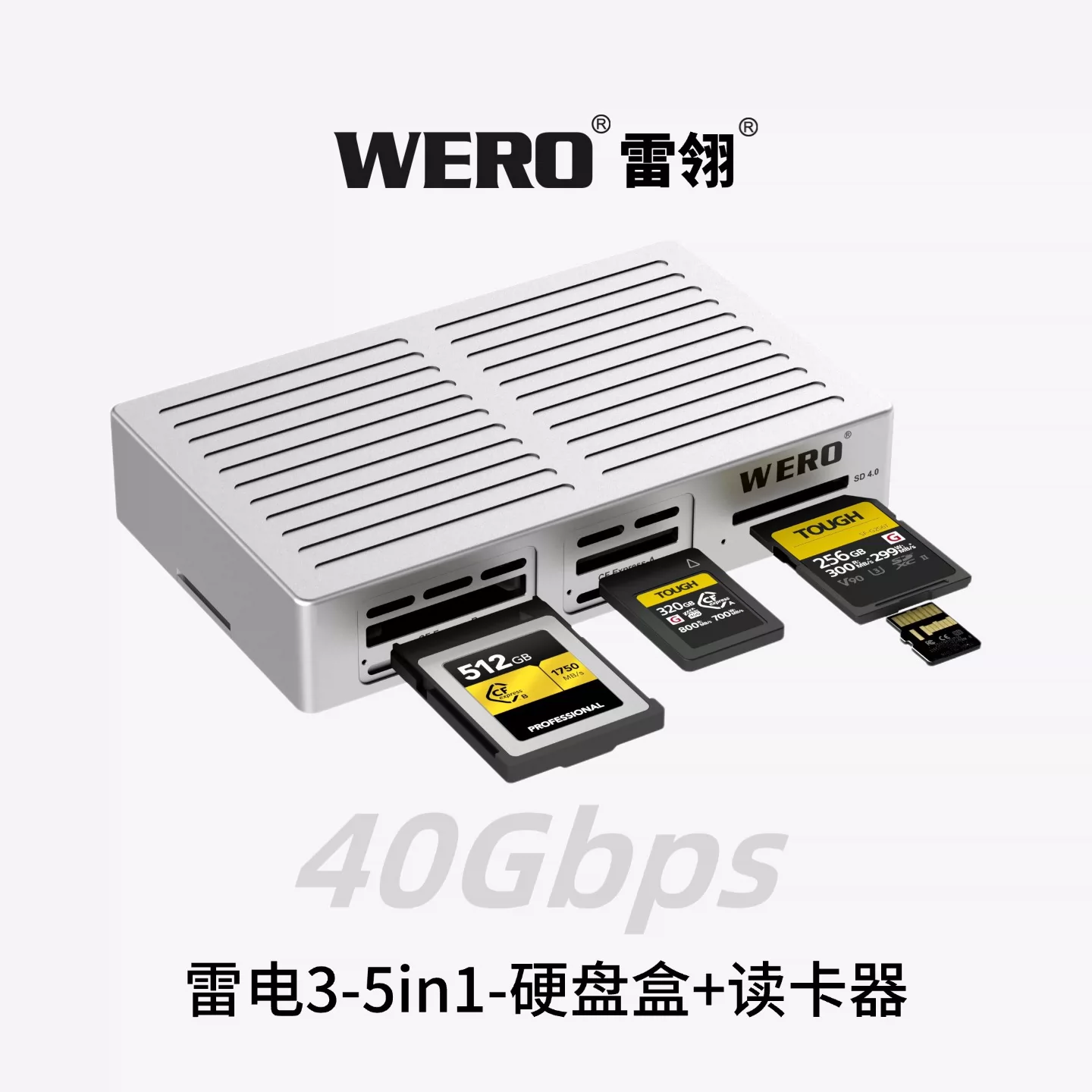

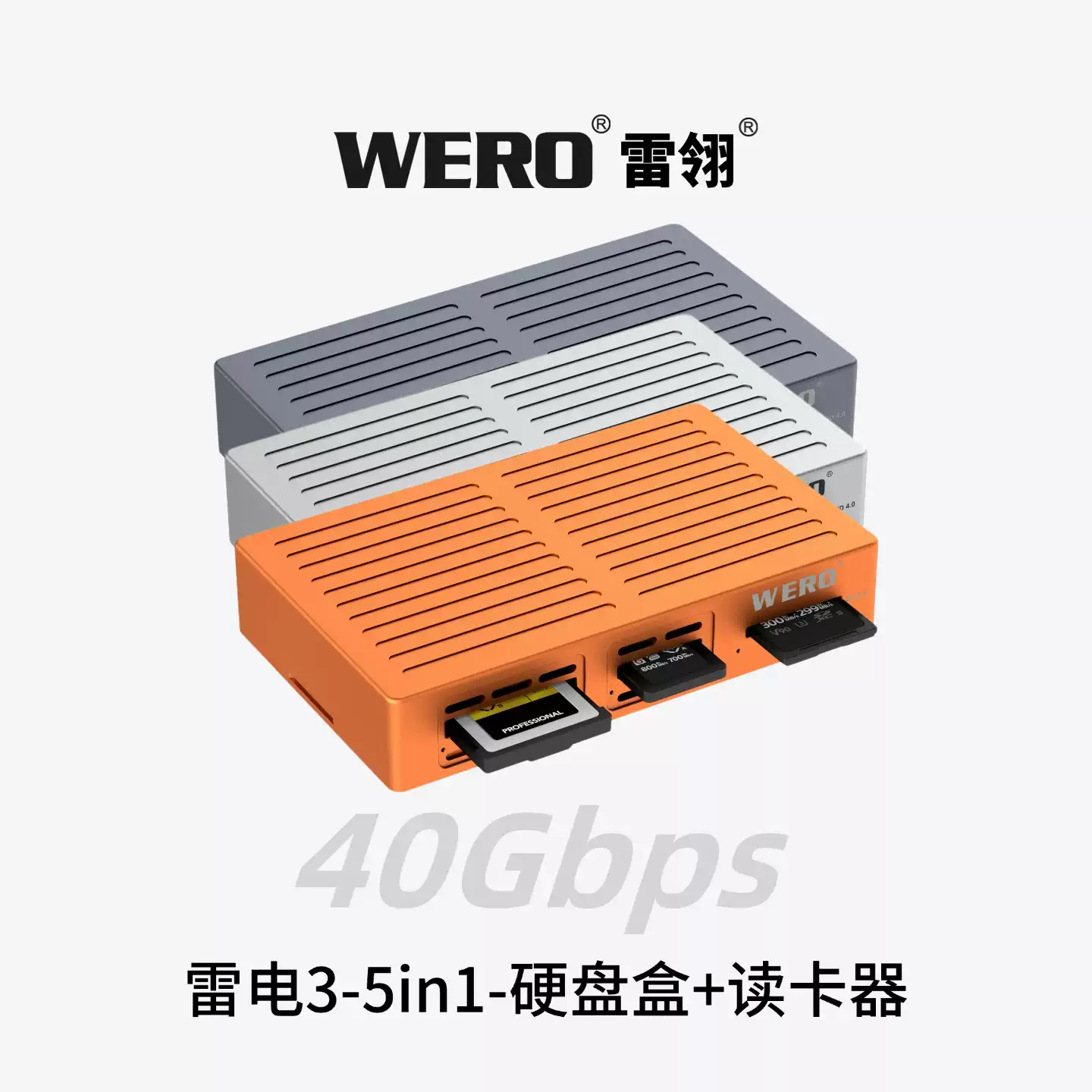

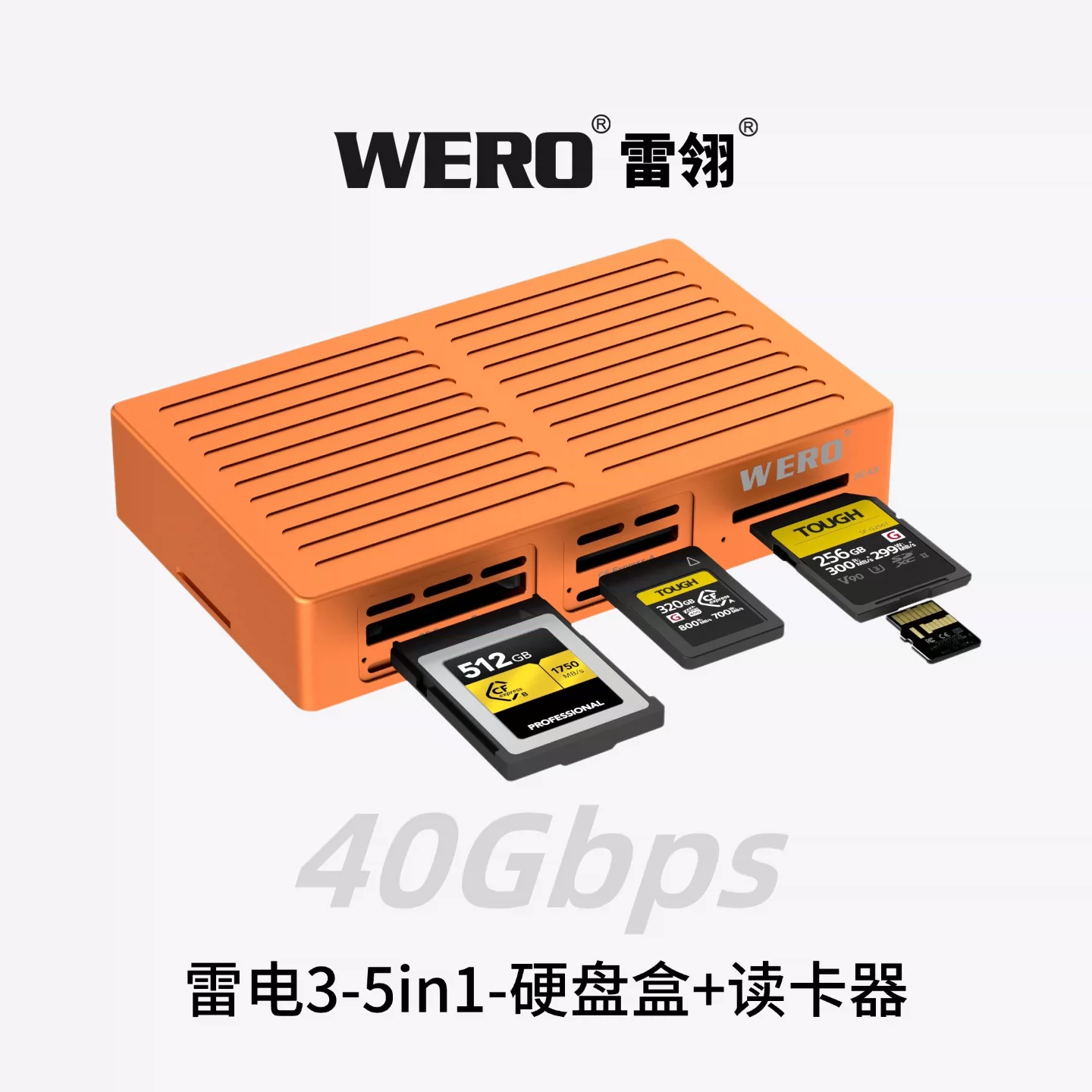

WERO Thunderbolt 5in1 Card Reader SSD Hard Disk Box iPhone/Mac Copy Card Genius Suitable for Thunderbolt 3/4/5(TBT3-SSD-5in1-Reader)

Product Name: Thunderbolt 3‑5in1‑Hard Drive Enclosure + Card Reader
Model: TBT3‑5in1‑SSD+CR
Main Controller: JHL7440+JMS583x2+GL3231S

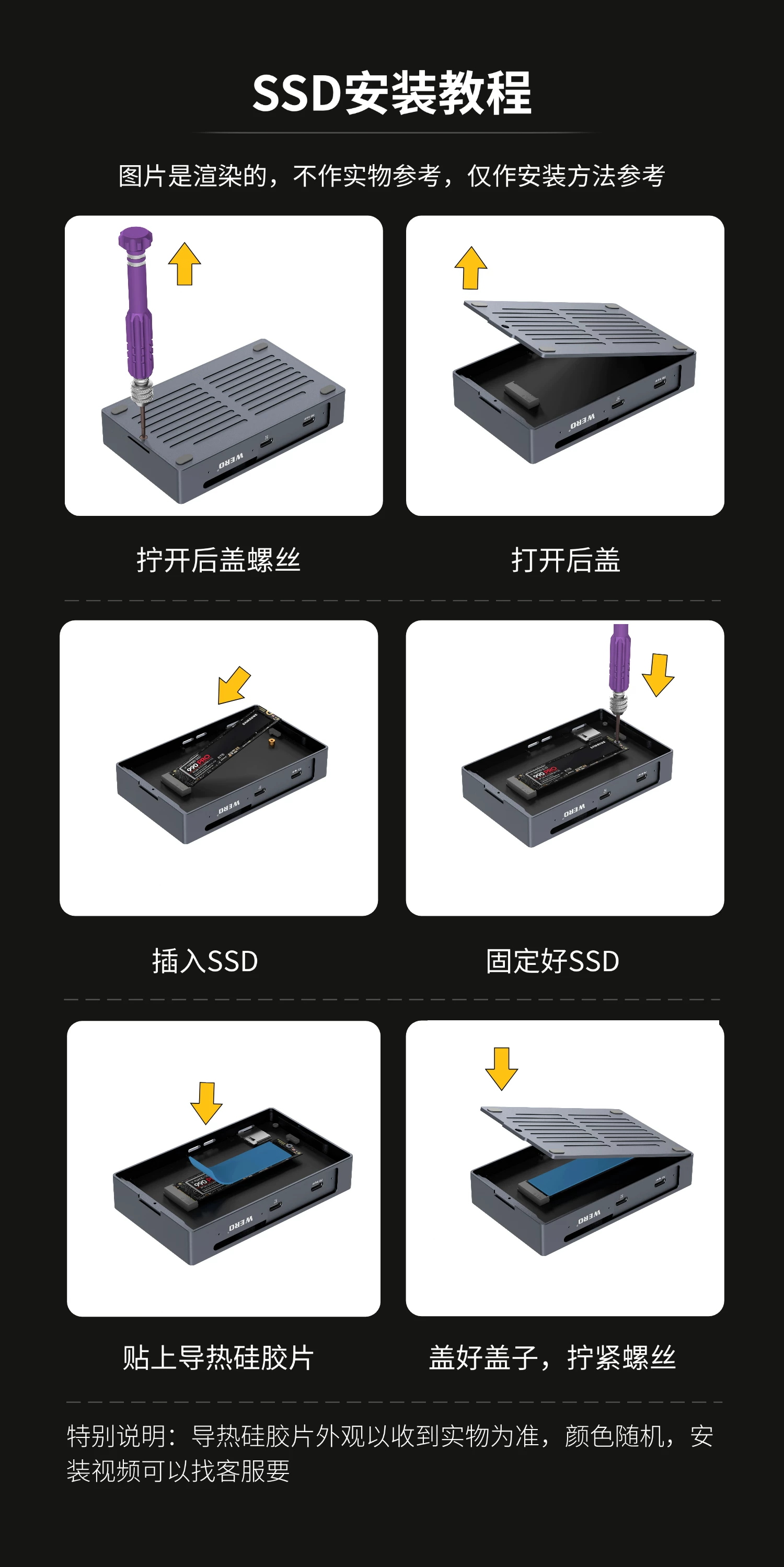

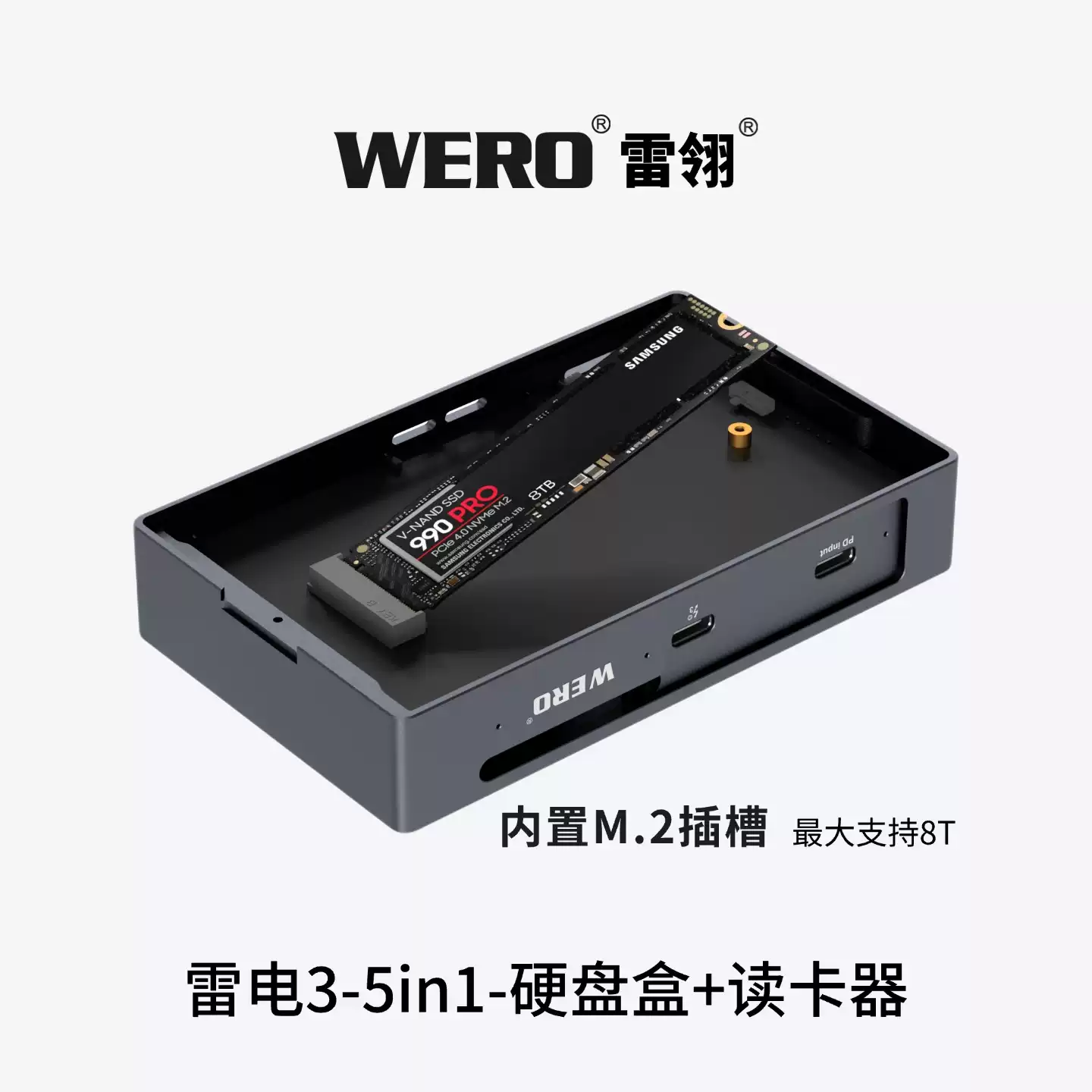

Hard Drive Interface: 2280 M.2 NVMe M.key SSD

Interface: USB-C
Transfer Speed: 40/10/5/0.48 Gbps

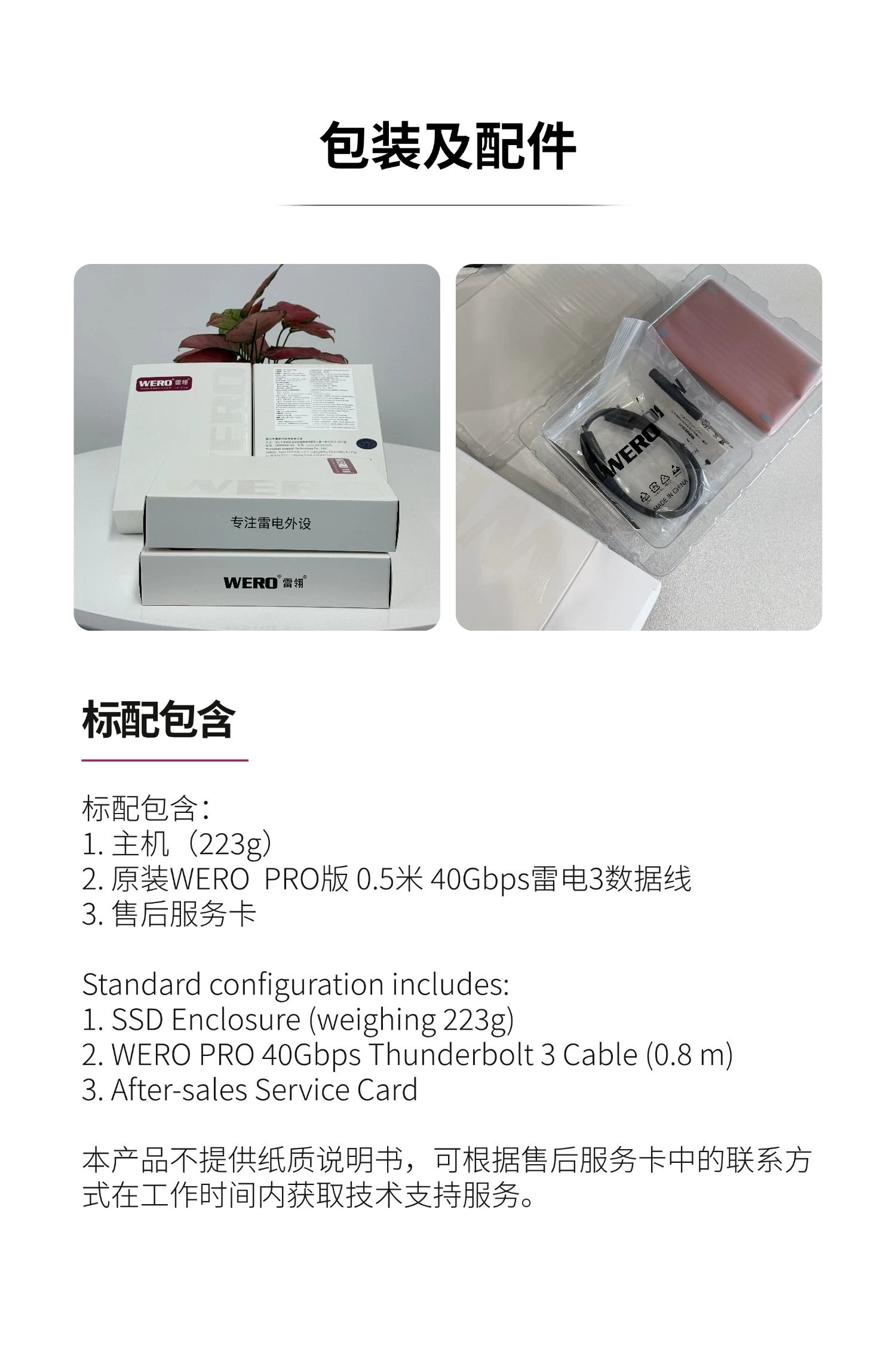

Data Cable: WERO Thunderbolt 3 cable, Intel officially certified. Do not replace with non-officially certified cables (! Note: Cables claiming to have authentication chips are fake certified ones). This affects stability.
Active Cooling: Temperature-controlled fan. Starts at 45°C, runs at full speed above 60°C, and adjusts continuously between speeds based on temperature changes. Features an independent switch to turn it off for complete silence!

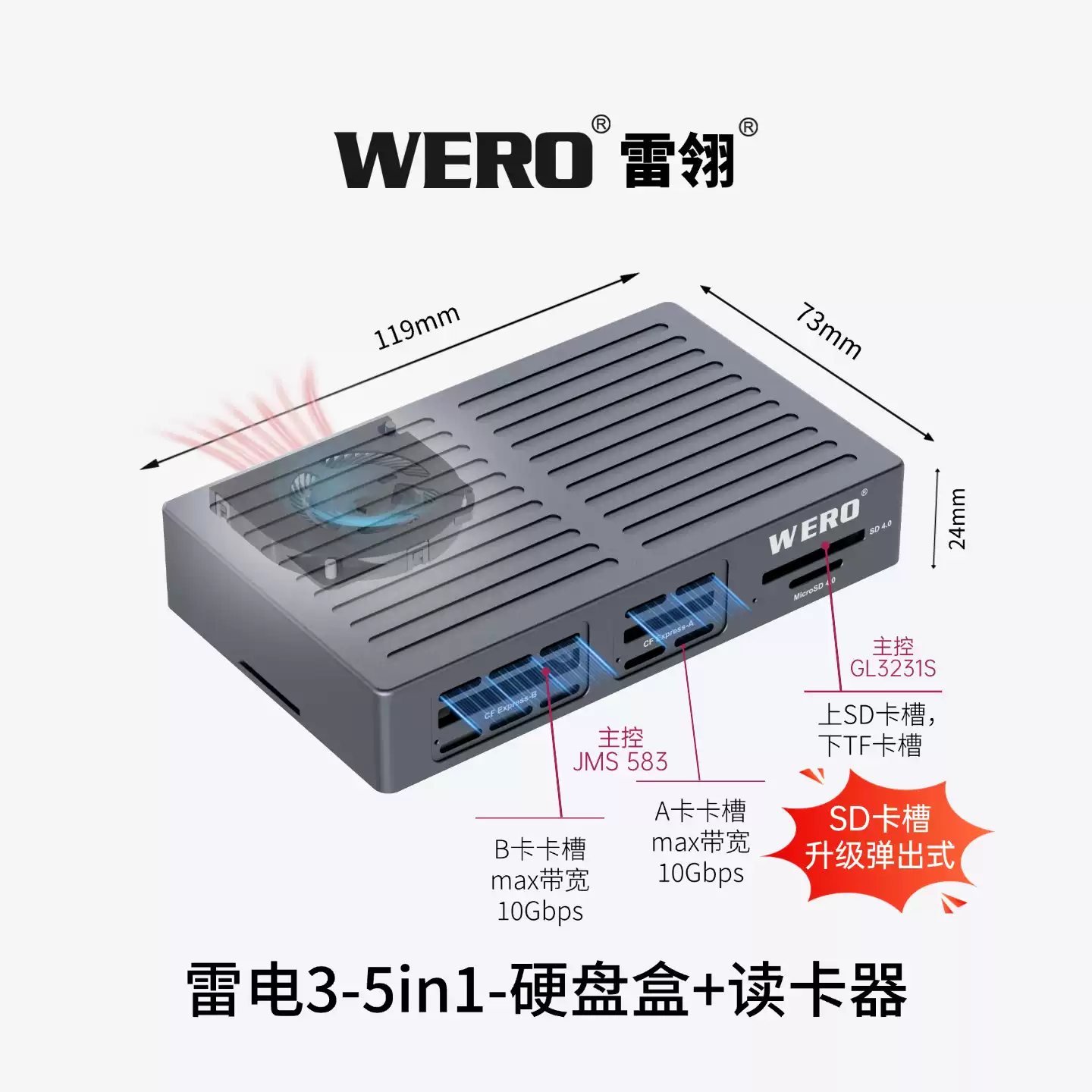

Dimensions: 119 mm (Length) × 73 mm (Width) × 24 mm (Height)
Weight: 223 grams
Power Supply: No separate power source required (bus-powered) + supports auxiliary power.

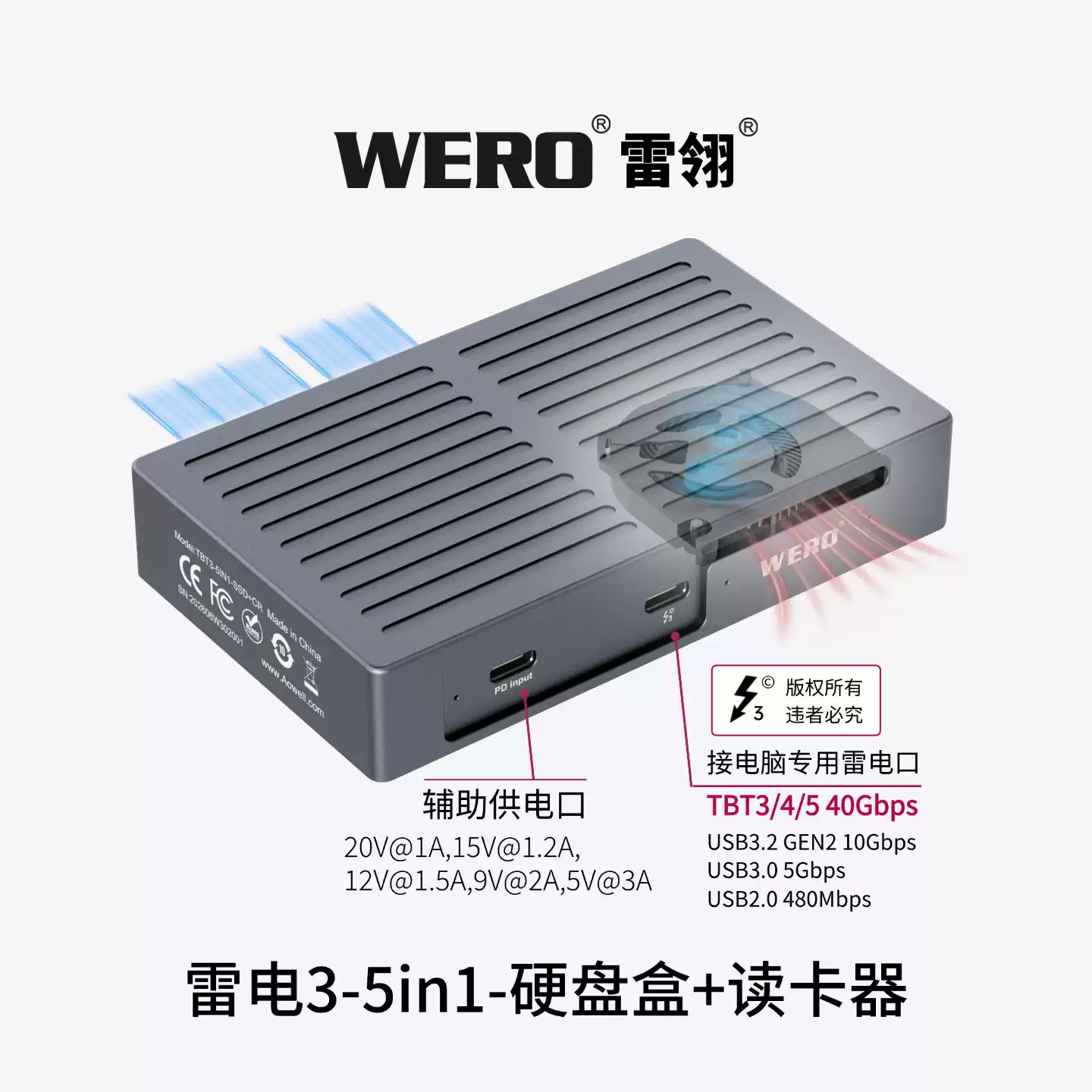

Auxiliary Power Supply Support: 5V@3A, 9V@2A, 12V@1.5A, 15V@1.2A, 20V@1A
System Support: MacOS 10.13 and above, Windows 10/11 (Windows 8/7/XP and other versions are not supported)
iOS, Android, etc.
Speed of Built-in SSD on Mac Computers:
Thunderbolt 5: Up to 3150MB/s
Thunderbolt 4: Up to 3150MB/s
USB 4: Up to 3150MB/s
Thunderbolt 3: Up to 2800MB/s
Speed of Built-in SSD on Windows Computers:
Thunderbolt 5: Up to 3100MB/s
Thunderbolt 4: Up to 3100MB/s
USB4: ! Not supported for pure USB4 interface, but supports some USB4 interfaces with Thunderbolt 3 as the underlying protocol
Thunderbolt 3: Up to 2800MB/s
USB3.2 GEN2X2 20Gbps: ! Does not support 20Gbps speed; maximum speed is 1000M/s
USB3.2 GEN2 10Gbps: 1000M/s
USB3.2 GEN1 5Gbps: 450M/s
USB2.0 480Mbps: 38M/s

PD Auxiliary Power Supply Support: 5V@3A, 9V@2A, 12V@1.5A, 15V@1.2A, 20V@1A
System Support: MacOS 10.13 and above, Windows 10/11 (Windows 8/7/XP and other versions are not supported)
iOS, Android, etc.
Internal SSD Speed on Mac Computers:
Thunderbolt 5: Up to 3150MB/s
Thunderbolt 4: Up to 3150MB/s
USB 4: Up to 3150MB/s
Thunderbolt 3: Up to 2800MB/s
Internal SSD Speed on Windows Computers:
Thunderbolt 5: Up to 3100MB/s
Thunderbolt 4: Up to 3100MB/s
USB4: ! Not supported for pure USB4 interface, but supports some USB4 interfaces with Thunderbolt 3 as the underlying protocol
Thunderbolt 3: Up to 2800MB/s
USB3.2 GEN2X2 20Gbps: ! 20Gbps speed is not supported; maximum speed is 1000M/s
USB3.2 GEN2 10Gbps: 1000M/s
USB3.2 GEN1 5Gbps: 450M/s
USB2.0 480Mbps: 38M/s
Reference Speed of Internal SSD on iPad/iPhone:
Using disktest on iPad's Thunderbolt 4 port: Read 1700M/s, Write 1500M/s
Using disk test on iPhone 15PM: Read 580M/s, Write 400M/s

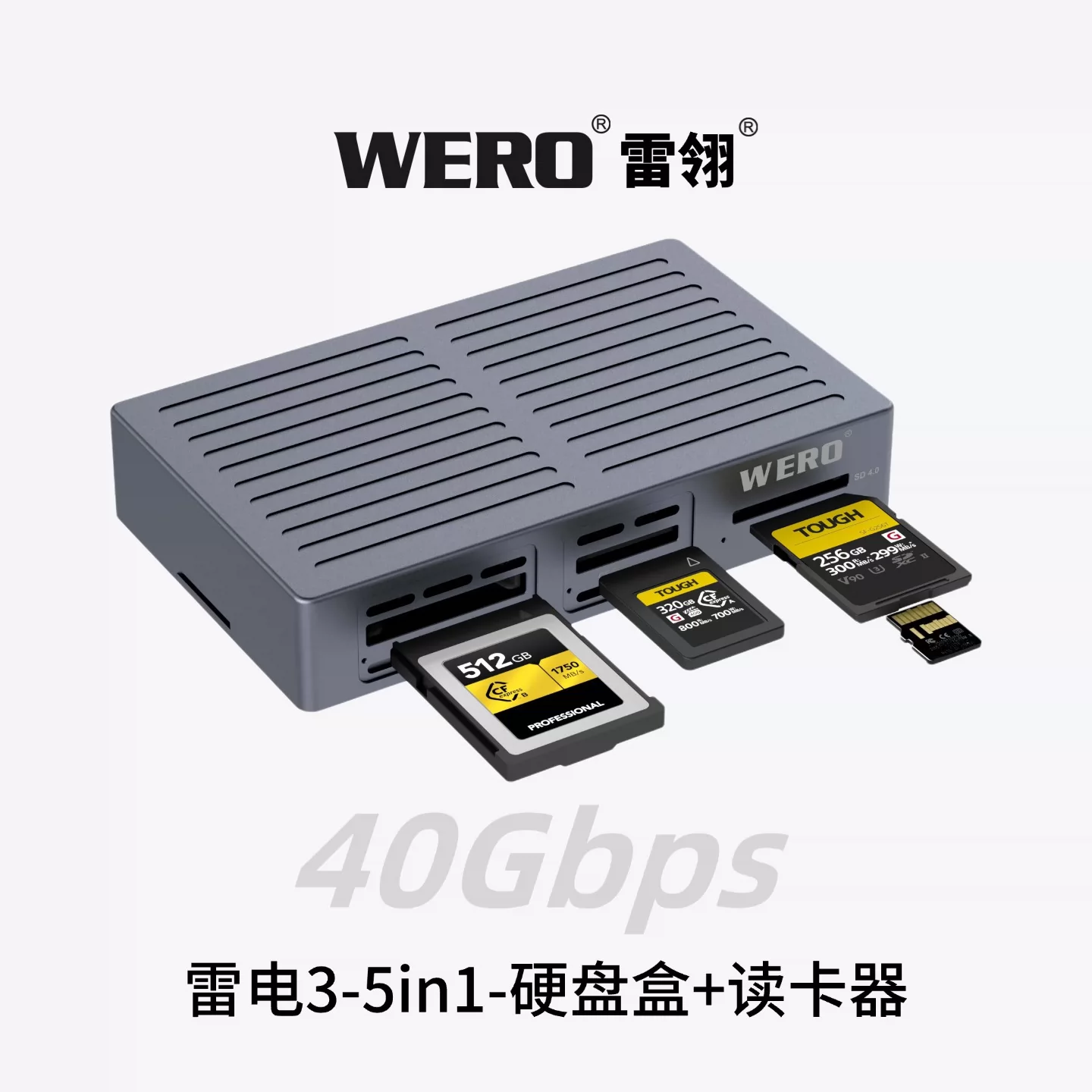

CF-Express B: 10Gbps *Maximum speed: 1000M/s
CF-Express A: 10Gbps *Due to the speed limit of the A card itself, speed is approximately 800M/s
SD 4.0: USB3.1 GEN1 *Due to the speed limit of the SD card itself, maximum speed is 300M/s
TF 4.0: USB3.1 GEN1 *Due to the speed limit of the TF card itself, maximum speed is 280M/s
! Important Notes:
1. Note: Thunderbolt 2 and Thunderbolt 1 are not supported
2. When using auxiliary power supply, it will not charge phones, iPads, or computers
3. For mobile phones and tablets, please use ! exFAT for disk formatting
