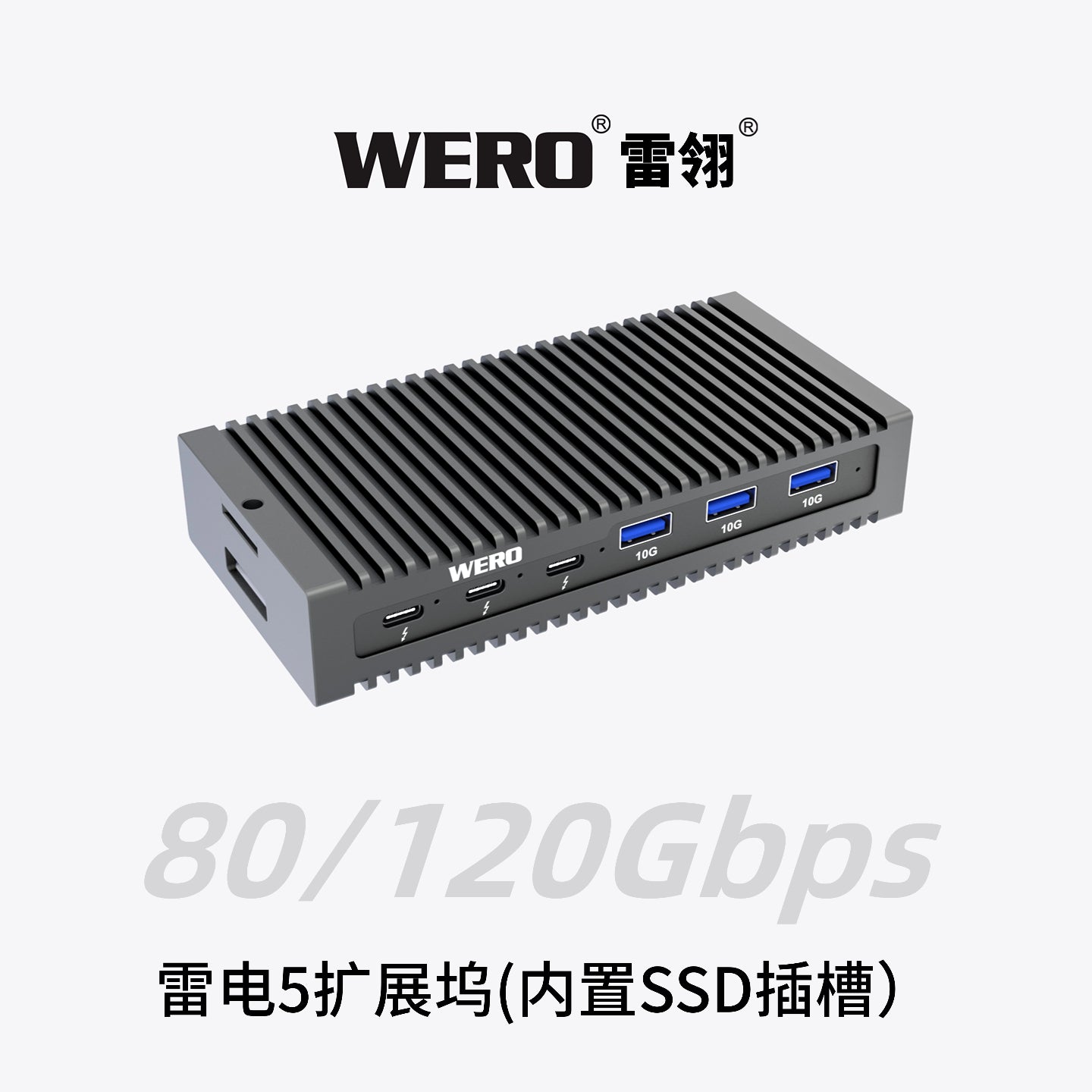

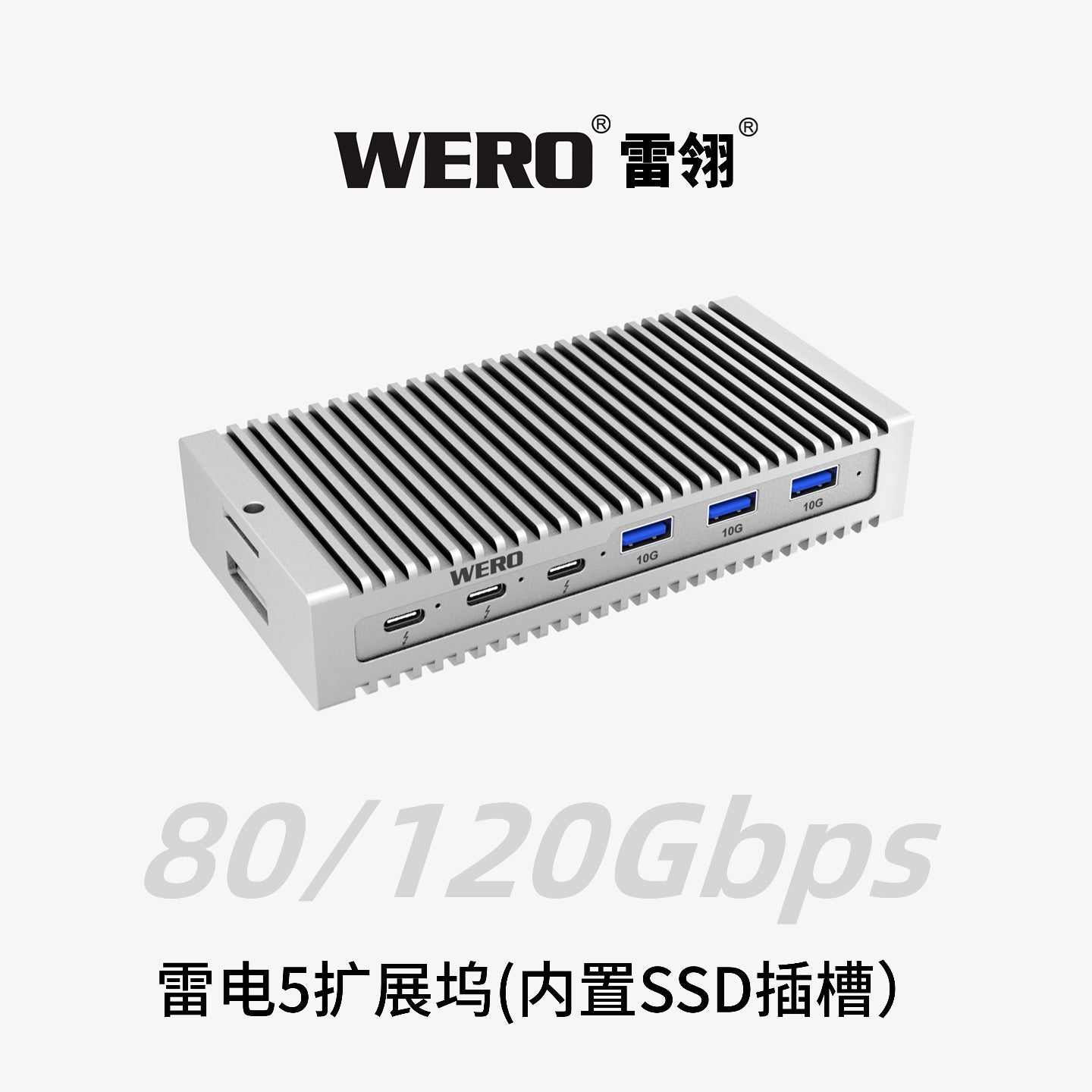

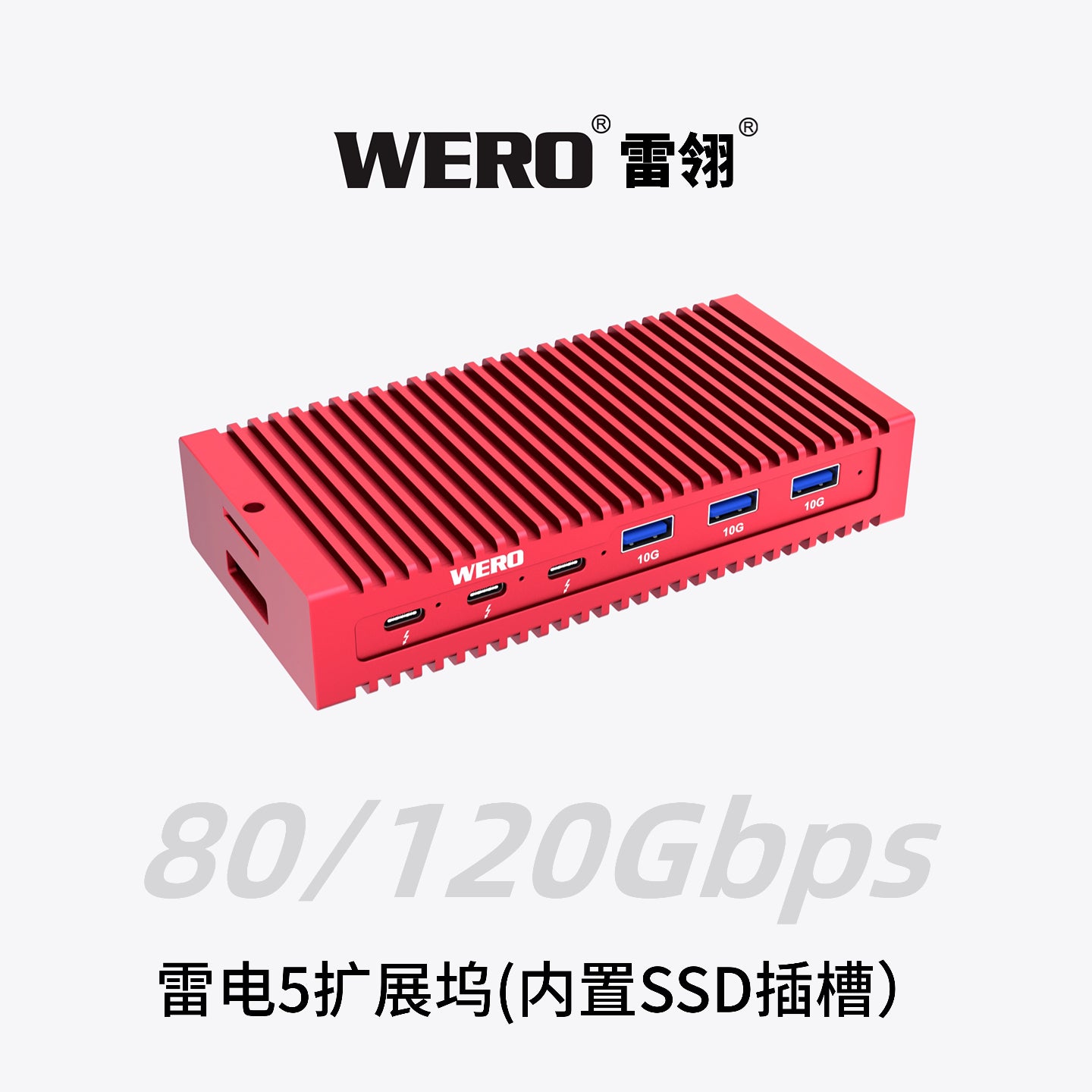

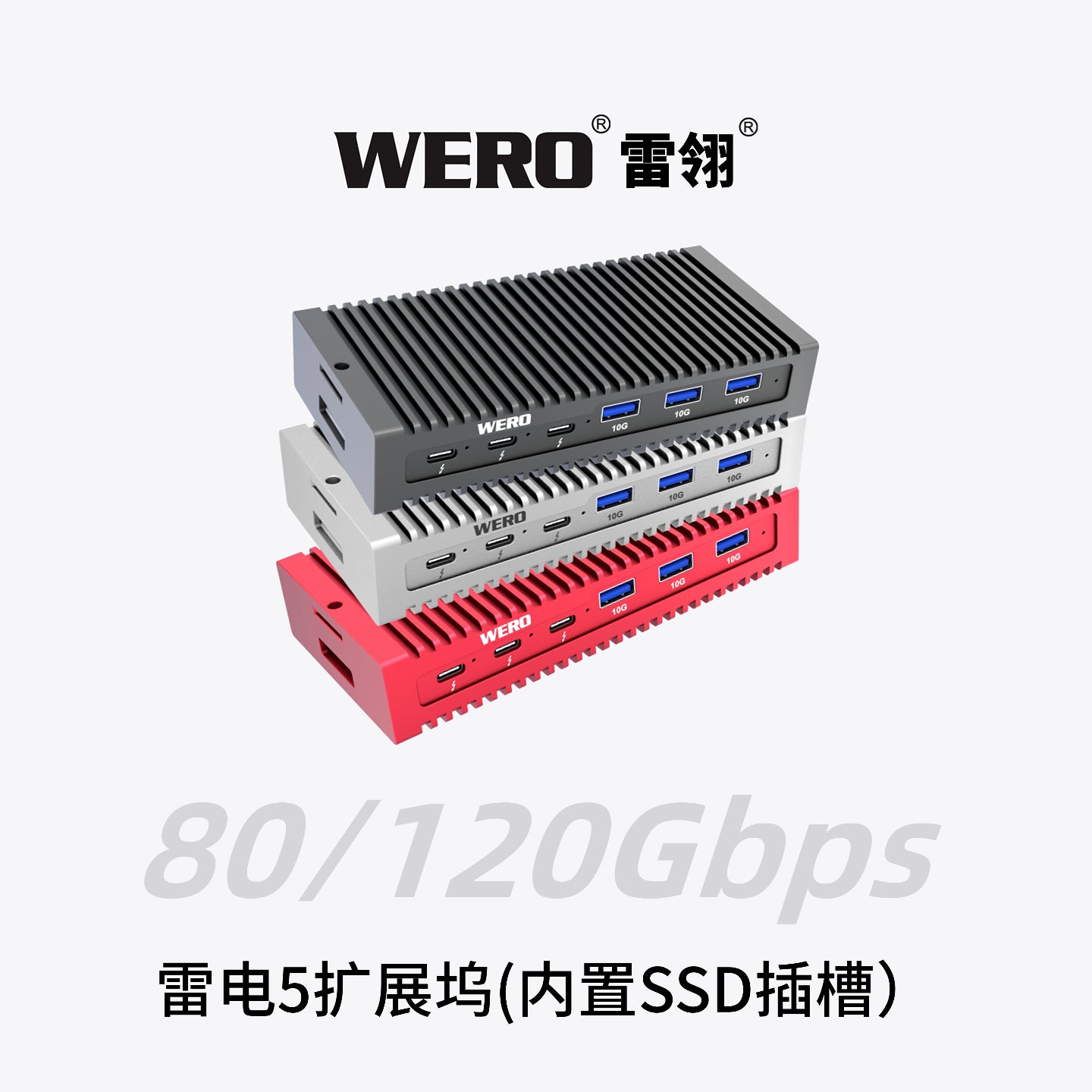

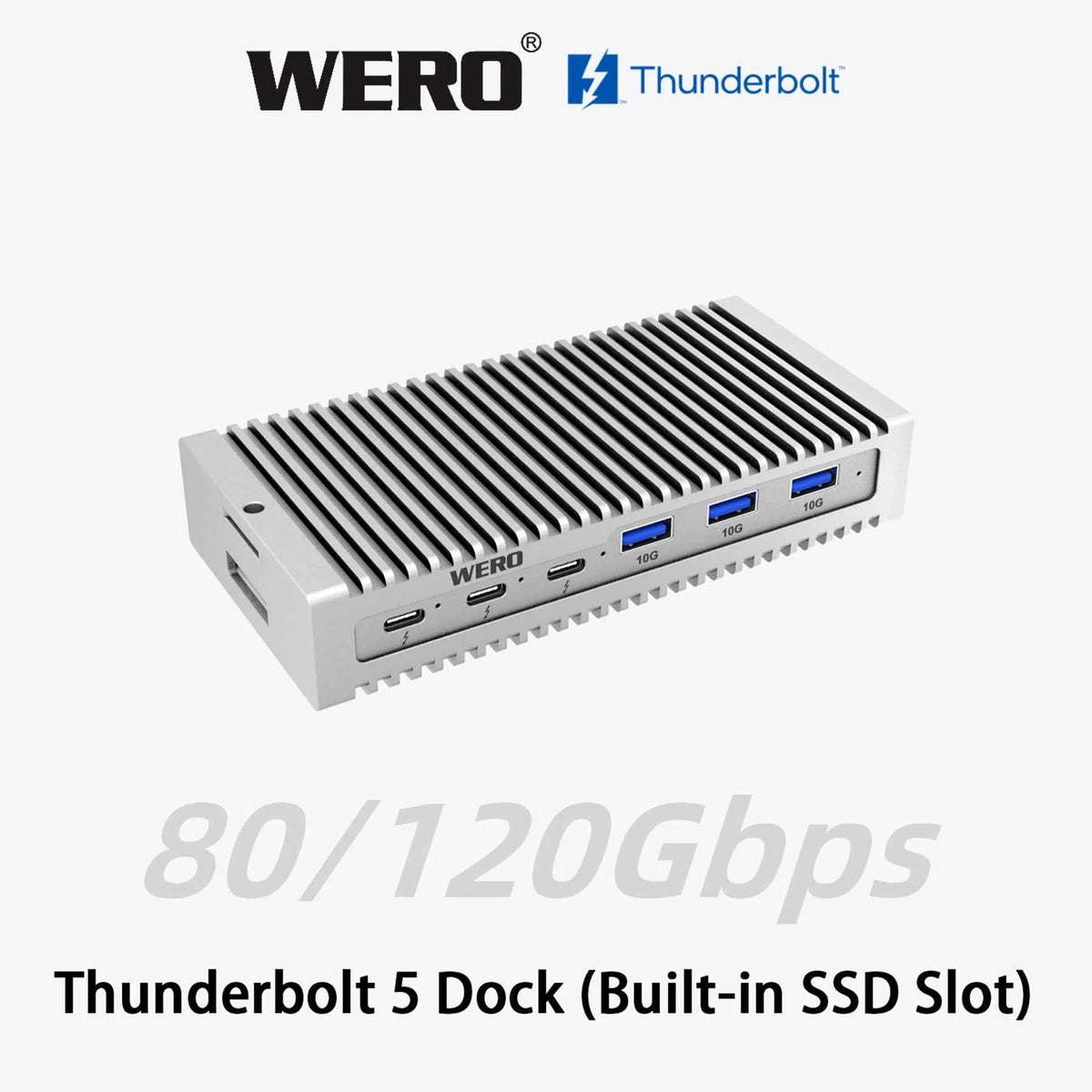

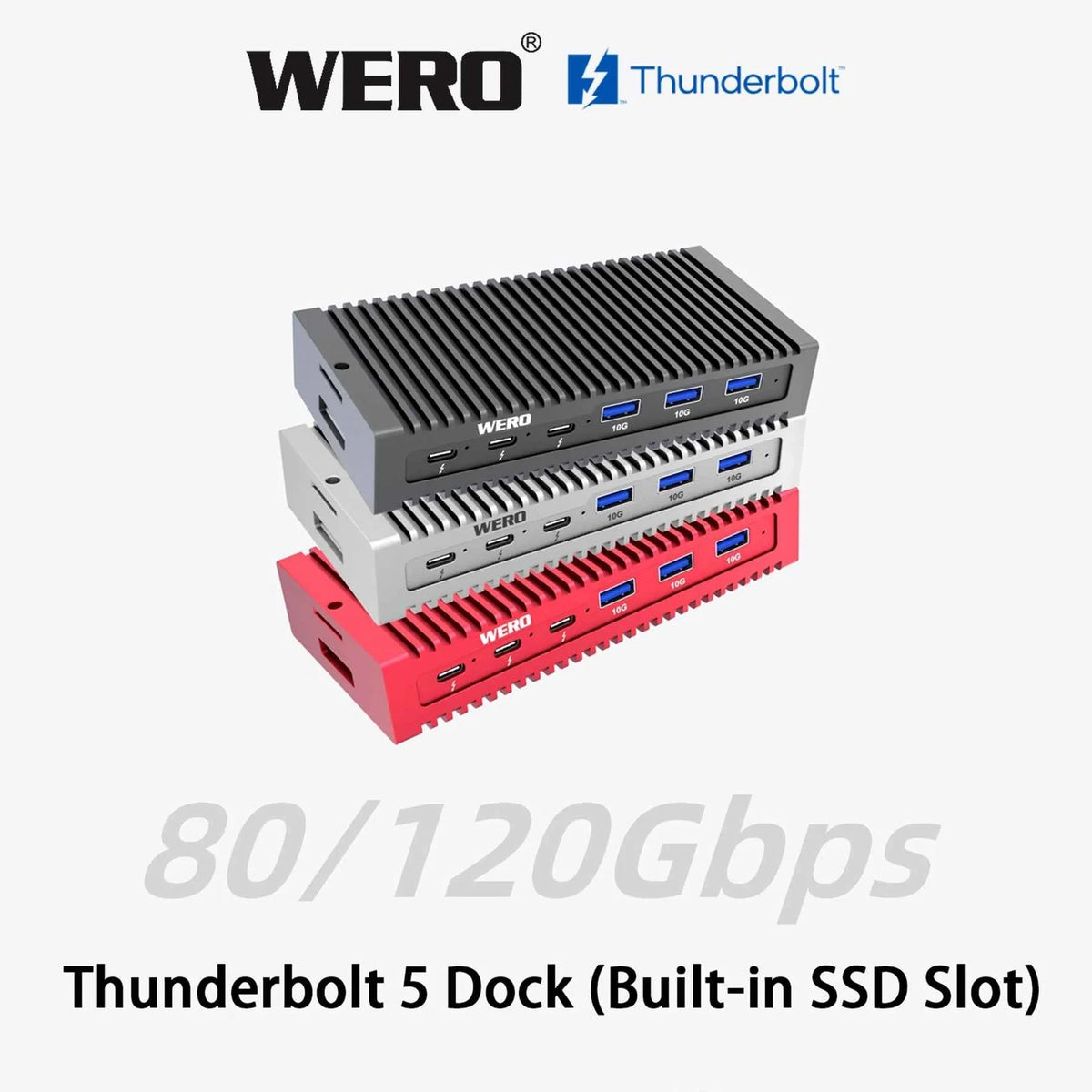

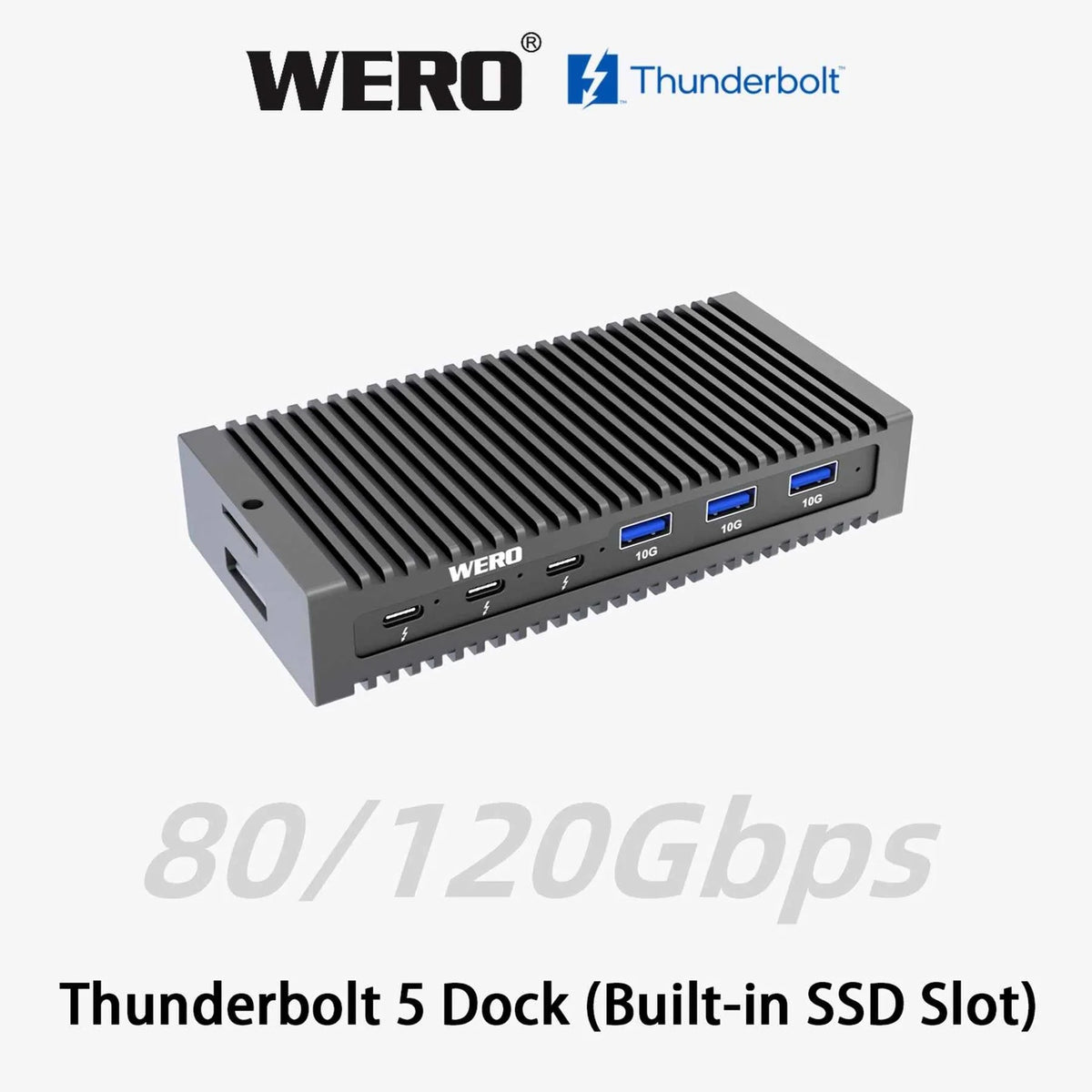

WERO Thunderbolt 5 80/120 Gbps 1M2-DOCK Docking Station(TBT5-1M2-dock)

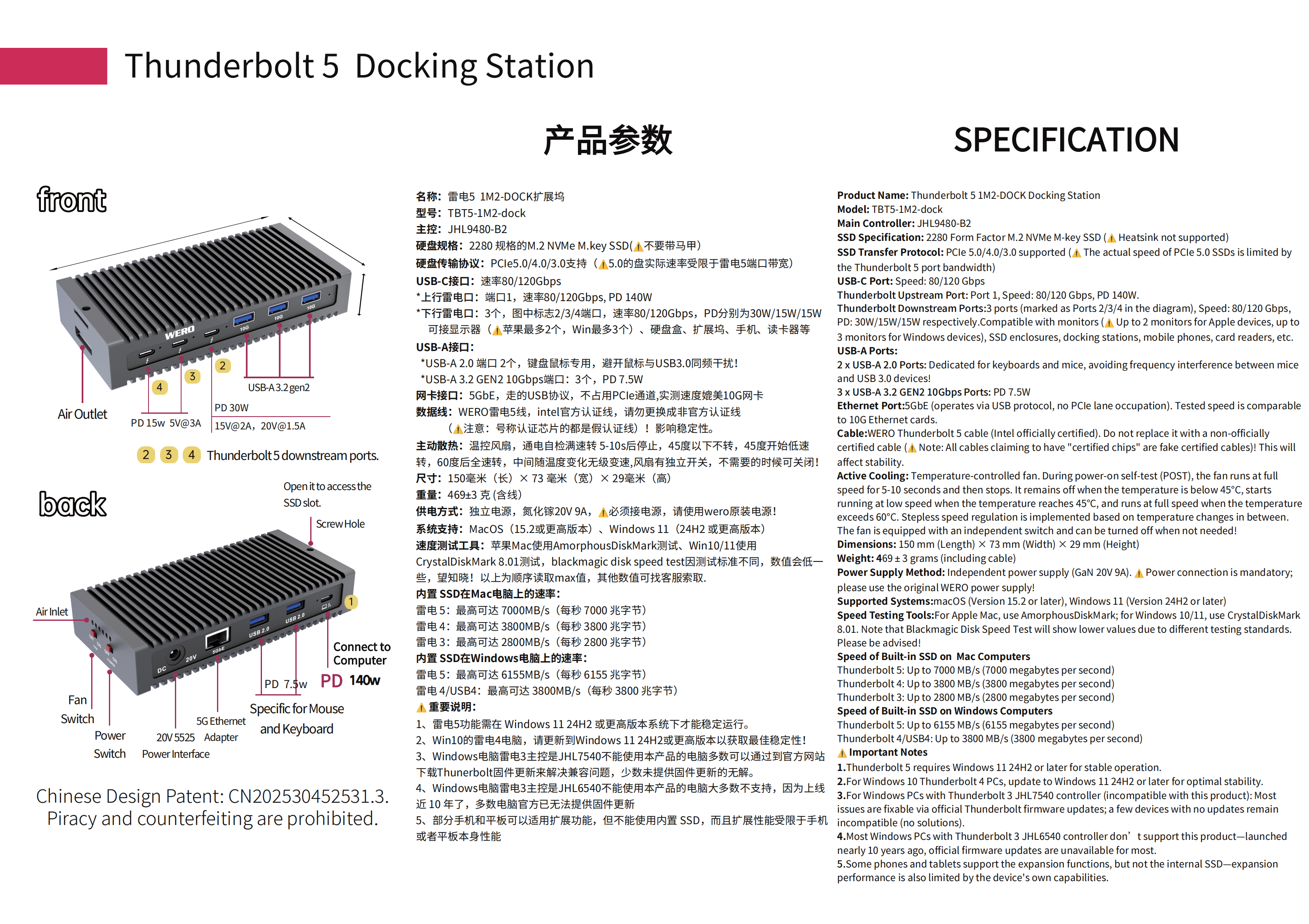

Product Name: Thunderbolt 5 1M2-DOCK Docking Station
Model: TBT5-1M2-dock
Main Controller: JHL9480-B2

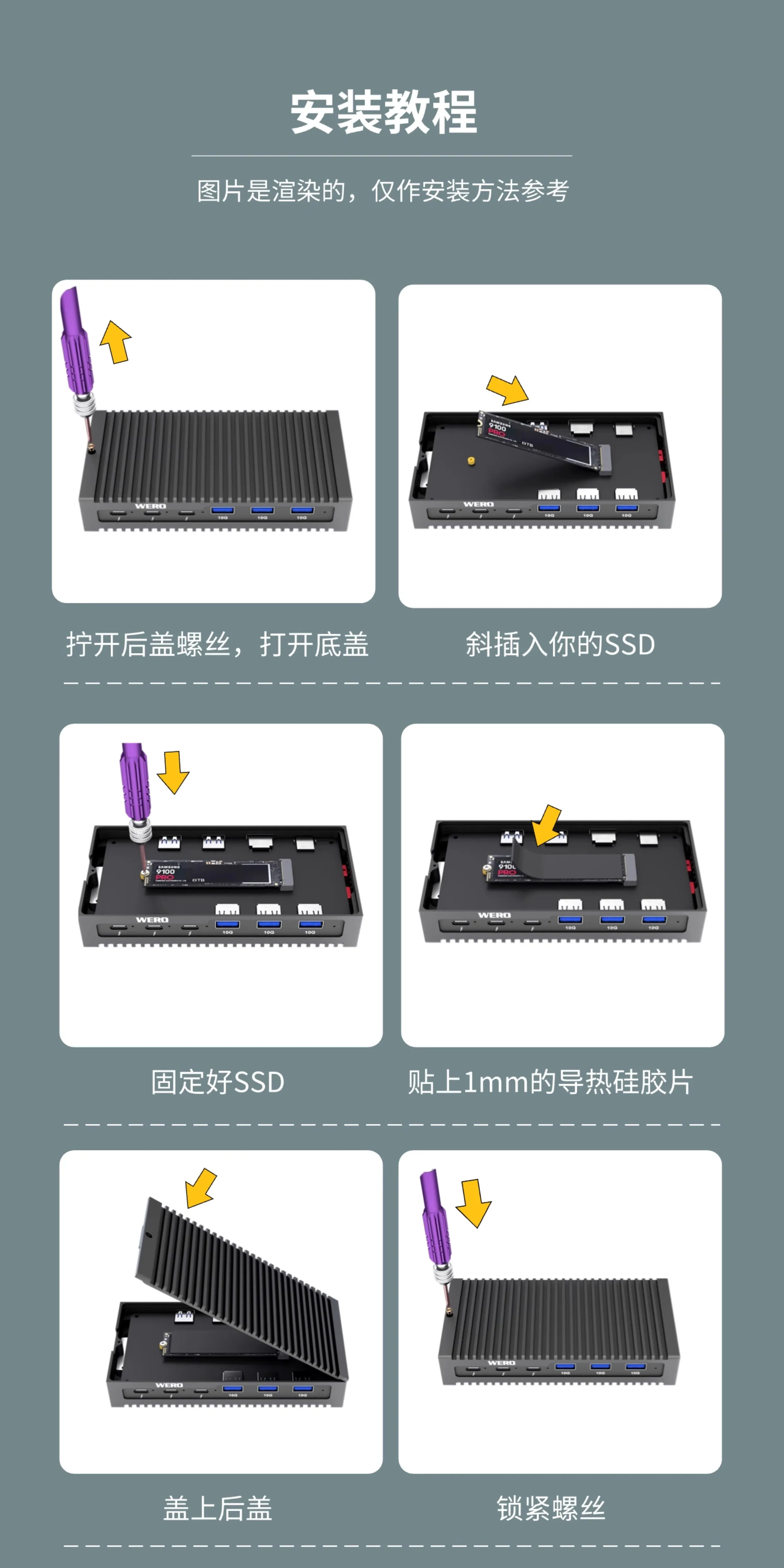

SSD Specification: 2280 Form Factor M.2 NVMe M-key SSD (⚠️ Heatsink not supported)
SSD Transfer Protocol: PCIe 5.0/4.0/3.0 supported (⚠️ The actual speed of PCIe 5.0 SSDs is limited by the Thunderbolt 5 port bandwidth)
USB-C Port: Speed: 80/120 Gbps

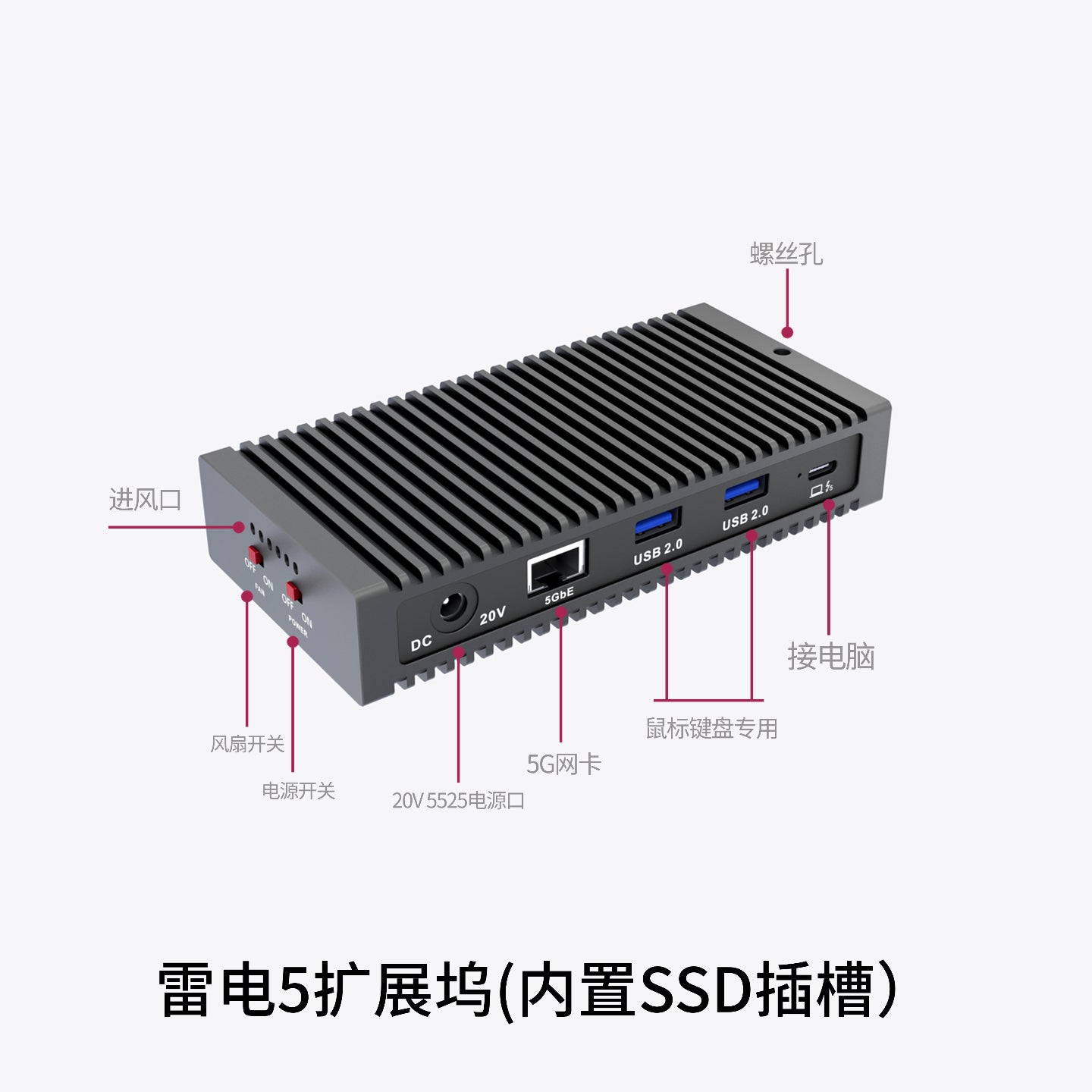

Thunderbolt Upstream Port: Port 1, Speed: 80/120 Gbps, PD 140W.

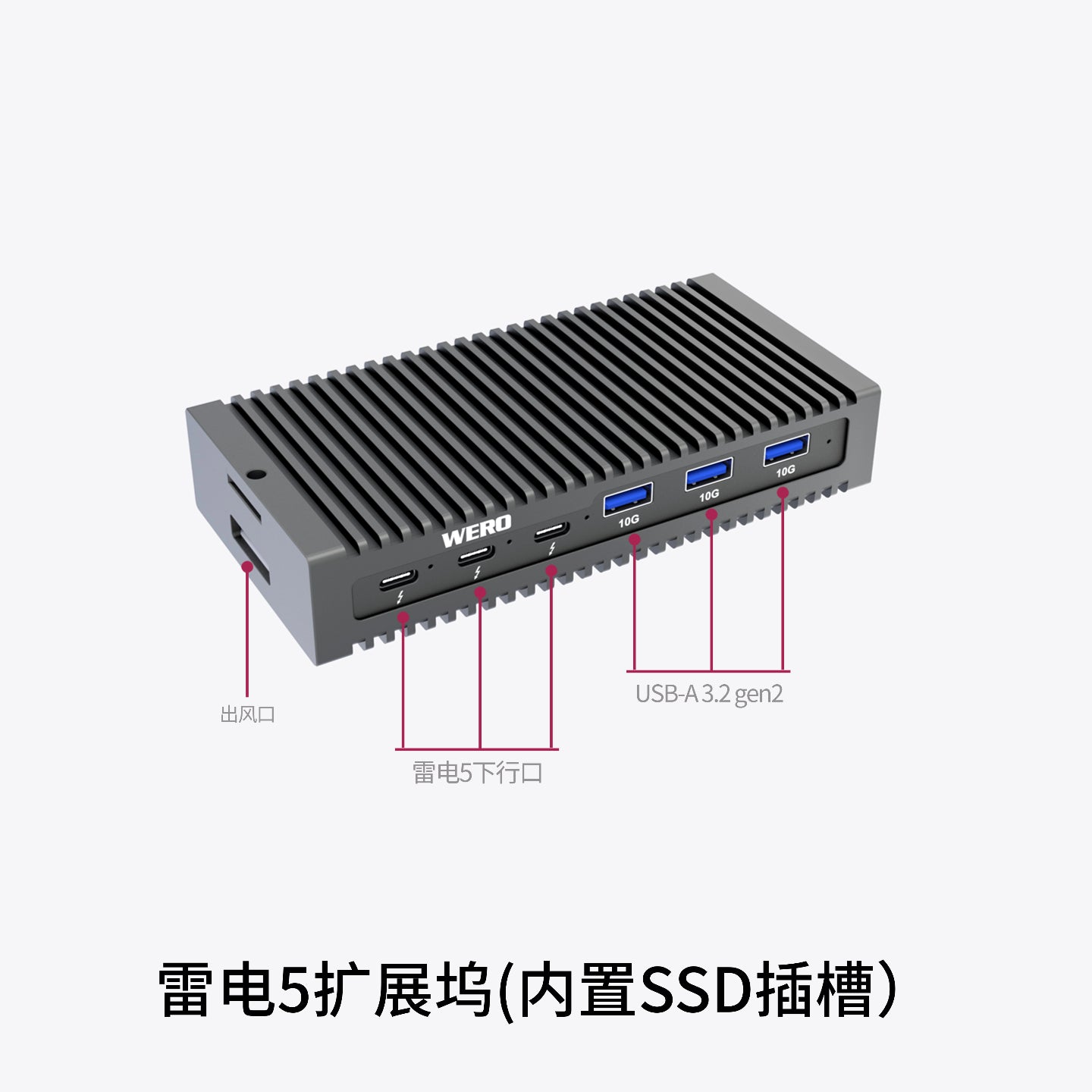

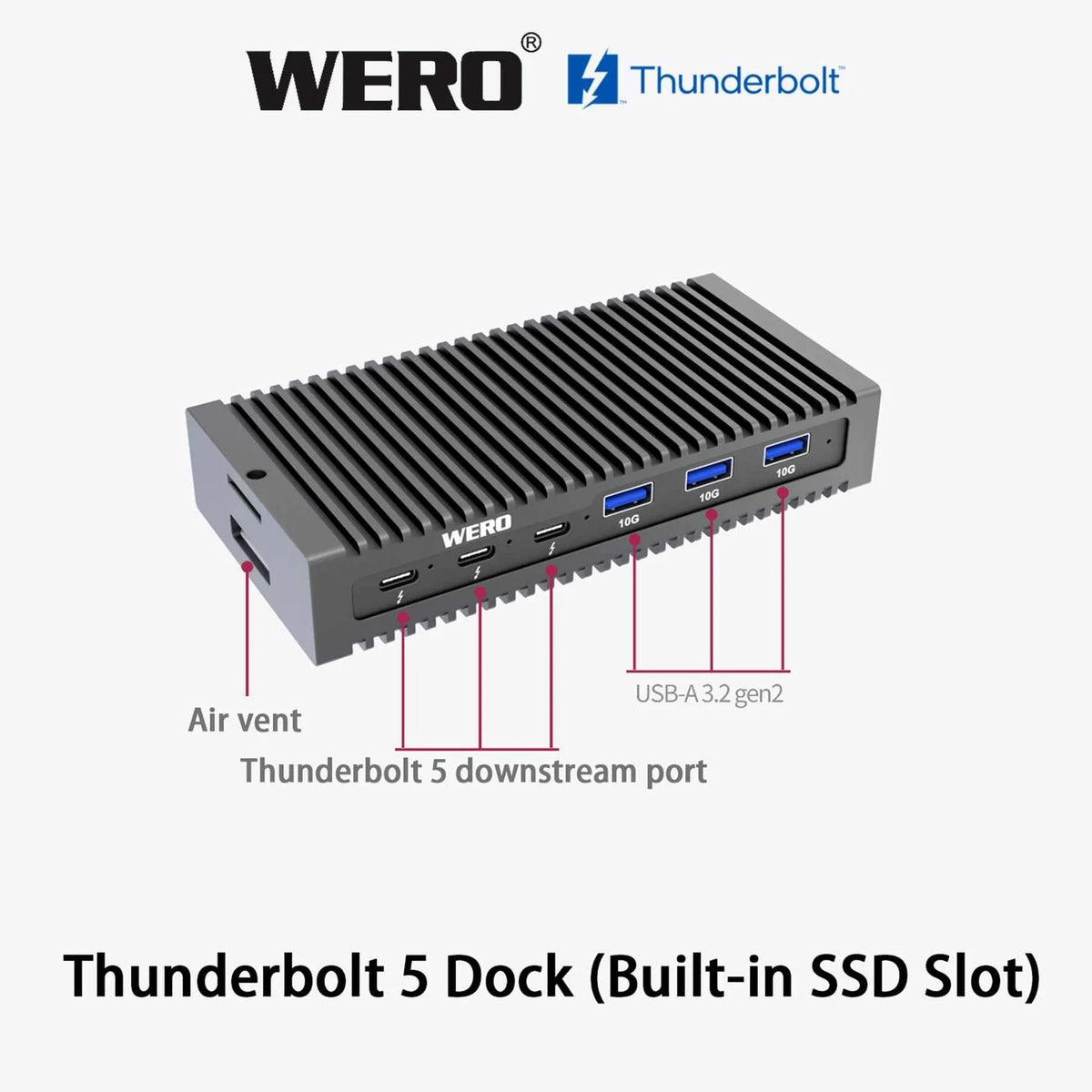

Thunderbolt Downstream Ports: 3 ports (marked as Ports 2/3/4 in the diagram), Speed: 80/120 Gbps, PD: 30W/15W/15W respectively.Compatible with monitors (⚠️ Up to 2 monitors for Apple devices, up to 3 monitors for Windows devices), SSD enclosures, docking stations, mobile phones, card readers, etc.

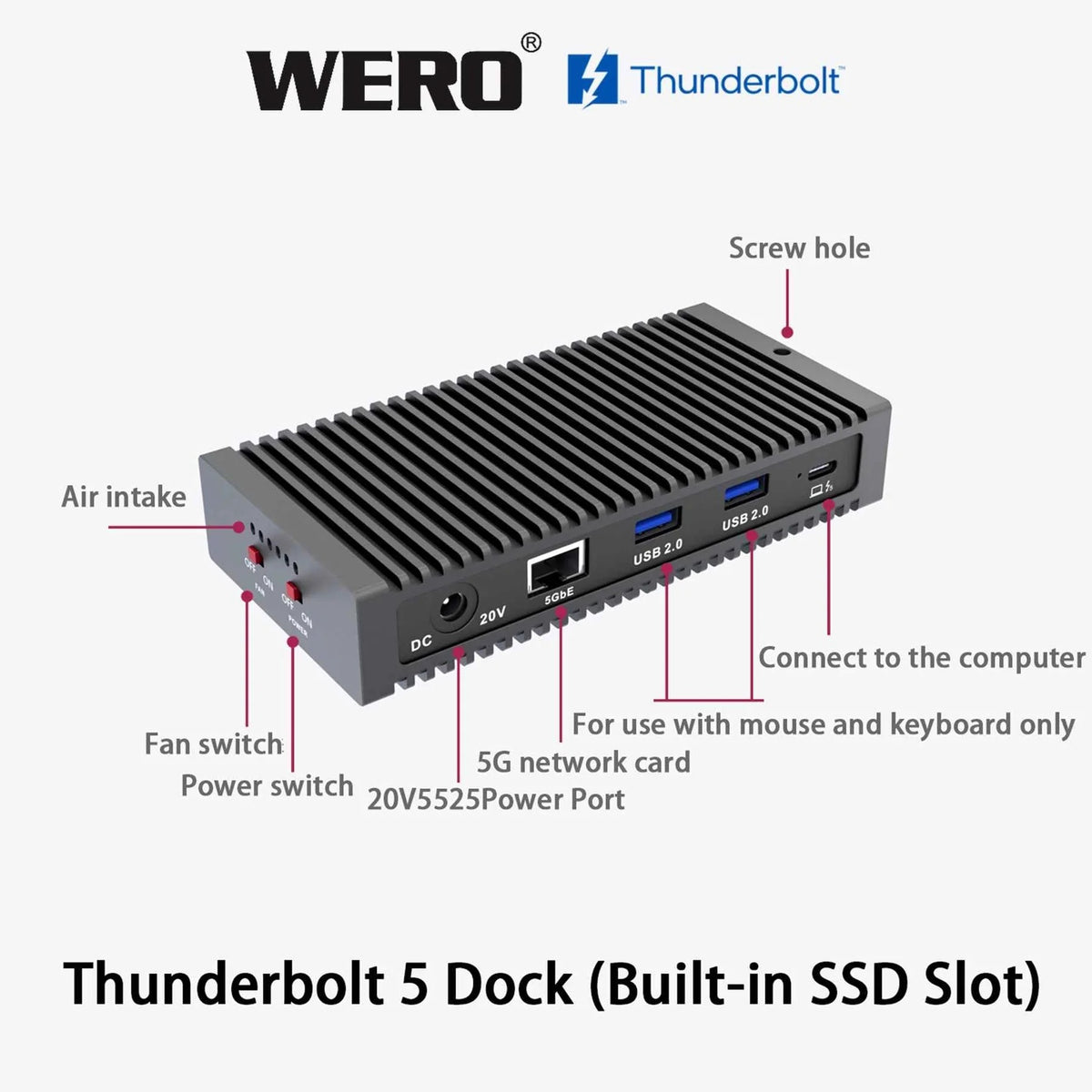

USB-A Ports:
2 x USB-A 2.0 Ports: Dedicated for keyboards and mice, avoiding frequency interference between mice and USB 3.0 devices!
3 x USB-A 3.2 GEN2 10Gbps Ports: PD 7.5W
Ethernet Port: 5GbE (operates via USB protocol, no PCIe lane occupation). Tested speed is comparable to 10G Ethernet cards.
Cable: WERO Thunderbolt 5 cable (Intel officially certified). Do not replace it with a non-officially certified cable (⚠️ Note: All cables claiming to have “certified chips” are fake certified cables)! This will affect stability.

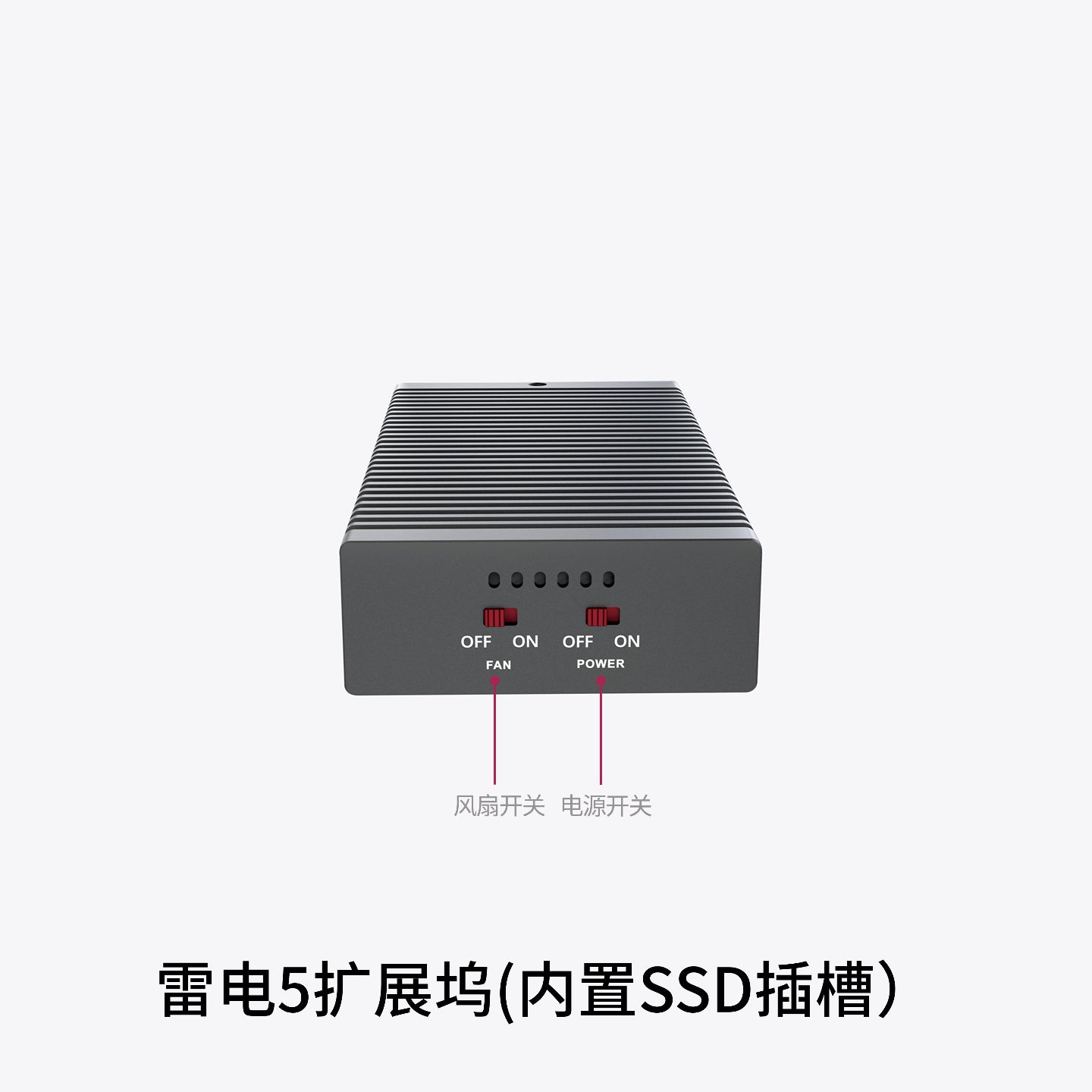

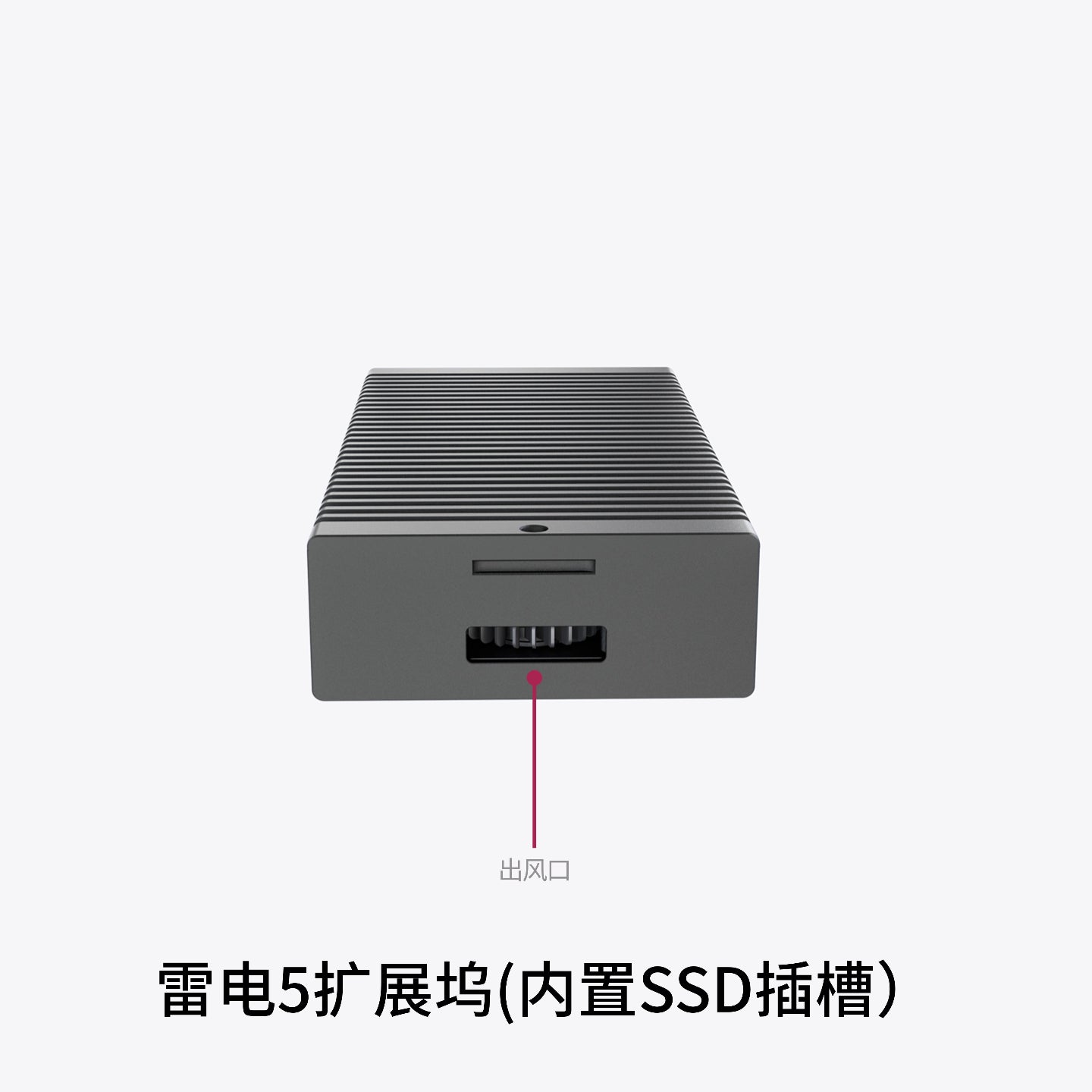

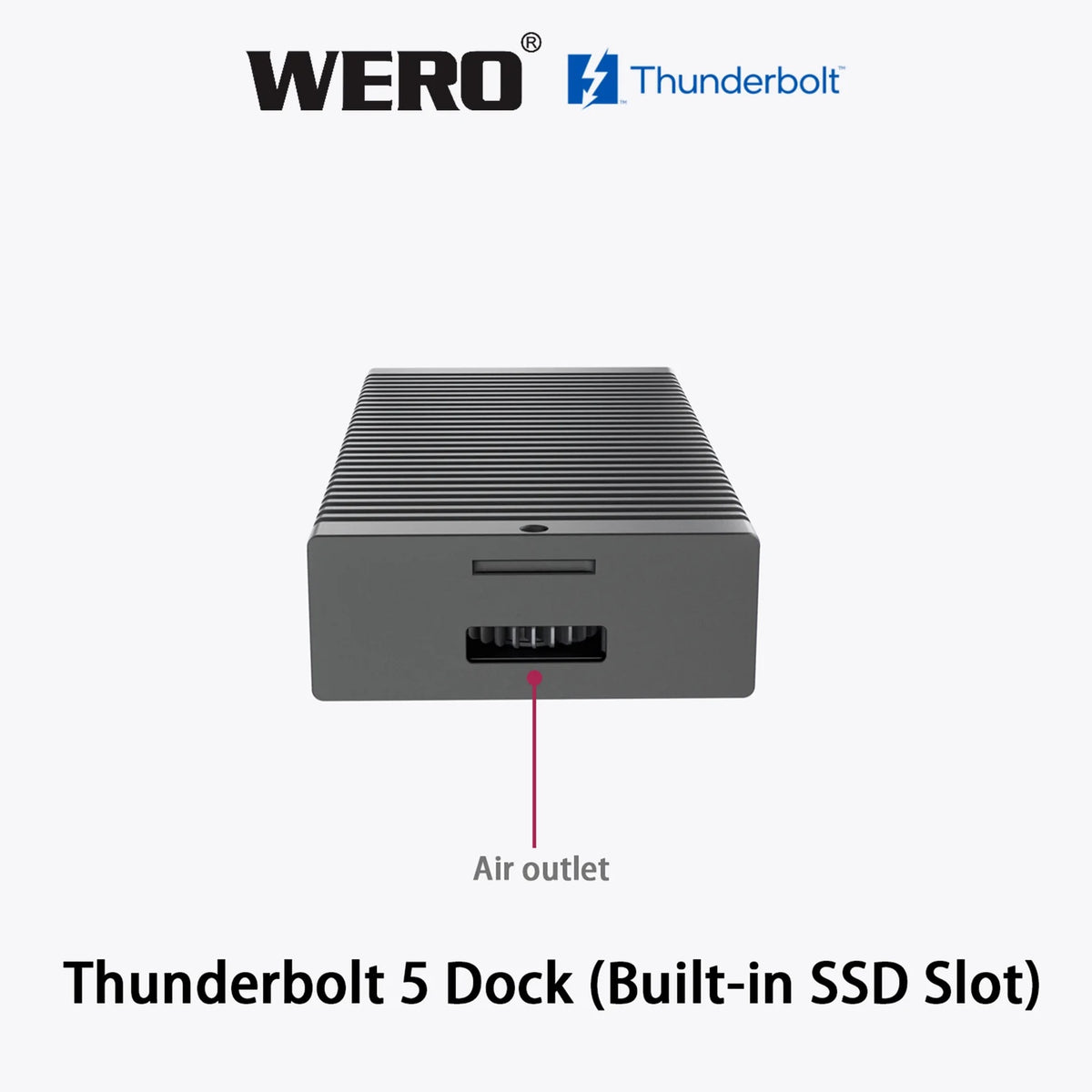

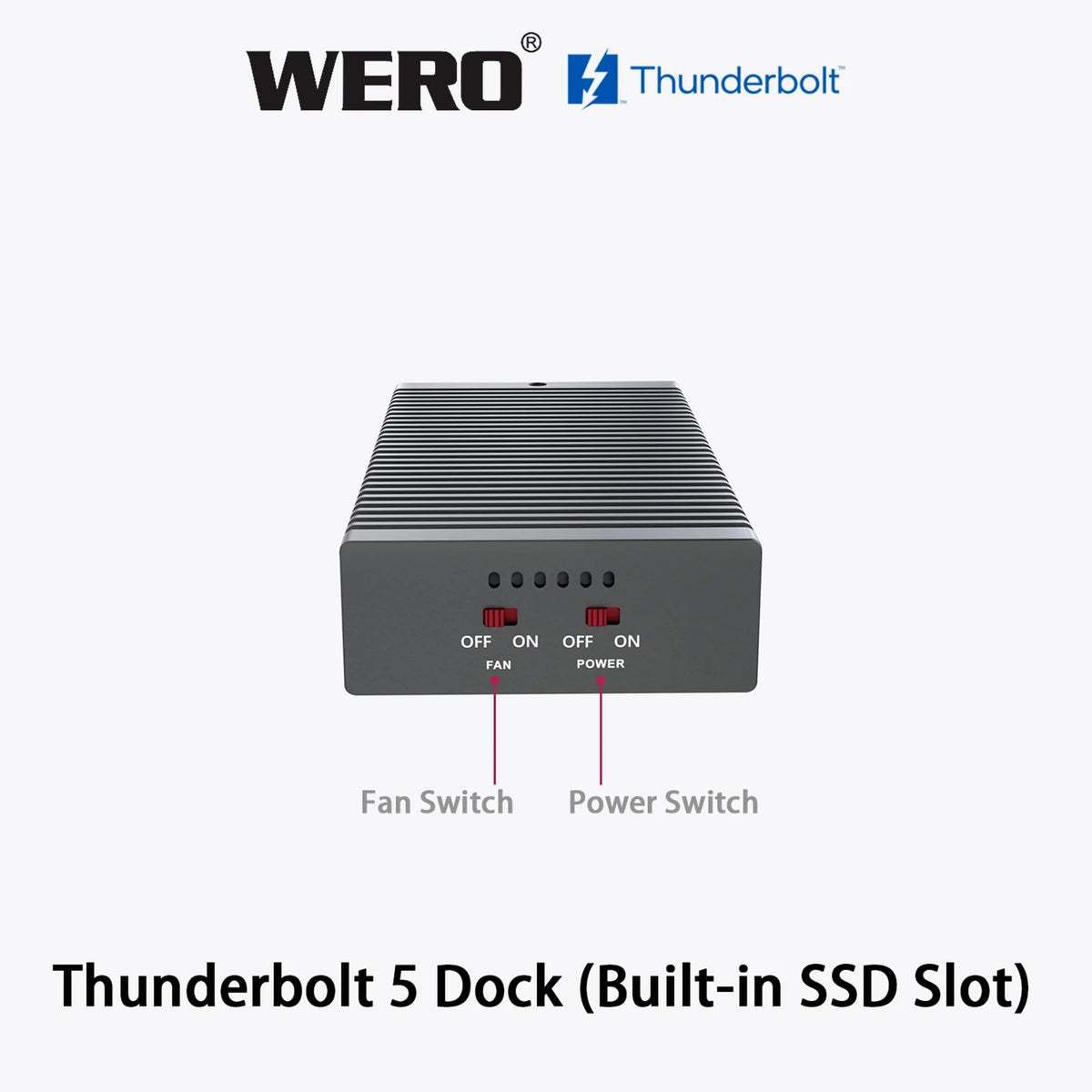

Active Cooling: Temperature-controlled fan. During power-on self-test (POST), the fan runs at full speed for 5-10 seconds and then stops. It remains off when the temperature is below 45°C, starts running at low speed when the temperature reaches 45°C, and runs at full speed when the temperature exceeds 60°C. Stepless speed regulation is implemented based on temperature changes in between. The fan is equipped with an independent switch and can be turned off when not needed!
Dimensions: 150 mm (Length) × 73 mm (Width) × 29 mm (Height)
Weight: 469 ± 3 grams (including cable)
Power Supply Method: Independent power supply (GaN 20V 9A). ⚠️ Power connection is mandatory; please use the original WERO power supply!
Supported Systems: macOS (Version 15.2 or later), Windows 11 (Version 24H2 or later)
Speed Testing Tools: For Apple Mac, use AmorphousDiskMark; for Windows 10/11, use CrystalDiskMark 8.01. Note that Blackmagic Disk Speed Test will show lower values due to different testing standards. Please be advised!
Speed of Built-in SSD on  Mac Computers
Thunderbolt 5: Up to 7000 MB/s (7000 megabytes per second)
Thunderbolt 4: Up to 3800 MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 megabytes per second)
Speed of Built-in SSD on Windows Computers
Thunderbolt 5: Up to 6155 MB/s (6155 megabytes per second)
Thunderbolt 4/USB4: Up to 3800 MB/s (3800 megabytes per second)
⚠️ Important Notes
1.Thunderbolt 5 requires Windows 11 24H2 or later for stable operation.
2.For Windows 10 Thunderbolt 4 PCs, update to Windows 11 24H2 or later for optimal stability.
3.For Windows PCs with Thunderbolt 3 JHL7540 controller (incompatible with this product): Most issues are fixable via official Thunderbolt firmware updates; a few devices with no updates remain incompatible (no solutions).
4.Most Windows PCs with Thunderbolt 3 JHL6540 controller don’t support this product—launched nearly 10 years ago, official firmware updates are unavailable for most.
5.Some phones and tablets support the expansion functions, but not the internal SSD—expansion performance is also limited by the device’s own capabilities.
