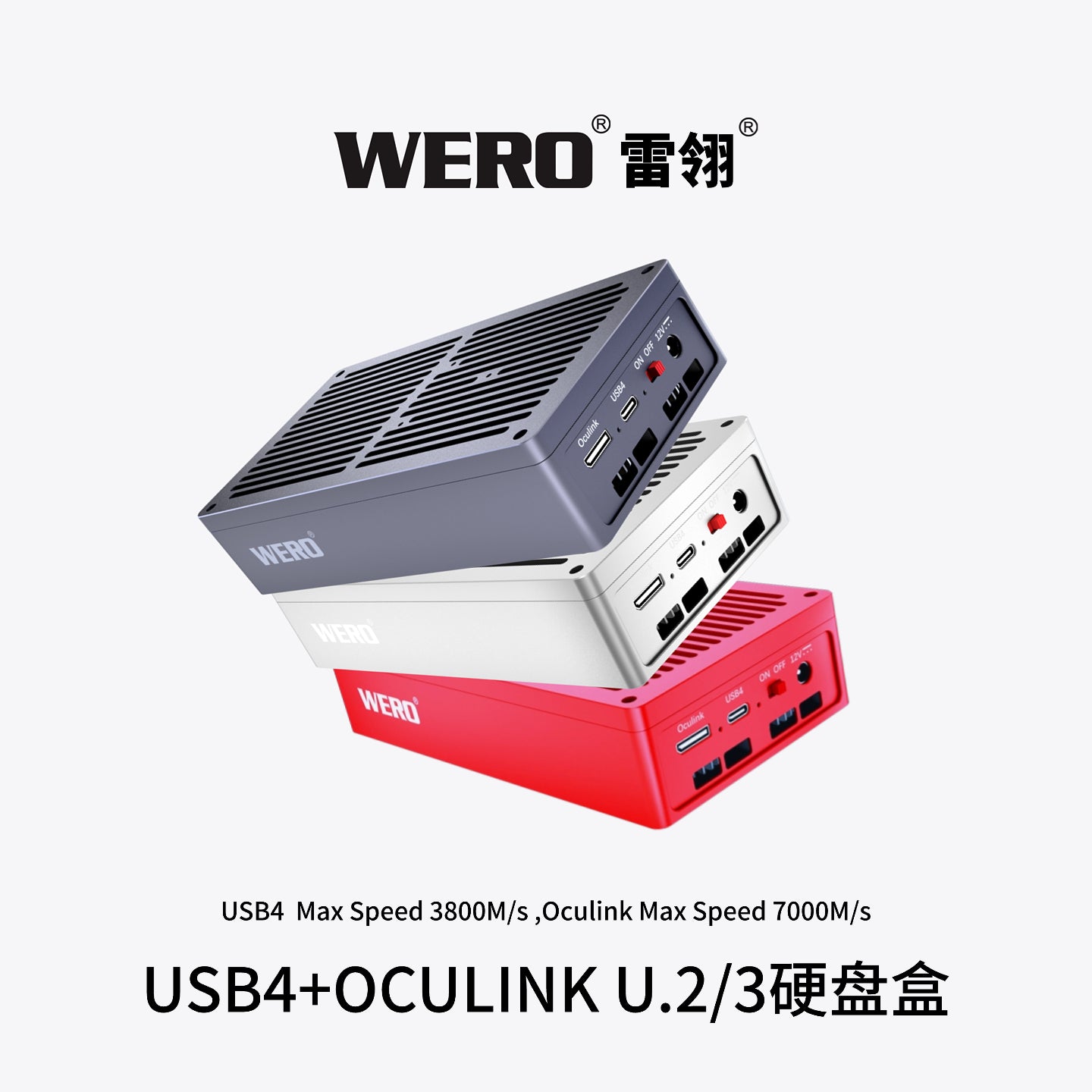

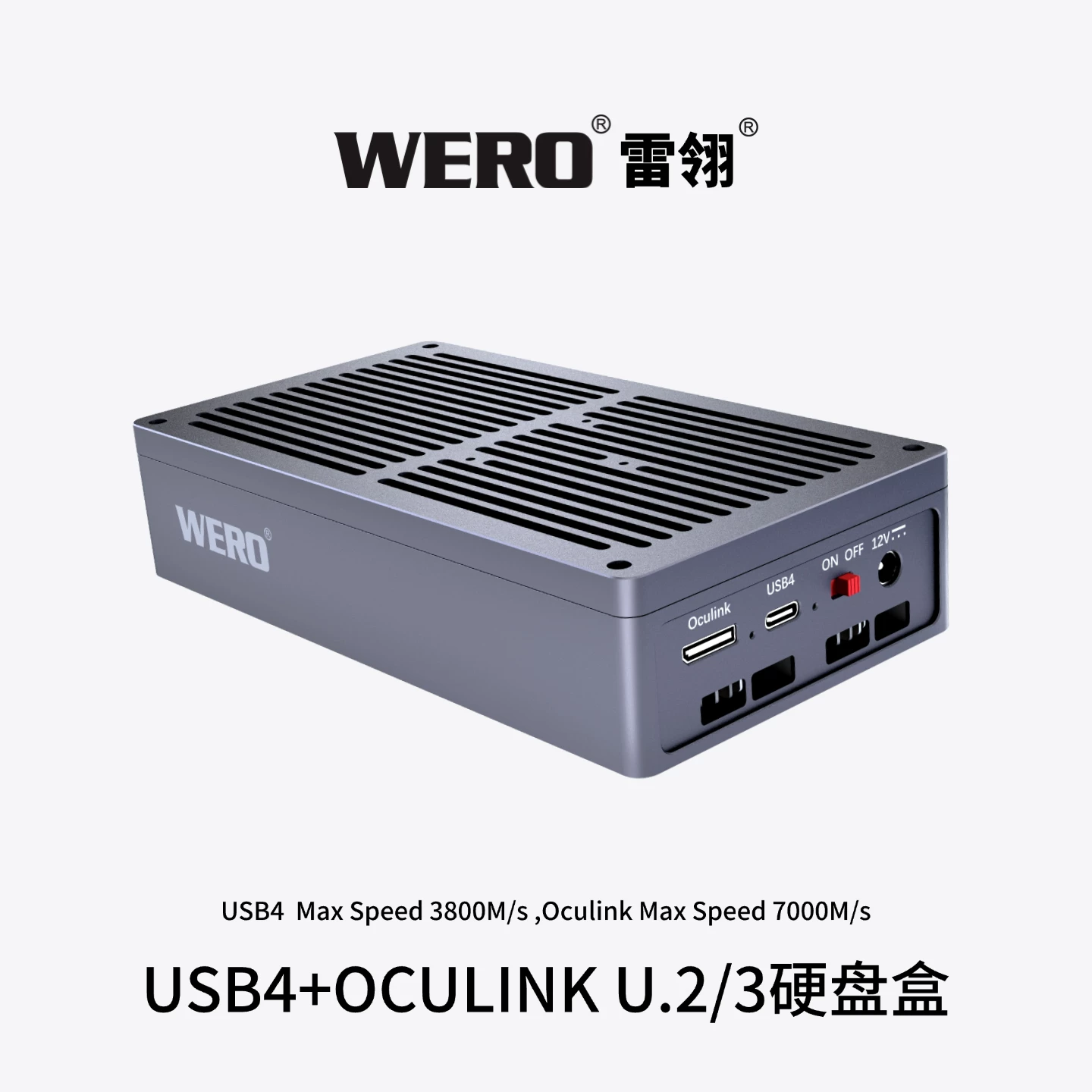

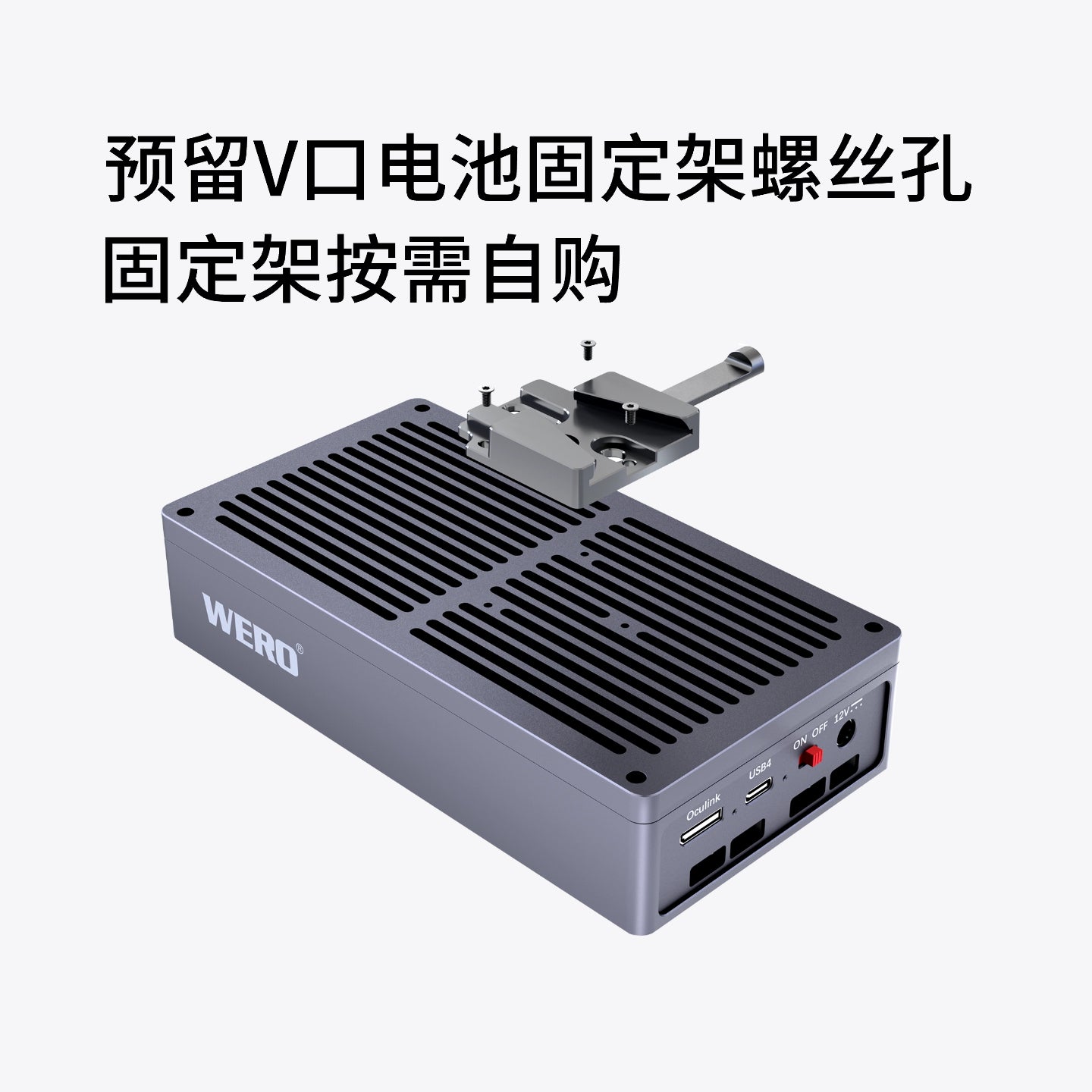

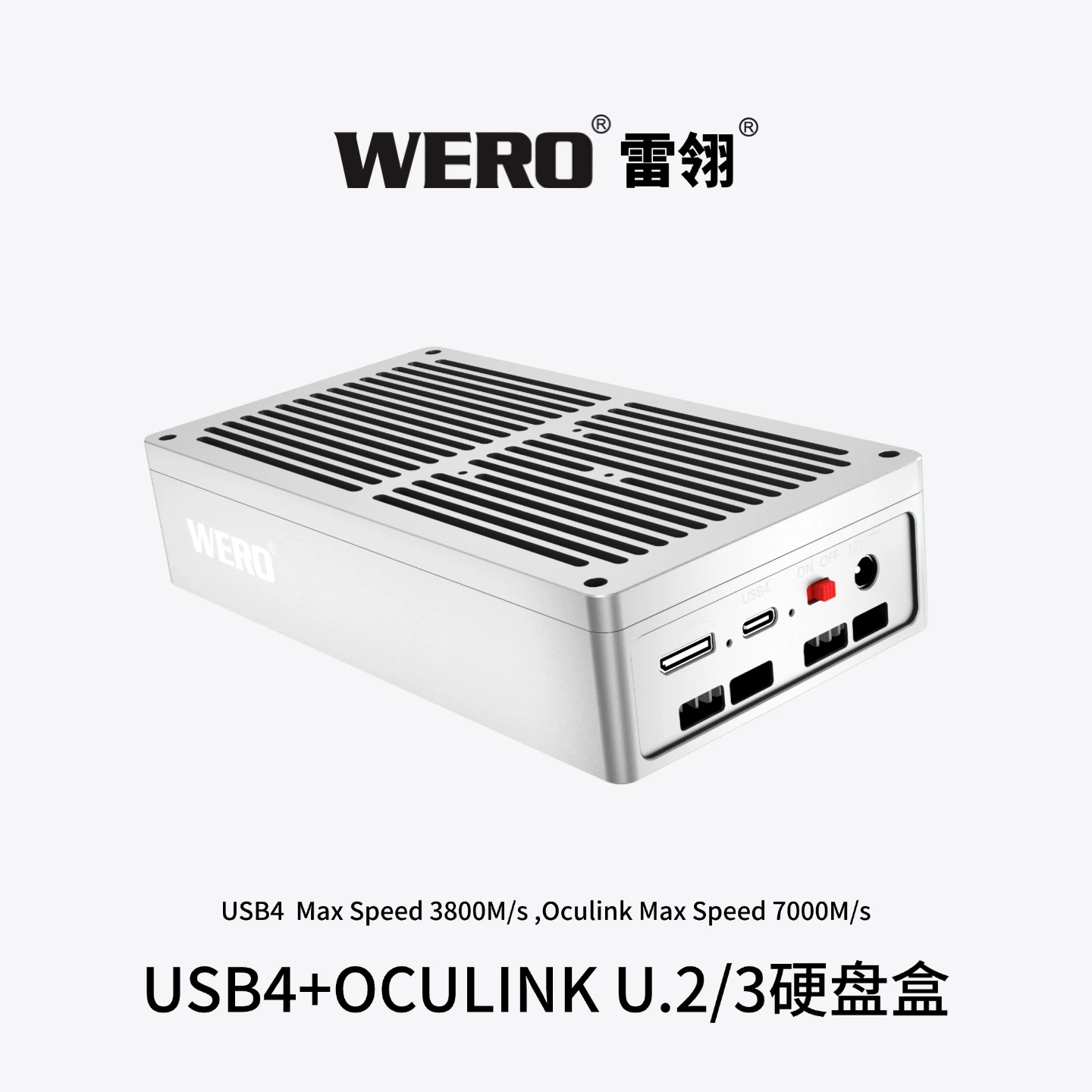

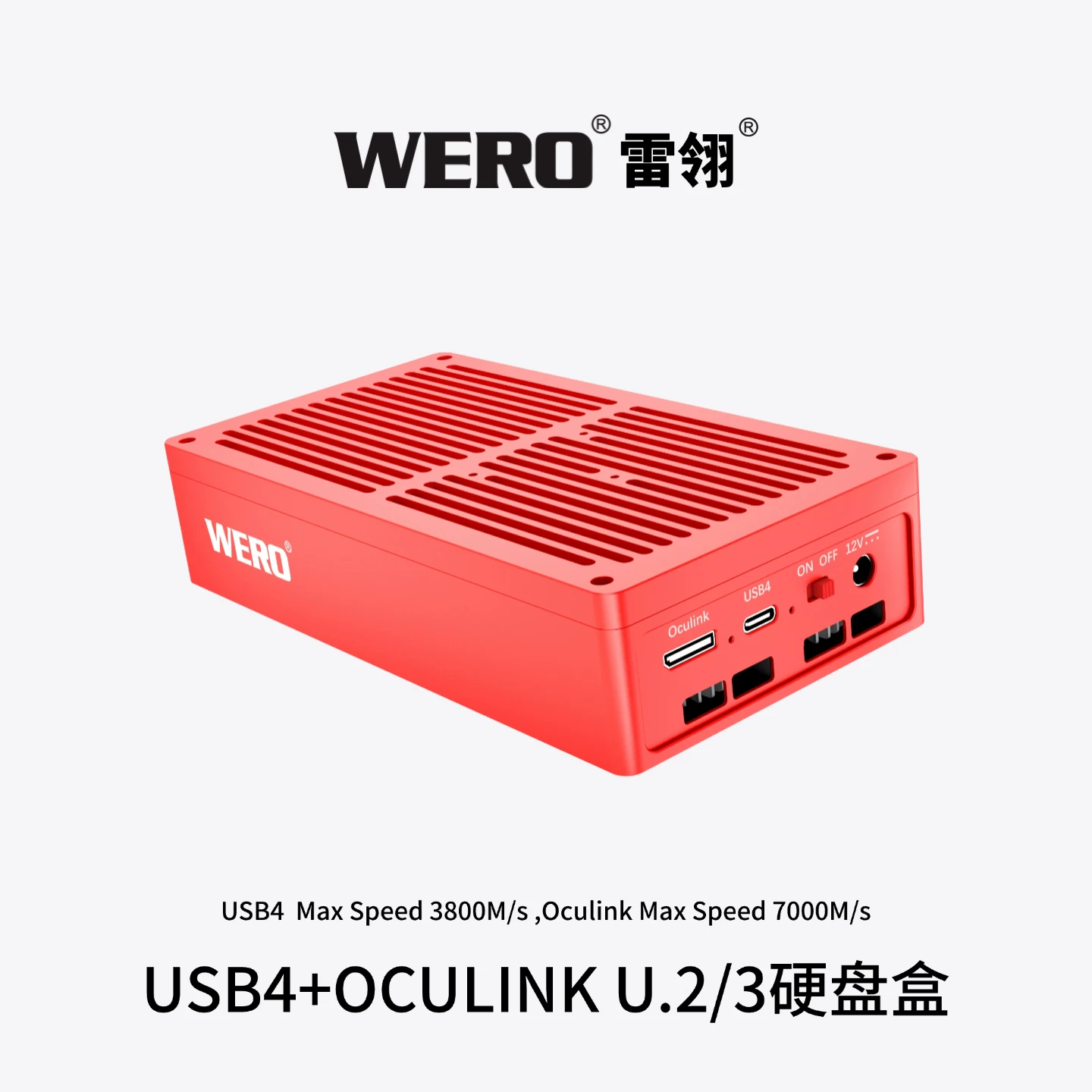

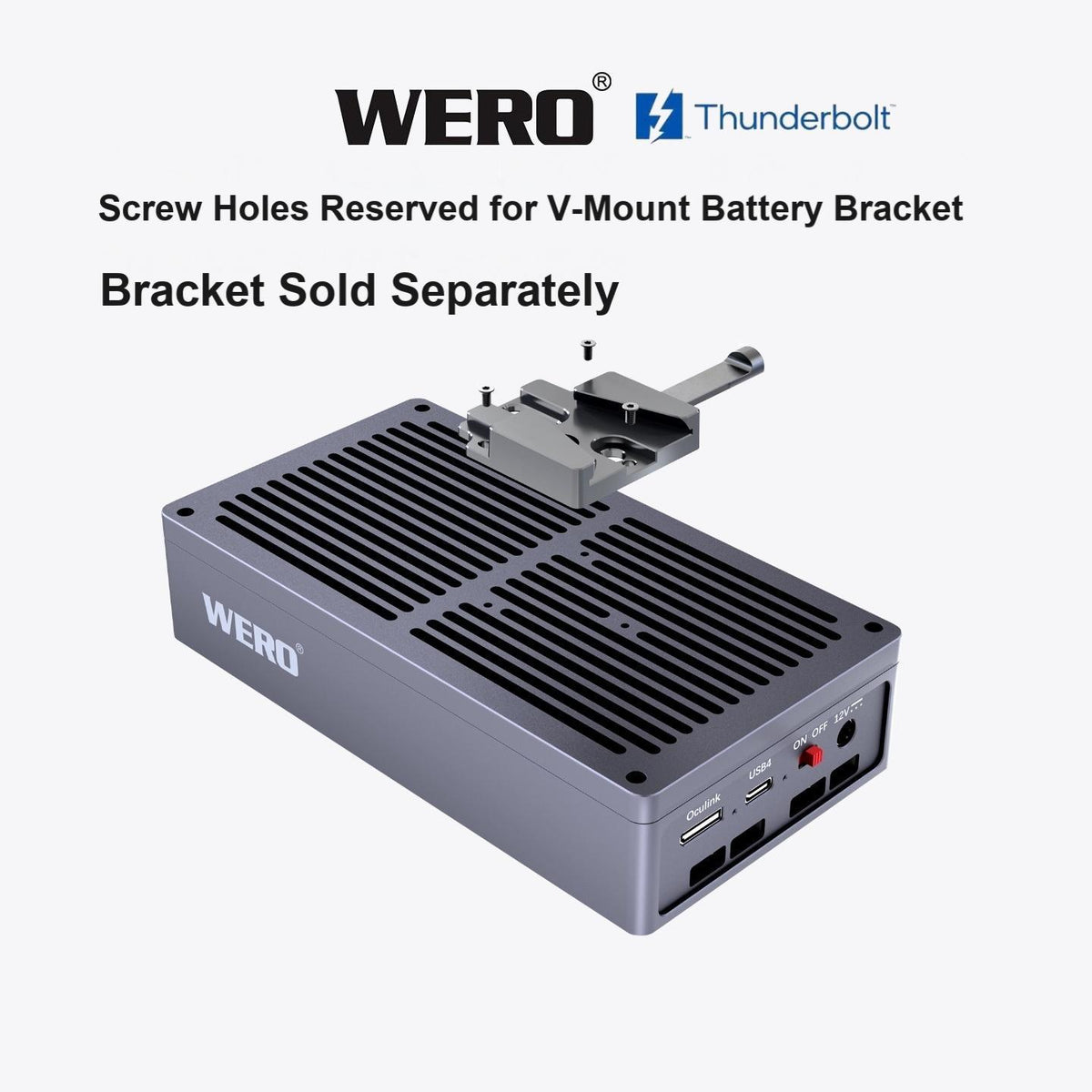

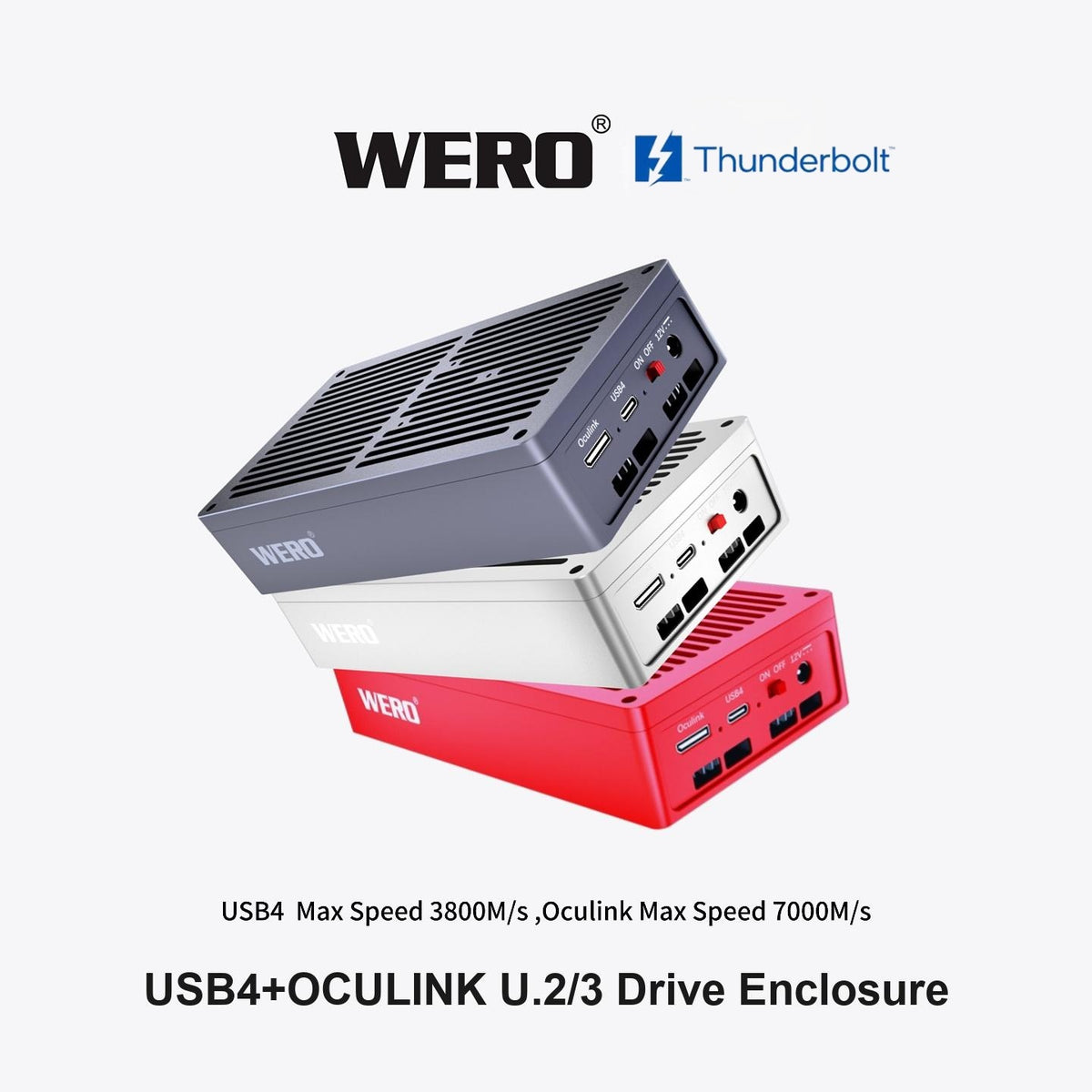

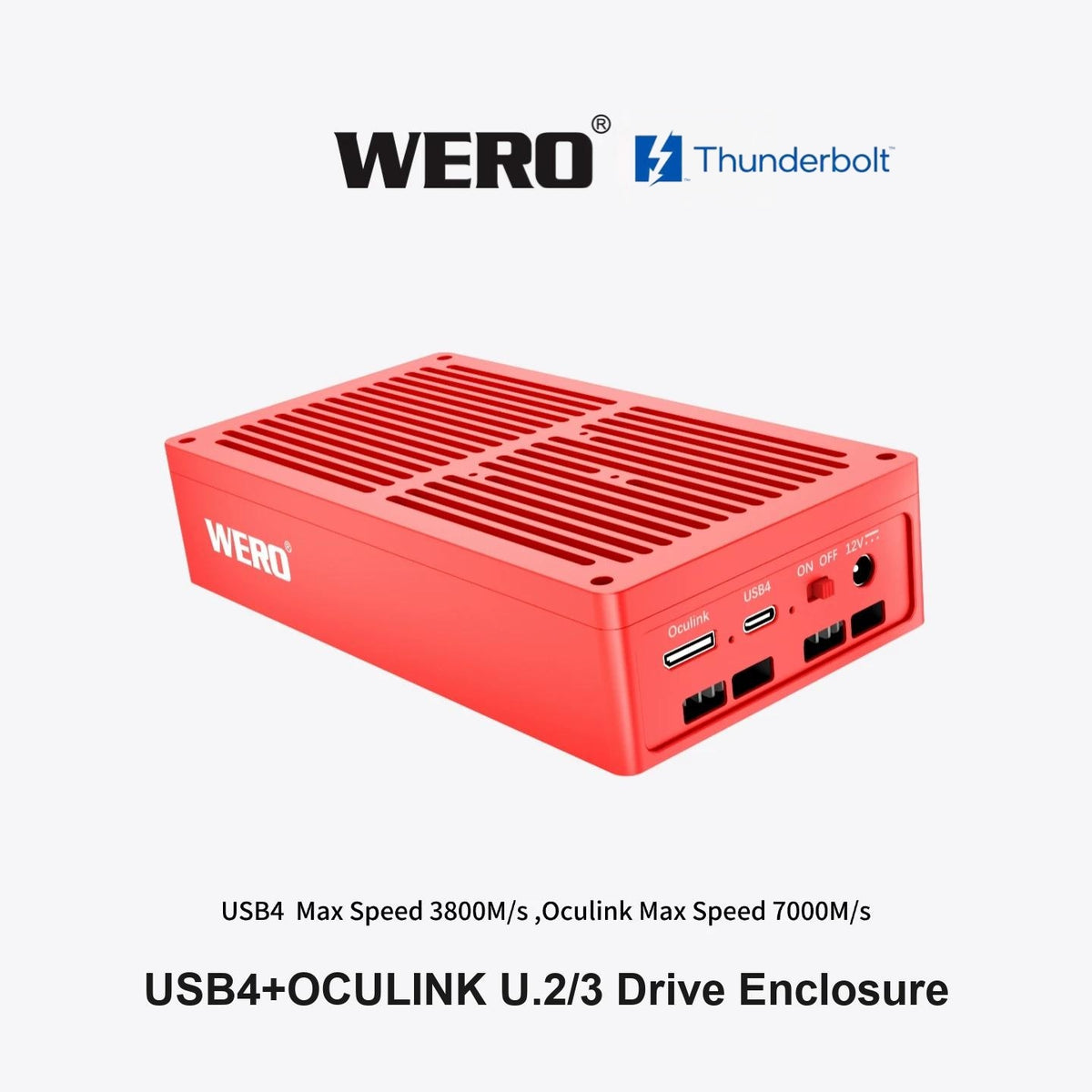

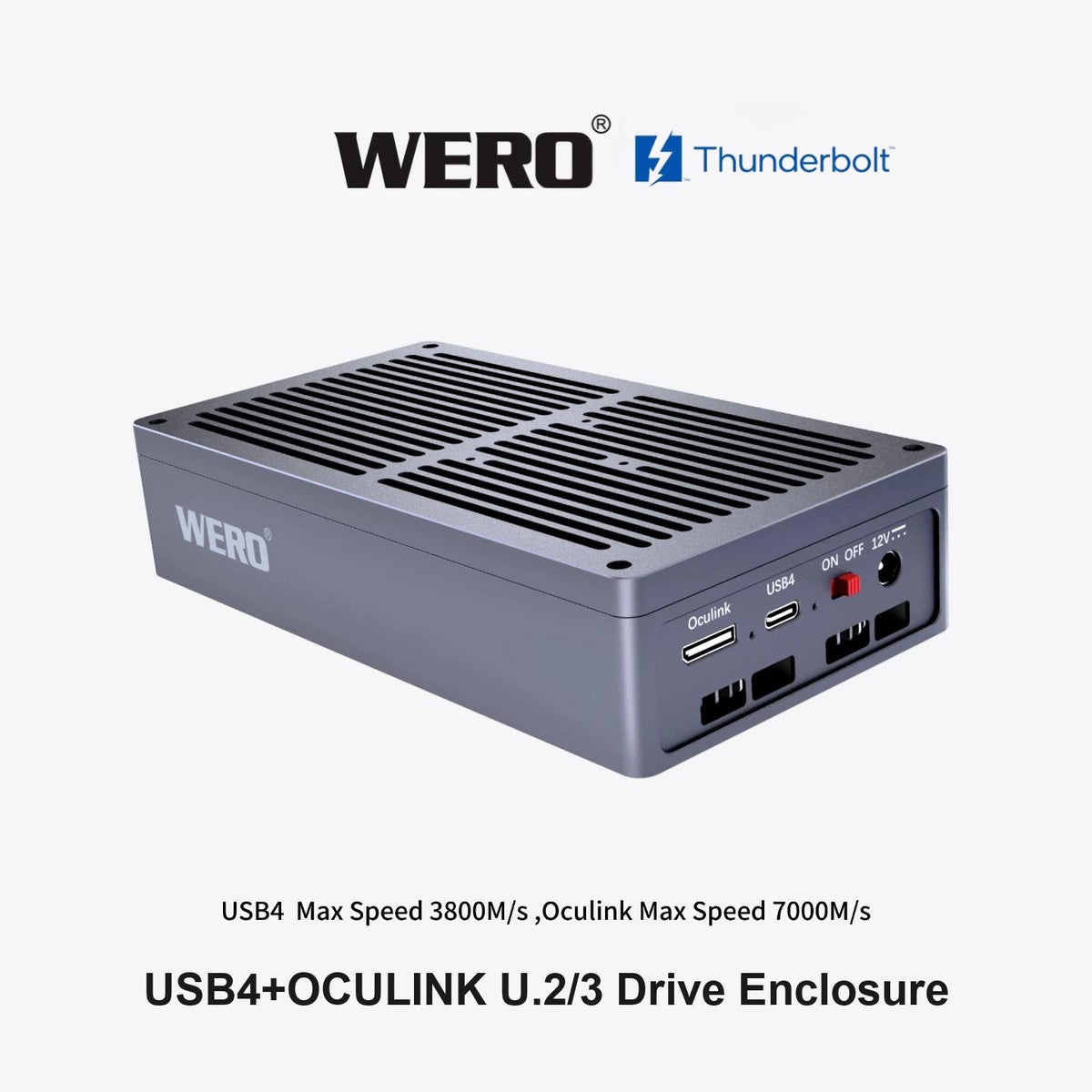

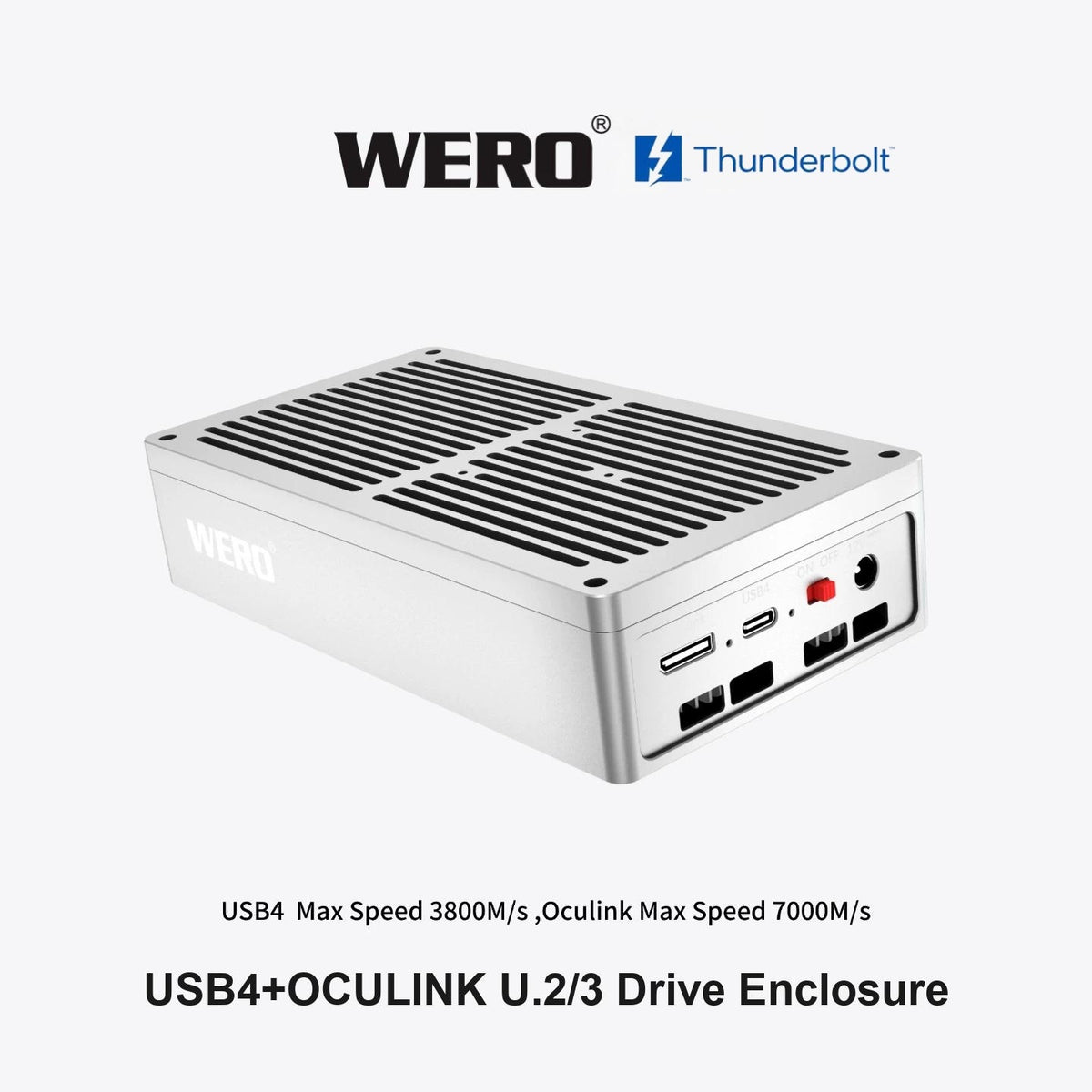

WERO USB4+OCULINK U2/U3 Hard Disk Box Enterprise SSD Solid State Box V-Port Battery Thunderbolt 3/4/5(1XU2-V40-OCULINK)

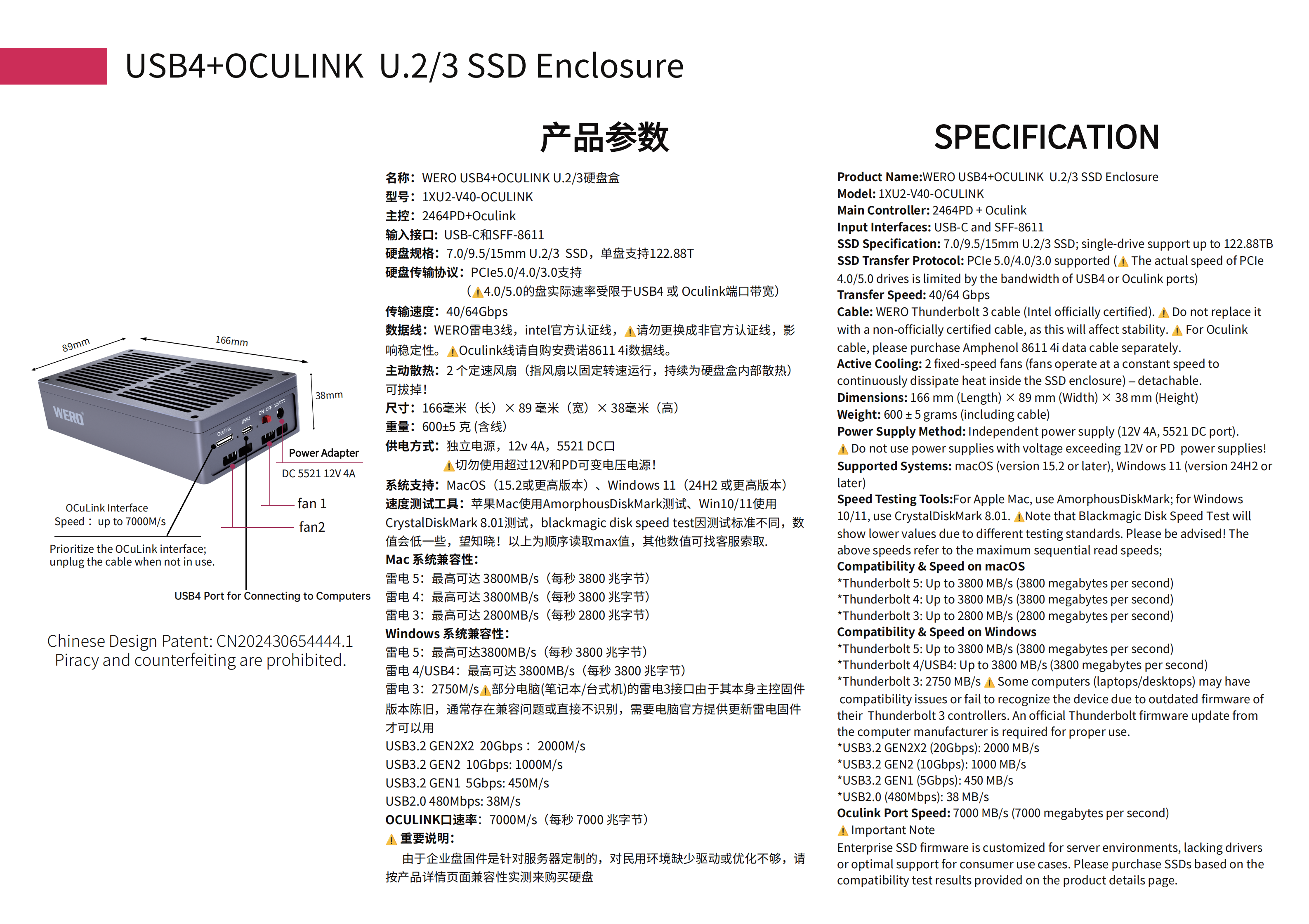

Product Name: WERO USB4+OCULINK  U.2/3 SSD Enclosure
Model: 1XU2-V40-OCULINK
Main Controller: 2464PD + Oculink

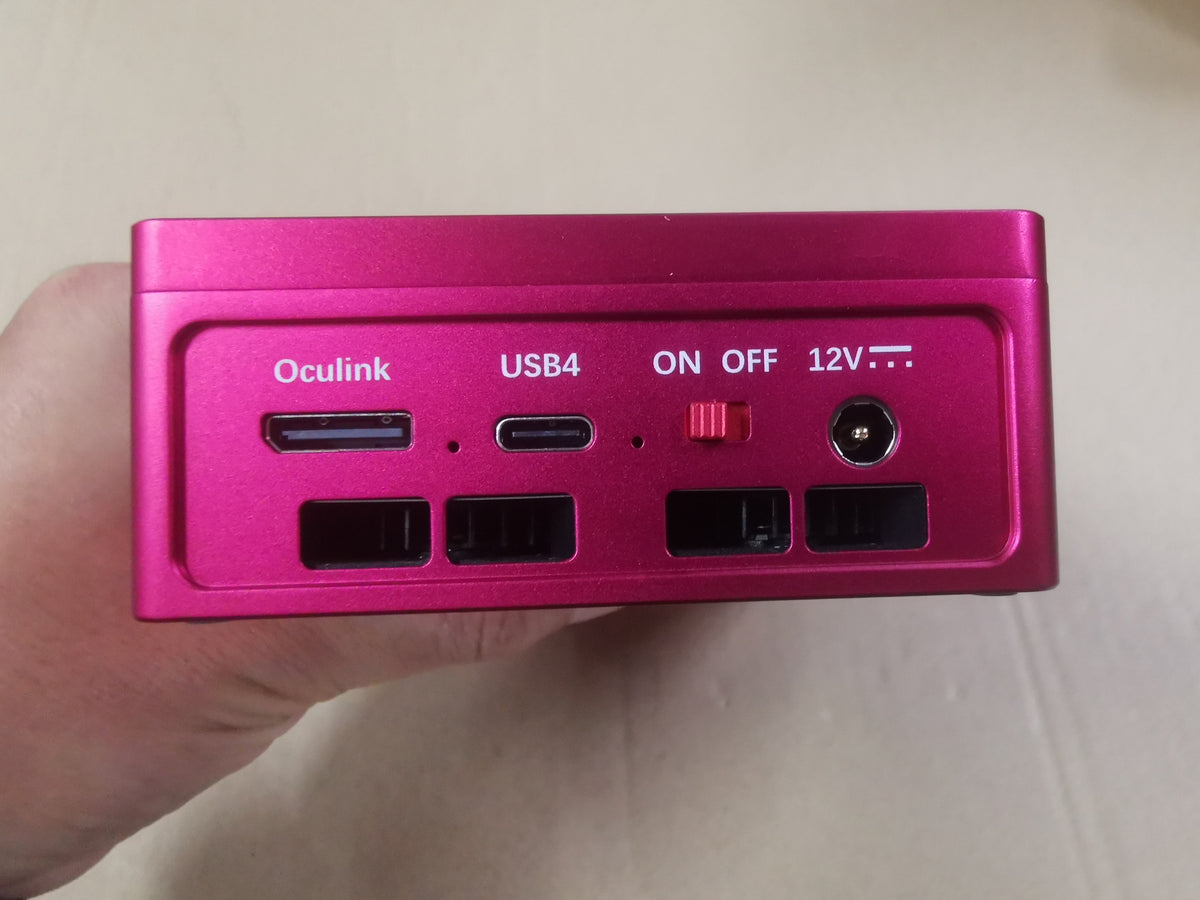

Input Interfaces: USB-C and SFF-8611
SSD Specification: 7.0/9.5/15mm U.2/3 SSD; single-drive support up to 122.88TB
SSD Transfer Protocol: PCIe 5.0/4.0/3.0 supported (⚠️ The actual speed of PCIe 4.0/5.0 drives is limited by the bandwidth of USB4 or Oculink ports)
Transfer Speed: 40/64 Gbps

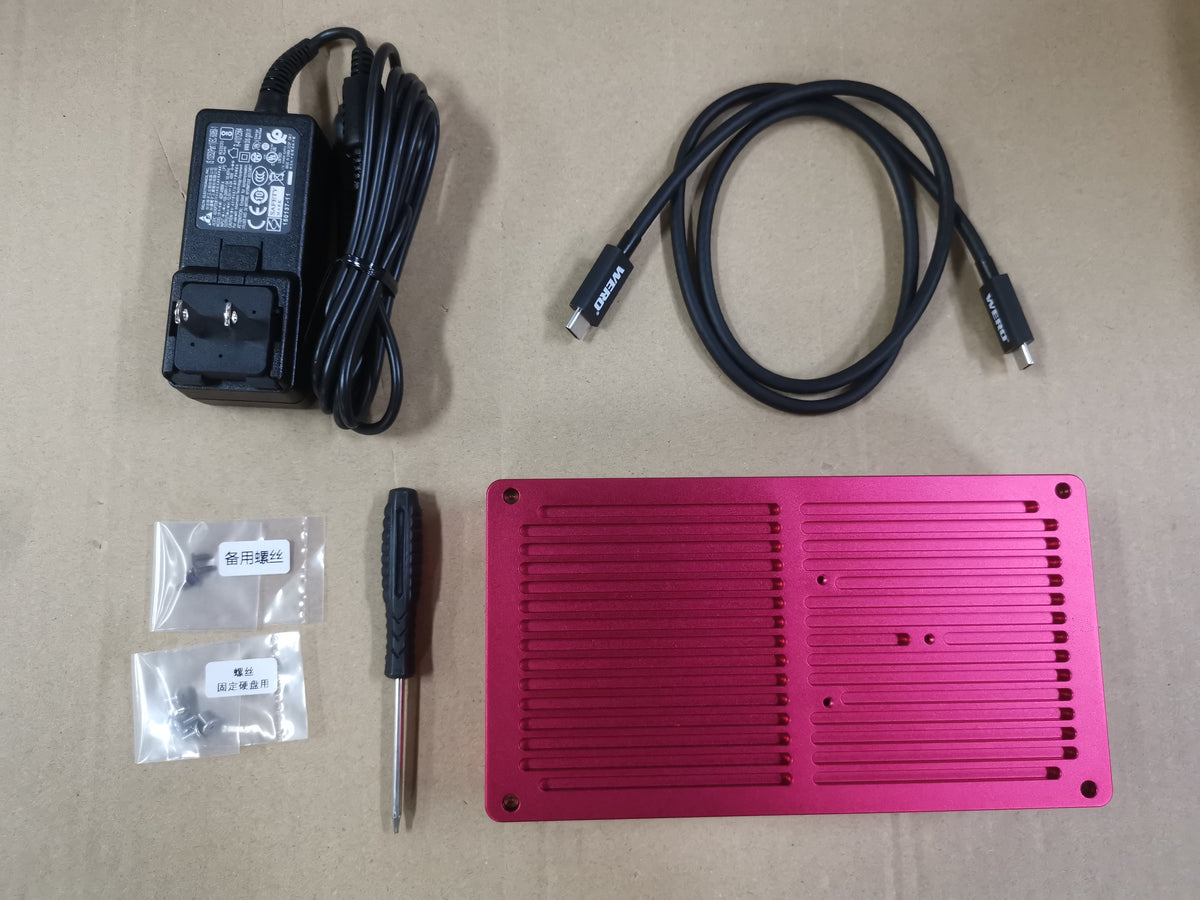

Cable: WERO Thunderbolt 3 cable (Intel officially certified). ⚠️ Do not replace it with a non-officially certified cable, as this will affect stability. ⚠️ For Oculink cable, please purchase Amphenol 8611 4i data cable separately.

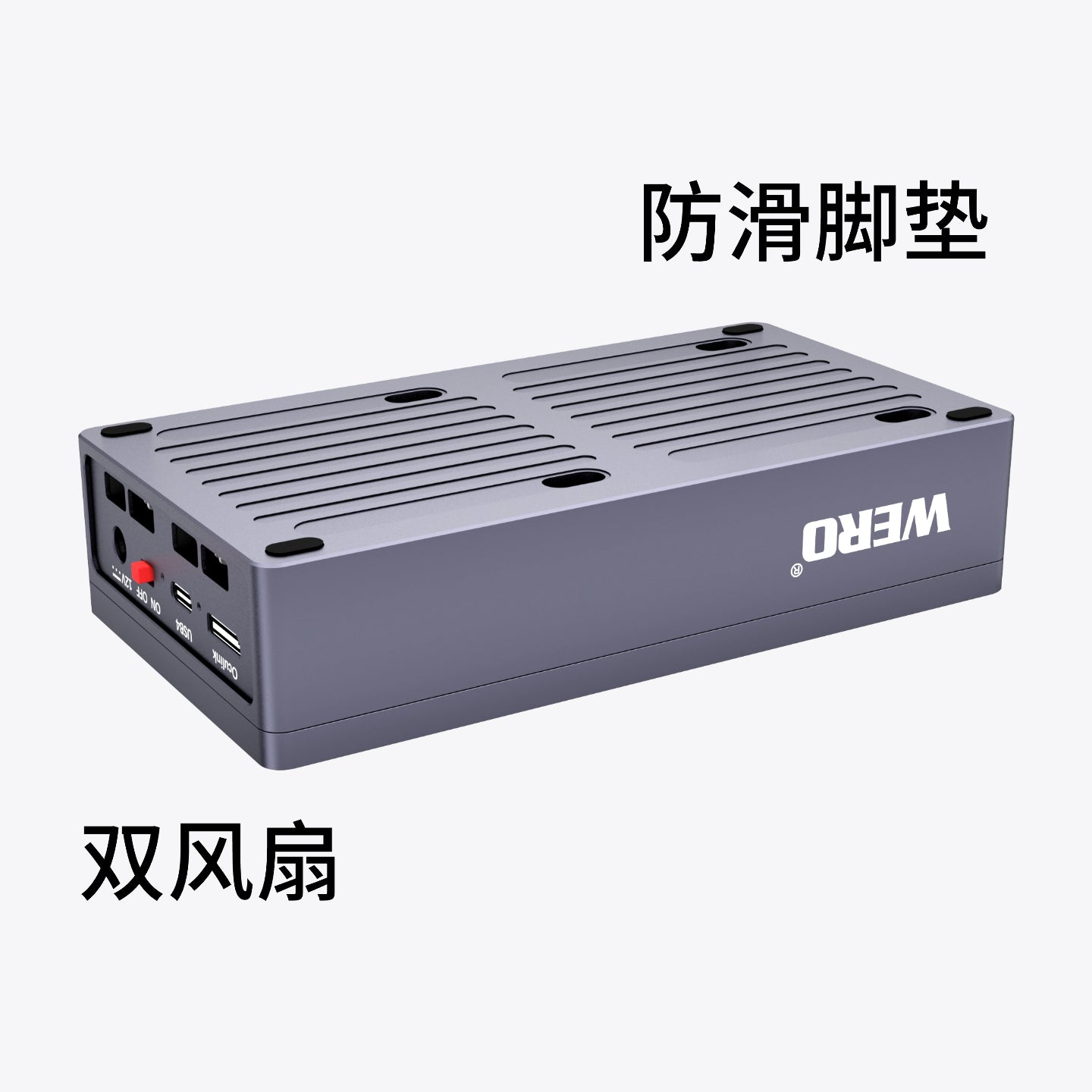

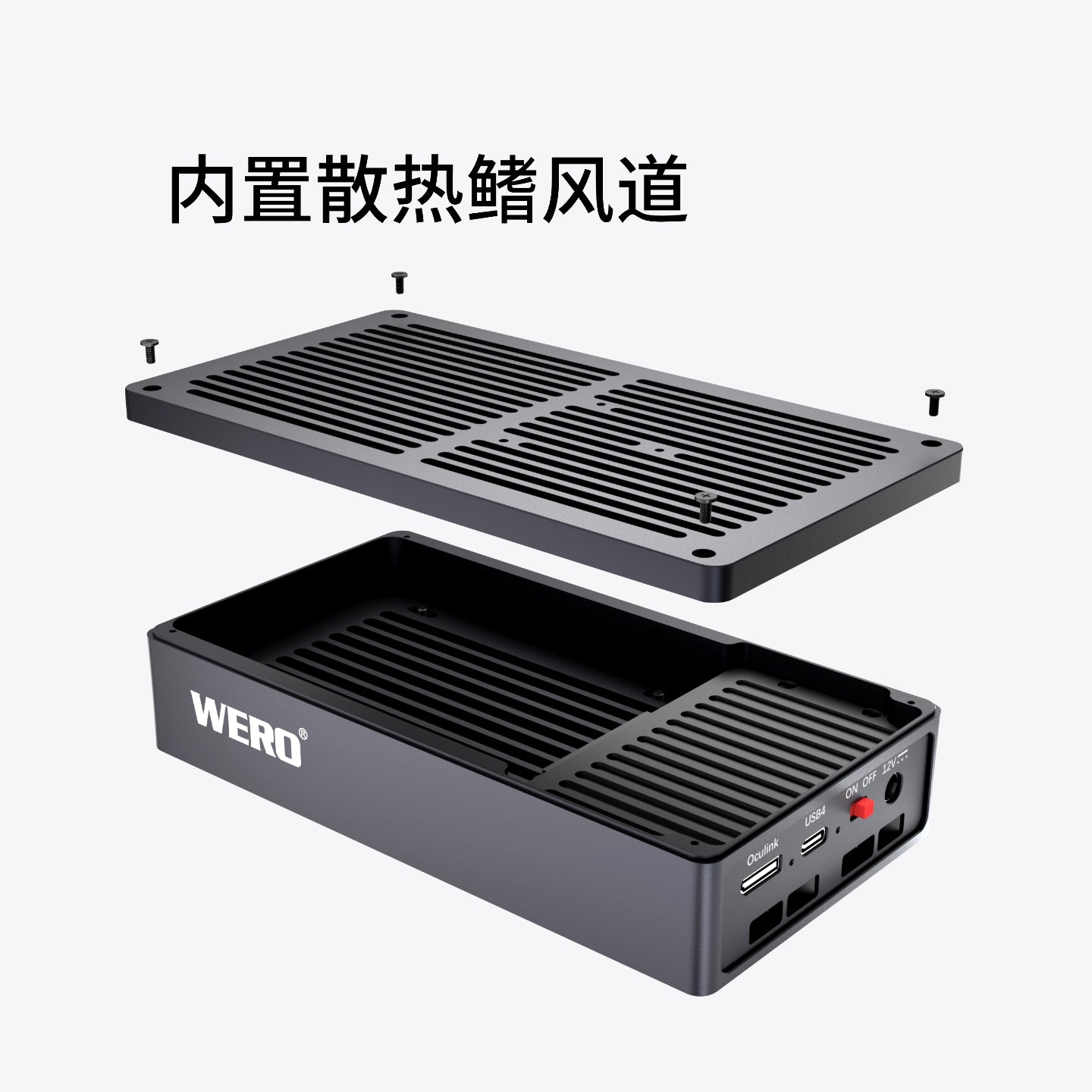

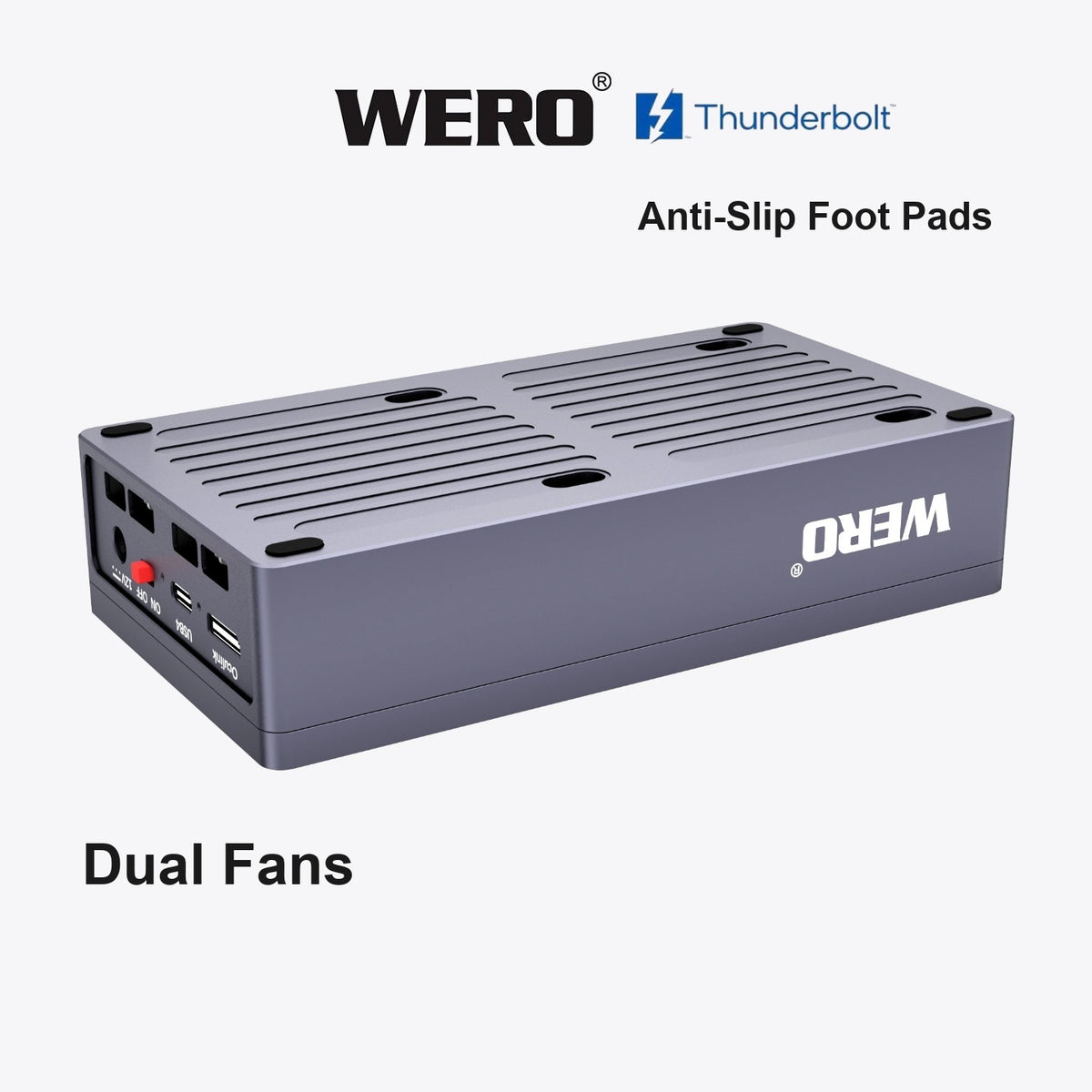

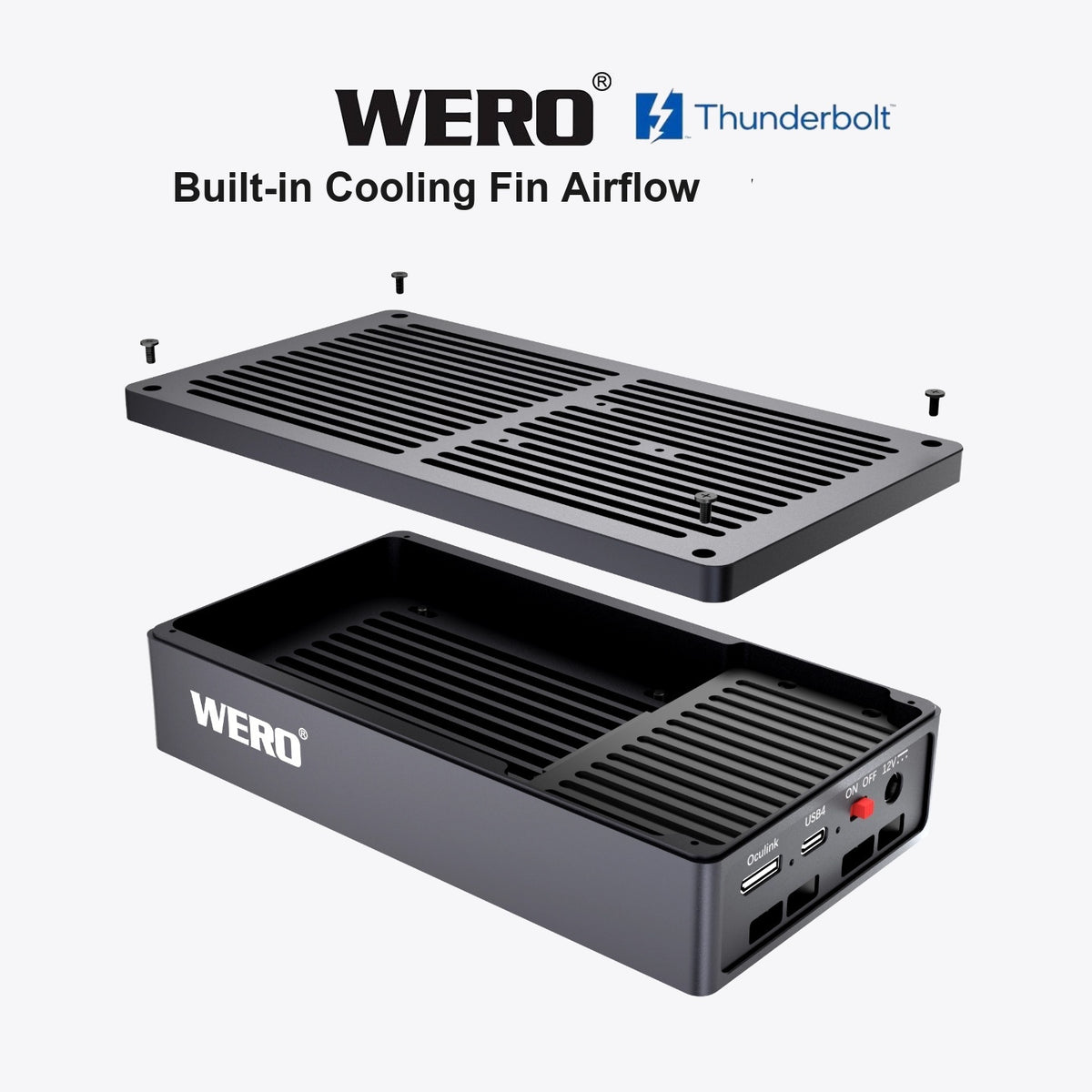

Active Cooling: 2 fixed-speed fans (fans operate at a constant speed to continuously dissipate heat inside the SSD enclosure) – detachable.

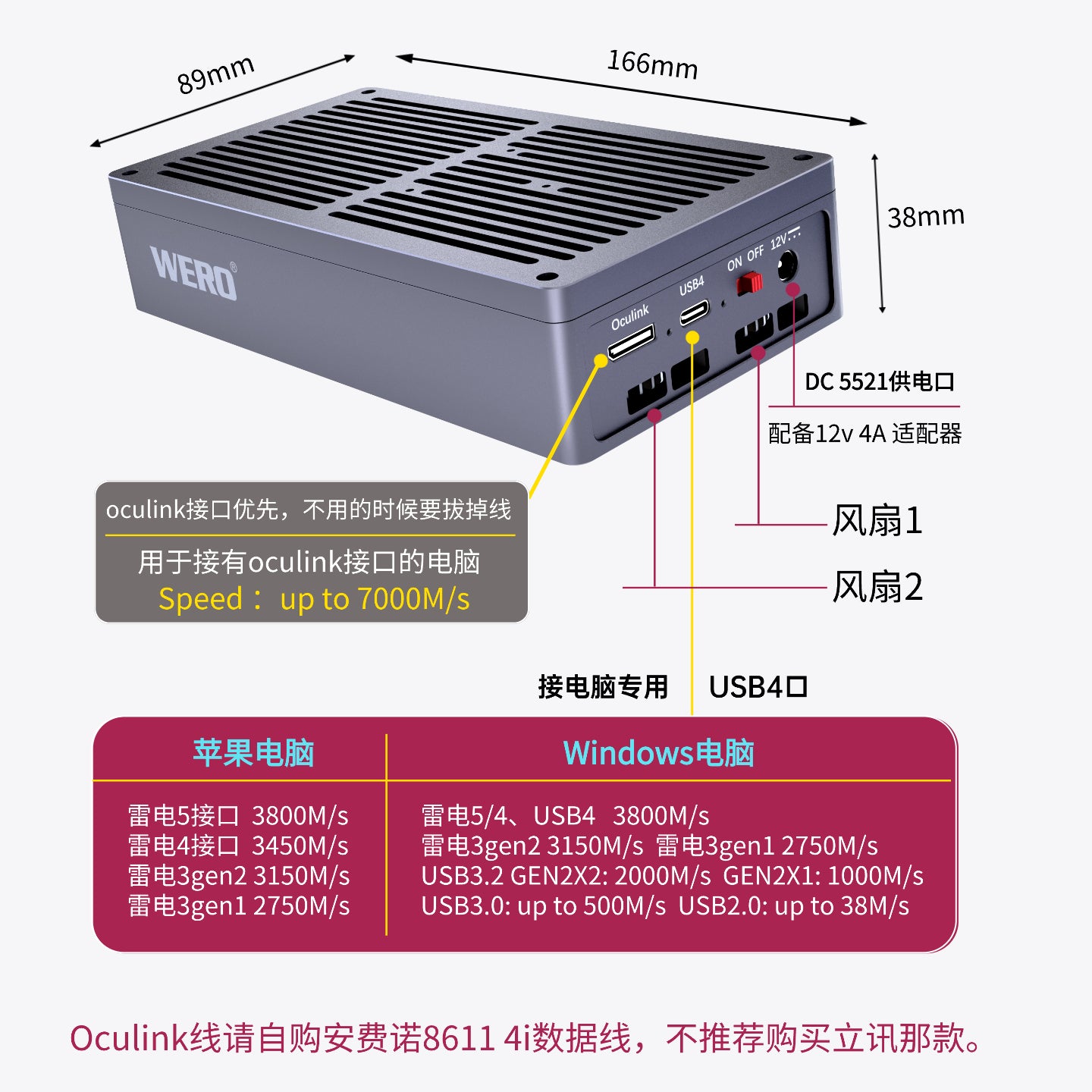

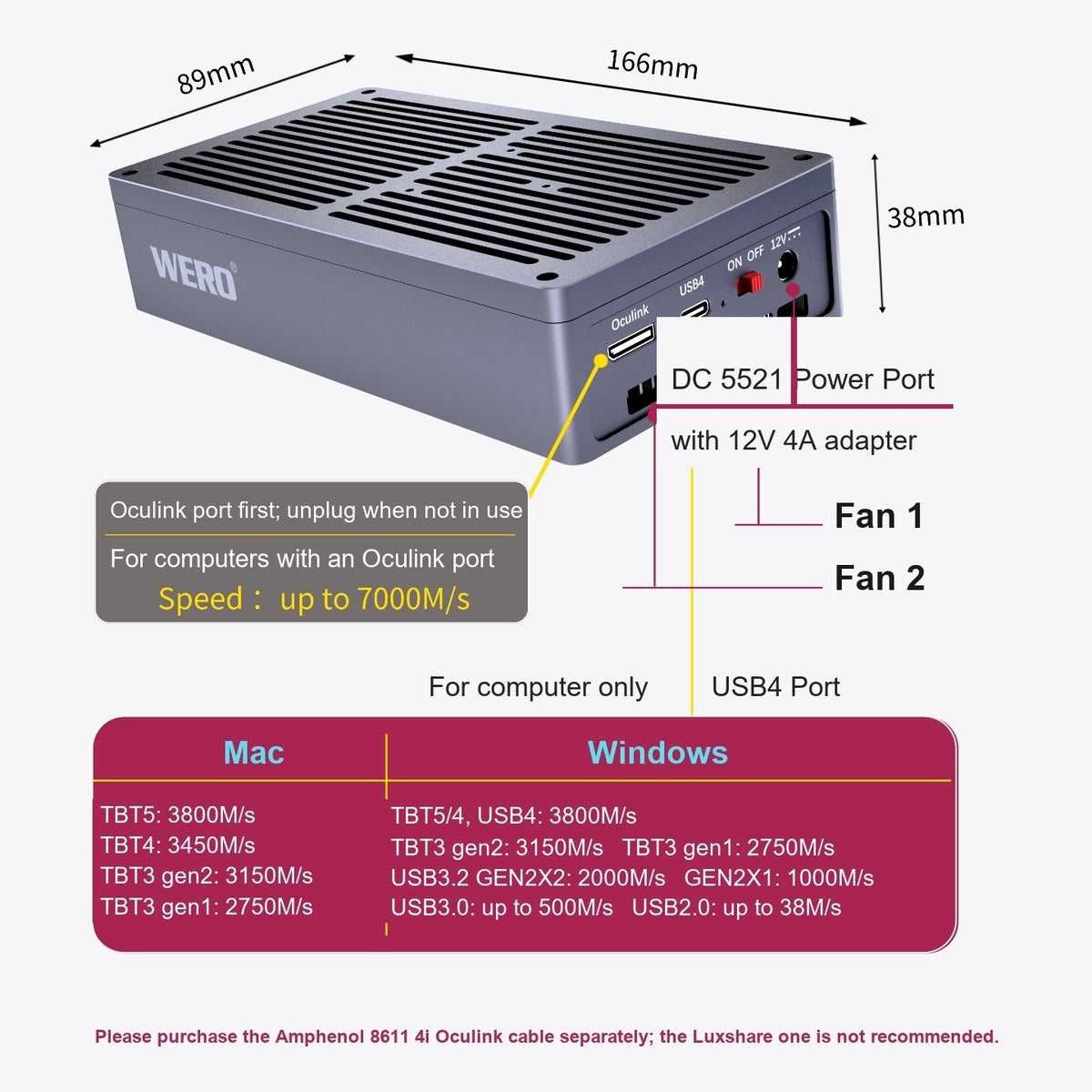

Dimensions: 166 mm (Length) × 89 mm (Width) × 38 mm (Height)
Weight: 600 ± 5 grams (including cable)
Power Supply Method: Independent power supply (12V 4A, 5521 DC port).
⚠️ Do not use power supplies with voltage exceeding 12V or PD  power supplies!
Supported Systems: macOS (version 15.2 or later), Windows 11 (version 24H2 or later)
Speed Testing Tools: For Apple Mac, use AmorphousDiskMark; for Windows 10/11, use CrystalDiskMark 8.01. ⚠️Note that Blackmagic Disk Speed Test will show lower values due to different testing standards. Please be advised! The above speeds refer to the maximum sequential read speeds;
Compatibility & Speed on macOS
*Thunderbolt 5: Up to 3800 MB/s (3800 megabytes per second)
*Thunderbolt 4: Up to 3800 MB/s (3800 megabytes per second)
*Thunderbolt 3: Up to 2800 MB/s (2800 megabytes per second)
Compatibility & Speed on Windows
*Thunderbolt 5: Up to 3800 MB/s (3800 megabytes per second)
*Thunderbolt 4/USB4: Up to 3800 MB/s (3800 megabytes per second)
*Thunderbolt 3: 2750 MB/s ⚠️ Some computers (laptops/desktops) may have        compatibility issues or fail to recognize the device due to outdated firmware of their  Thunderbolt 3 controllers. An official Thunderbolt firmware update from the computer manufacturer is required for proper use.
*USB3.2 GEN2X2 (20Gbps): 2000 MB/s
*USB3.2 GEN2 (10Gbps): 1000 MB/s
*USB3.2 GEN1 (5Gbps): 450 MB/s
*USB2.0 (480Mbps): 38 MB/s
Oculink Port Speed: 7000 MB/s (7000 megabytes per second)
⚠️ Important Note
Enterprise SSD firmware is customized for server environments, lacking drivers or optimal support for consumer use cases. Please purchase SSDs based on the compatibility test results provided on the product details page.
