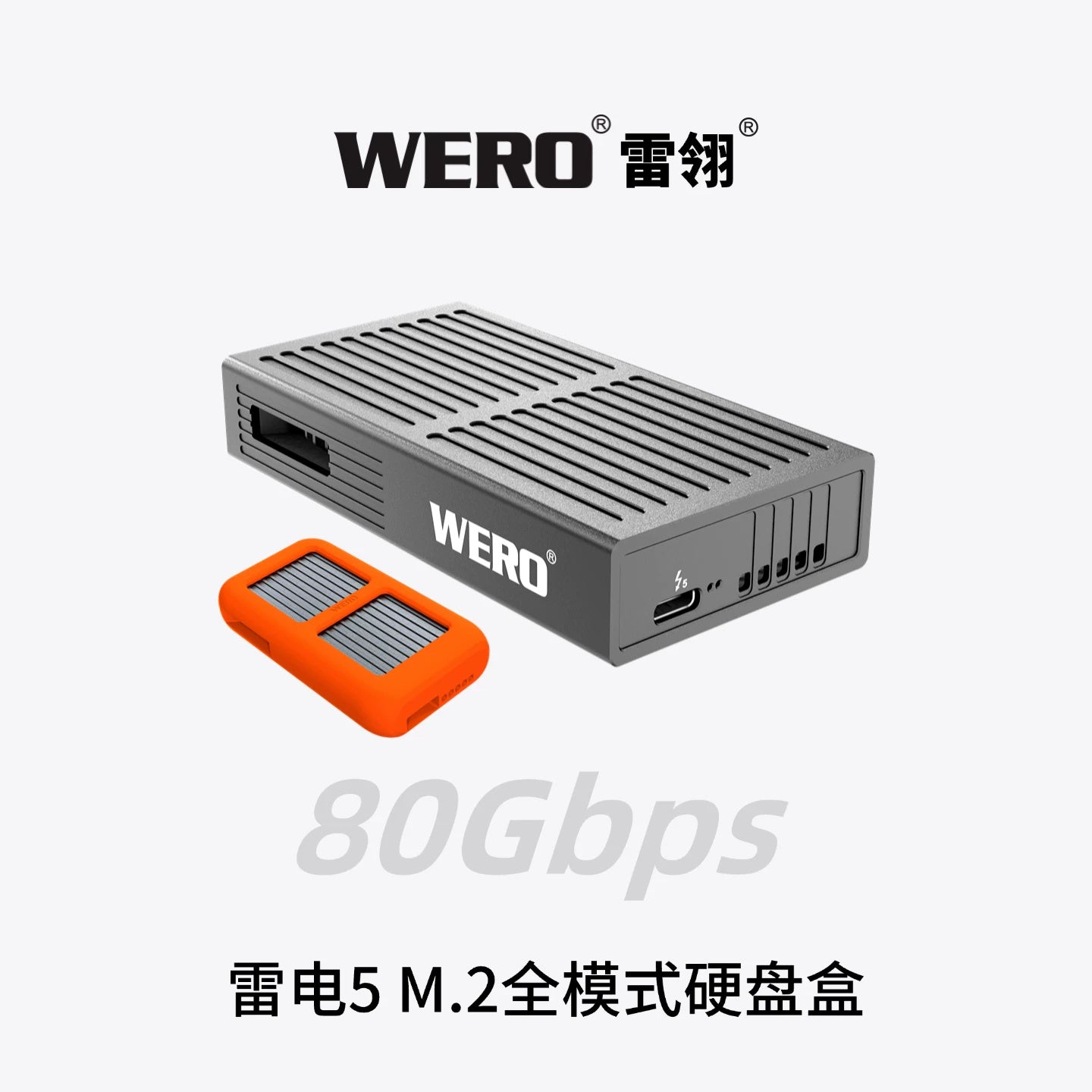

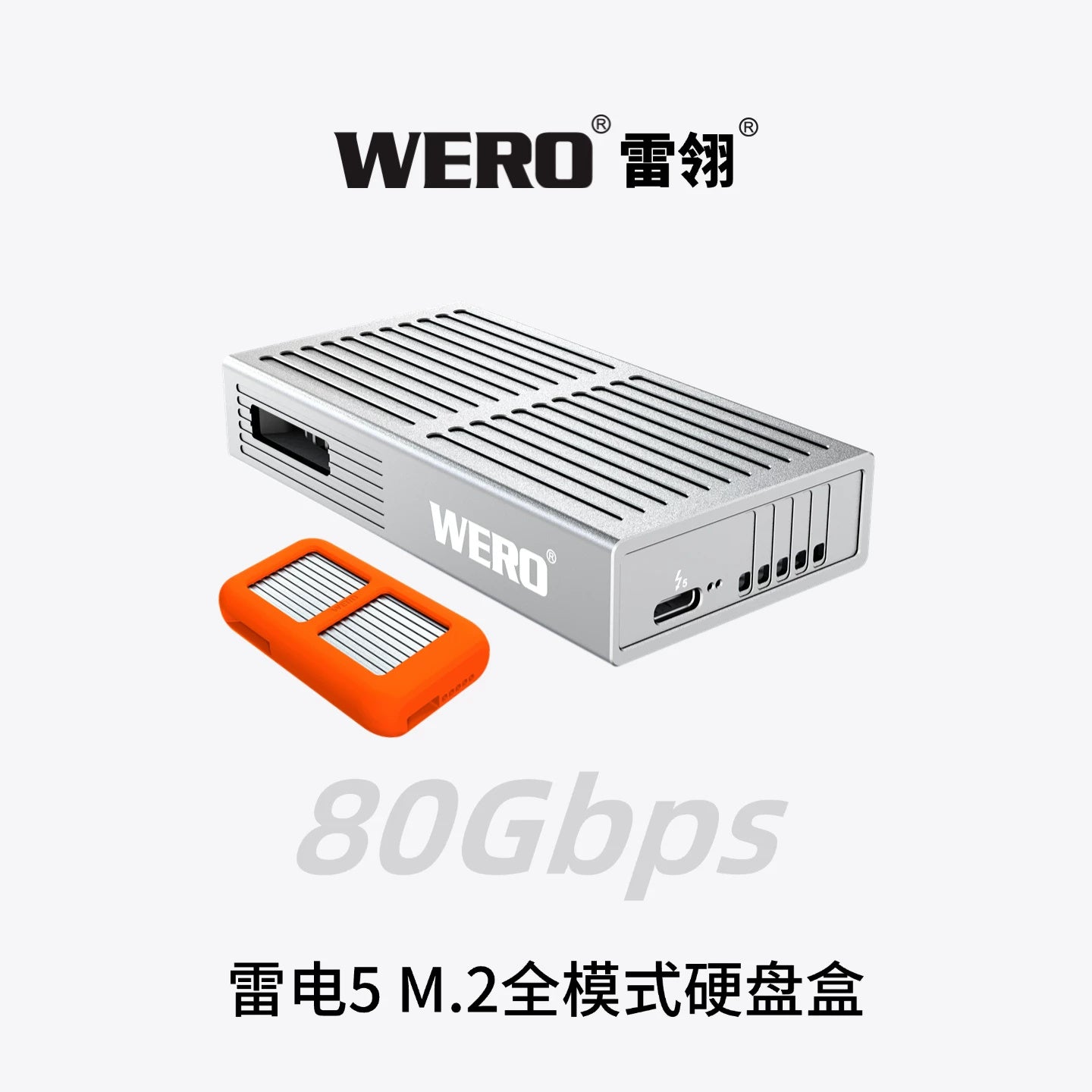

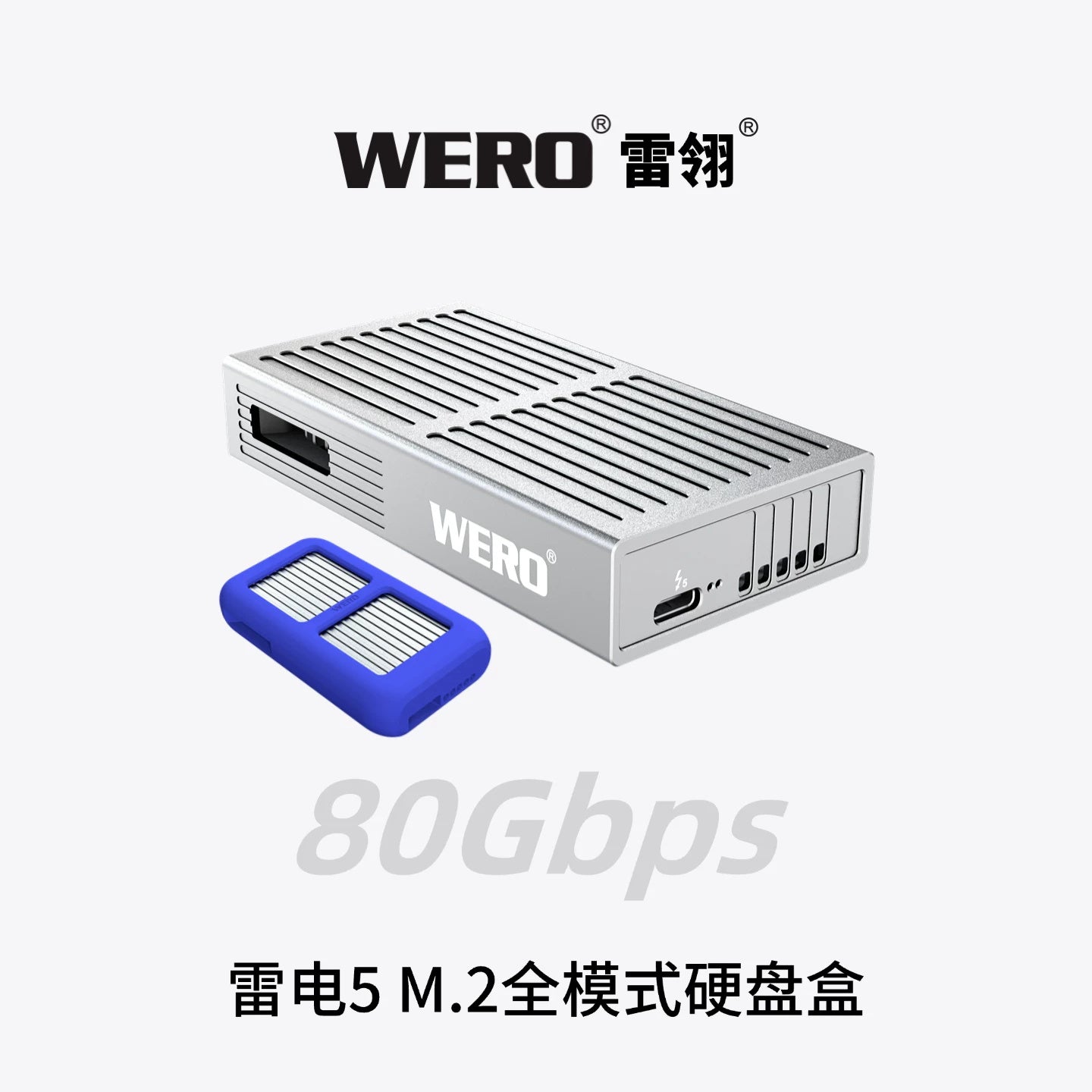

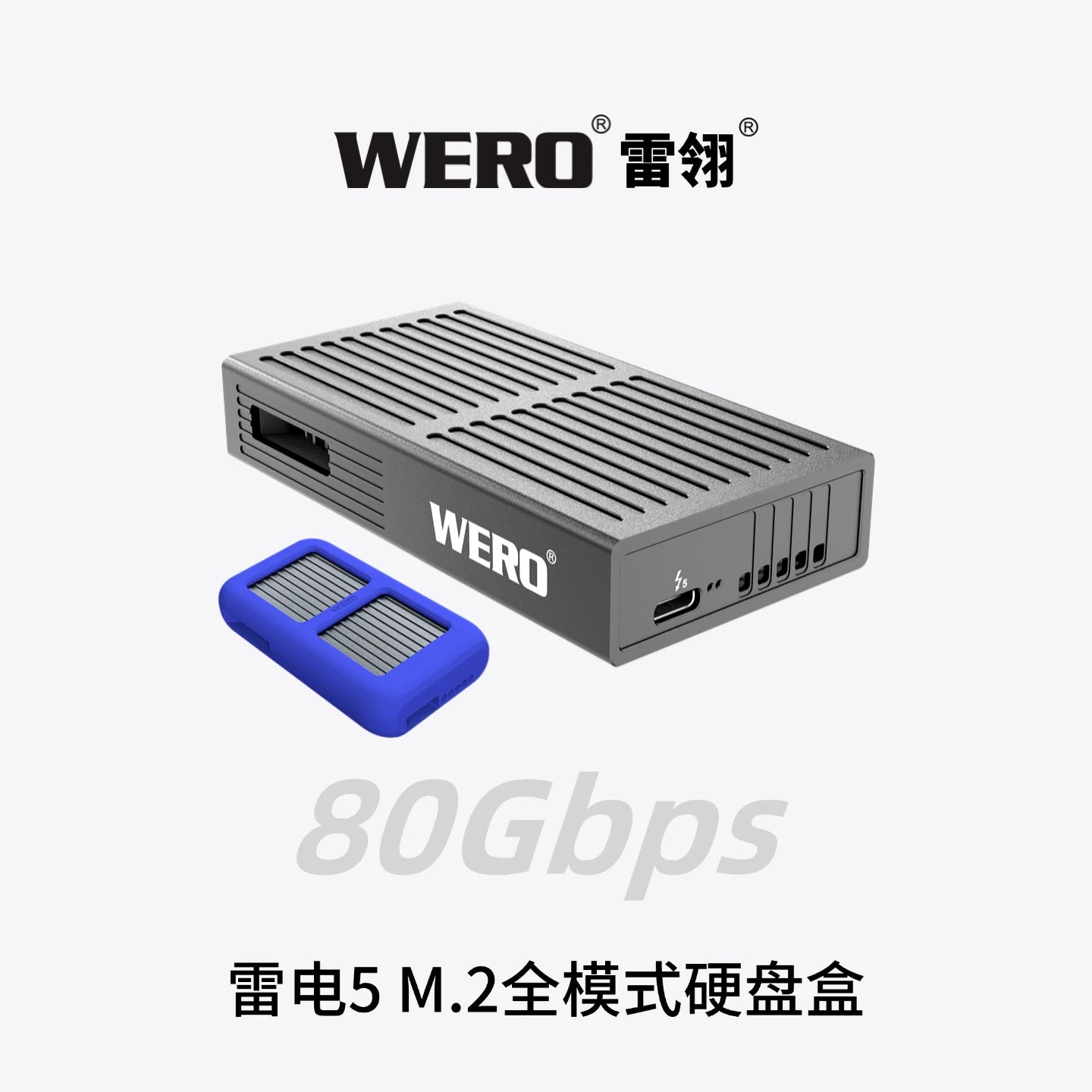

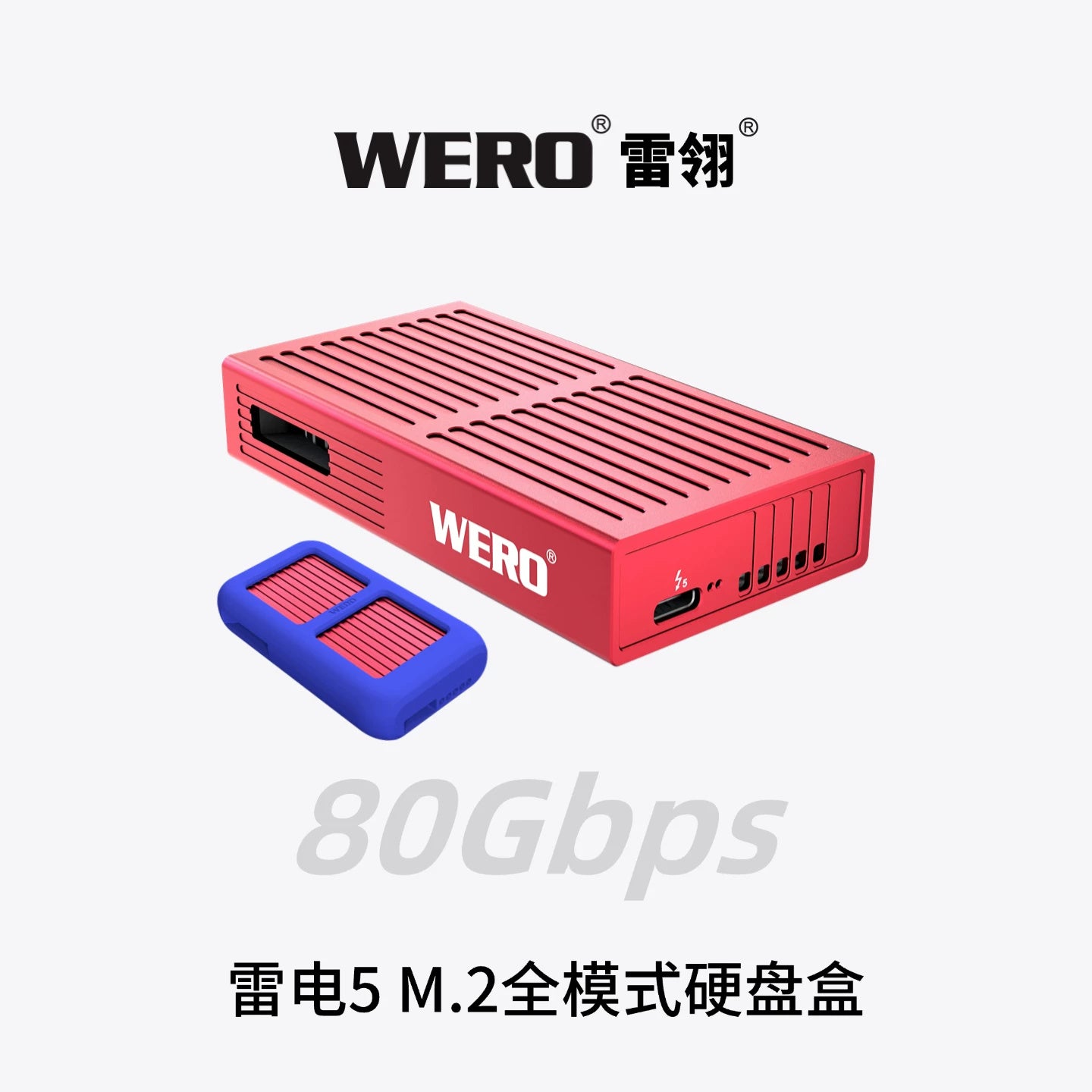

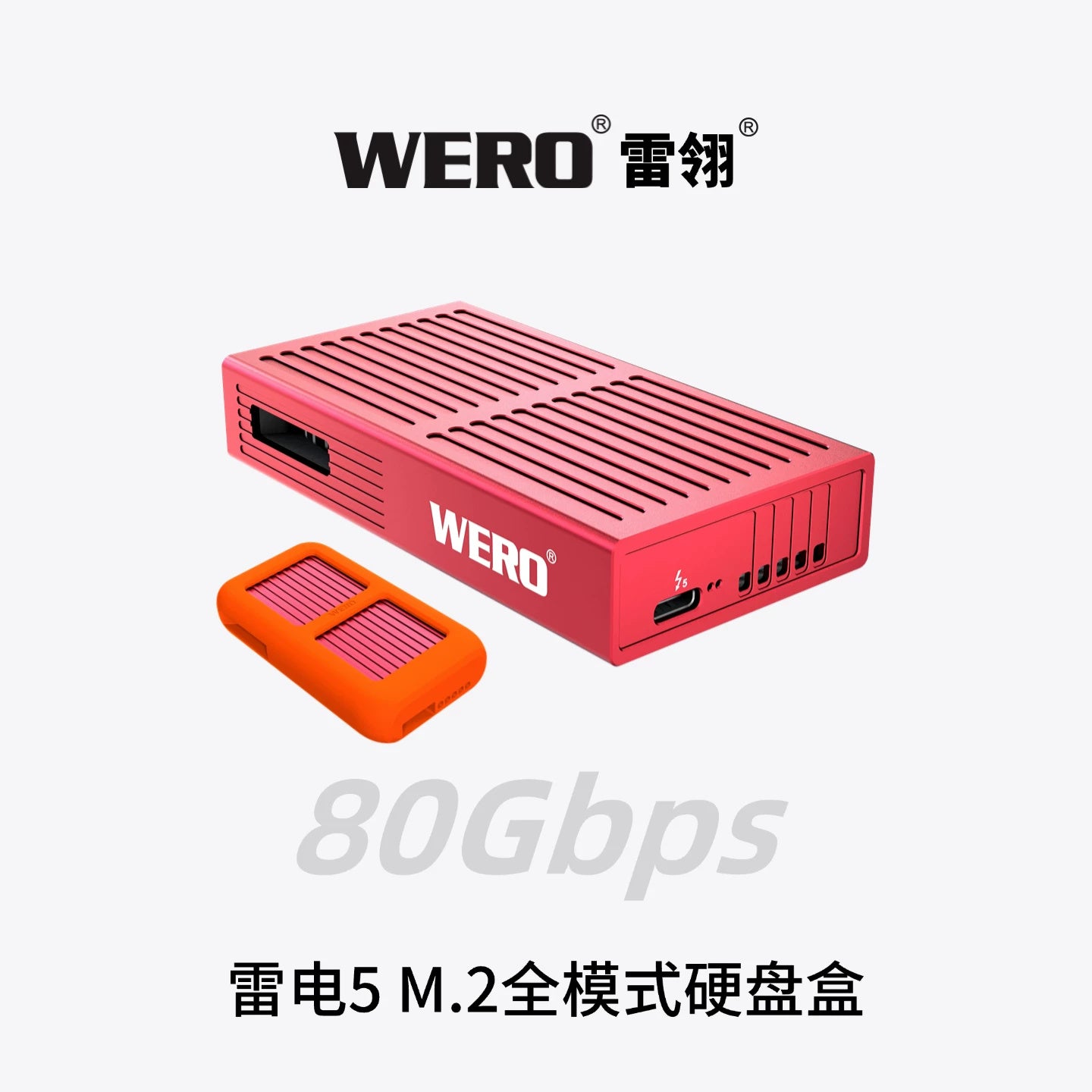

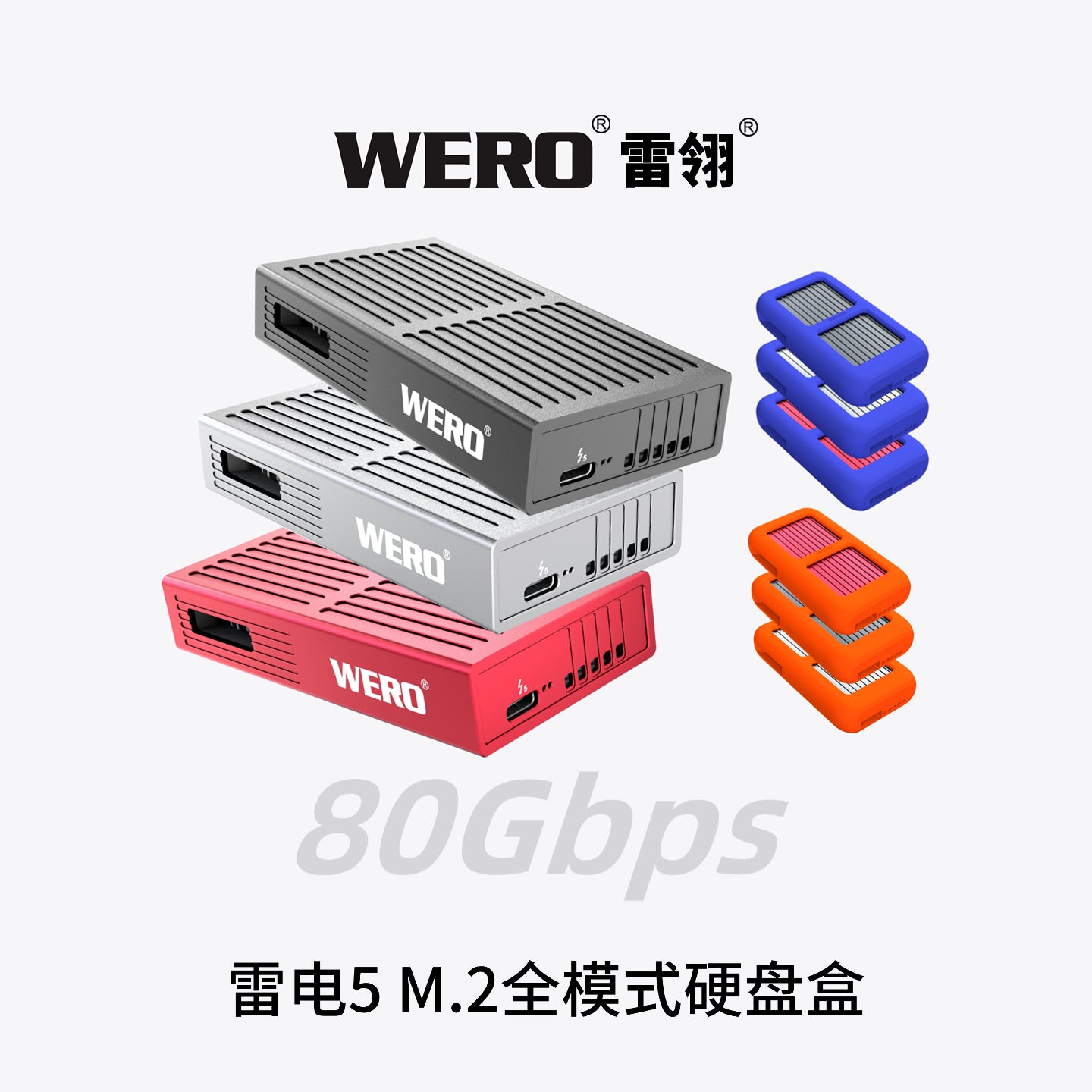

WREO Thunderbolt 5 80Gbps M.2 Full-Mode SSD Enclosure（External Cable）（1XM2-V80）

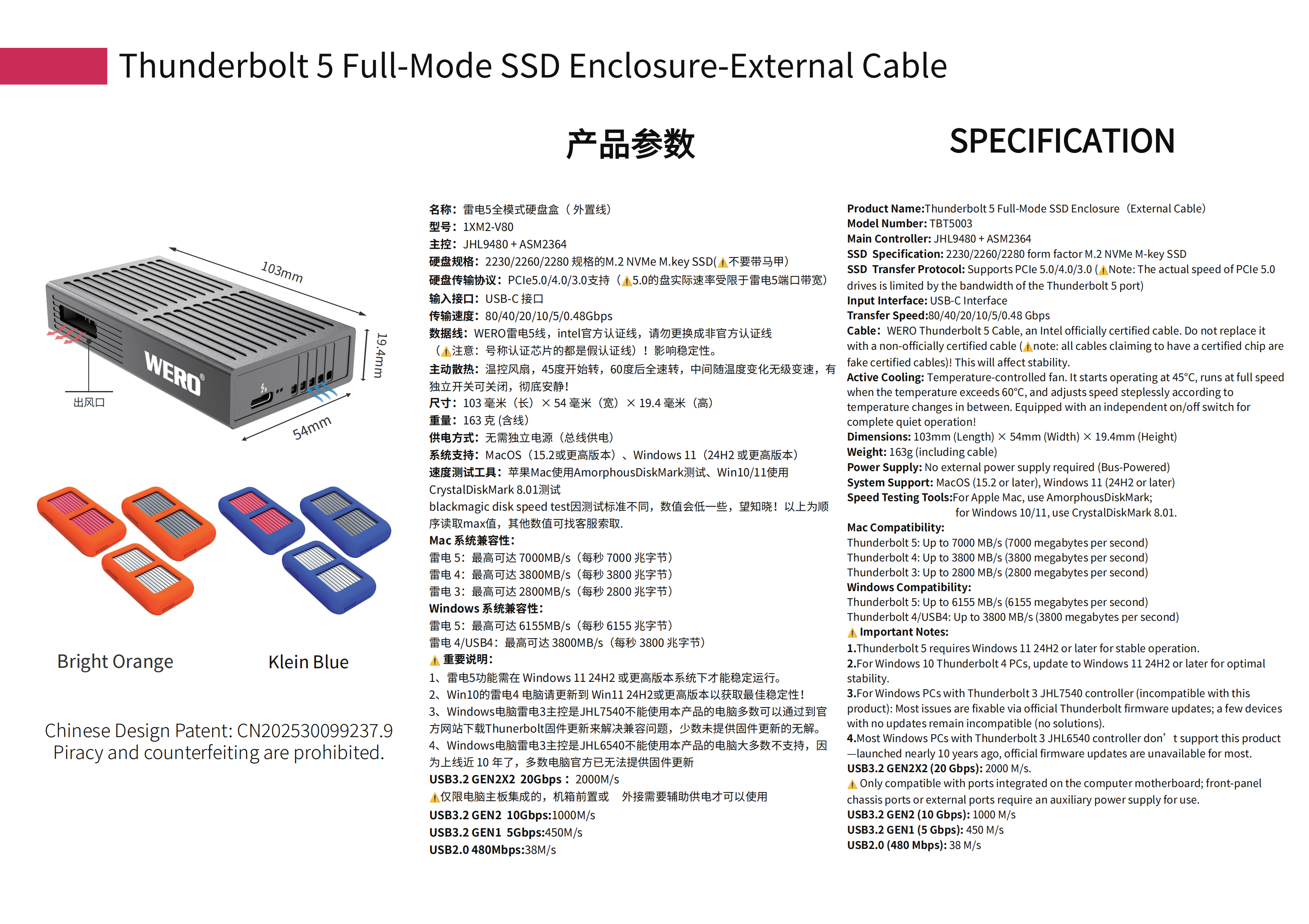

Product Name: Thunderbolt 5 Full-Mode SSD Enclosure（External Cable）
Model Number: 1XM2-V80
Main Controller: JHL9480 + ASM2364
SSD  Specification: 2230/2260/2280 form factor M.2 NVMe M-key SSD
SSD  Transfer Protocol: Supports PCIe 5.0/4.0/3.0 (⚠️Note: The actual speed of PCIe 5.0 drives is limited by the bandwidth of the Thunderbolt 5 port)

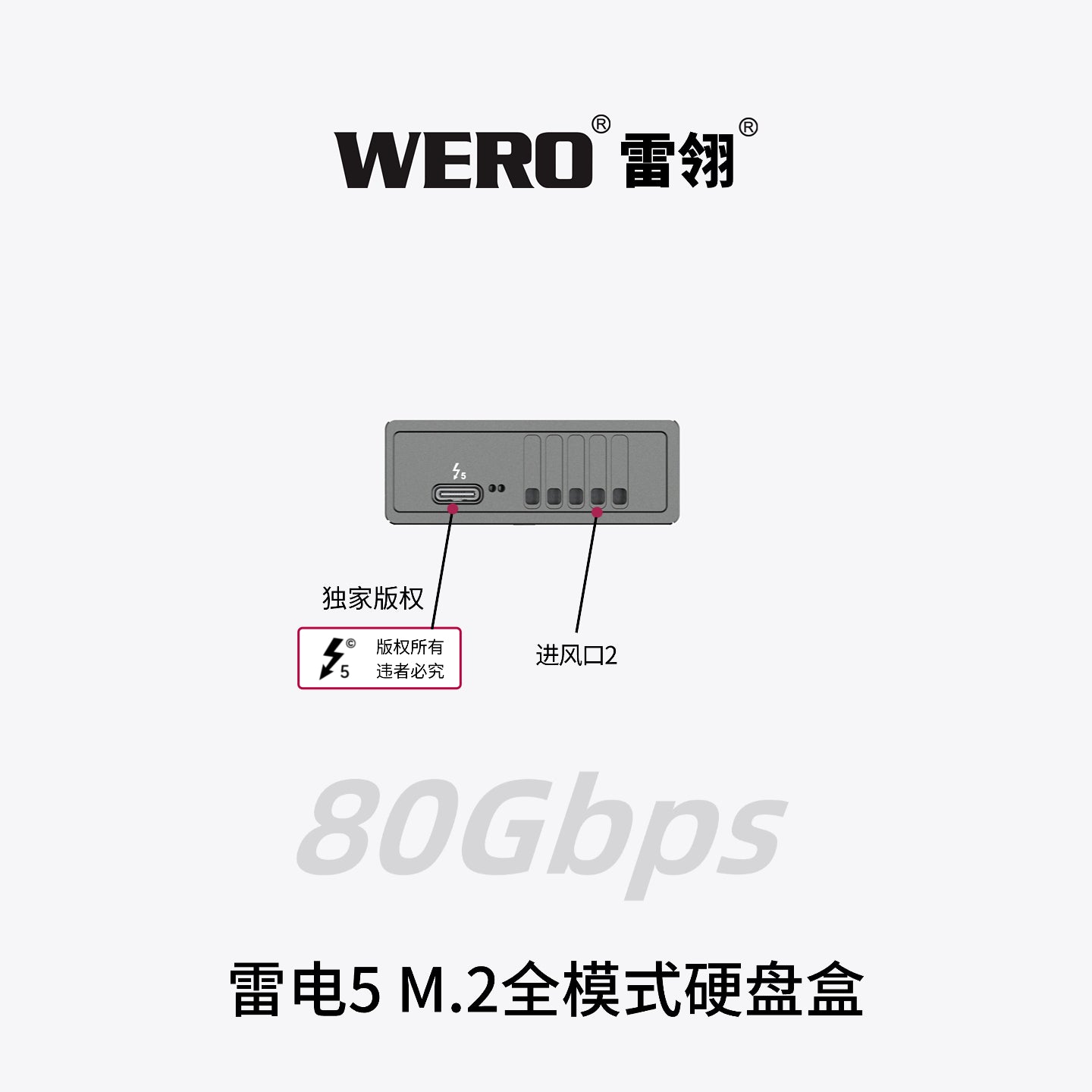

Input Interface: USB-C Interface
Transfer Speed: 80/40/20/10/5/0.48 Gbps
Cable：WERO Thunderbolt 5 Cable, an Intel officially certified cable. Do not replace it with a non-officially certified cable (⚠️note: all cables claiming to have a certified chip are fake certified cables)! This will affect stability.

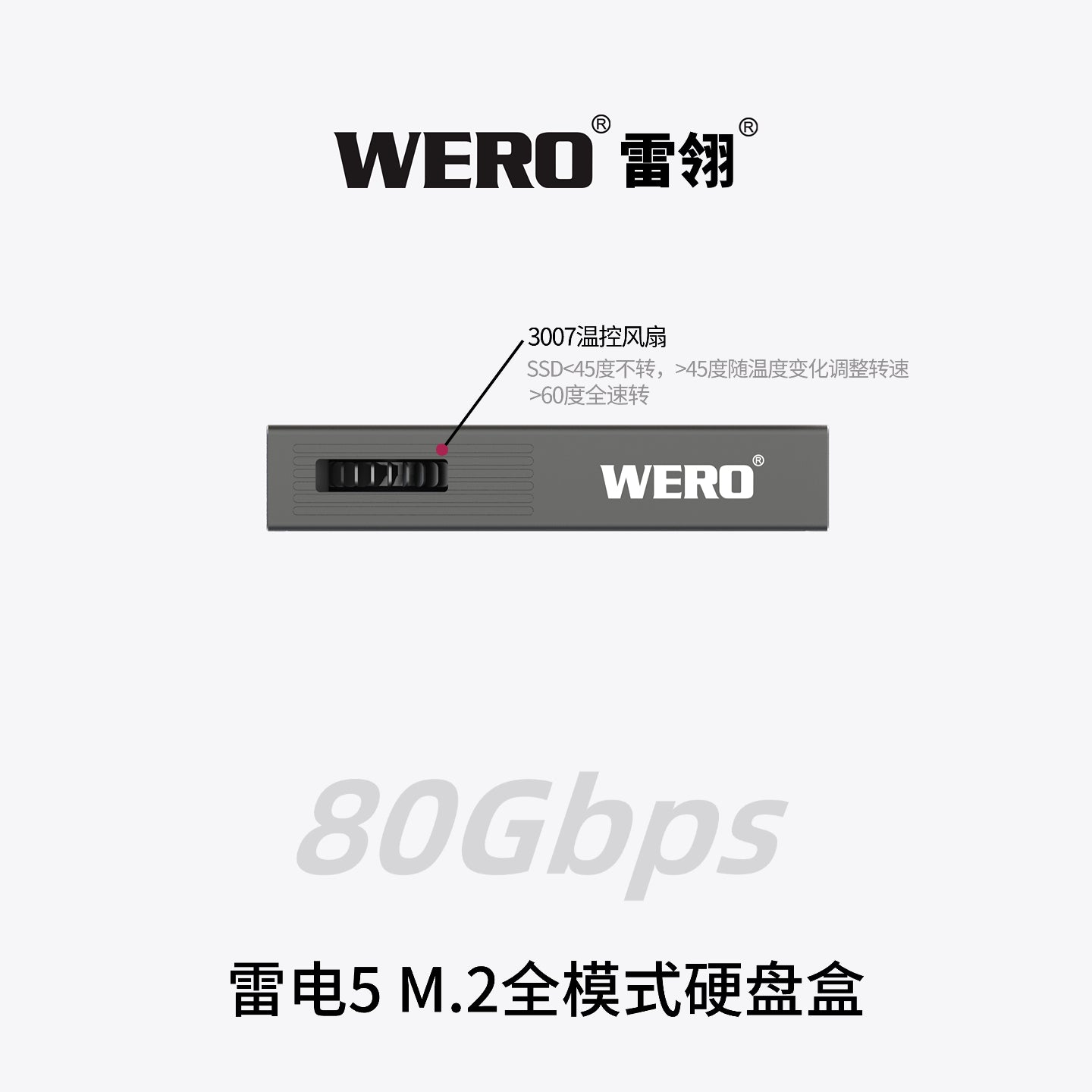

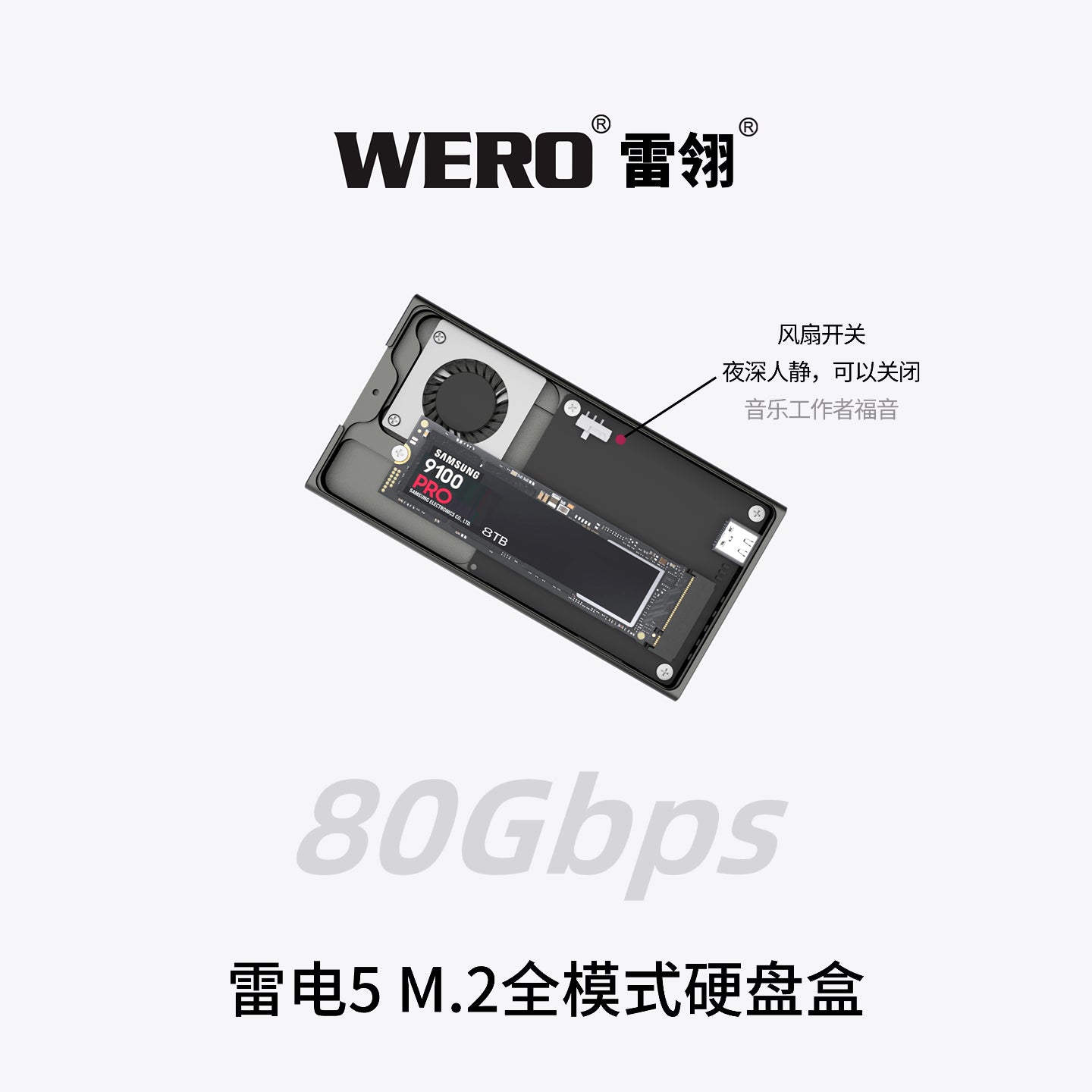

Active Cooling: Temperature-controlled fan. It starts operating at 45°C, runs at full speed when the temperature exceeds 60°C, and adjusts speed steplessly according to temperature changes in between. Equipped with an independent on/off switch for complete quiet operation!
Dimensions: 103mm (Length) × 54mm (Width) × 19.4mm (Height)
Weight: 163g (including cable)
Power Supply: No external power supply required (Bus-Powered)
System Support: MacOS (15.2 or later), Windows 11 (24H2 or later)
Speed Testing Tools: For Apple Mac, use AmorphousDiskMark;
                                             for Windows 10/11, use CrystalDiskMark 8.01.
Mac Compatibility:
Thunderbolt 5: Up to 7000 MB/s (7000 megabytes per second)
Thunderbolt 4: Up to 3800 MB/s (3800 megabytes per second)
Thunderbolt 3: Up to 2800 MB/s (2800 megabytes per second)
Windows Compatibility:
Thunderbolt 5: Up to 6155 MB/s (6155 megabytes per second)
Thunderbolt 4/USB4: Up to 3800 MB/s (3800 megabytes per second)
⚠️ Important Notes:
1.Thunderbolt 5 requires Windows 11 24H2 or later for stable operation.
2.For Windows 10 Thunderbolt 4 PCs, update to Windows 11 24H2 or later for optimal stability.
3.For Windows PCs with Thunderbolt 3 JHL7540 controller (incompatible with this product): Most issues are fixable via official Thunderbolt firmware updates; a few devices with no updates remain incompatible (no solutions).
4.Most Windows PCs with Thunderbolt 3 JHL6540 controller don’t support this product—launched nearly 10 years ago, official firmware updates are unavailable for most.
USB3.2 GEN2X2 (20 Gbps): 2000 M/s.
⚠️ Only compatible with ports integrated on the computer motherboard; front-panel chassis ports or external ports require an auxiliary power supply for use.
USB3.2 GEN2 (10 Gbps): 1000 M/s
USB3.2 GEN1 (5 Gbps): 450 M/s
USB2.0 (480 Mbps): 38 M/s
