Short answer: A four-bay U.2 SSD enclosure over Thunderbolt 5 gives you up to 7,000 MB/s on Mac and 6,155 MB/s on Windows from a single cable, with four hot-swappable enterprise-grade drive bays that accept 7.0mm, 9.5mm and 15mm U.2/U.3 NVMe SSDs — per-drive capacities of 245TB and beyond. It is the difference between storage that survives an 8K timeline and storage that merely passes a benchmark. But it is a serious purchase: the enclosure ships without drives, your host must run macOS 15.2+ or Windows 11 24H2+, and most Windows Thunderbolt 3 machines will not work at all. This guide covers what U.2 actually buys you, how to plan four bays, and every compatibility rule worth checking before you order.
Why U.2 — and why not just four M.2 drives?
It is a fair question, because four M.2 bays in a Thunderbolt 5 enclosure cost less. The answer is not peak speed — it is what happens after the first thirty seconds, and what happens over three years.
| Factor | M.2 NVMe (2-inch stick) | U.2 / U.3 NVMe (2.5-inch) |
|---|---|---|
| Peak sequential speed | Comparable over the same bus | Comparable over the same bus |
| Sustained write under long jobs | Consumer drives throttle hard once cache fills | Enterprise-class steady-state writes |
| Maximum capacity per drive | Typically 2-8TB | Tens of TB today, 245TB+ supported here |
| Thermal headroom | Dense sticks, tight spacing, throttle-prone | Larger surface area, 15mm drives, dedicated zoned cooling |
| Endurance (TBW) | Consumer ratings | Datacenter-grade endurance |
| Cost per TB | Lower for small capacities | Better at scale, worse at small scale |
The pattern that matters: benchmarks are won in the first thirty seconds; productions are won in hour three. When you are ingesting a terabyte of camera originals, rendering a 90-minute timeline, or letting a backup run overnight, sustained throughput and endurance are the whole game — and that is exactly where enterprise U.2 hardware is built to live.

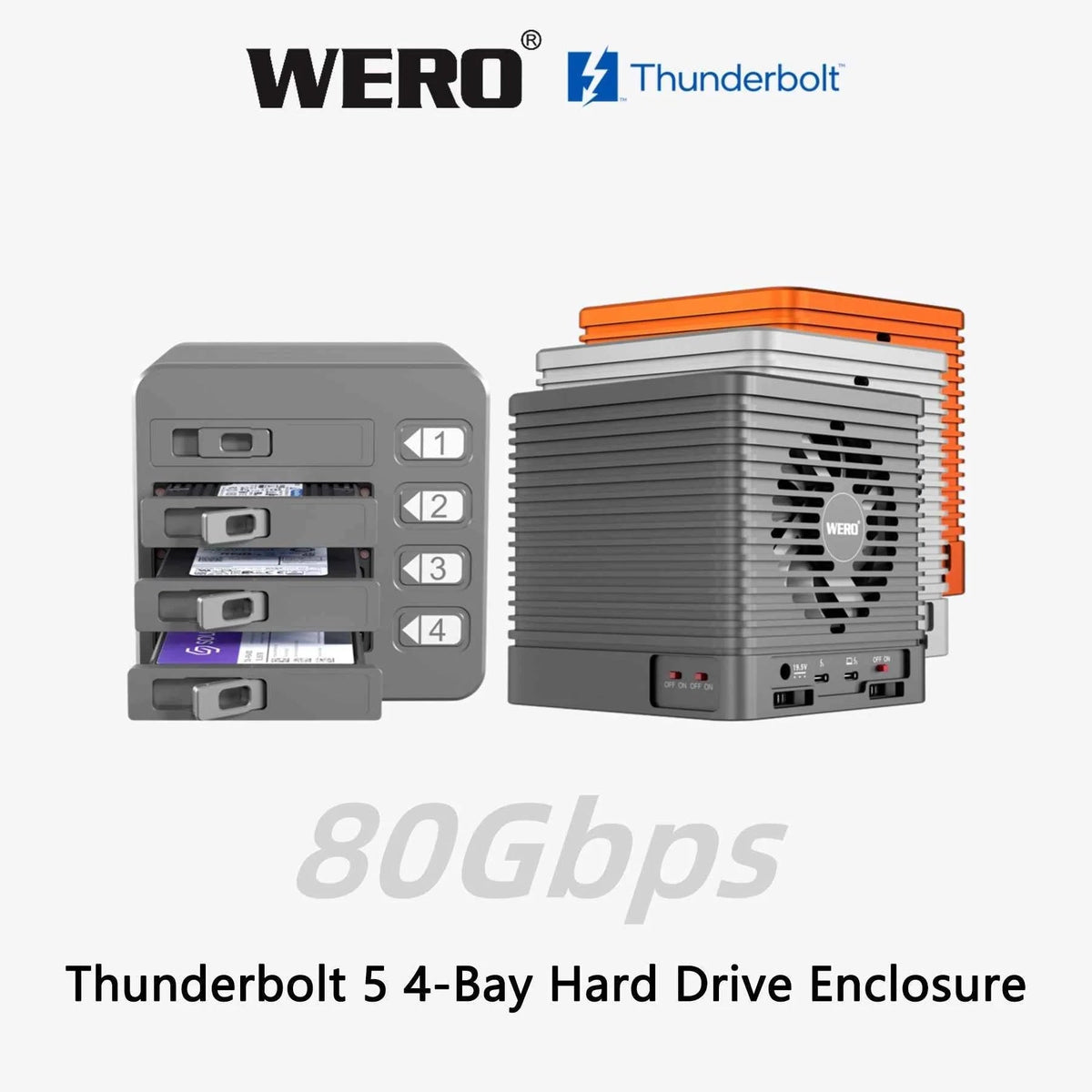

The enclosure in question — the WERO CUBE Series 4XU2-V80 — pairs an Intel JHL9480-B2 Thunderbolt 5 controller with a PCIe 4.0 x4 hub, and accepts U.2 and U.3 drives in three thicknesses (7.0mm, 9.5mm, 15mm) across PCIe 5.0, 4.0 and 3.0 generations, so you can mix drives as your budget and needs evolve.
The speed table, and what each number is for
| Connection | Mac (max read) | Windows (max read) | Realistic use |
|---|---|---|---|
| Thunderbolt 5 (80Gbps) | Up to 7,000 MB/s | Up to 6,155 MB/s | 8K/4K multistream editing off the array |
| Thunderbolt 4 (40Gbps) | Up to 3,800 MB/s | Up to 3,800 MB/s | 4K multistream, fast offload |
| Thunderbolt 3 (40Gbps) | Up to 2,800 MB/s | — | Legacy Macs only — see compatibility |
Two things to internalize. First, the bus is the ceiling: PCIe 5.0 drives will not hit their native 12,000+ MB/s here, because Thunderbolt 5 caps the tunnel — that is physics, not a defect. Second, these are maximum sequential read figures measured with AmorphousDiskMark on Mac and CrystalDiskMark 8.01 on Windows. Blackmagic Disk Speed Test reports noticeably lower numbers on this class of hardware due to different testing standards — if your benchmark does not match the spec sheet, check which tool you used before assuming a fault.
Four bays, four jobs: how professionals actually fill them
The naive approach is one giant volume. The professional approach is to give each bay a role:
- Bay 1 — Working drive. Active projects, cached media, the timeline you are cutting today.
- Bay 2 — Mirror / backup. Same-session copies of camera originals and project files, on separate media from the working drive.
- Bay 3 — Archive. Completed projects kept online and instantly searchable, instead of buried on shelves of cold drives.
- Bay 4 — Scratch / shared. Exports, render targets, or space for a second operator on set.
With today's high-capacity enterprise drives, four bays can host hundreds of terabytes — the kind of archive that used to demand a rack-mounted NAS, now sitting next to your monitor at 7,000 MB/s. A note on striping: this enclosure runs drives on a PCIe 4.0 x4 hub and the product documentation does not promise hardware RAID. If your workflow requires a striped or redundant single volume rather than independent bays, confirm RAID and volume management support with WERO before you buy — do not assume it.
Thermal design: three zones, one very quiet fan curve
Four enterprise NVMe drives under sustained load generate serious heat, and heat is what turns a fast array into a throttling one. The CUBE Series splits the chassis into three thermal zones with independent control: a Noctua A9014 main fan plus two 3007 auxiliary fans, each governing its own zone.
- At power-on: all fans run at full speed for 5-10 seconds as a self-test, then stop. Normal behavior, not a fault.
- Below 45°C: fans idle. Silent operation for light work and browsing the archive.
- From 45°C: low-speed operation begins.
- Above 60°C: full speed — exactly when a long render or mass offload is running and cooling matters most.
- In between: stepless speed regulation following actual temperature.
For a desk in a shared studio or a quiet edit suite, the relevant number is not the CFM of a fan — it is that the array stays inaudible until the moment it genuinely needs airflow.
One cable, and then a second device
The upstream Thunderbolt 5 port carries data and 15W of PD reverse charging to your laptop. The downstream port is a full-featured Thunderbolt 5 port with 15W PD — which means you can daisy-chain additional enclosures, a docking station or a display, all downstream of this unit. One cable from your Mac or PC becomes the trunk of the whole workstation: storage, connectivity and charging in series. For anyone whose desk currently looks like a nest of individual drive cables, this is the quiet feature that changes the daily experience most.
The unit measures 133 × 133 × 138mm and weighs about 2.4kg, running from its own 19.5V/135W power adapter — this is desktop storage, not pocket storage. (Use only the supplied adapter, and never substitute one rated above 20V.)
Compatibility: read this before spending the money
This is a $1,529 enclosure before drives, and drives will cost roughly as much as the enclosure again. Ten minutes of checking saves an expensive return:
| Your system | Status |
|---|---|
| macOS 15.2 or later | Supported — full speed on Thunderbolt 5 Macs |
| Windows 11 24H2 or later | Supported — required for stable Thunderbolt 5 operation |
| Windows 10 on a Thunderbolt 4 PC | Not fully incompatible, but the connection will be unstable — update to Windows 11 24H2+ |
| Windows Thunderbolt 3 PCs | Mostly incompatible unless the manufacturer released Thunderbolt firmware updates — and most have not |
Three more rules that decide whether this works as advertised:
- Drives are not included. You need U.2 or U.3 NVMe SSDs — the bays take 7.0mm, 9.5mm and 15mm form factors. M.2 sticks are not natively supported; adapting them requires a U.2 carrier and is not an officially supported configuration, so confirm with support first.
- The cable matters. Use the included WERO Thunderbolt 5 cable, which is Intel officially certified. Do not substitute uncertified cables — and treat any cable marketed as containing a "certification chip" as counterfeit by definition.
- Match the drive class to the job. The enclosure supports PCIe 5.0/4.0/3.0, but actual PCIe 5.0 drive speed is limited by the Thunderbolt 5 port bandwidth. Buying top-generation drives for peak numbers here is wasted money — buy for sustained write performance and endurance instead.
Frequently asked questions
Is a U.2 SSD enclosure worth it over an M.2 enclosure?
If your work involves sustained writes — long ingests, overnight backups, all-day 8K editing — yes. U.2 enterprise drives hold their write speed after the cache fills and carry datacenter-grade endurance ratings. If you mostly move documents and occasional project folders, an M.2 enclosure is the more economical choice.
Can I use M.2 NVMe drives in it?
The bays are designed for U.2/U.3 drives in 7.0mm, 9.5mm and 15mm form factors. M.2 sticks are not natively supported — they would require a U.2 carrier adapter, which is not an officially supported configuration. Confirm with support before attempting it.
Does it support RAID?
The four bays operate through a PCIe 4.0 x4 hub, and the documentation does not promise hardware RAID. Plan around independent bays (working + mirror + archive + scratch), and confirm RAID or combined-volume support with WERO before designing a workflow that depends on it.
Will it work with my Thunderbolt 4 or Thunderbolt 3 computer?
Thunderbolt 4: yes, at up to 3,800 MB/s. Thunderbolt 3 Macs: yes, at up to 2,800 MB/s. Windows Thunderbolt 3 PCs: mostly incompatible unless the manufacturer released firmware updates — most have not. Windows 10 on Thunderbolt 4 machines connects but runs unstable; upgrade to Windows 11 24H2 or later.
Why does my benchmark show less than 7,000 MB/s?
Three usual reasons: you used Blackmagic Disk Speed Test, which reads low on this class of hardware (use AmorphousDiskMark on Mac or CrystalDiskMark 8.01 on Windows); you are measuring sustained writes rather than cached reads; or your host is Thunderbolt 4 or Thunderbolt 3, which caps the bus at 3,800 or 2,800 MB/s regardless of drives.
Can I hot-swap drives?
Yes — the four bays are hot-swappable, which is what makes the working / mirror / archive / scratch rotation practical without shutting down or rebooting.
What comes in the box?
The enclosure, an Intel-certified WERO Thunderbolt 5 cable, a 19.5V/135W power adapter and power cord. SSDs are not included — budget for them separately, and expect drives to cost roughly as much as the enclosure itself.
Four bays. 80Gbps. 7,000 MB/s. One cable.
The WERO CUBE Series 4-Bay U.2 SSD Enclosure (4XU2-V80) pairs an Intel JHL9480-B2 Thunderbolt 5 controller with four hot-swappable U.2/U.3 bays, Noctua three-zone cooling, 15W PD on both Thunderbolt ports, and daisy chaining for your whole workstation — shipped with an Intel-certified Thunderbolt 5 cable.
Building a multi-bay setup and not sure which drives to pair with it? Tell us your workload — editing, photography, audio or backup — and we will help you plan the bays before you spend a dollar on SSDs.
